Ignition Switch Continuity Check

Remove the instrument under cover. (Refer to INSTRUMENT PANEL ).
Disconnect the wiring connector from the ignition switch and connect an ohmmeter to the switch side connector.
Operate the ignition switch and check the continuity.

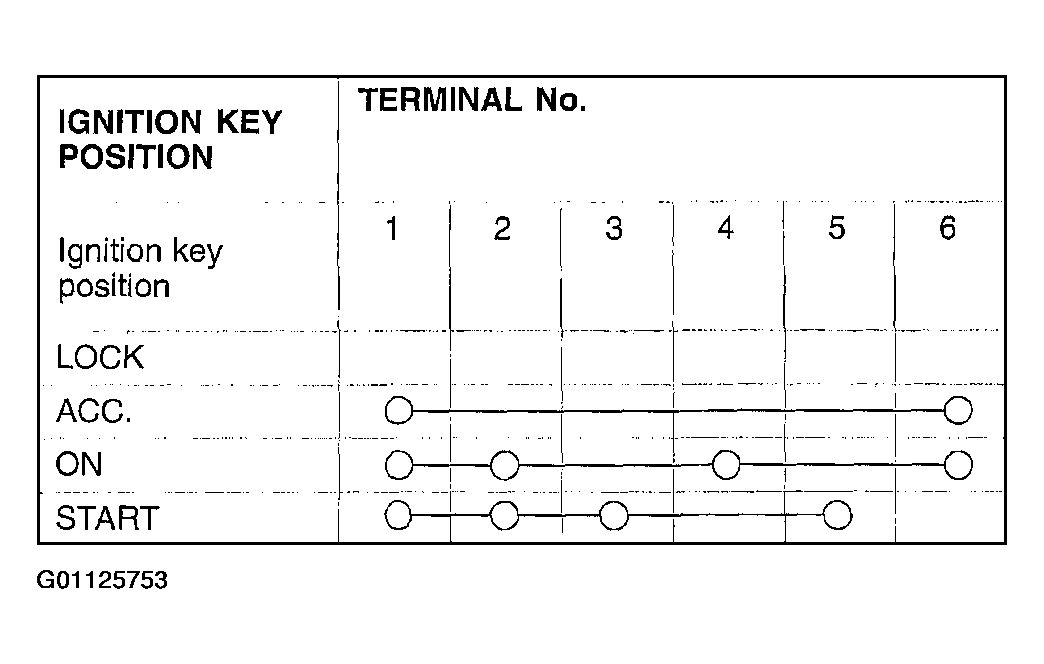

Fig 1: Checking Ignition Switch Continuity (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

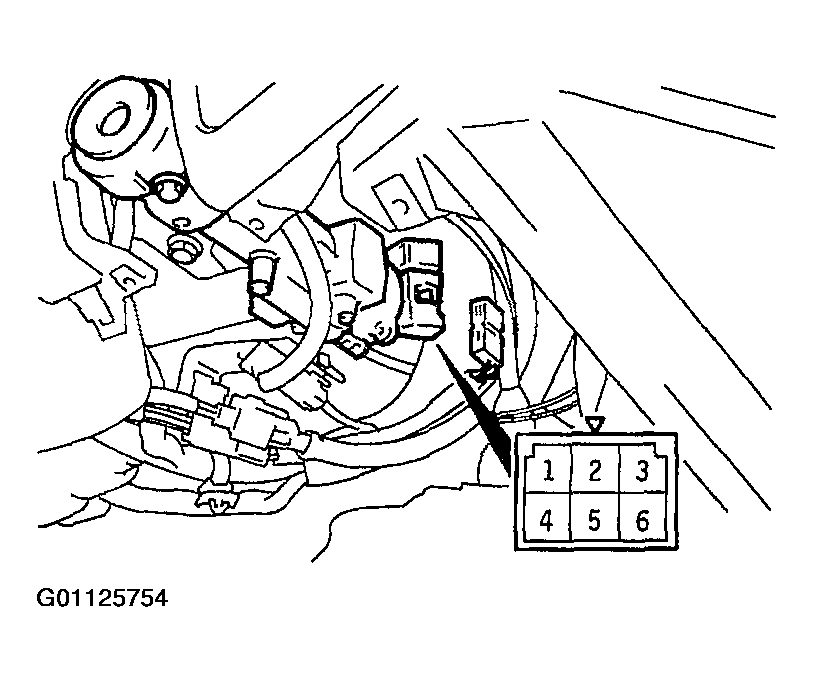

Fig 2: Checking Ignition Switch Continuity (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
