Home › Mitsubishi › 2004 › Diamante LS › Repair and Diagnosis › Electrical › Charging Systems › Battery › On-Vehicle Service › Battery Testing Procedure › Test Step

Test Step

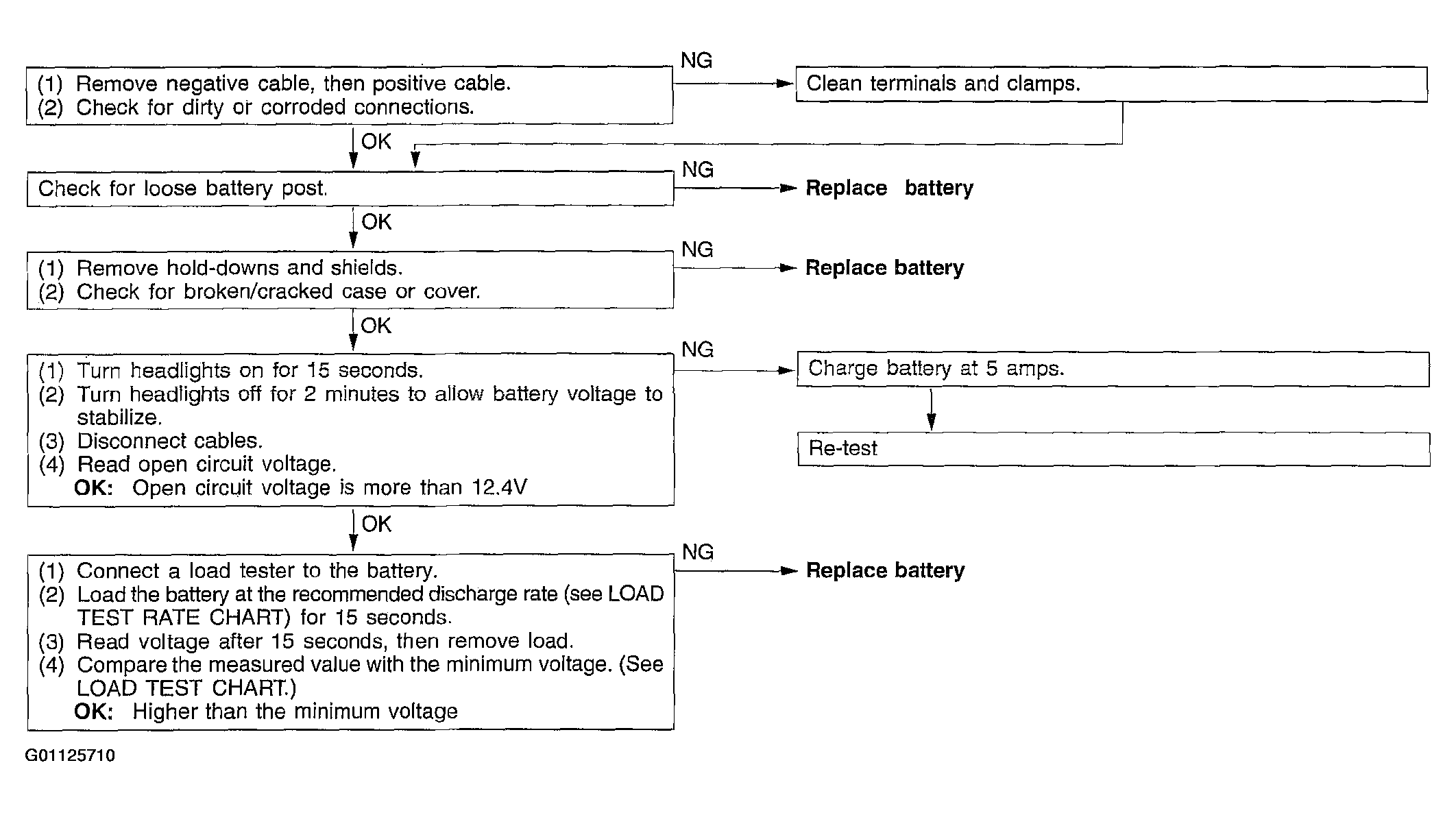

Fig 1: Battery Testing Procedure
G01125710Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
