Electrical Component Locator
›
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Control Units (1 Of 12)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Control Units (2 Of 12)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Control Units (3 Of 12)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 4: Control Units (4 Of 12)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 5: Control Units (5 Of 12)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 6: Control Units (6 Of 12)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 7: Control Units (7 Of 12)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 8: Control Units (8 Of 12)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 9: Control Units (9 Of 12)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 10: Control Units (10 Of 12)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 11: Control Units (11 Of 12)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 12: Control Units (12 Of 12)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 13: Left Side Of Dash
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 14: Fusible Link
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 15: Fuses
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 16: Junction Block
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

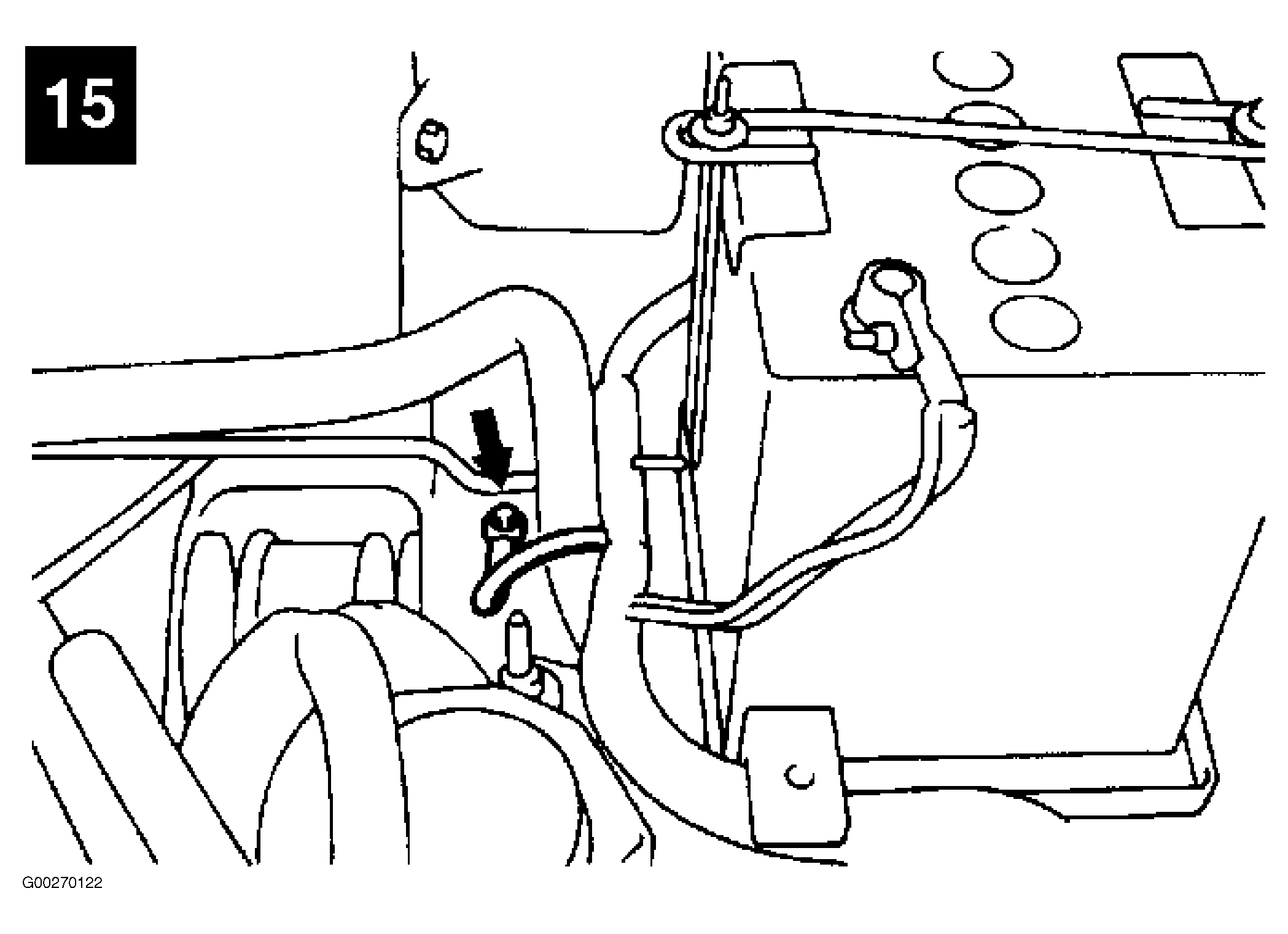

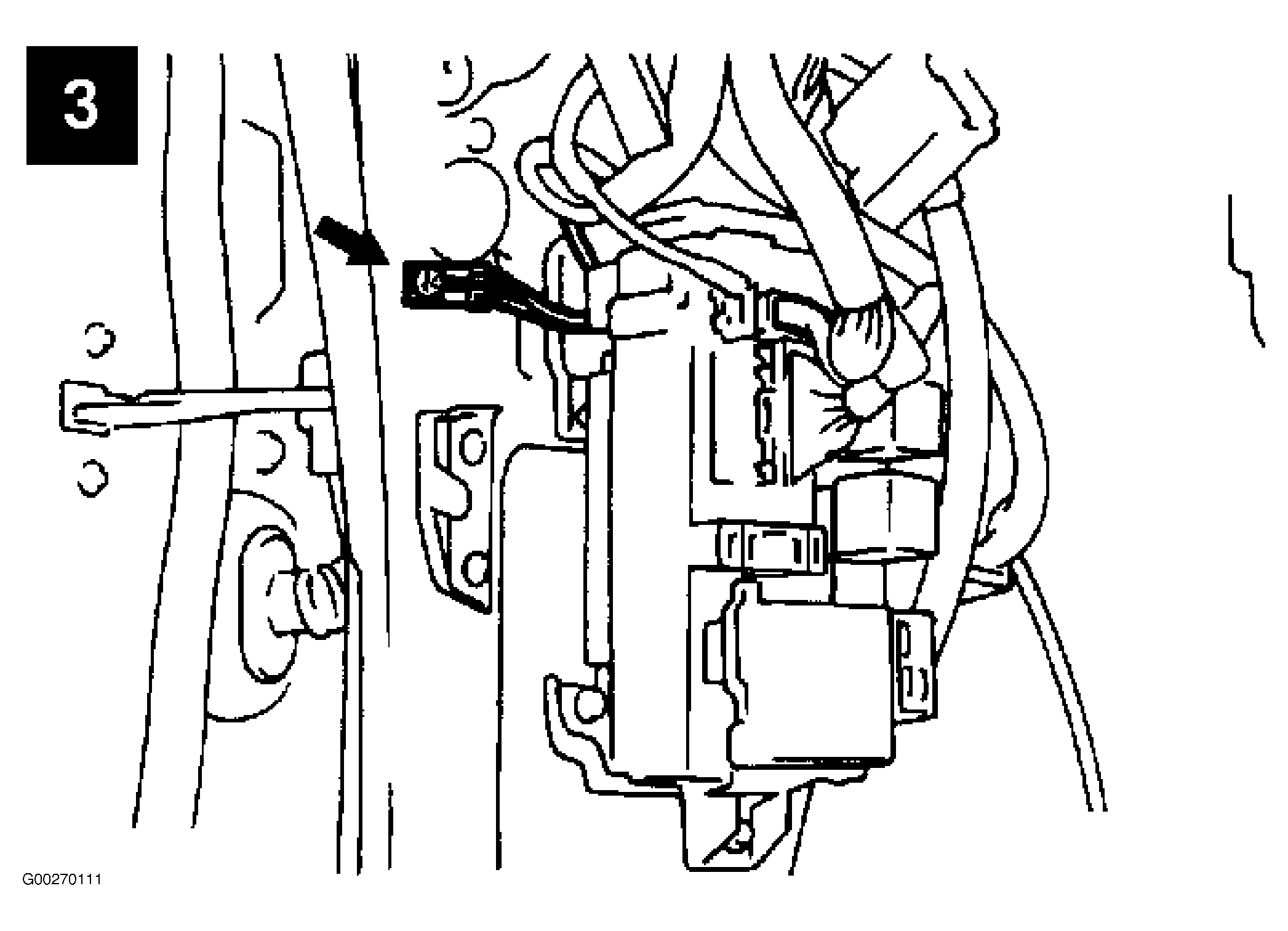

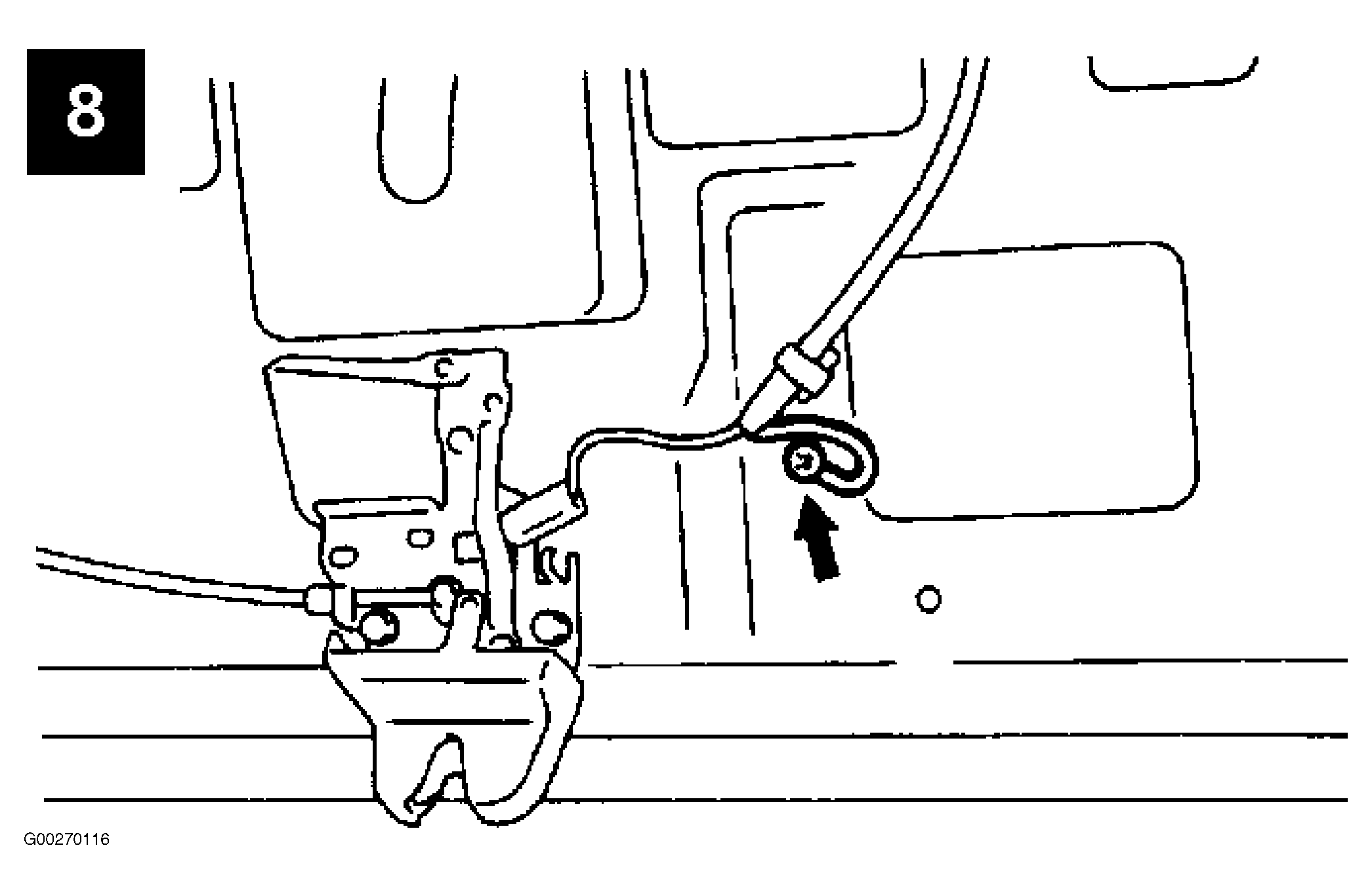

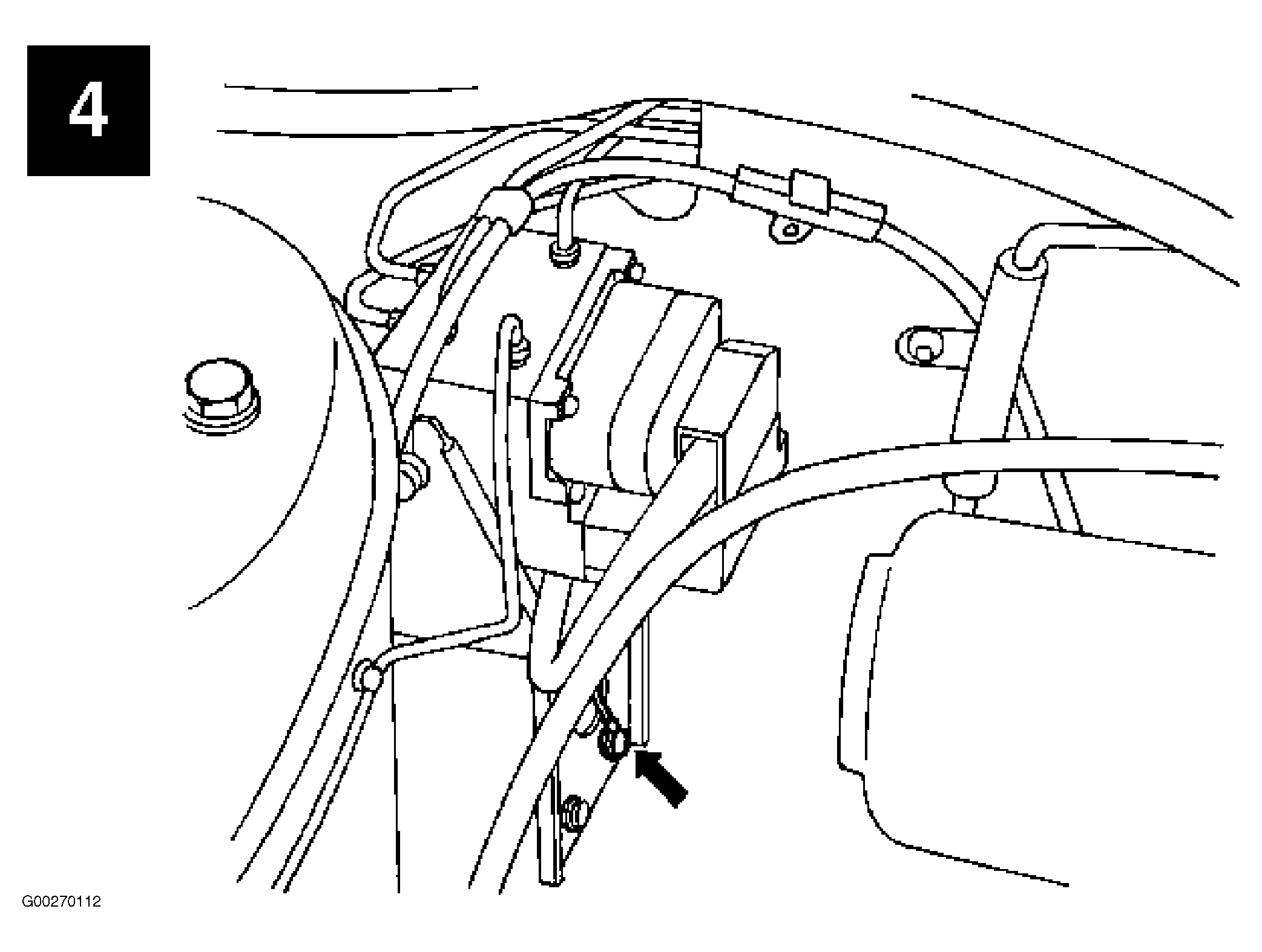

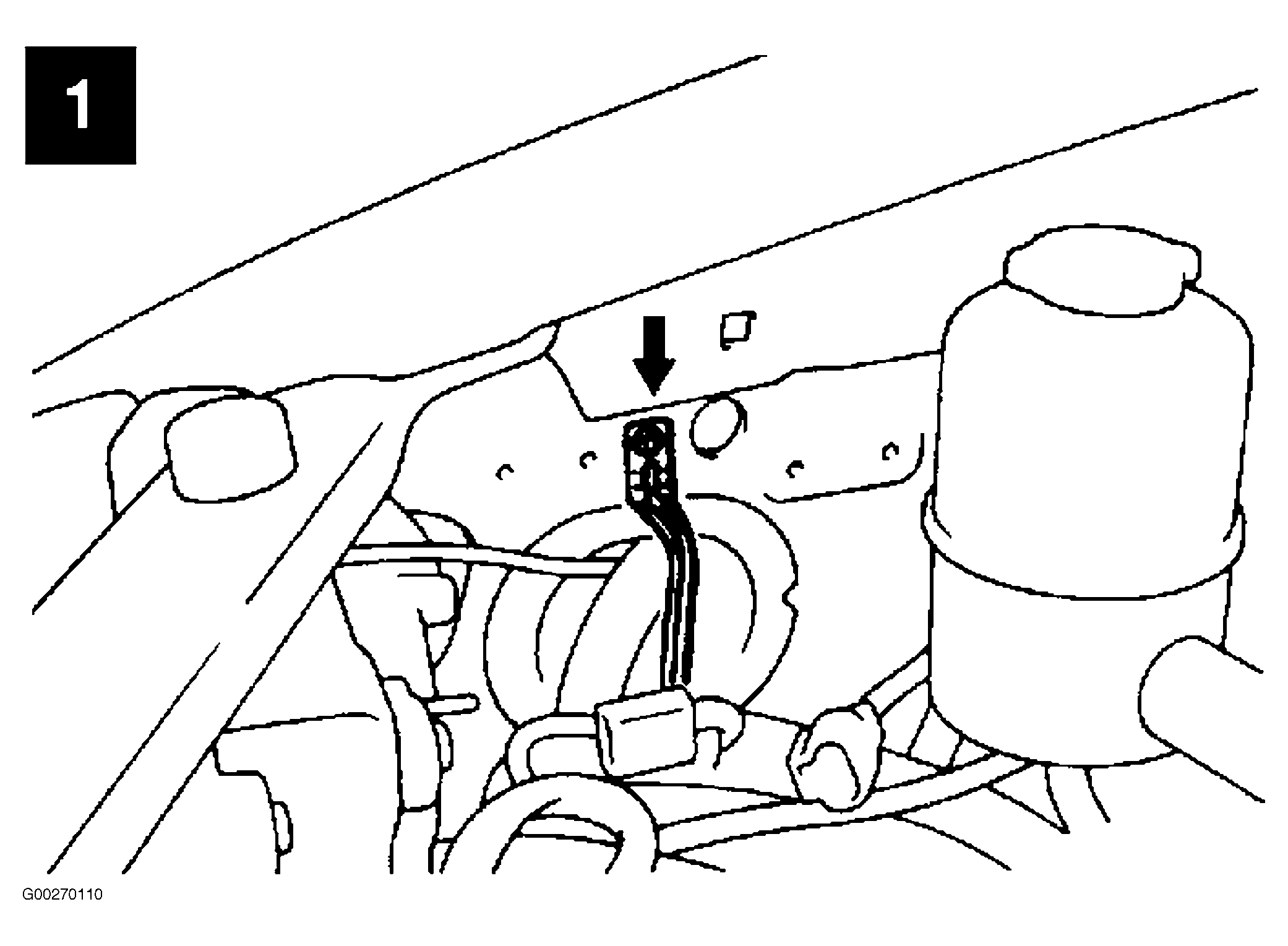

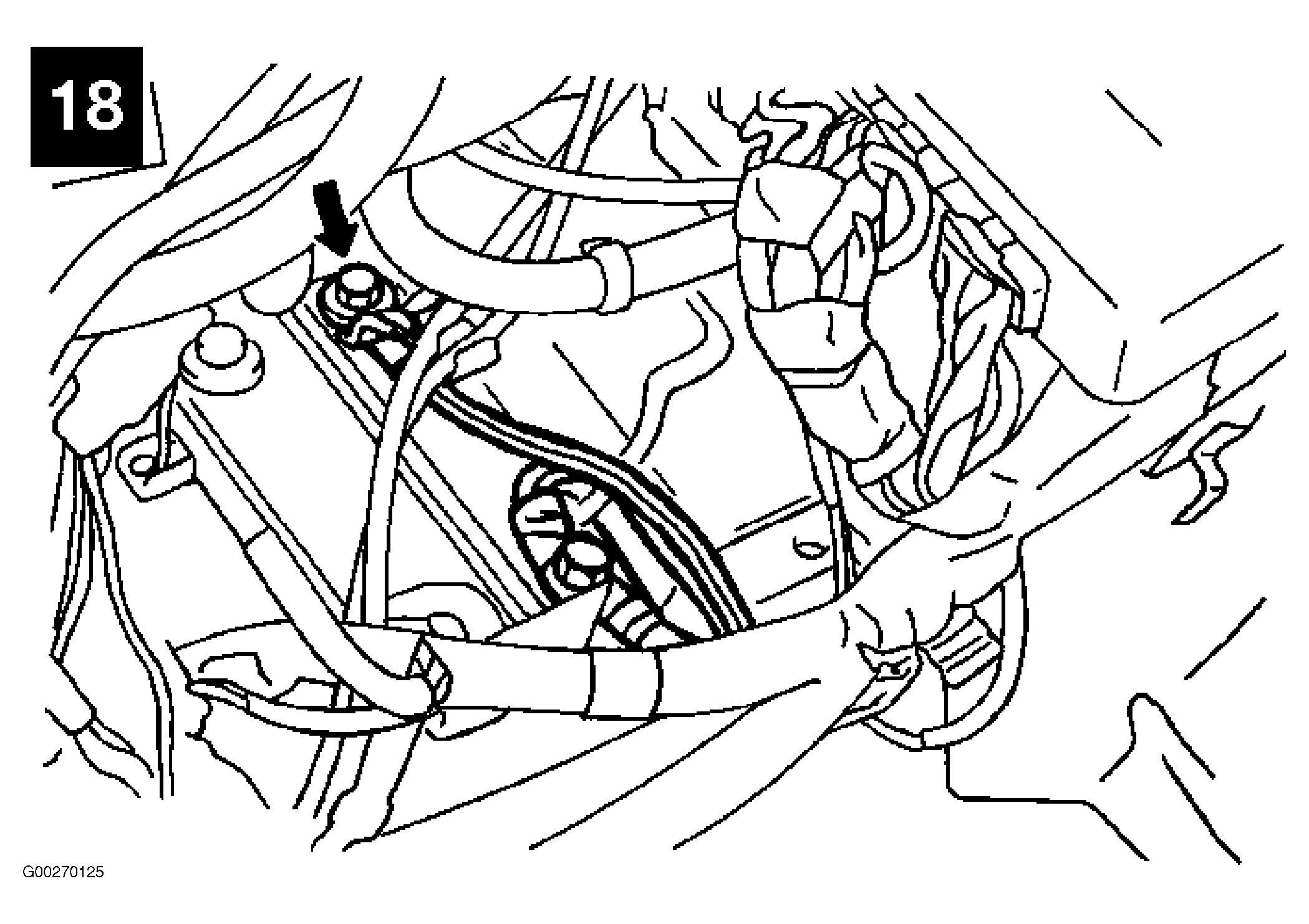

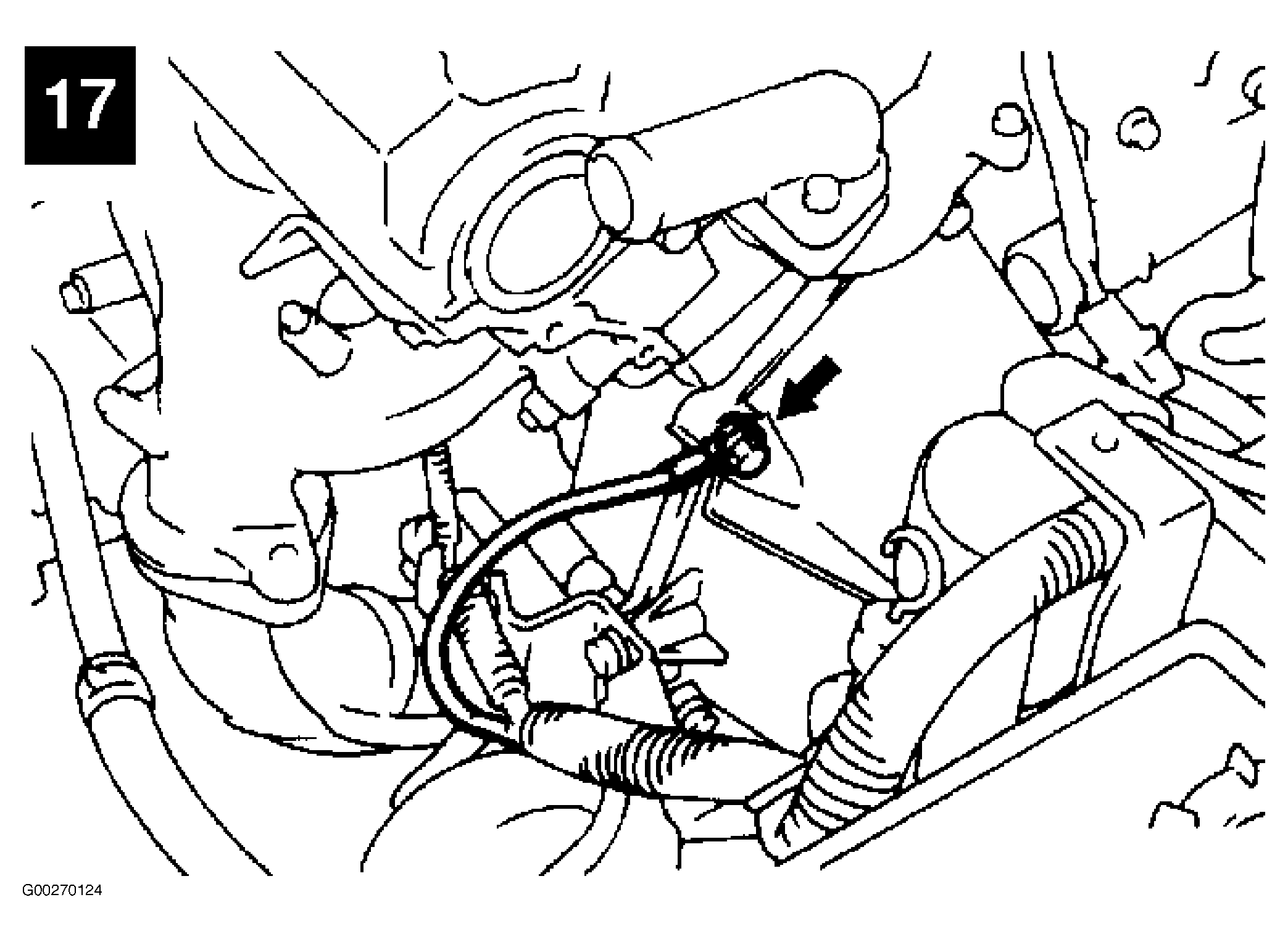

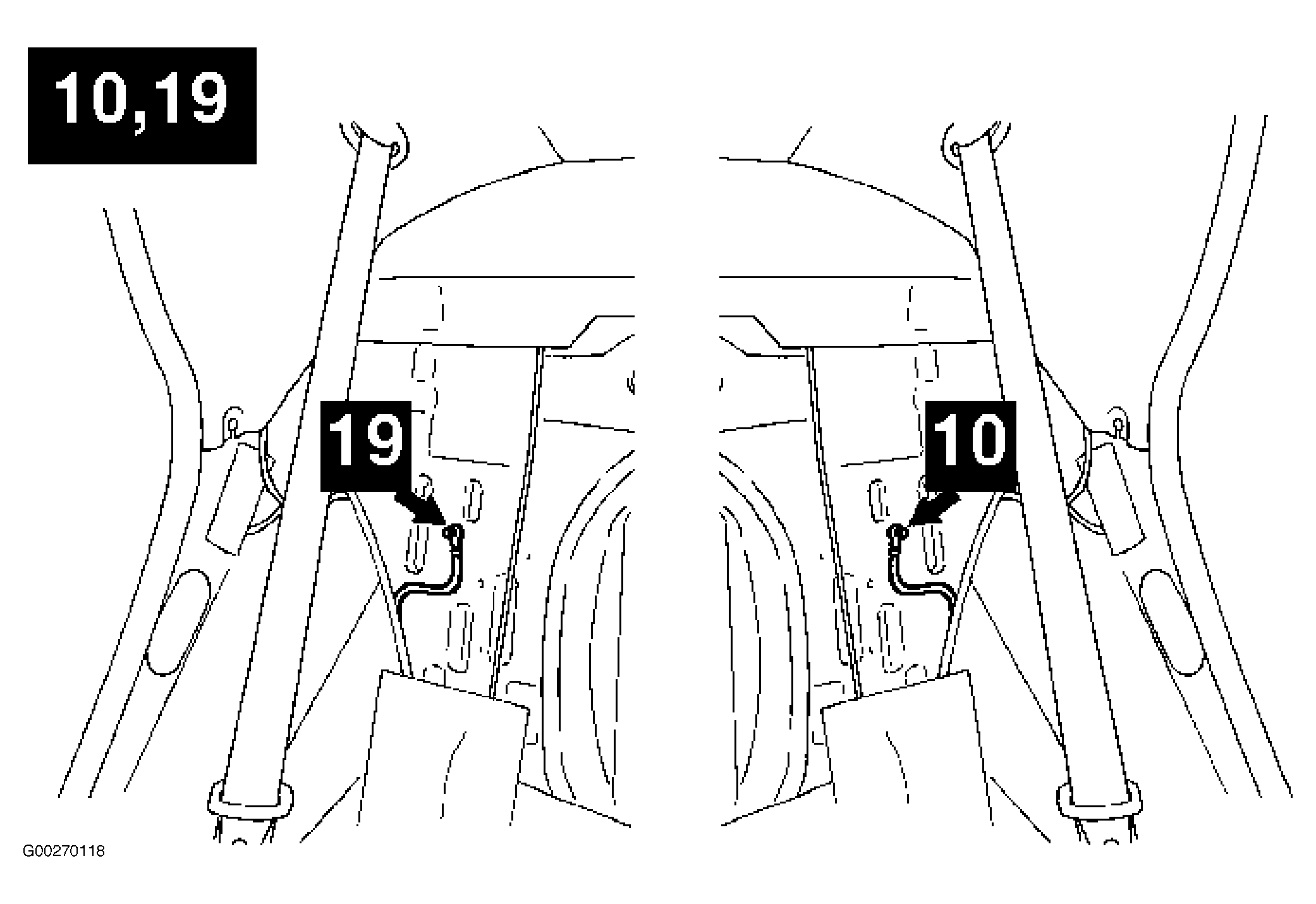

Fig 17: Grounding (1 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 18: Grounding (2 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 19: Grounding (3 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 20: Grounding (4 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

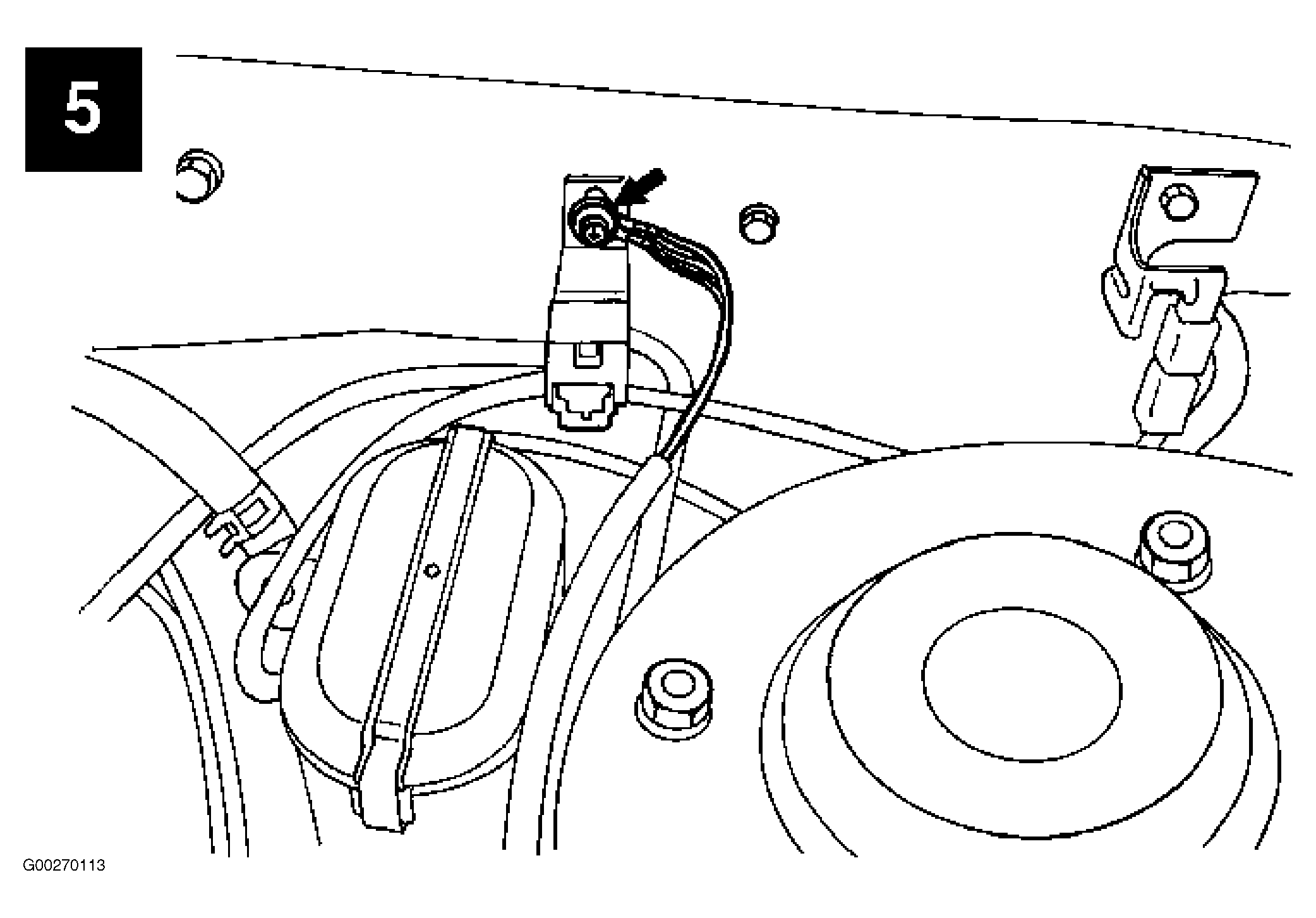

Fig 21: Grounding (5 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

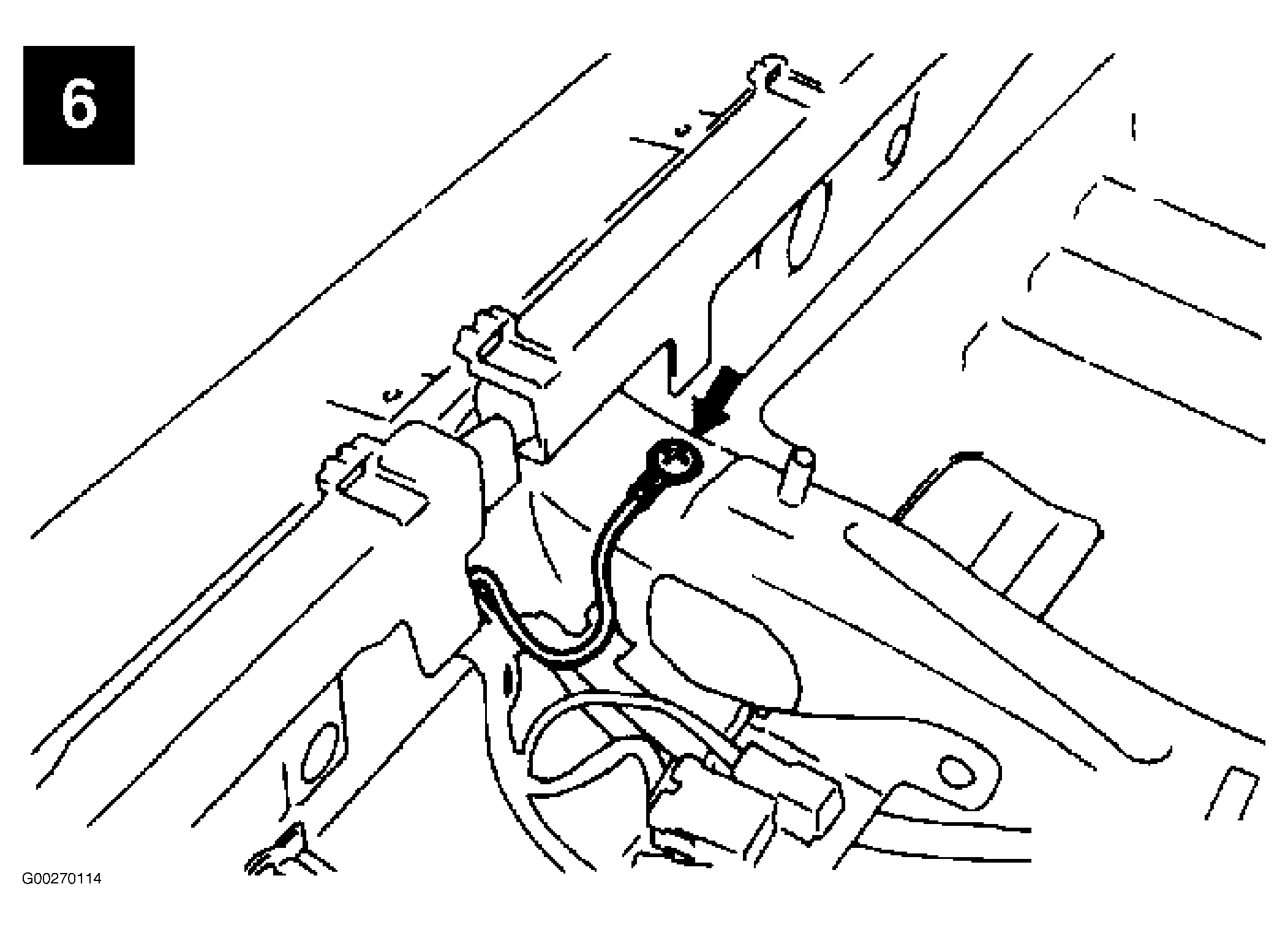

Fig 22: Grounding (6 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

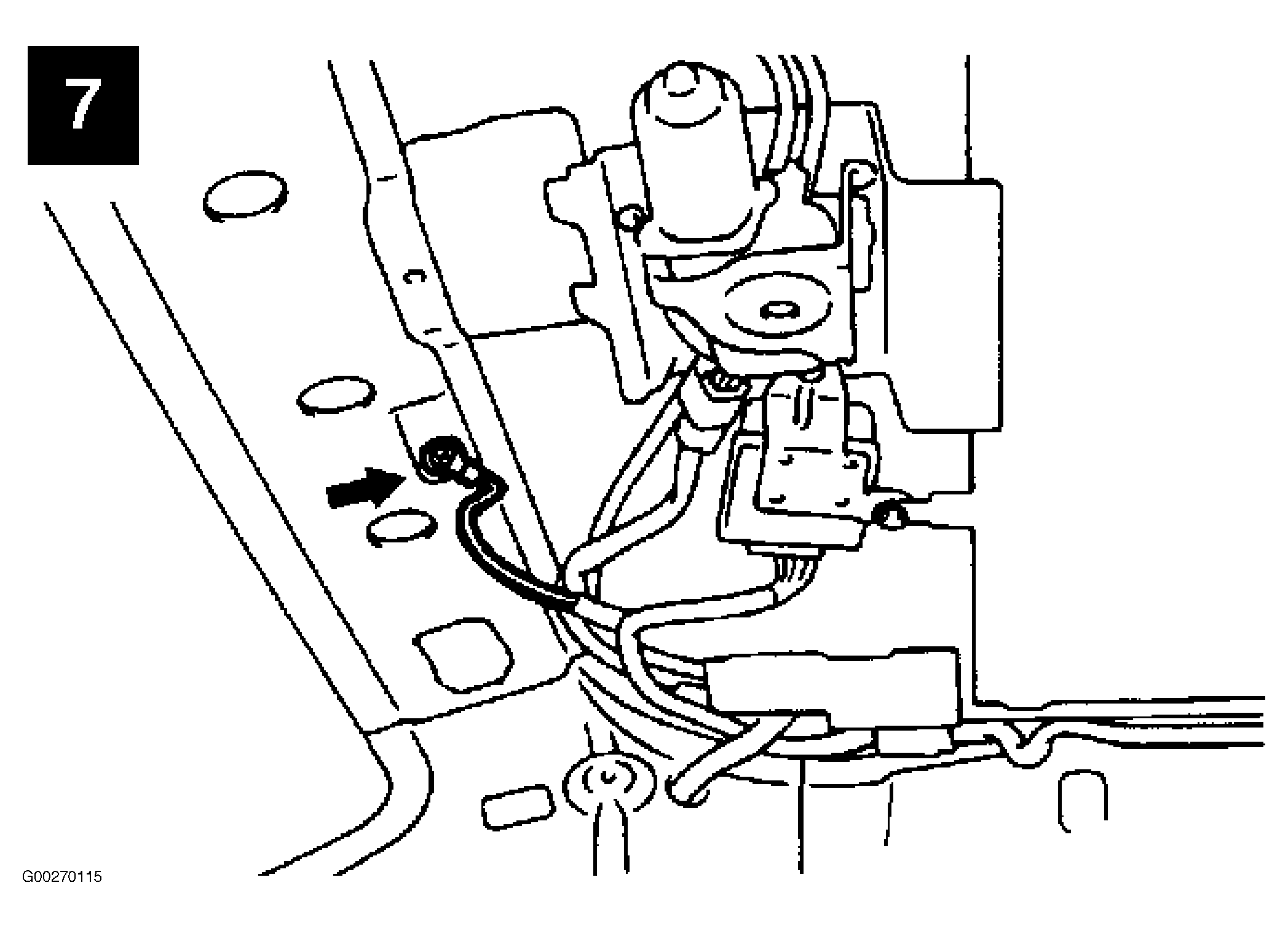

Fig 23: Grounding (7 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 24: Grounding (8 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

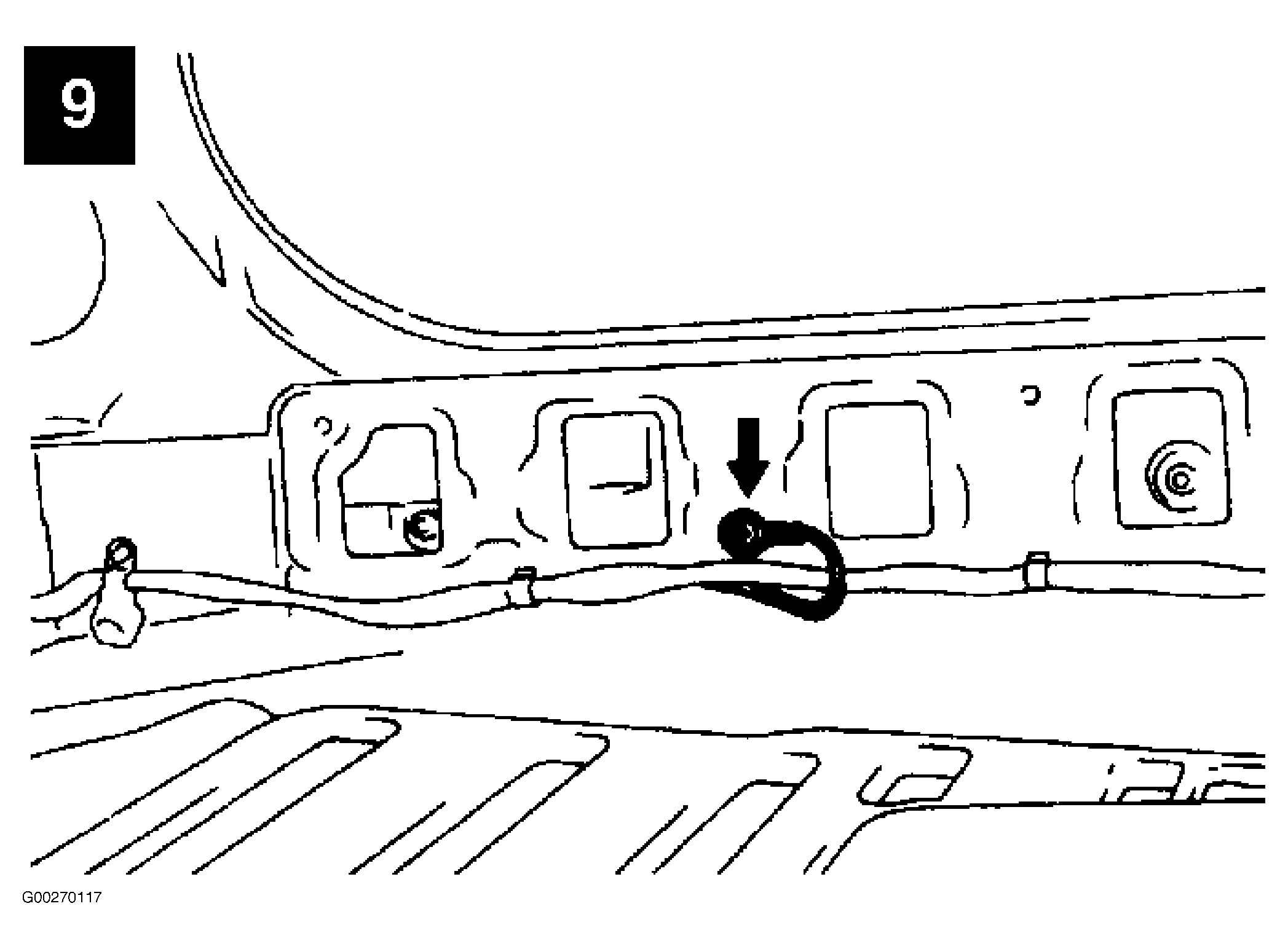

Fig 25: Grounding (9 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 26: Grounding (10 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

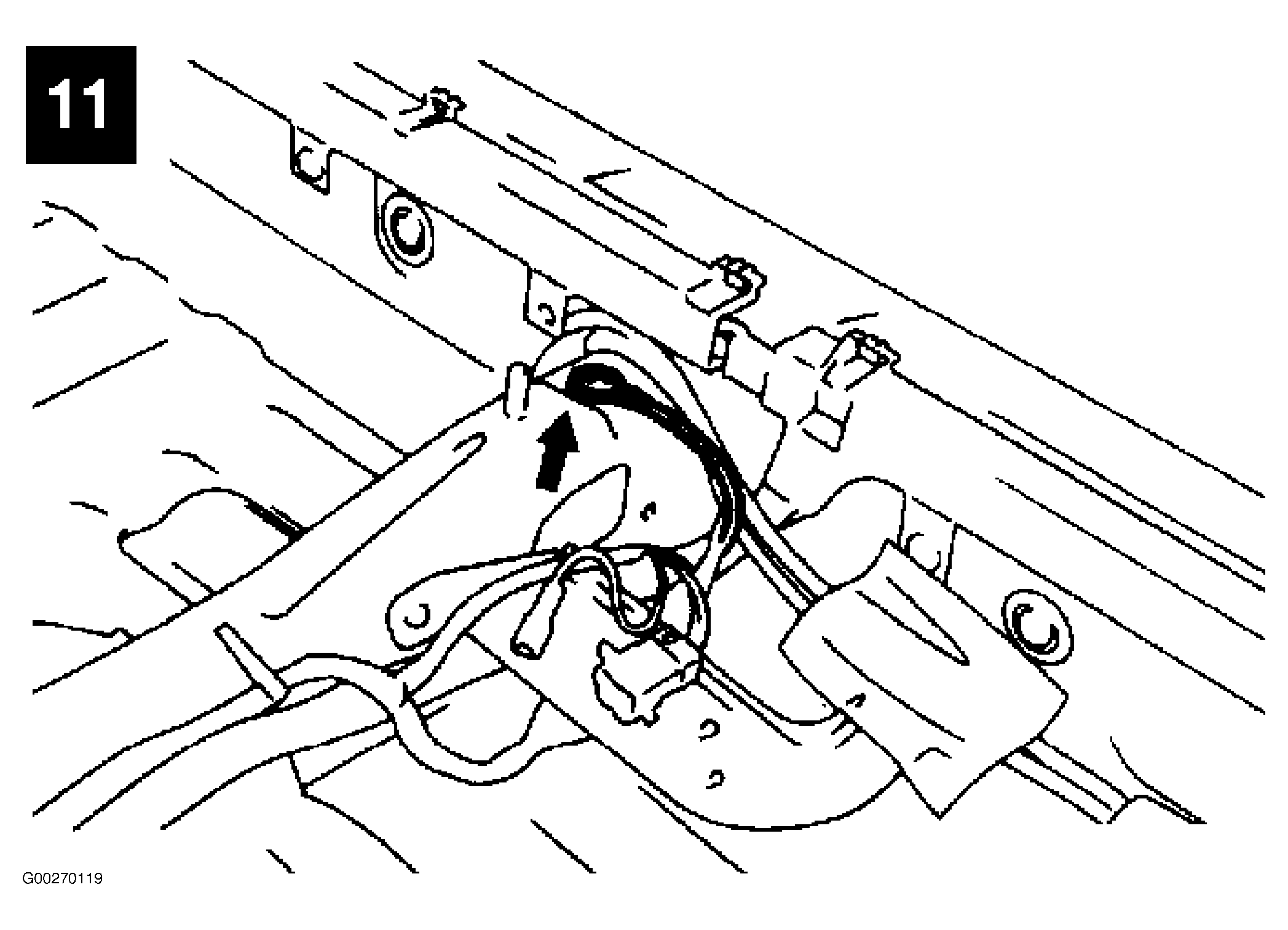

Fig 27: Grounding (11 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

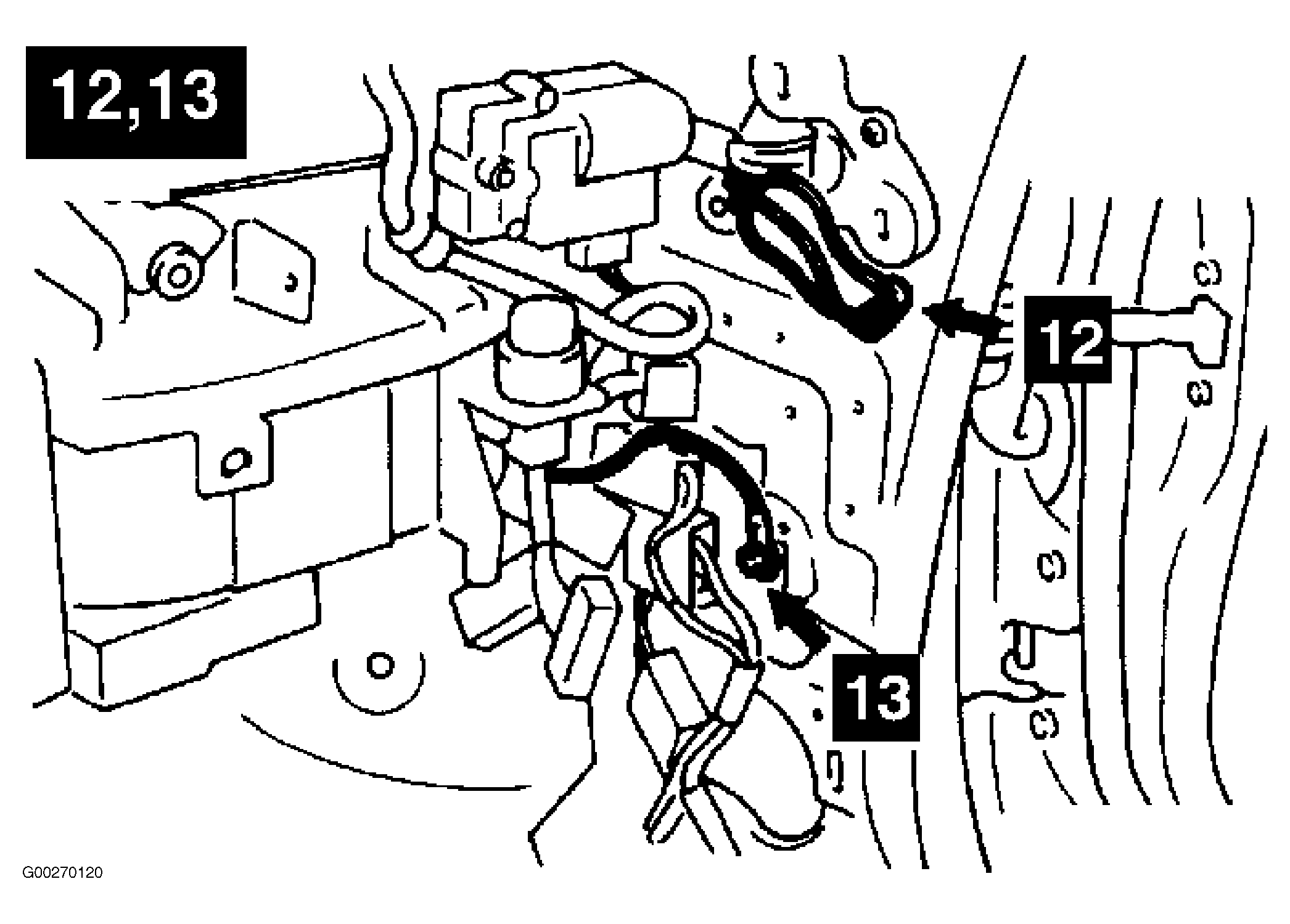

Fig 28: Grounding (12 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 29: Grounding (13 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

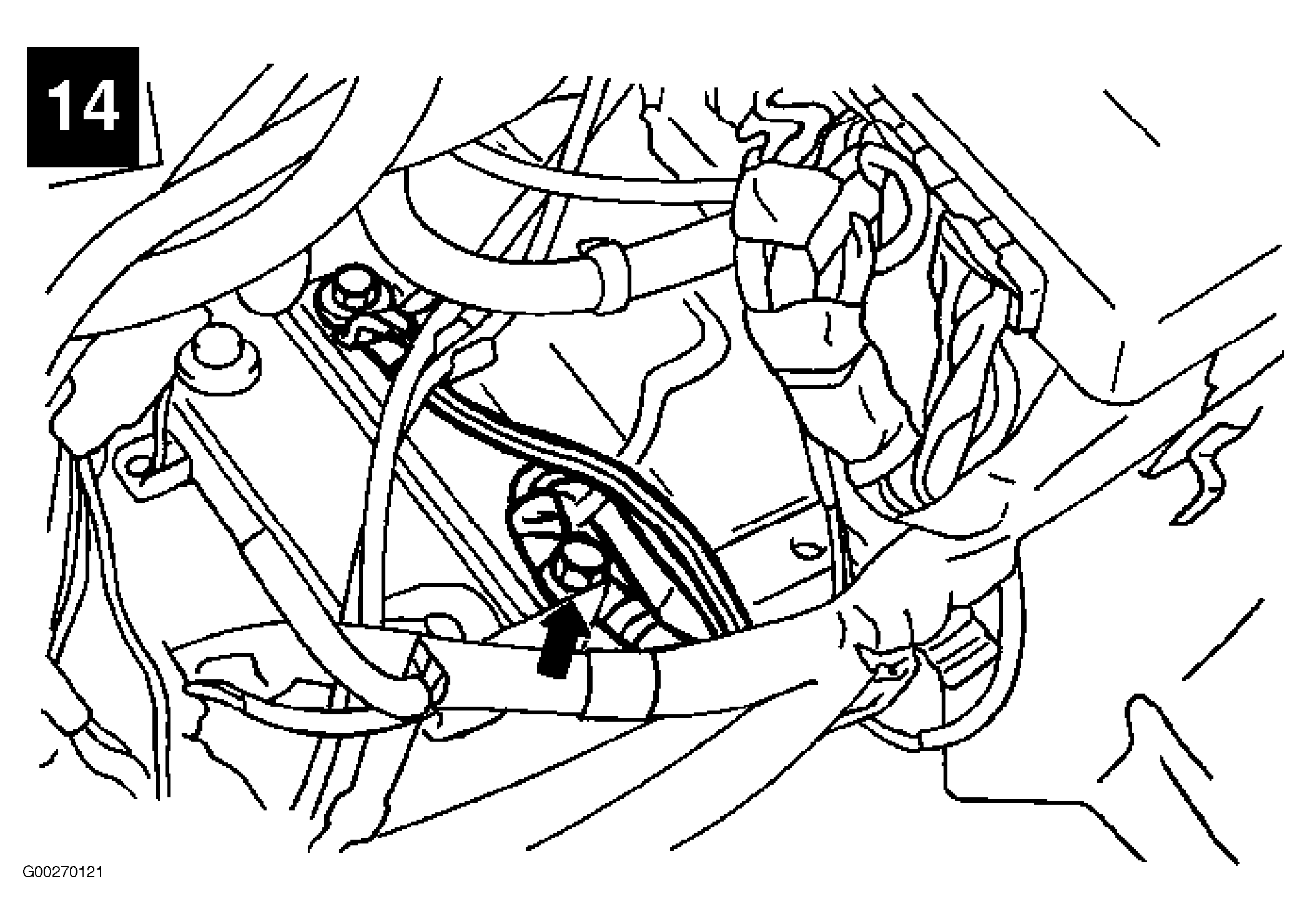

Fig 30: Grounding (14 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 31: Grounding (15 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

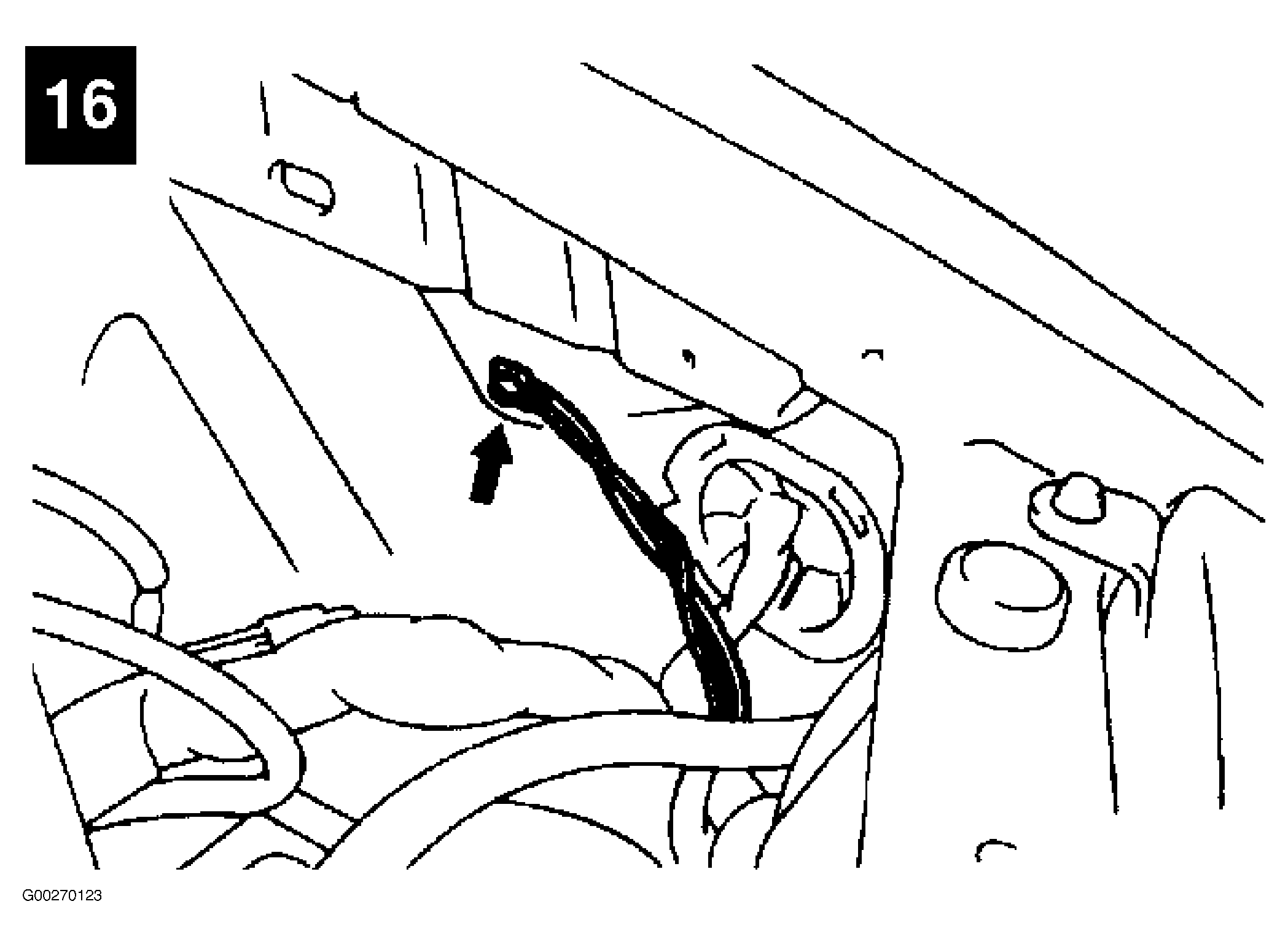

Fig 32: Grounding (16 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

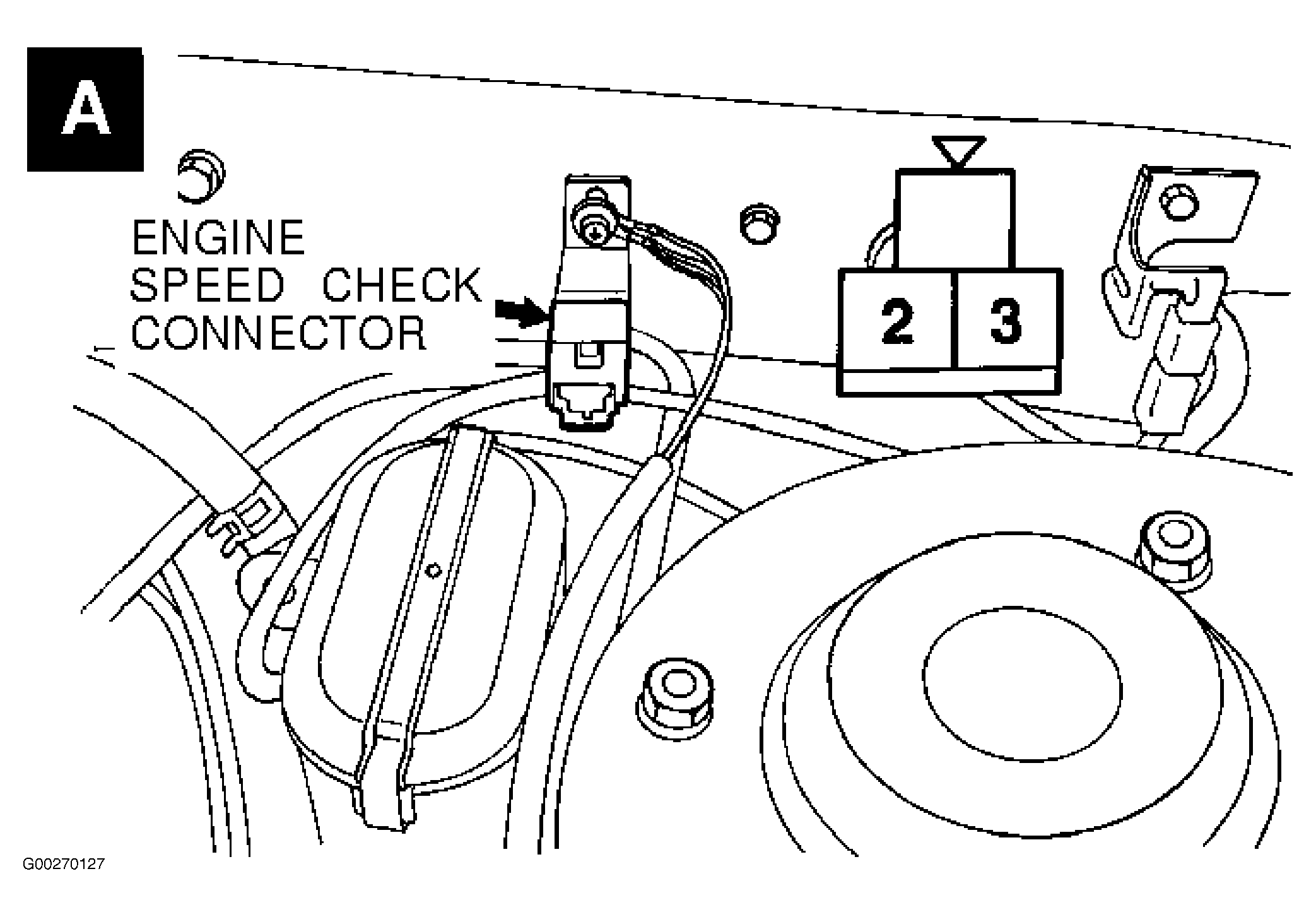

Fig 33: Inspection Terminal (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

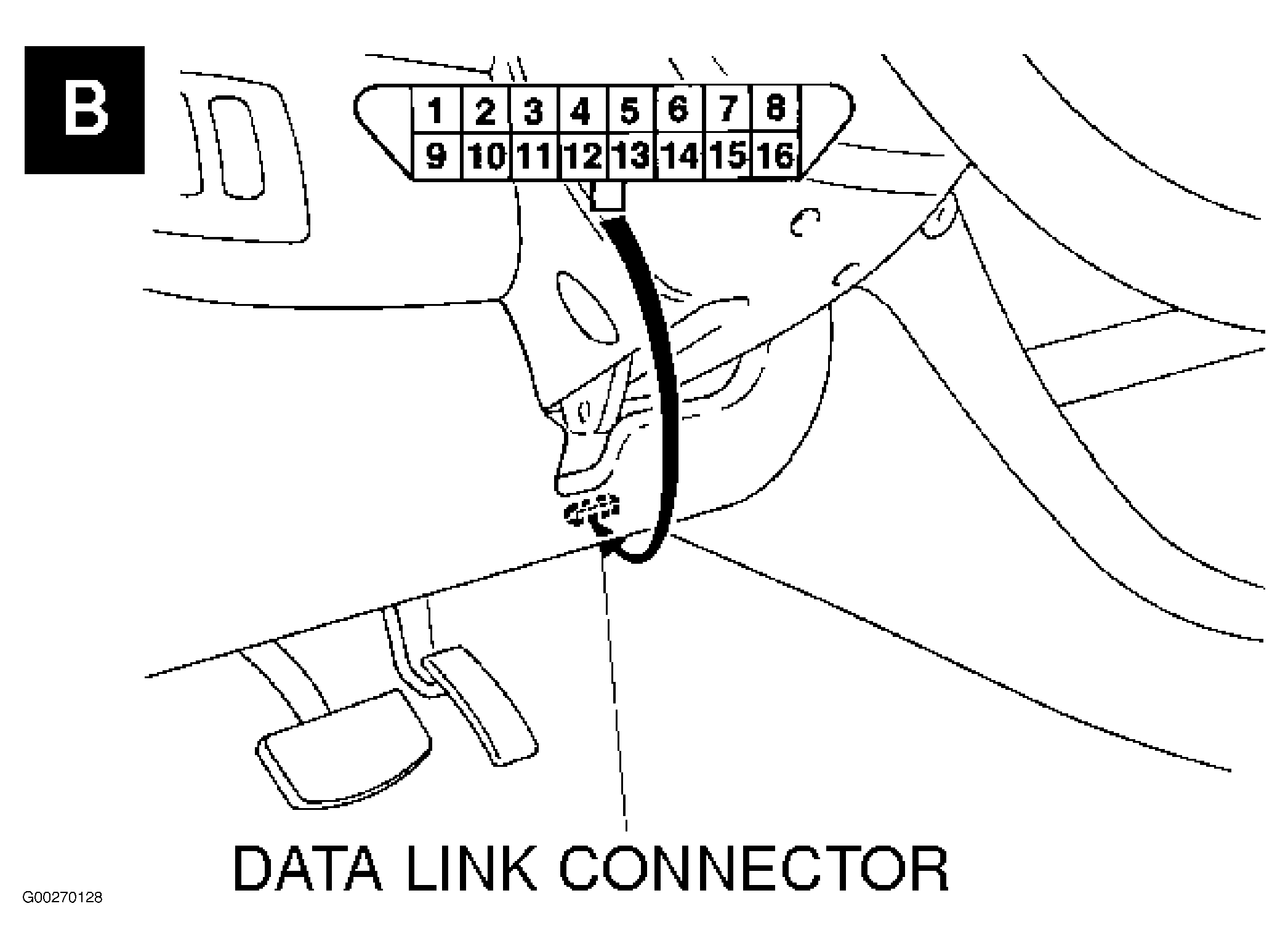

Fig 34: Inspection Terminal (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 35: Inspection Terminal (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

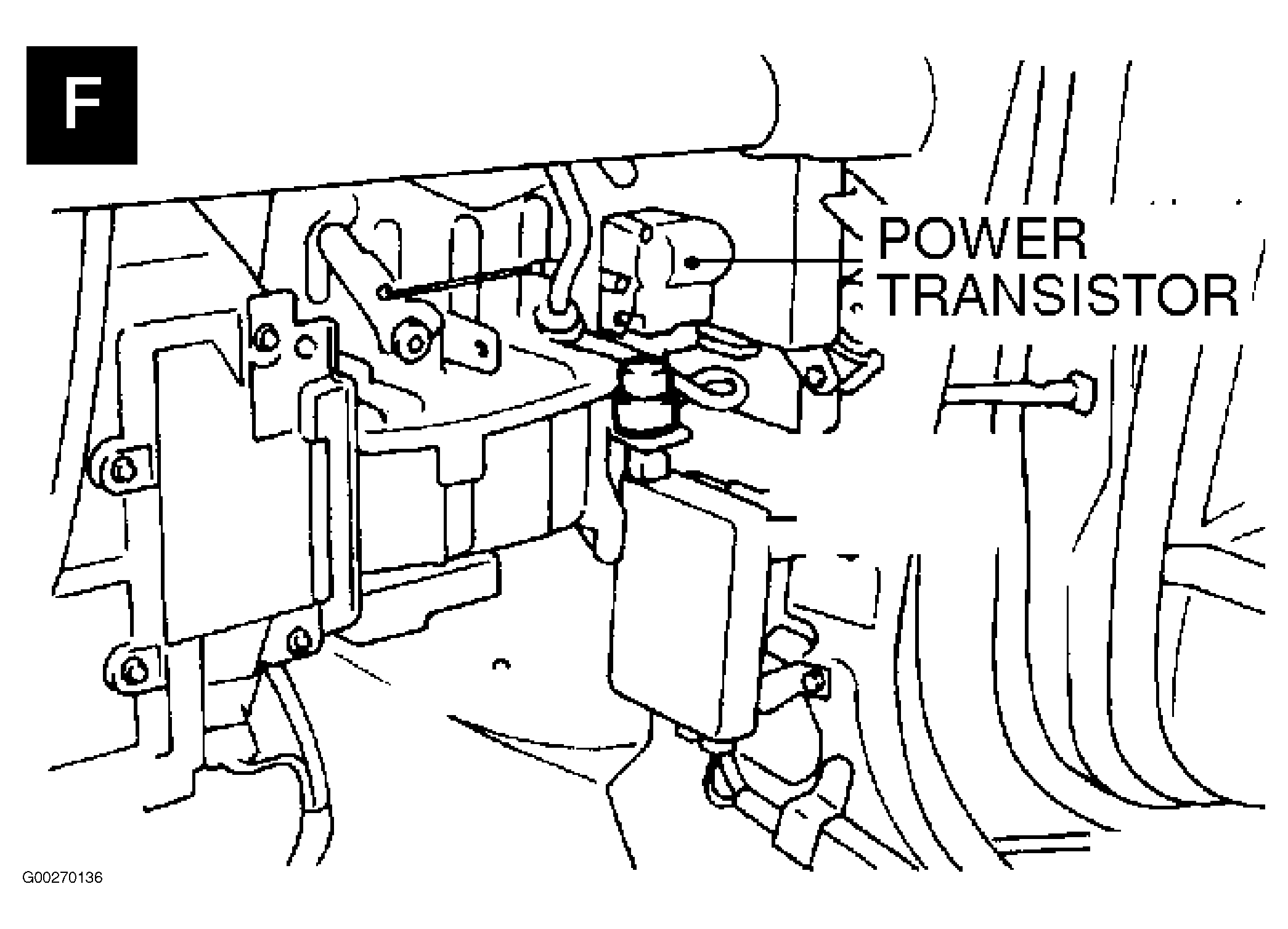

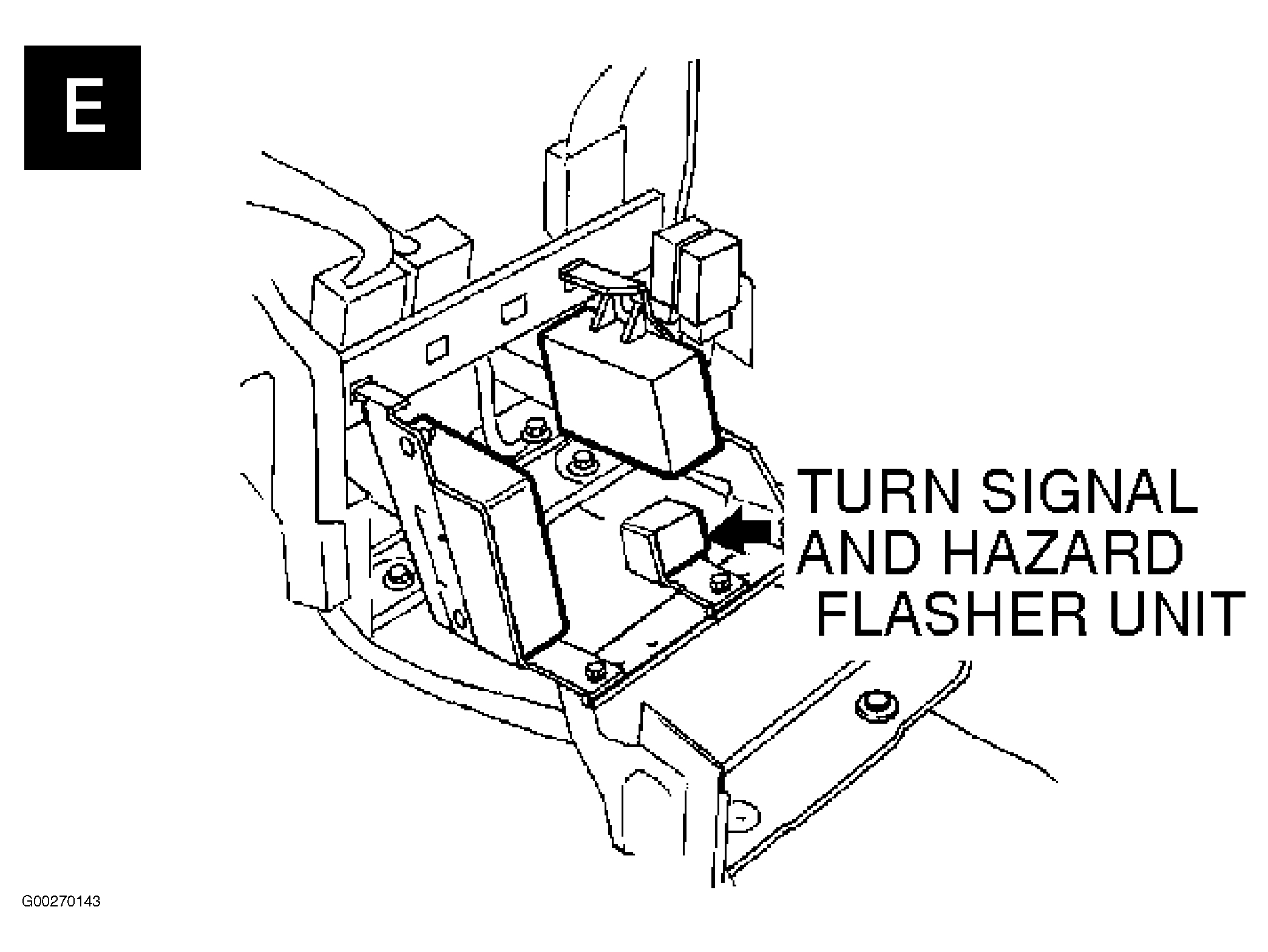

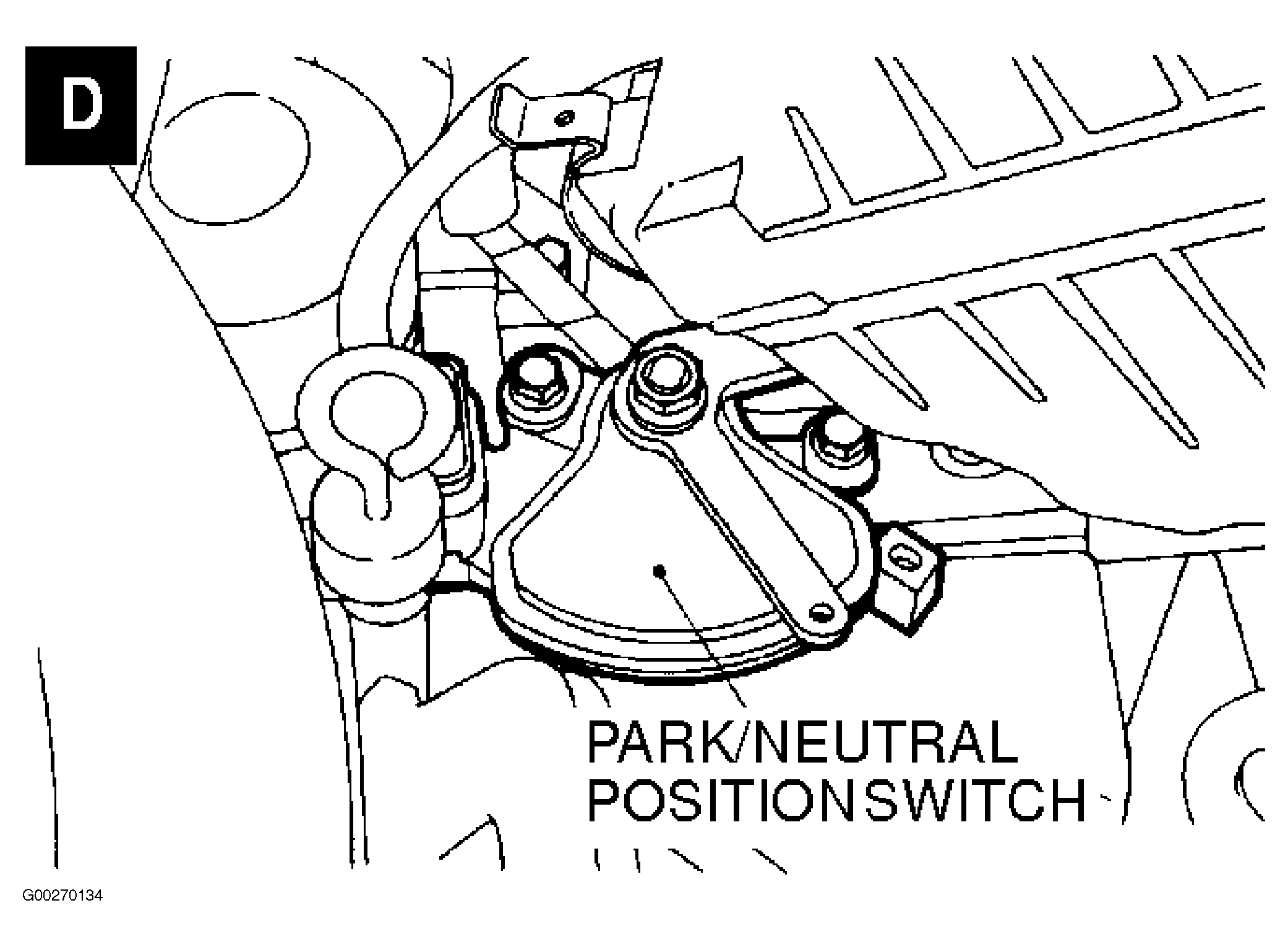

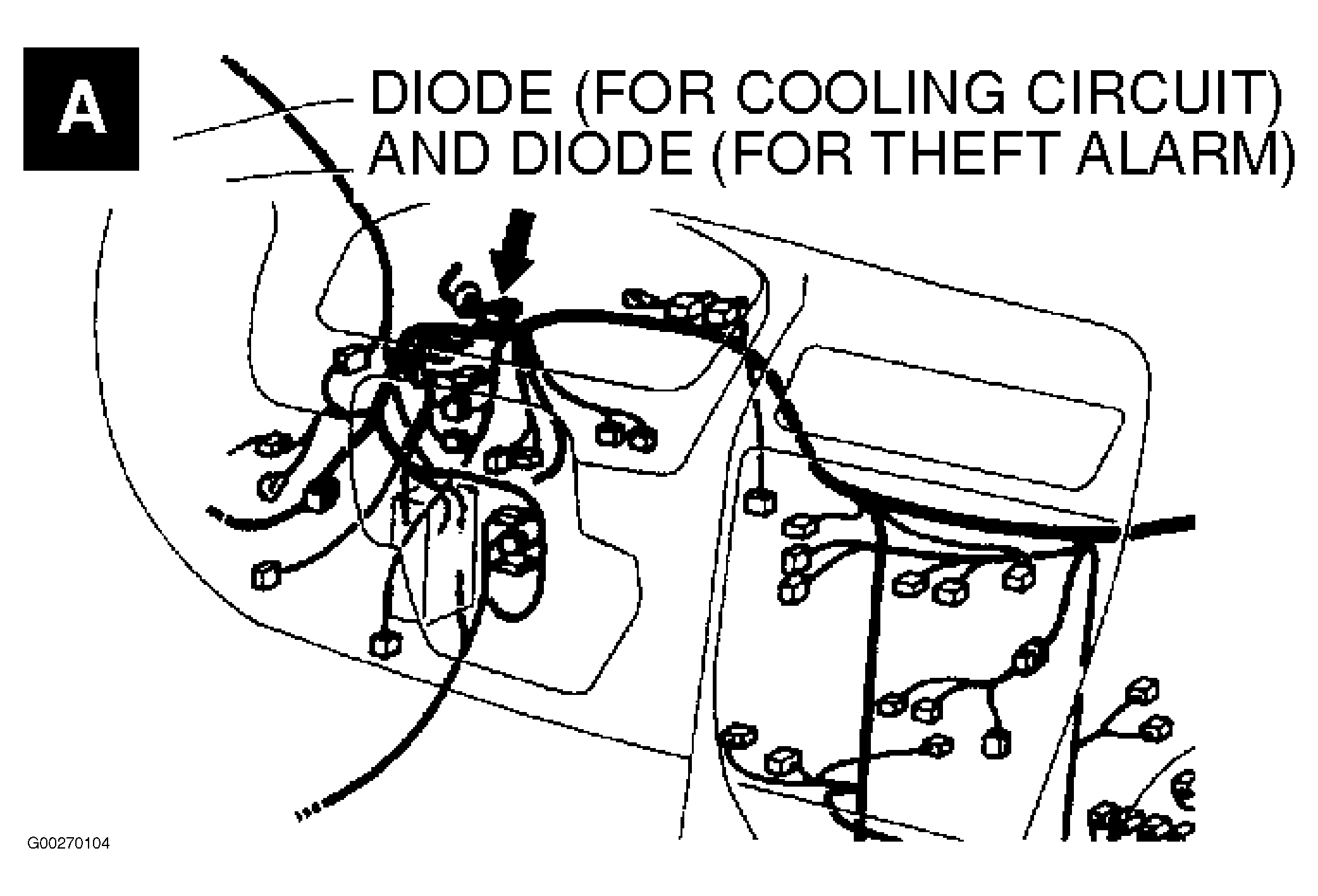

Fig 36: Other Devices (1 Of 6)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

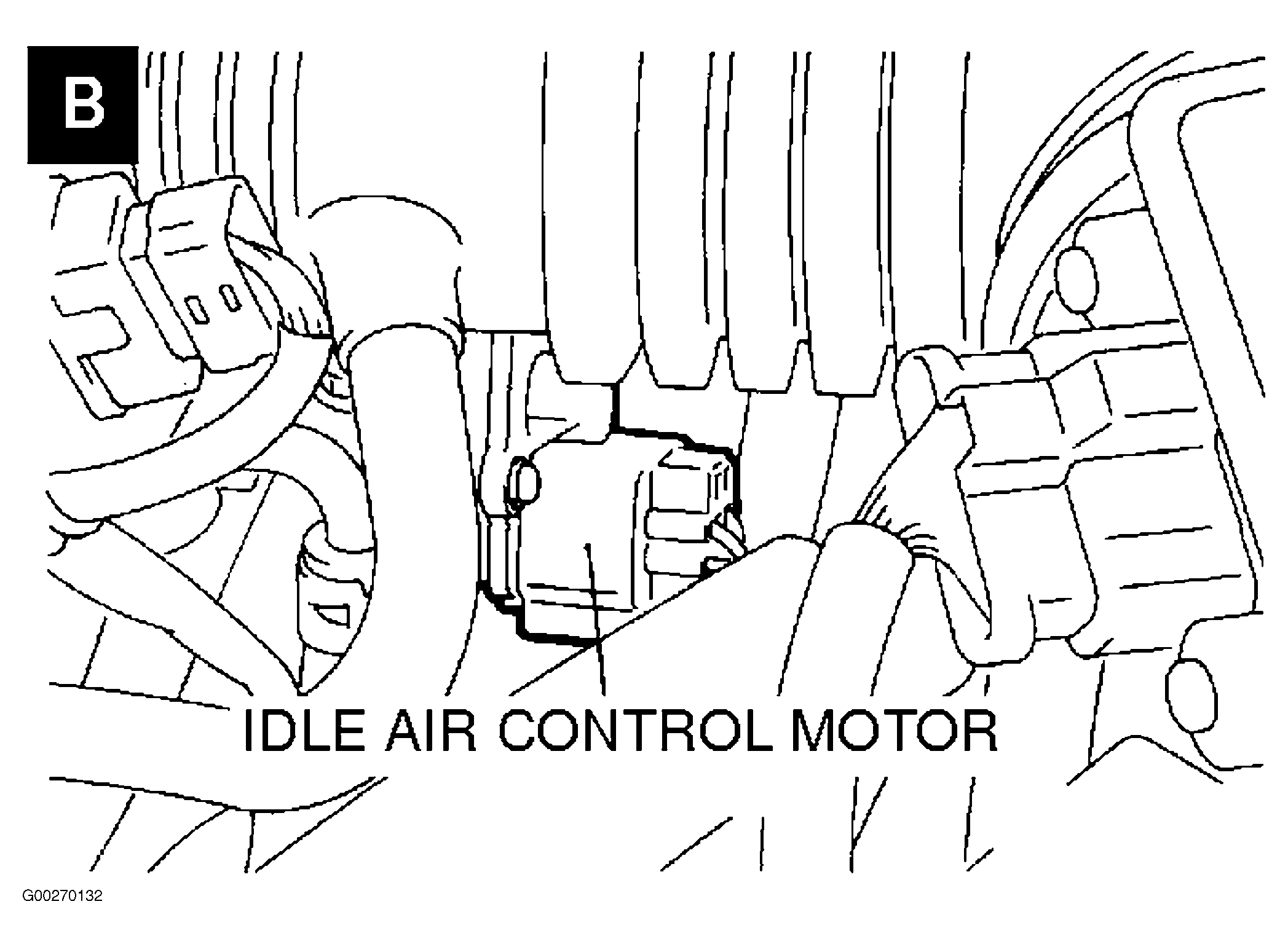

Fig 37: Other Devices (2 Of 6)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

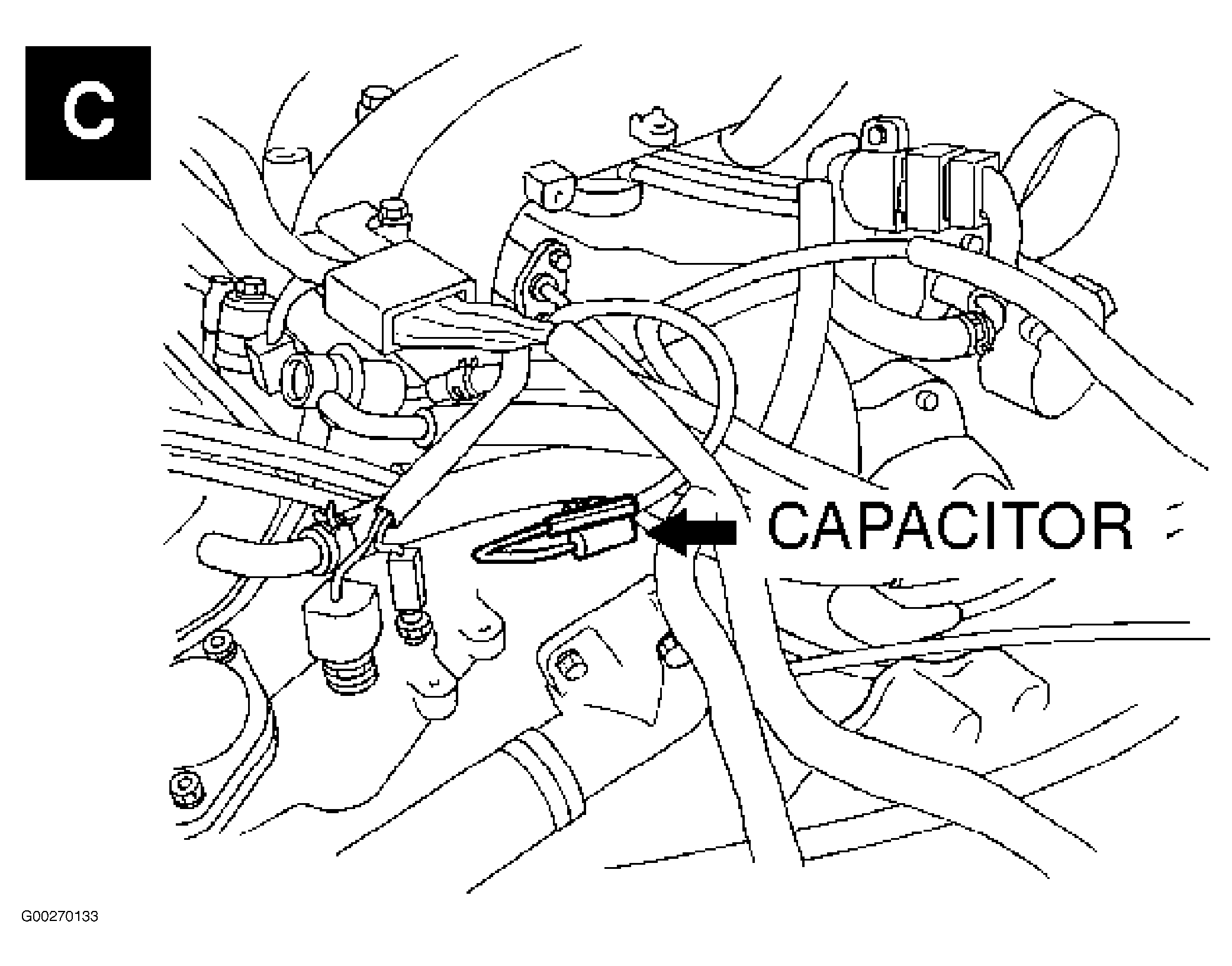

Fig 38: Other Devices (3 Of 6)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 39: Other Devices (4 Of 6)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 40: Other Devices (5 Of 6)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 41: Other Devices (6 Of 6)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

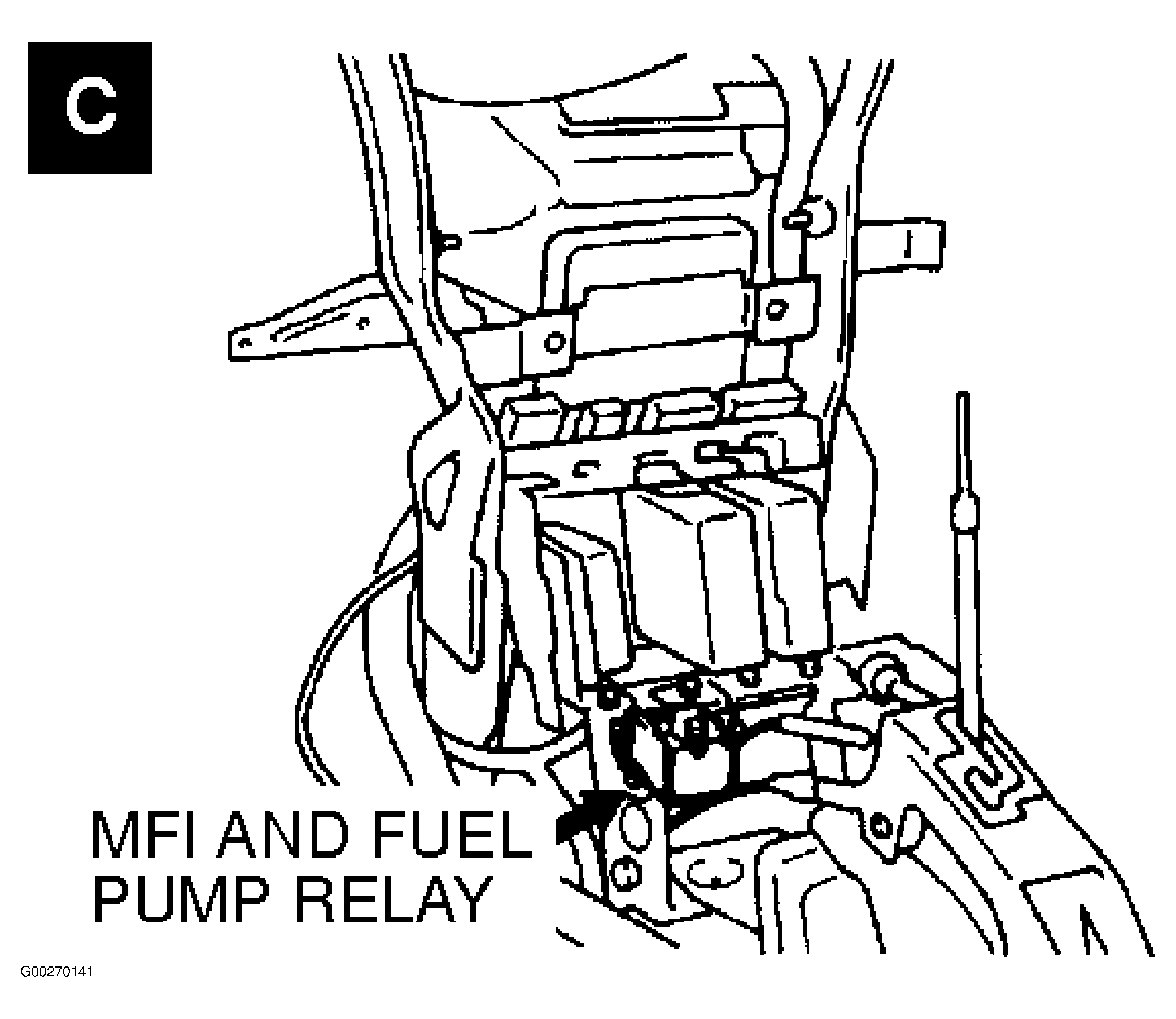

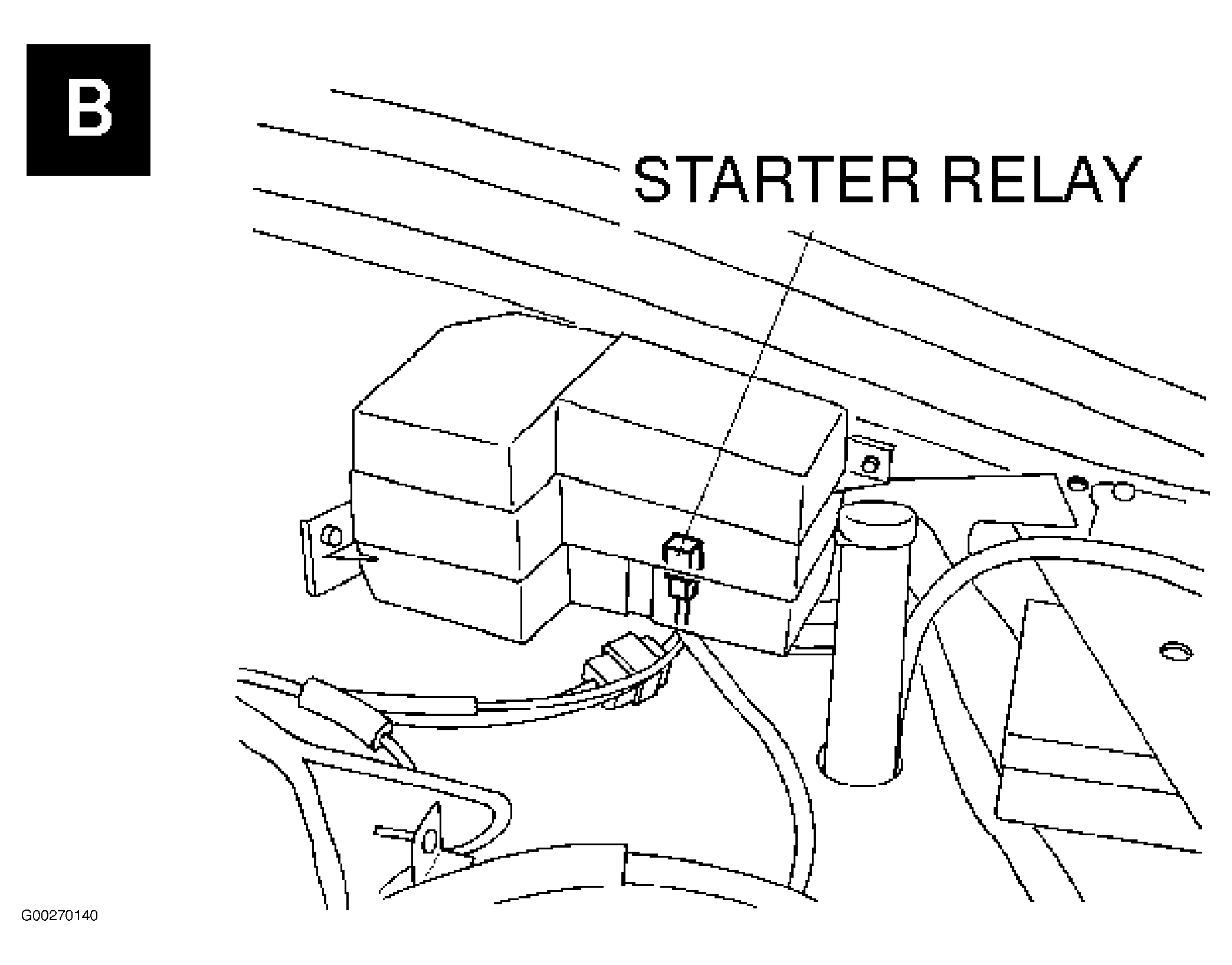

Fig 42: Relays (1 Of 8)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 43: Relays (2 Of 8)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 44: Relays (3 Of 8)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

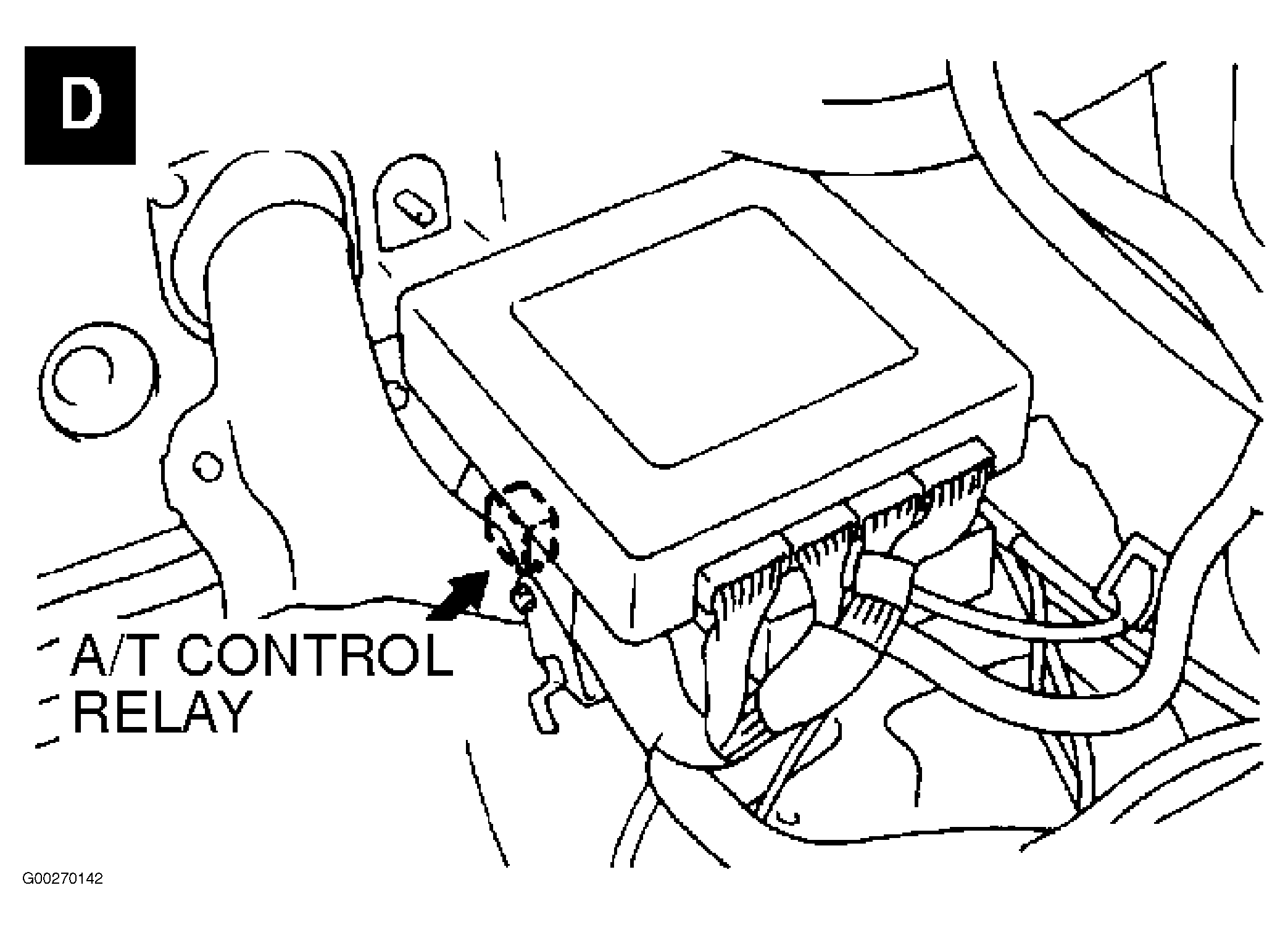

Fig 45: Relays (4 Of 8)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 46: Relays (5 Of 8)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 47: Relays (6 Of 8)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

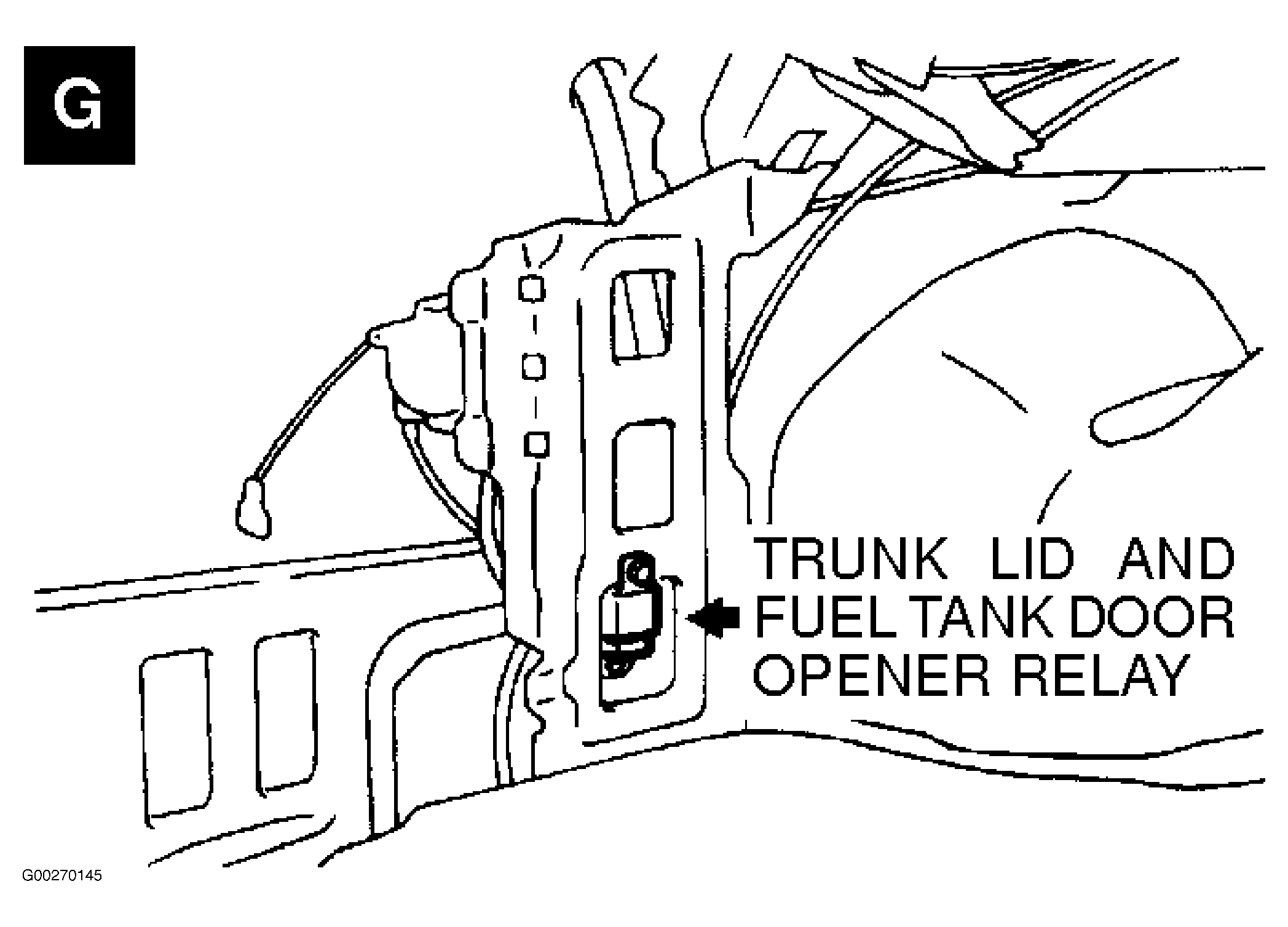

Fig 48: Relays (7 Of 8)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

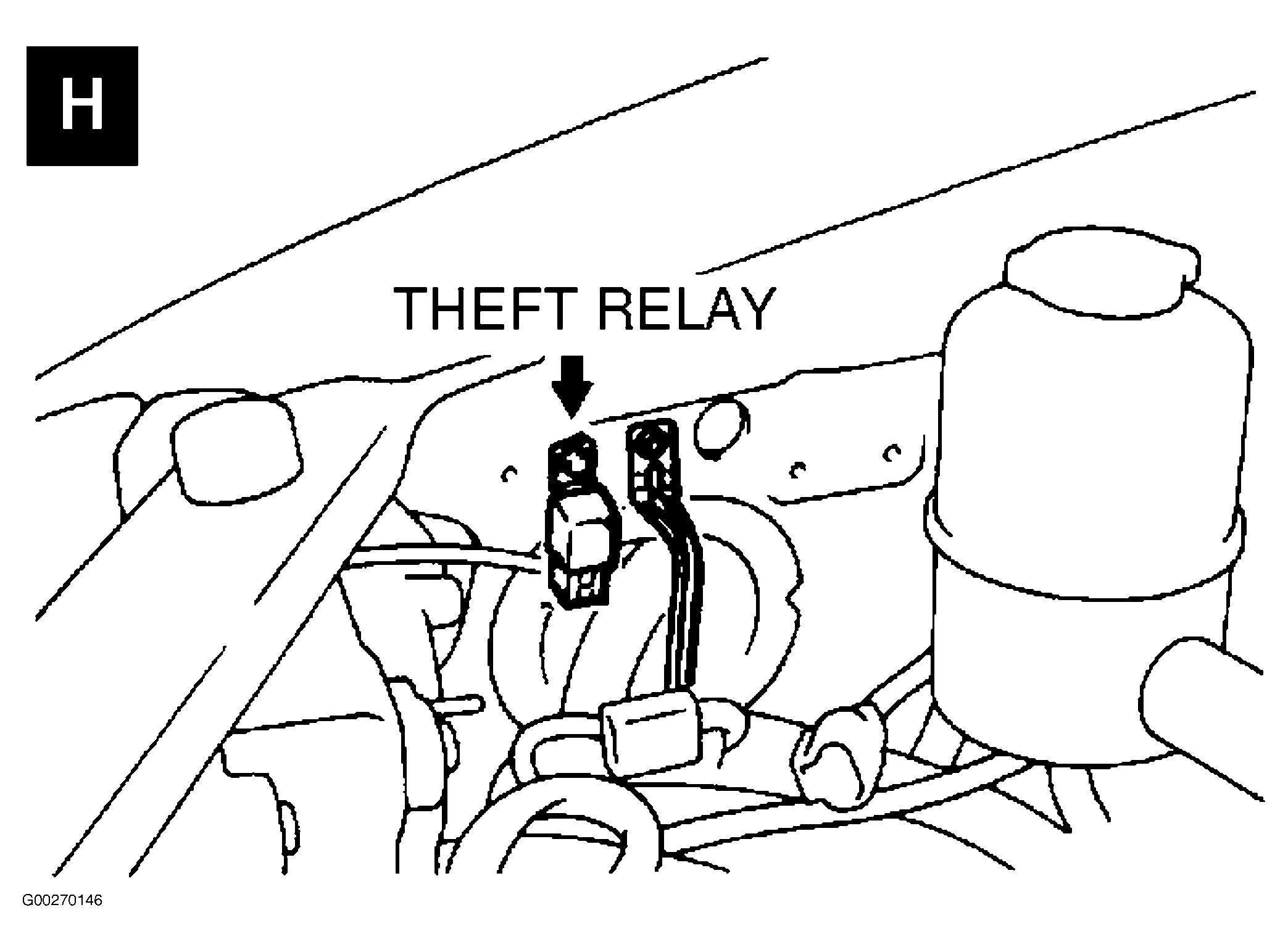

Fig 49: Relays (8 Of 8)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

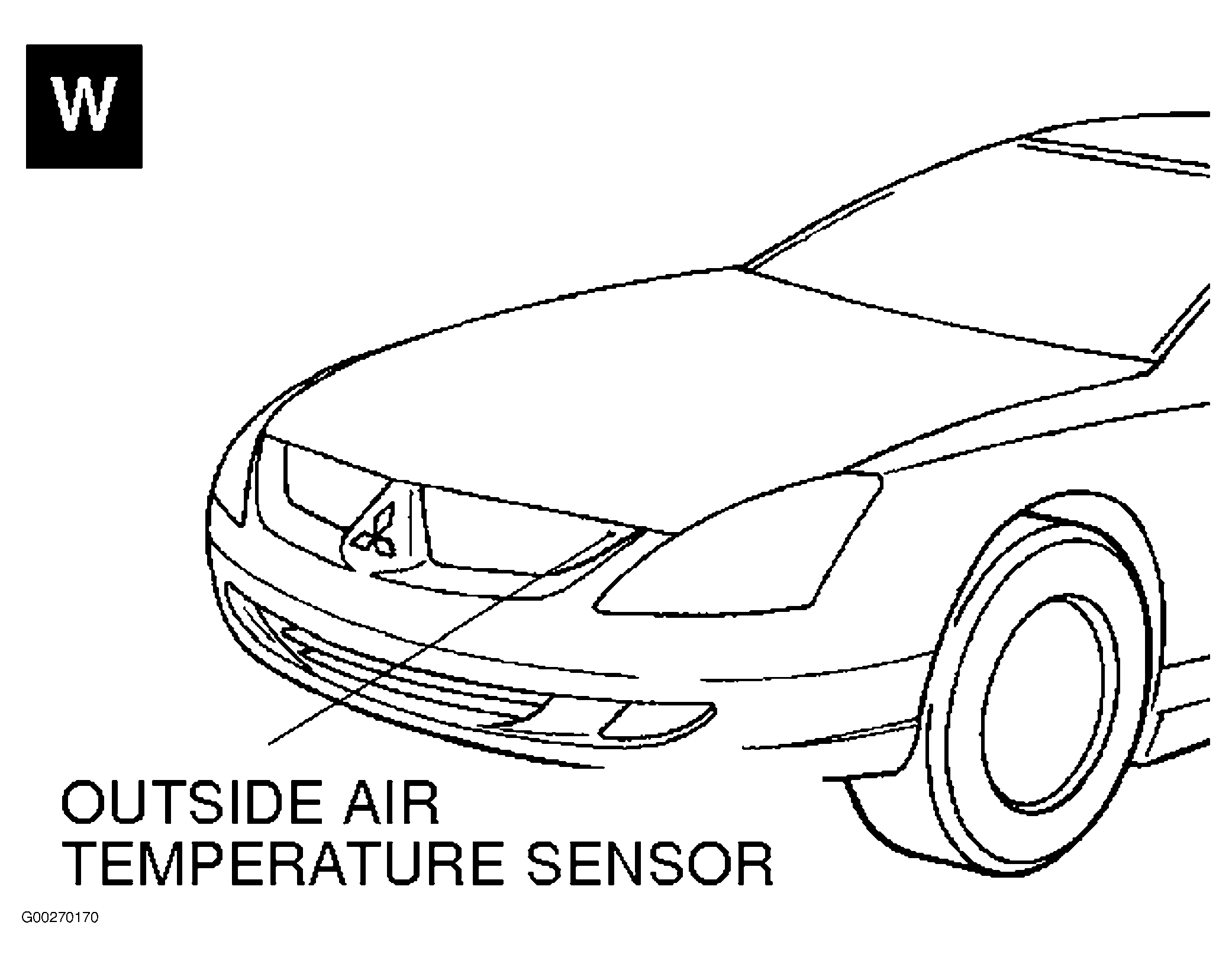

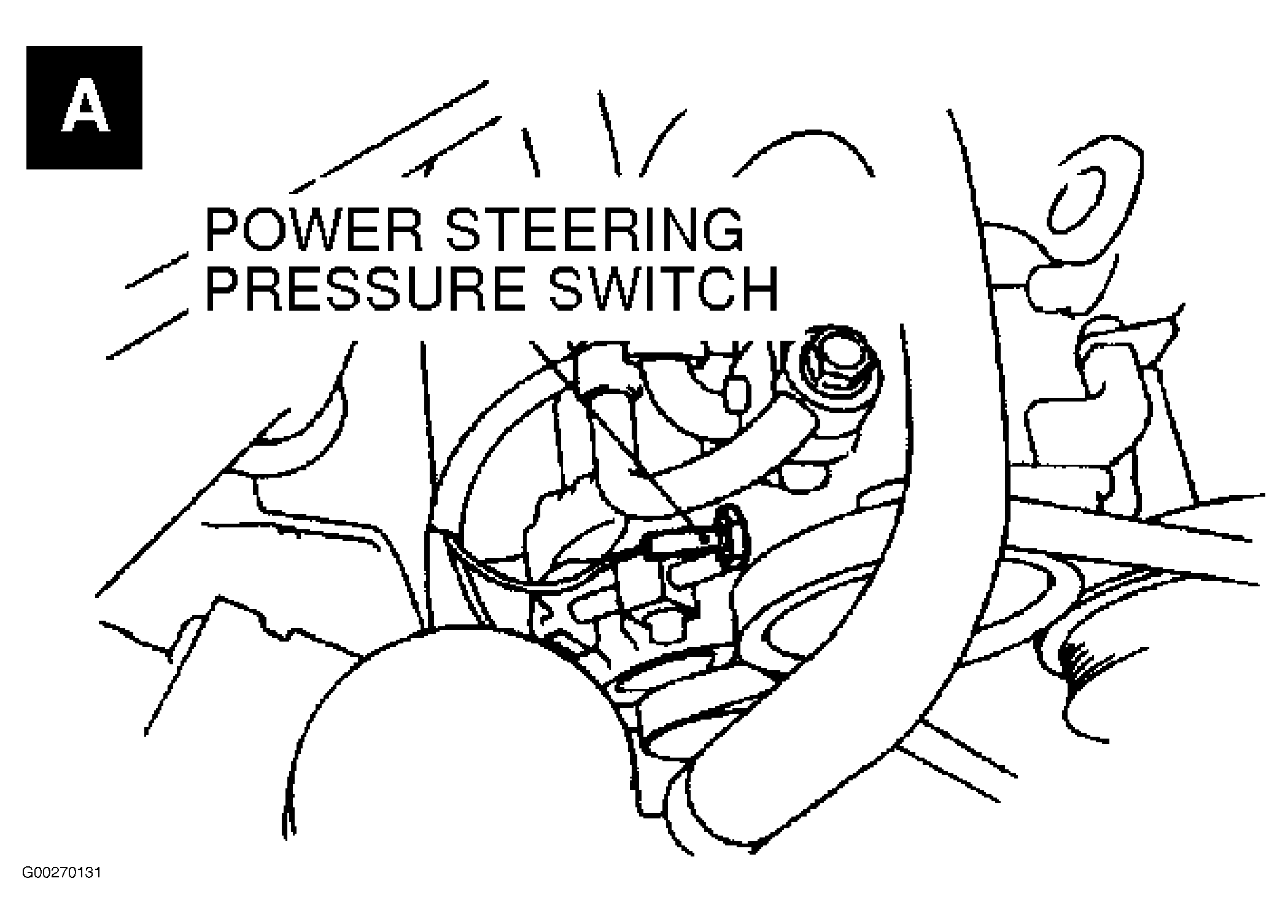

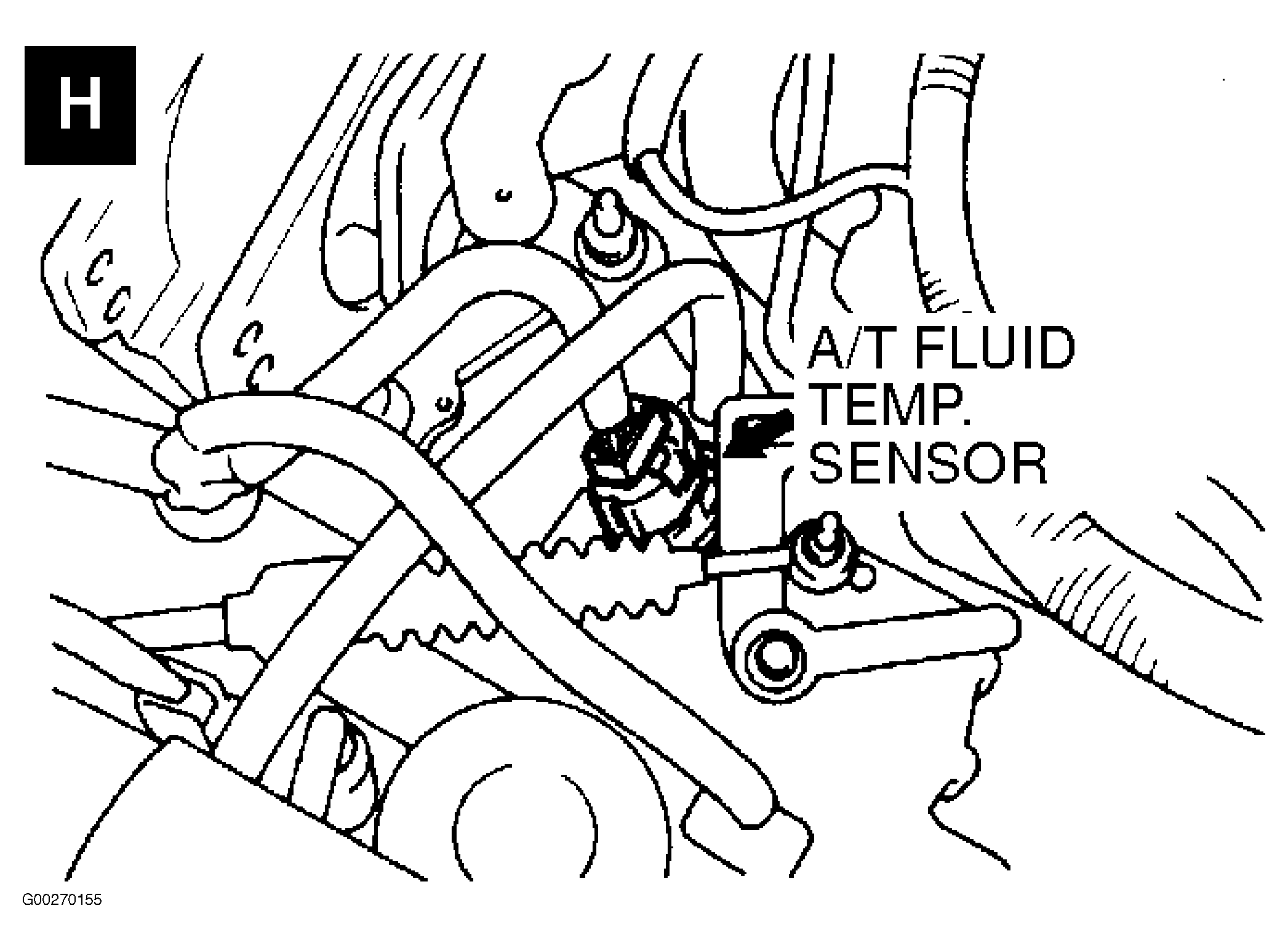

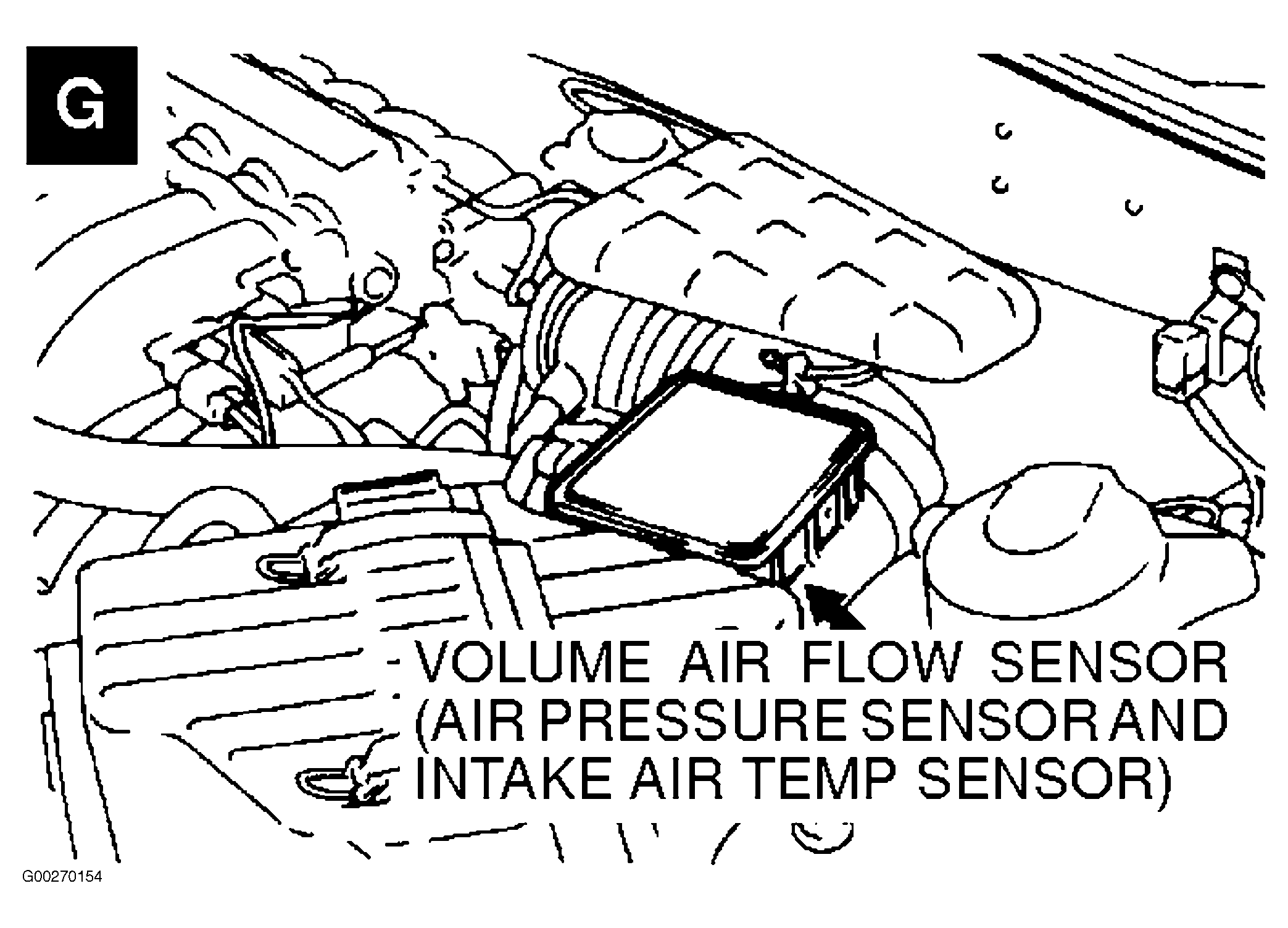

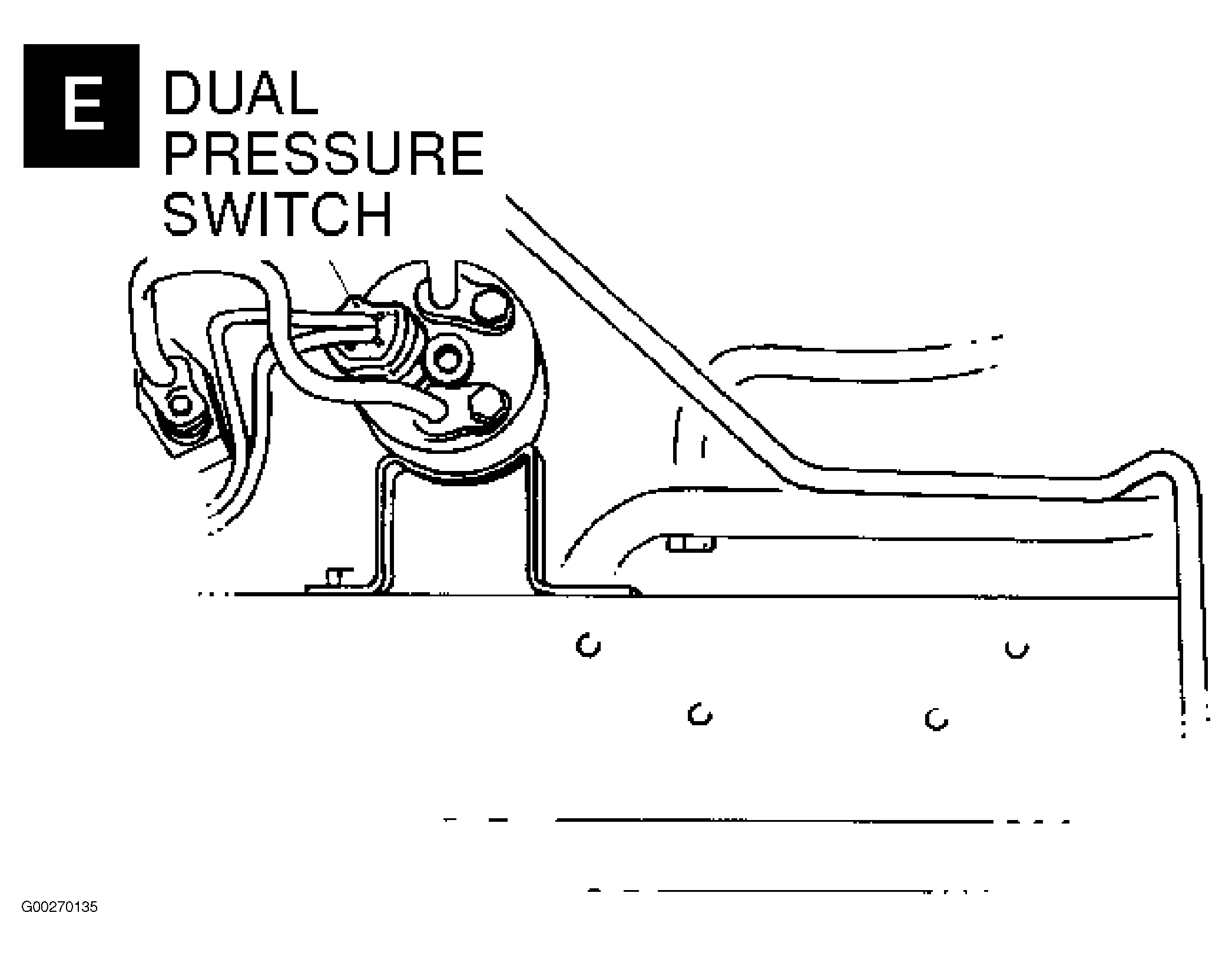

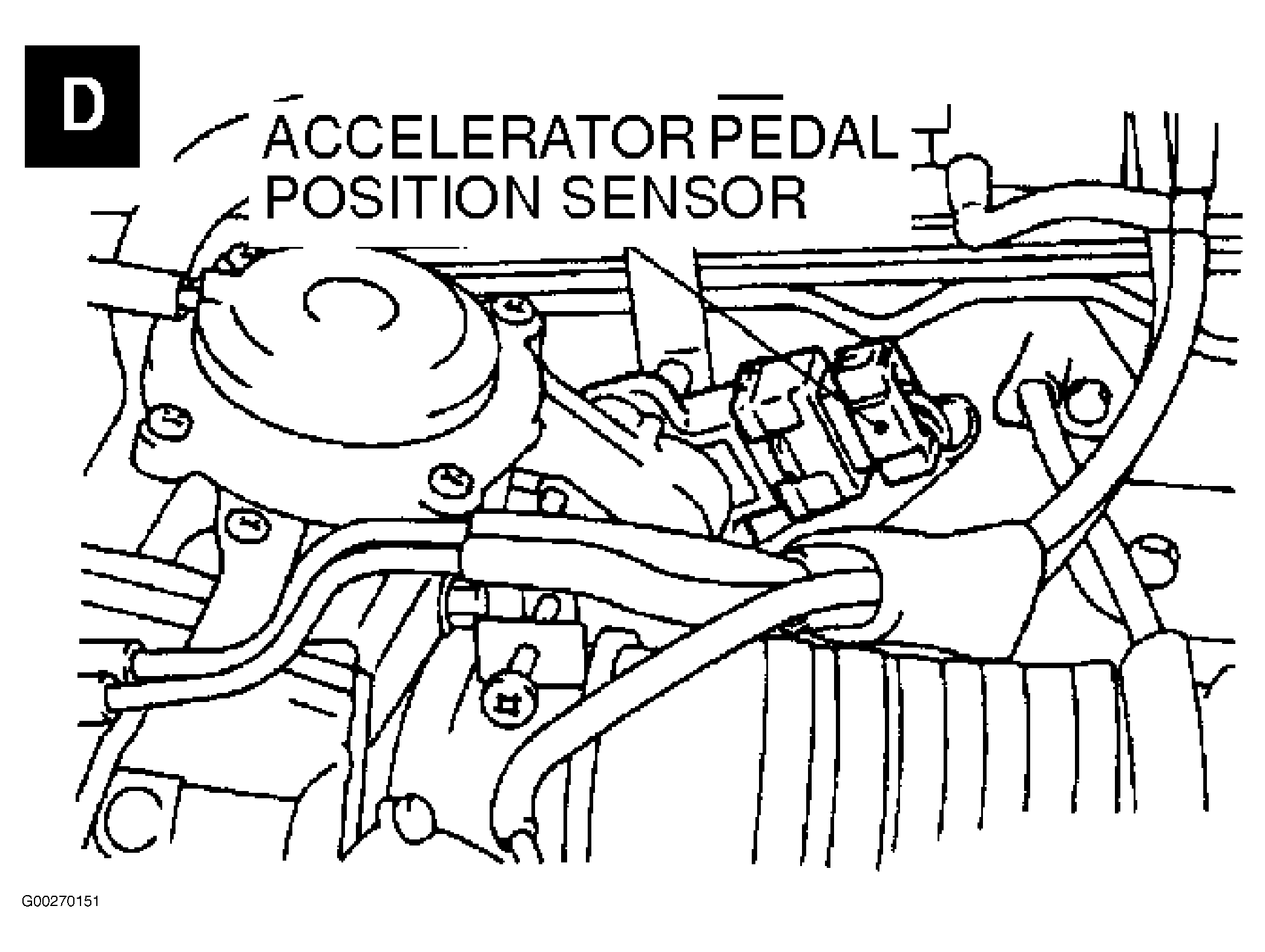

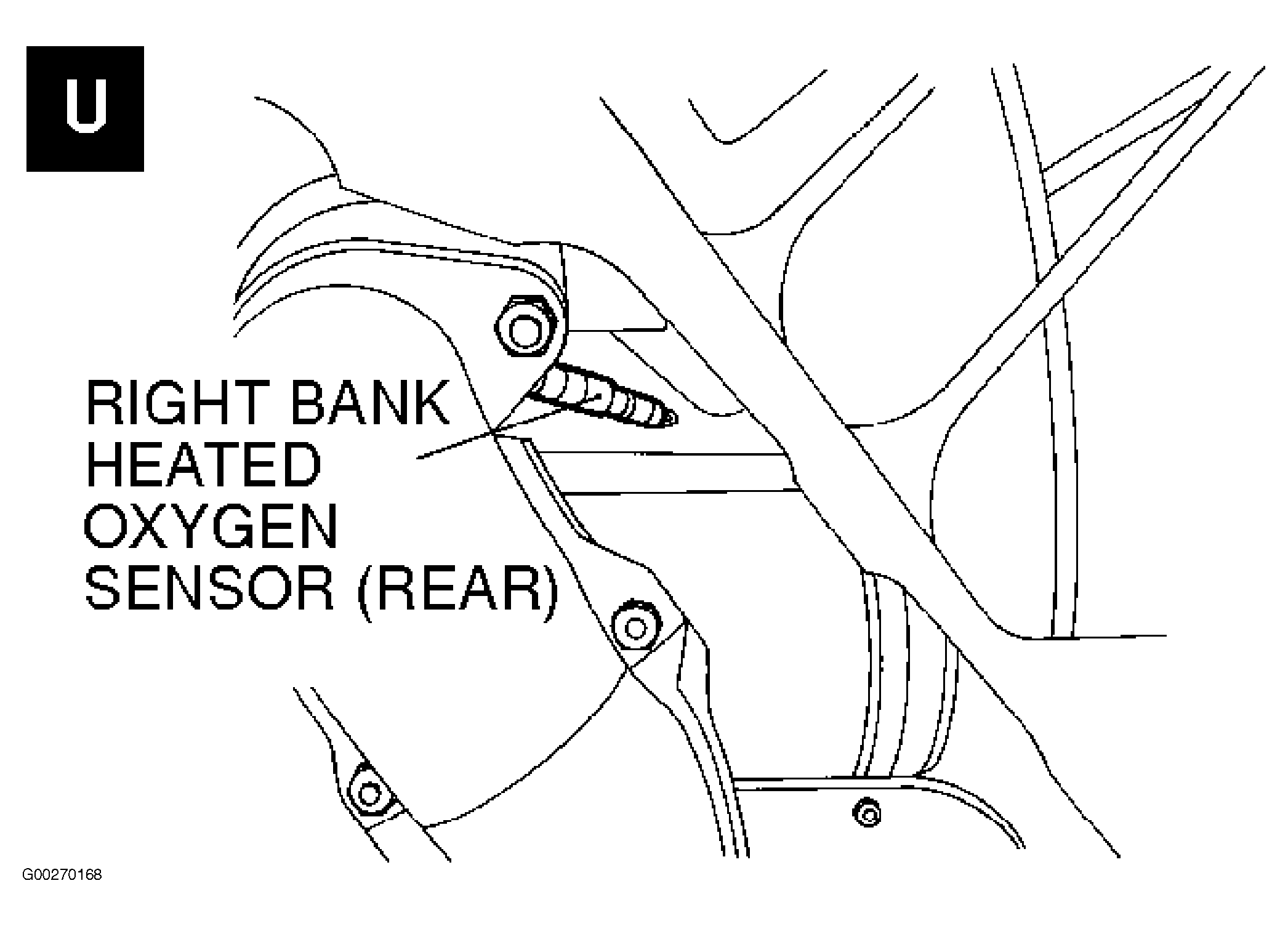

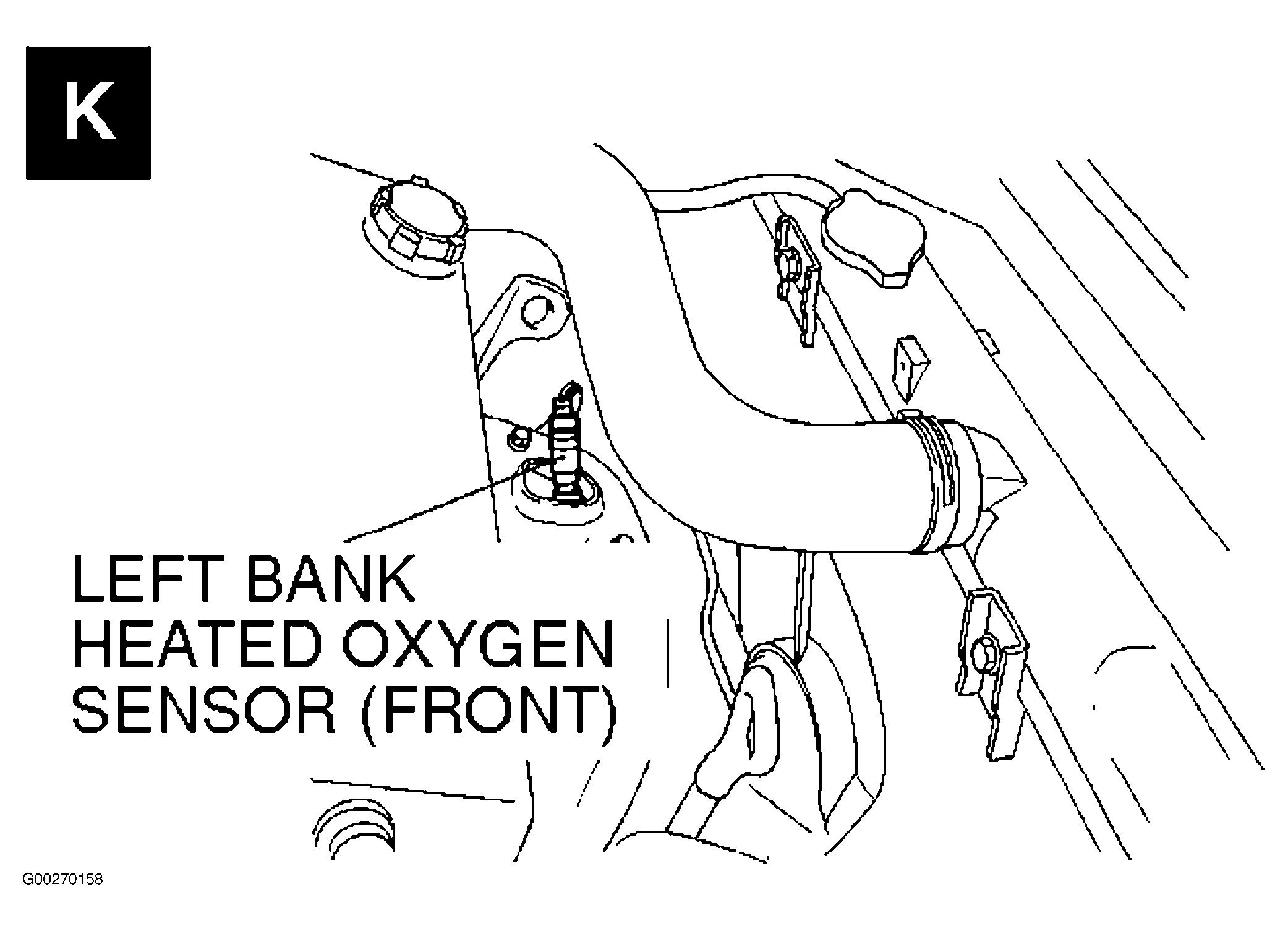

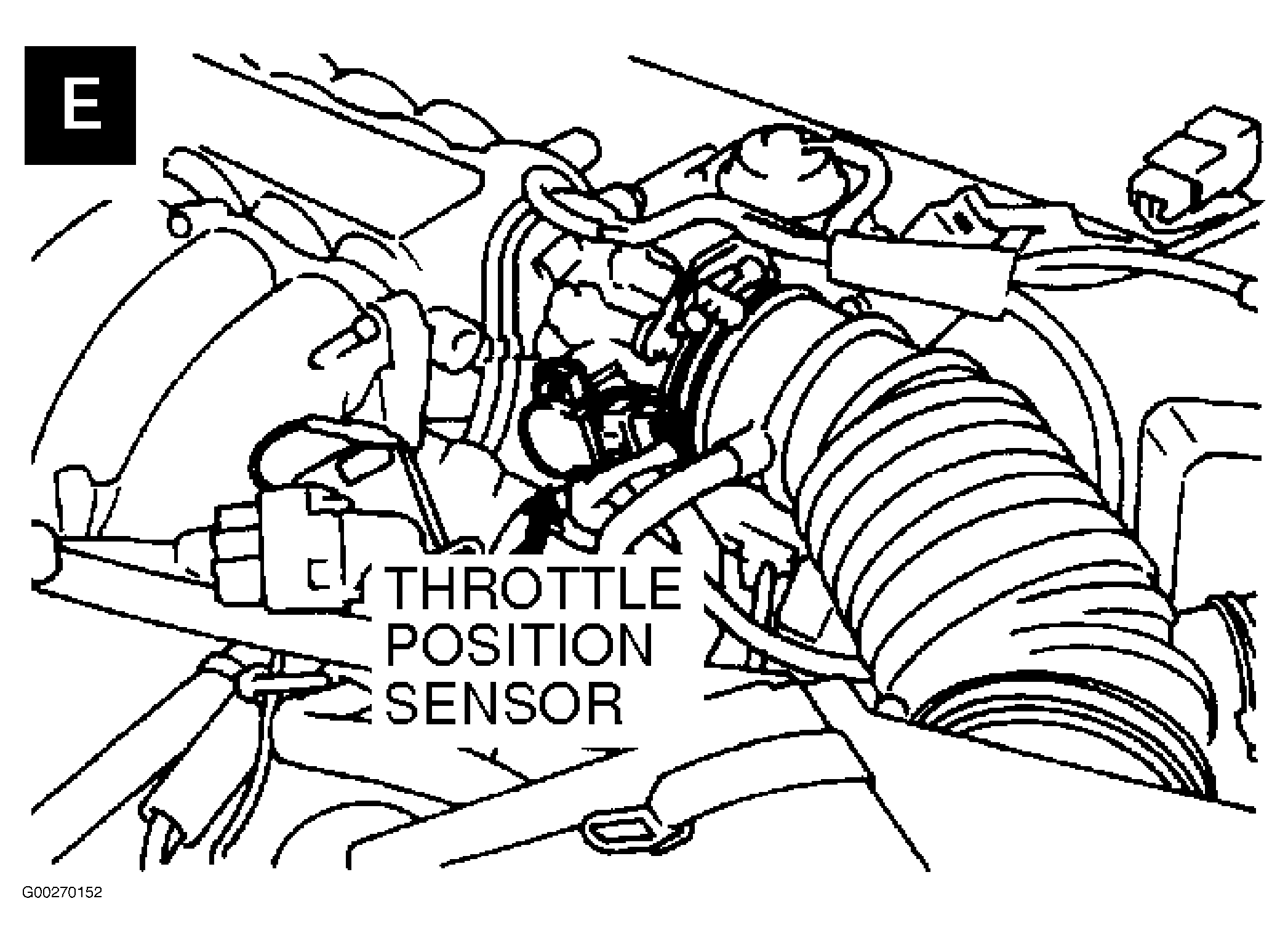

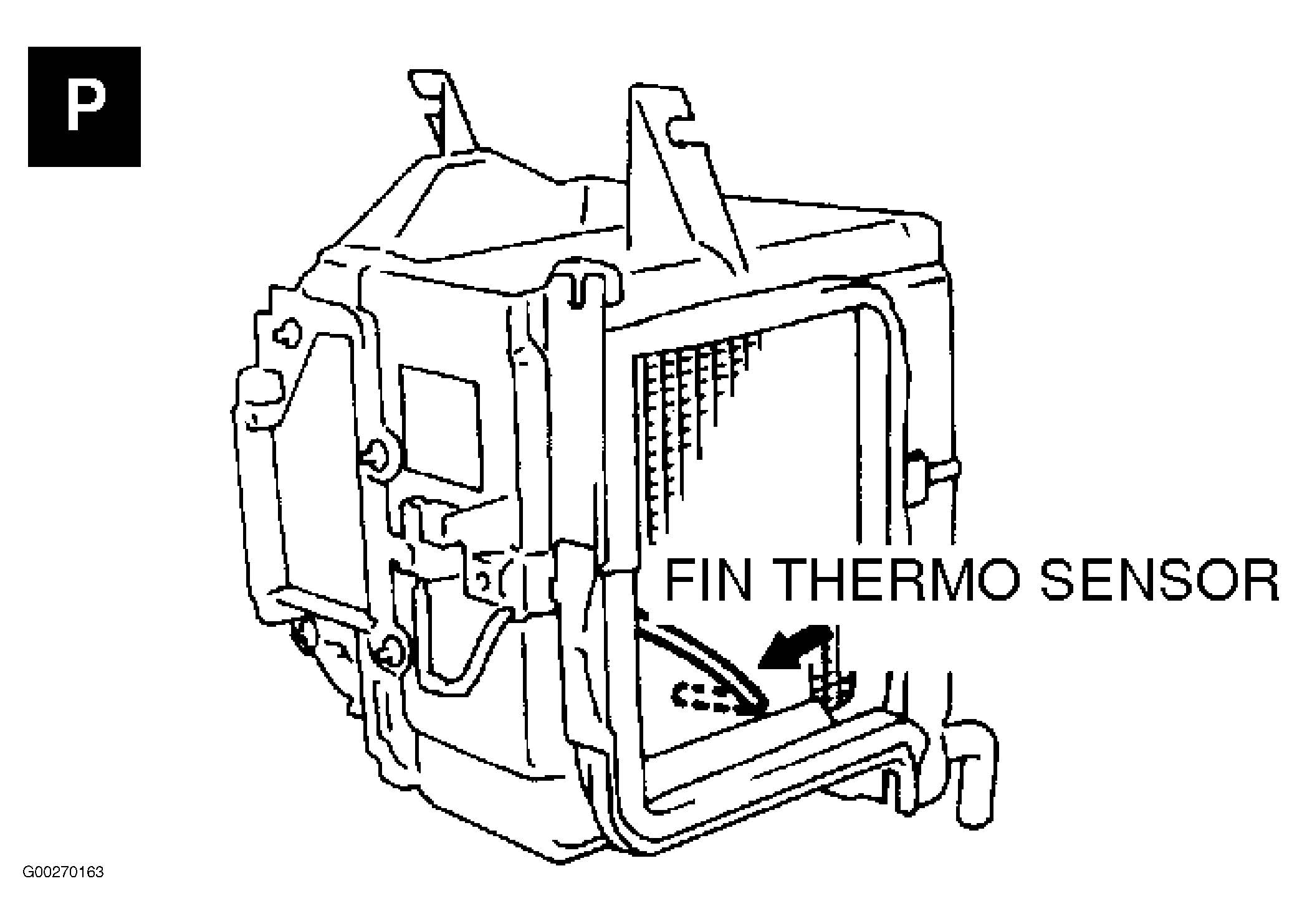

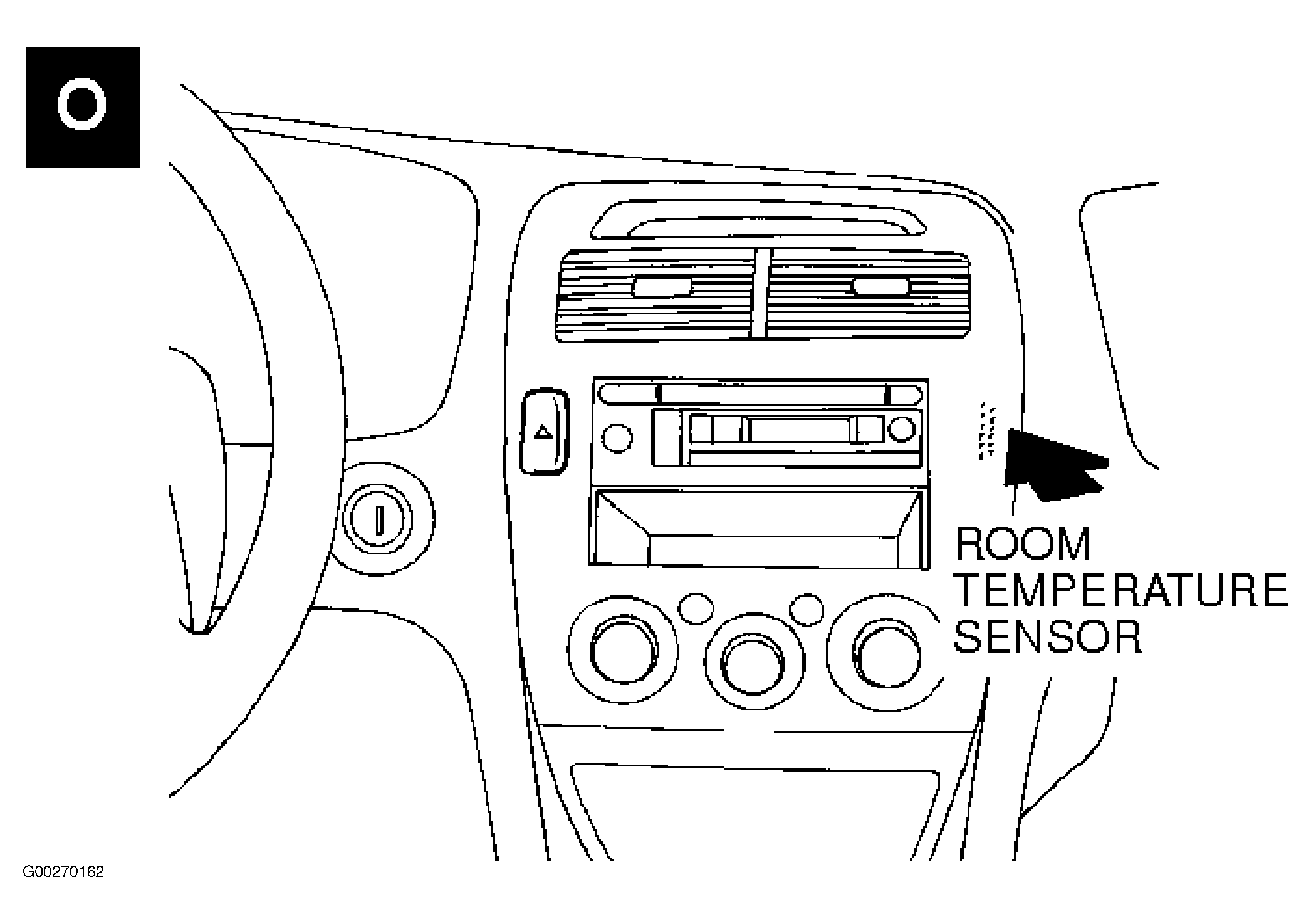

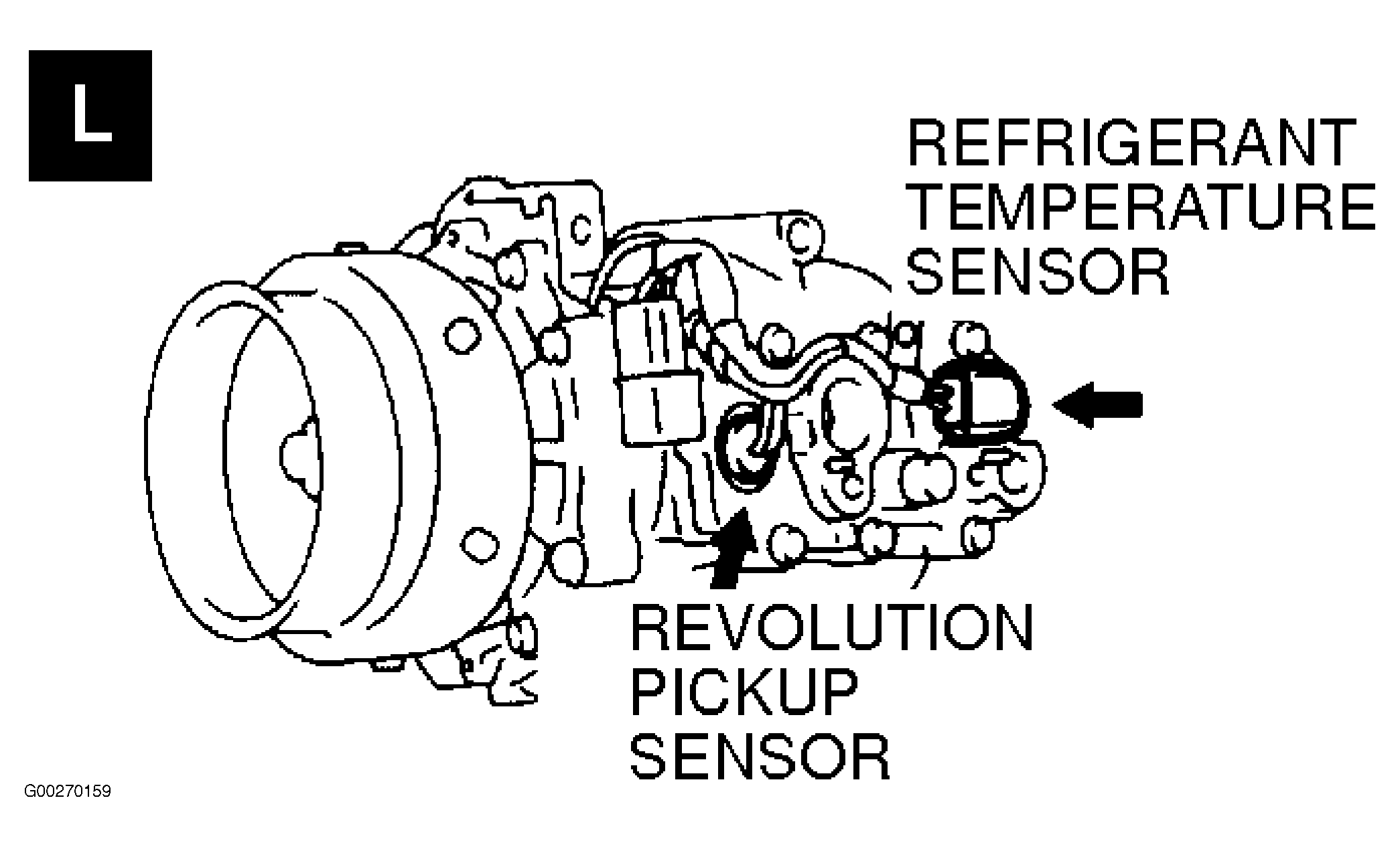

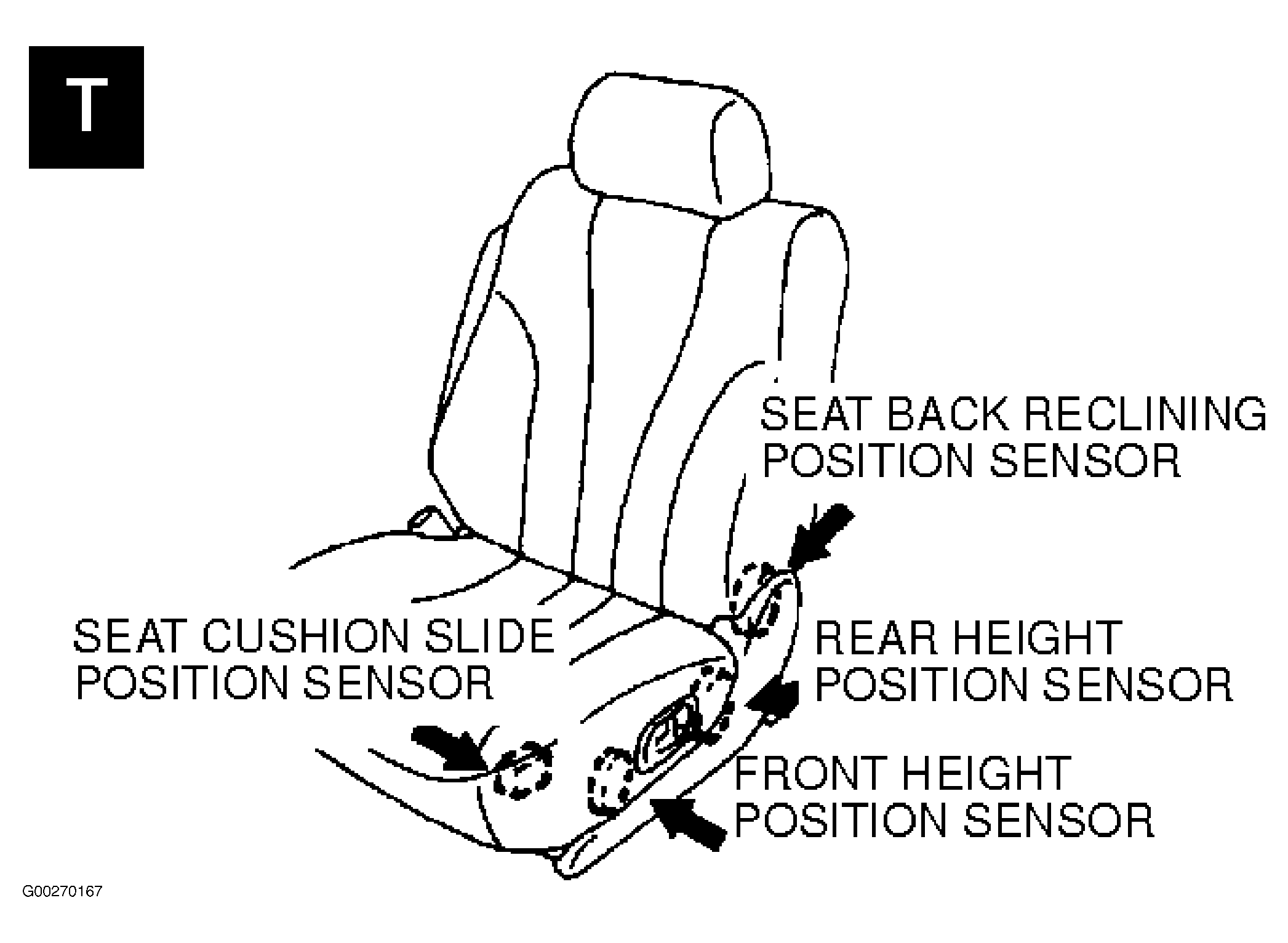

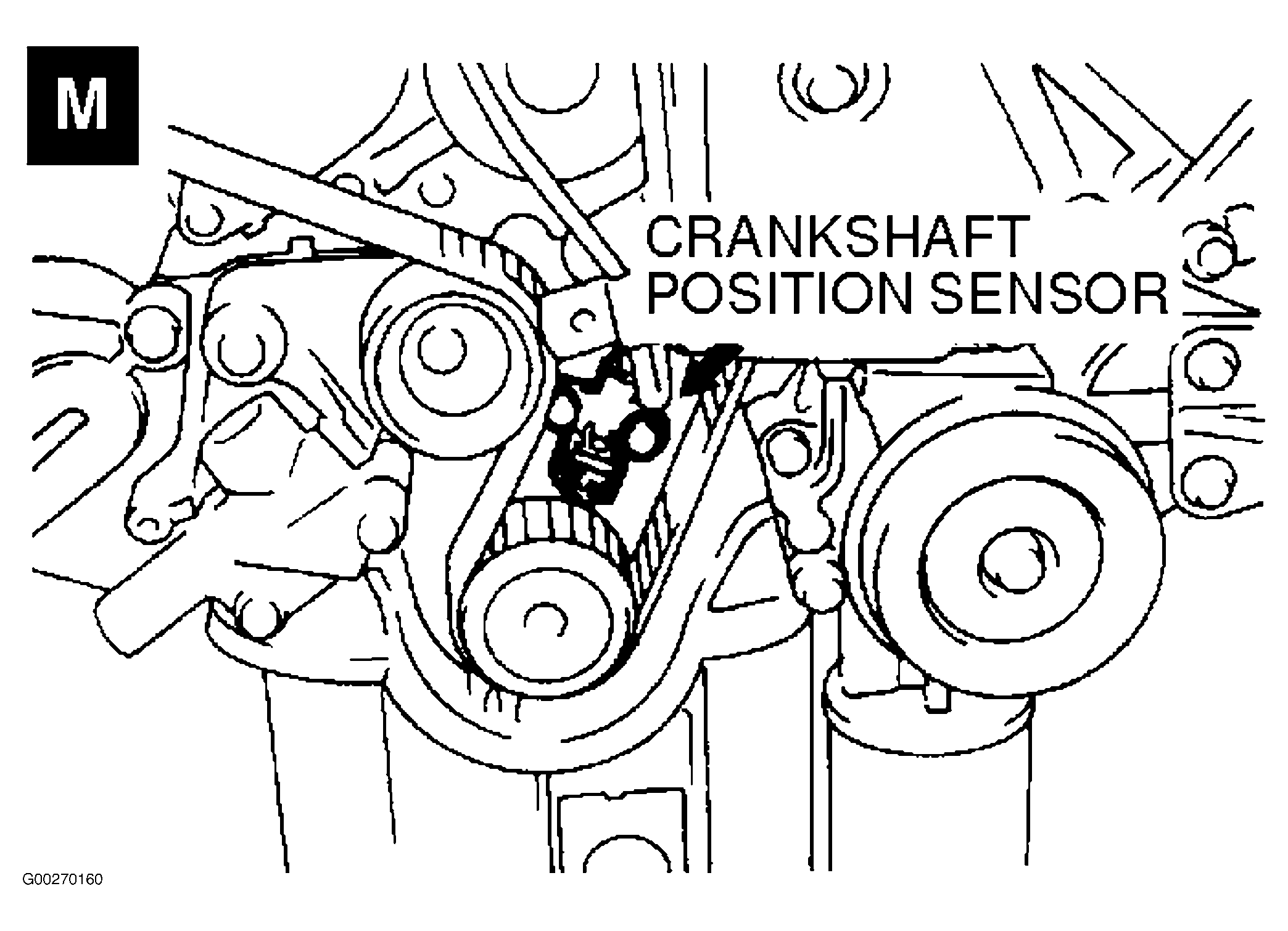

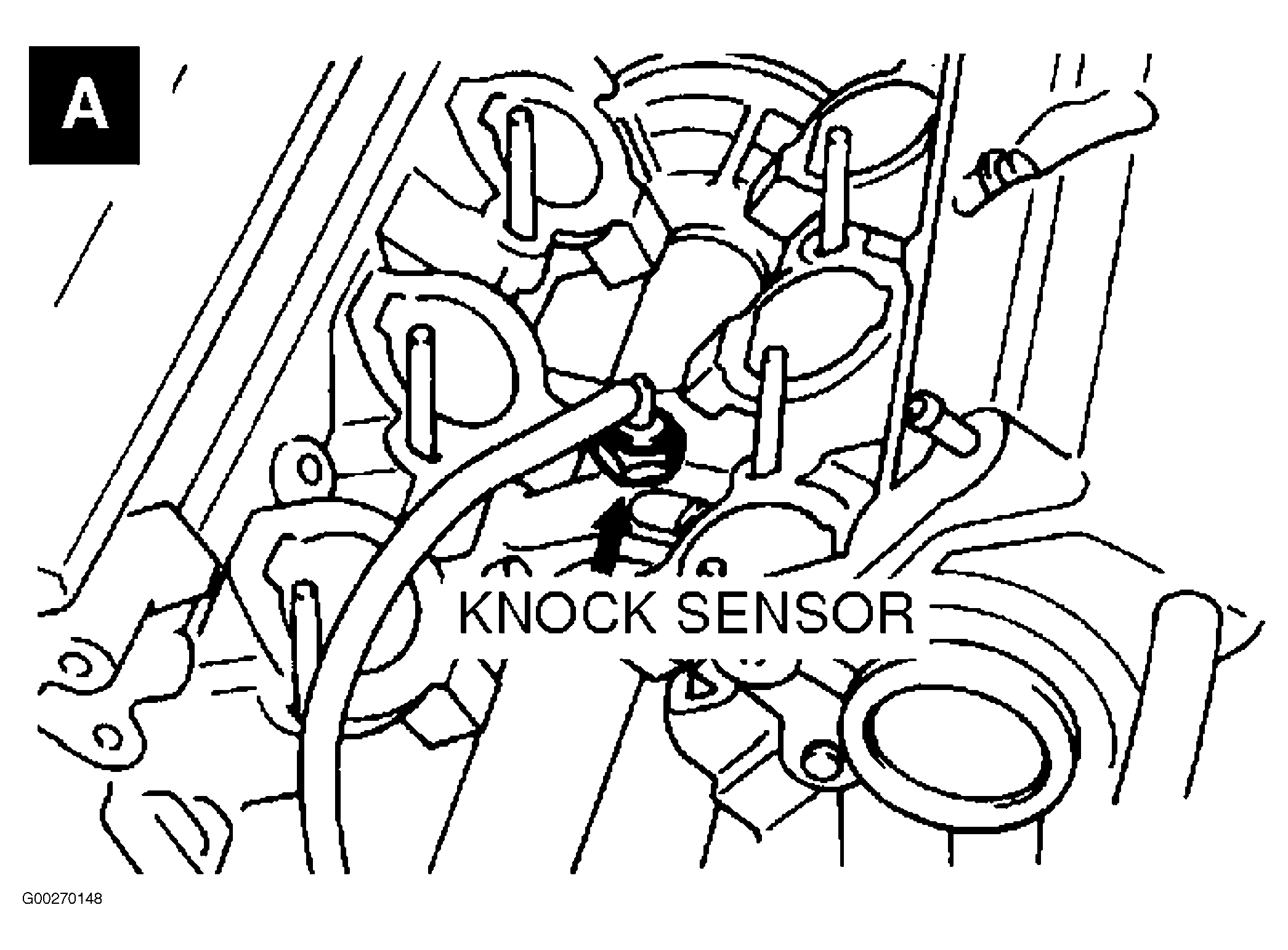

Fig 50: Sensors (1 Of 26)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

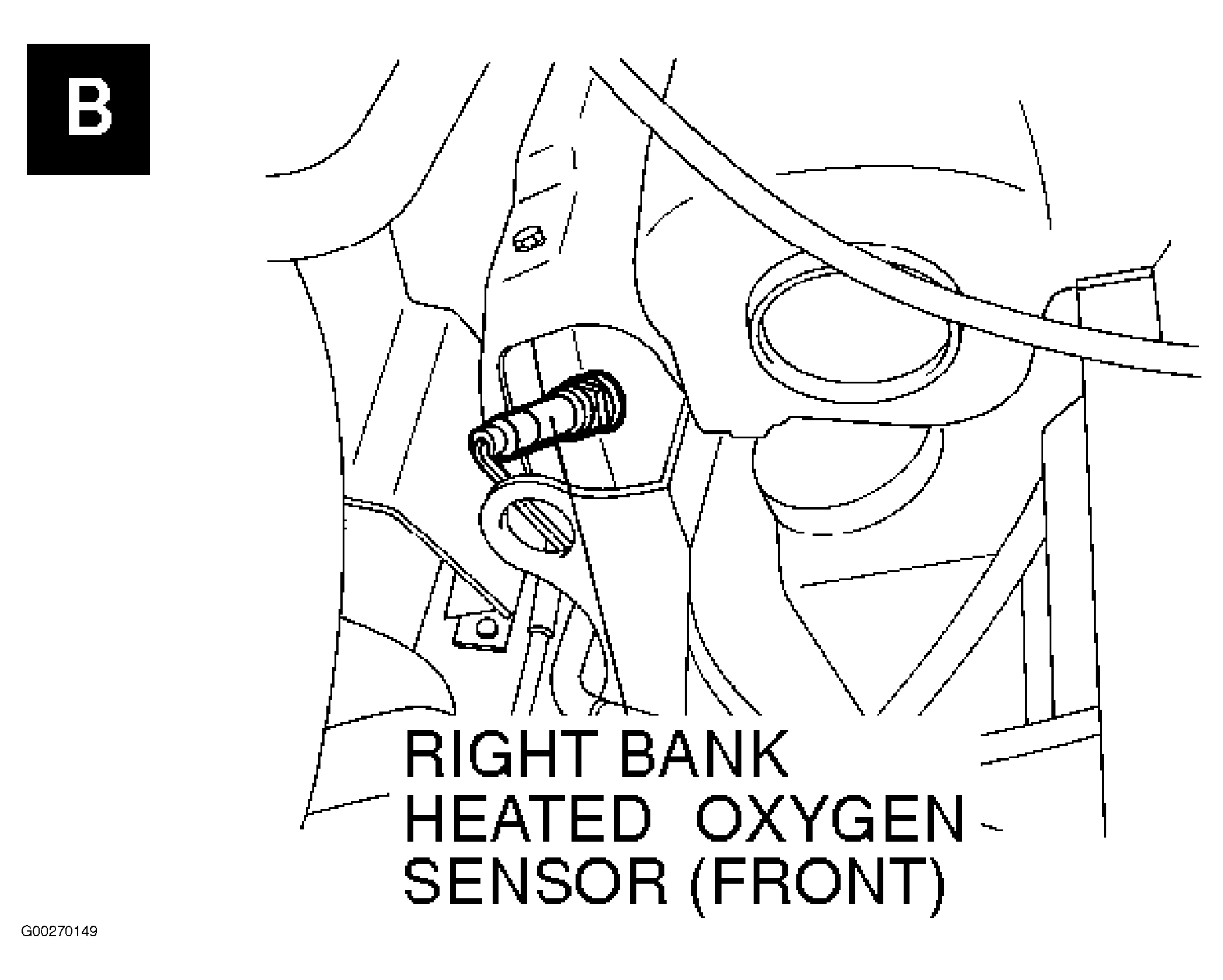

Fig 51: Sensors (2 Of 26)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

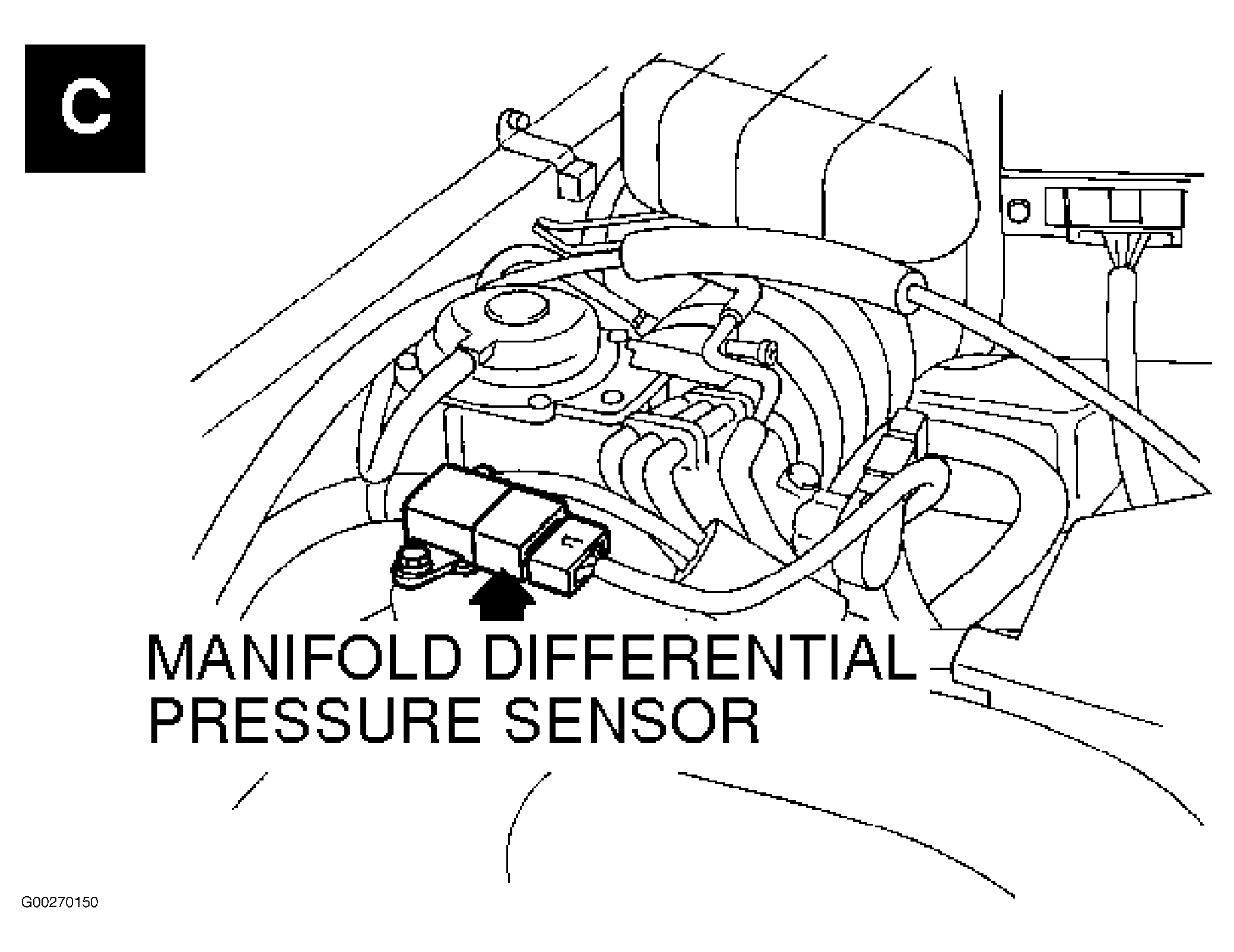

Fig 52: Sensors (3 Of 26)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 53: Sensors (4 Of 26)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 54: Sensors (5 Of 26)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

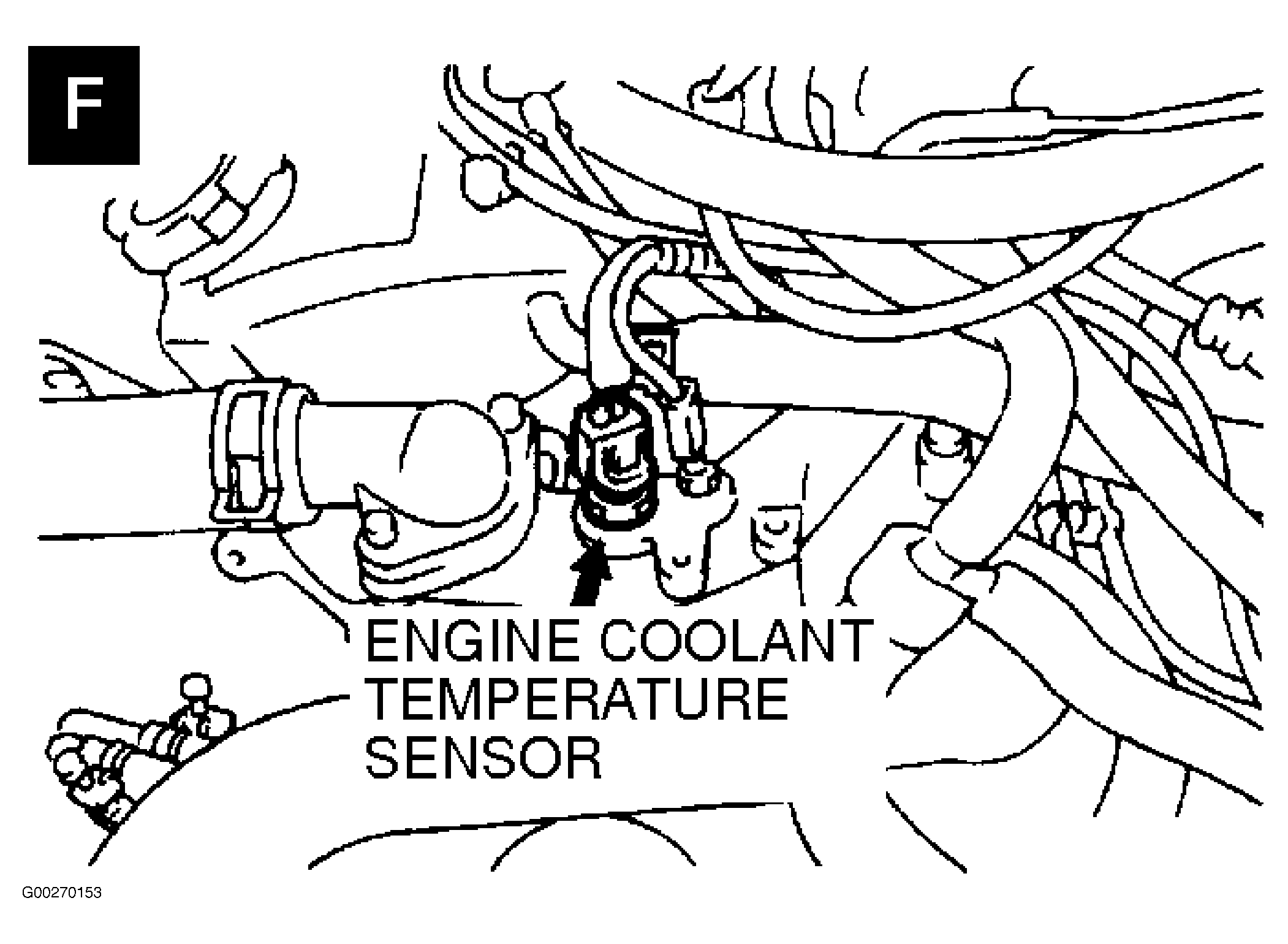

Fig 55: Sensors (6 Of 26)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 56: Sensors (7 Of 26)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 57: Sensors (8 Of 26)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

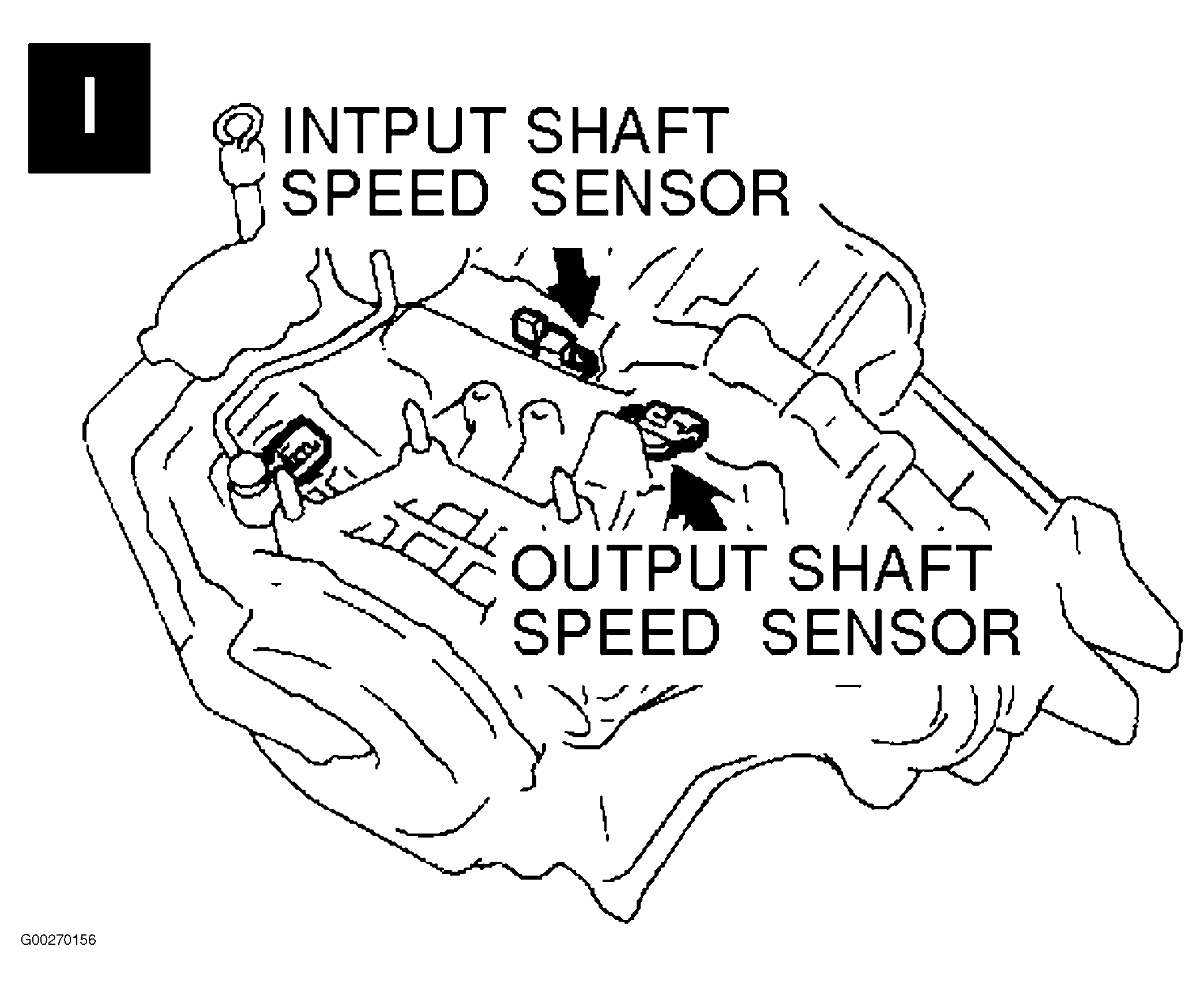

Fig 58: Sensors (9 Of 26)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

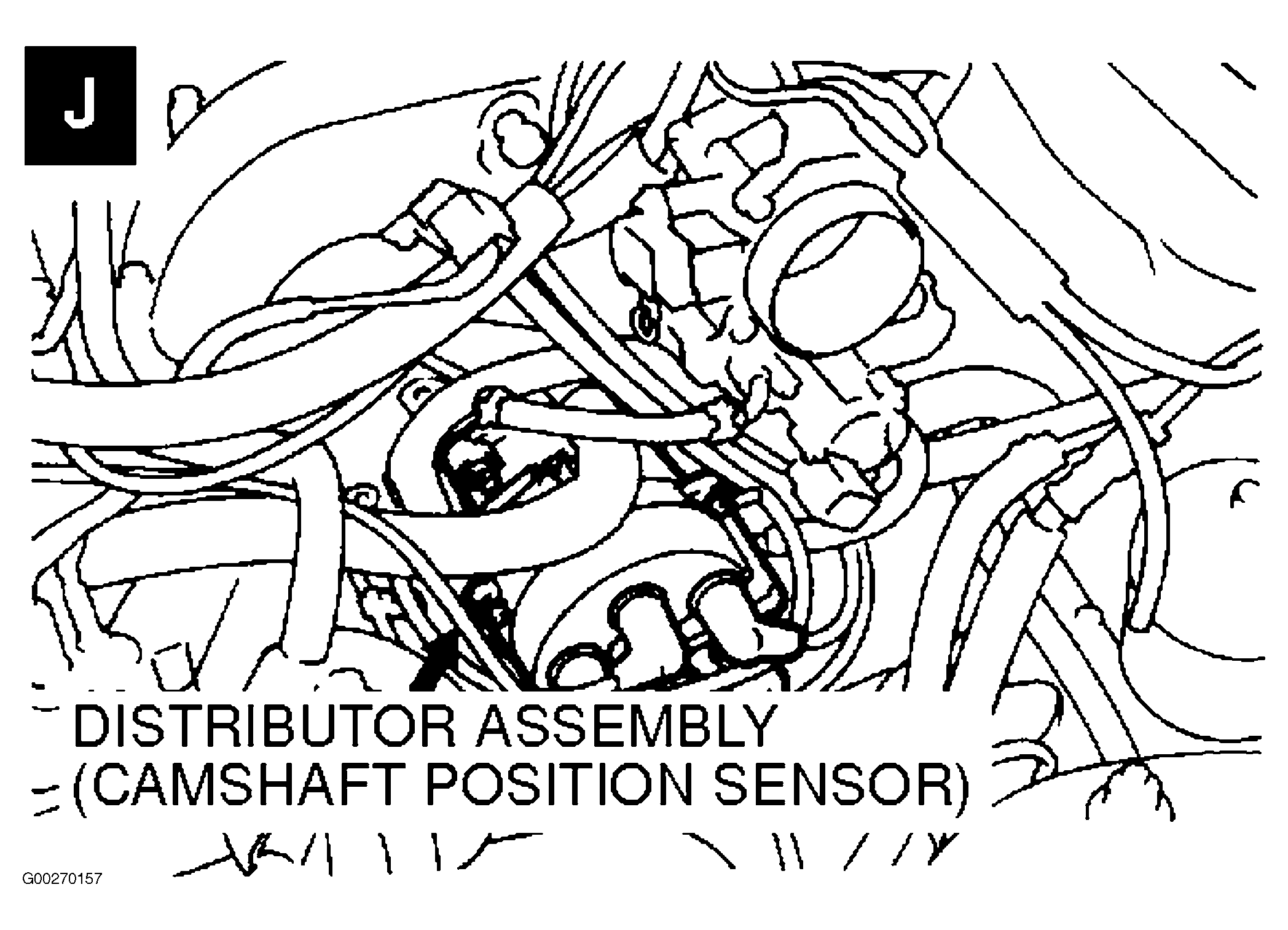

Fig 59: Sensors (10 Of 26)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 60: Sensors (11 Of 26)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 61: Sensors (12 Of 26)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 62: Sensors (13 Of 26)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

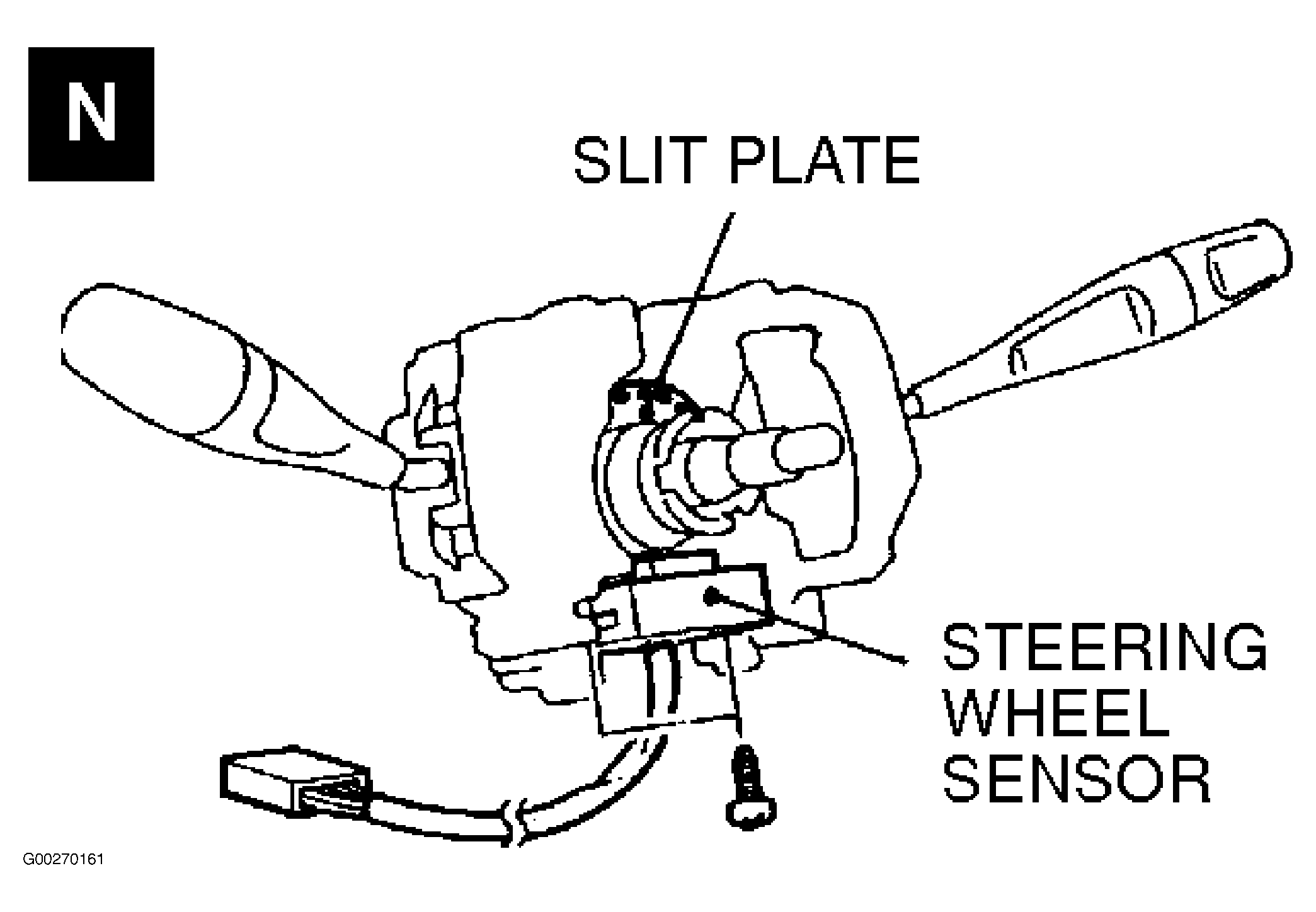

Fig 63: Sensors (14 Of 26)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 64: Sensors (15 Of 26)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 65: Sensors (16 Of 26)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

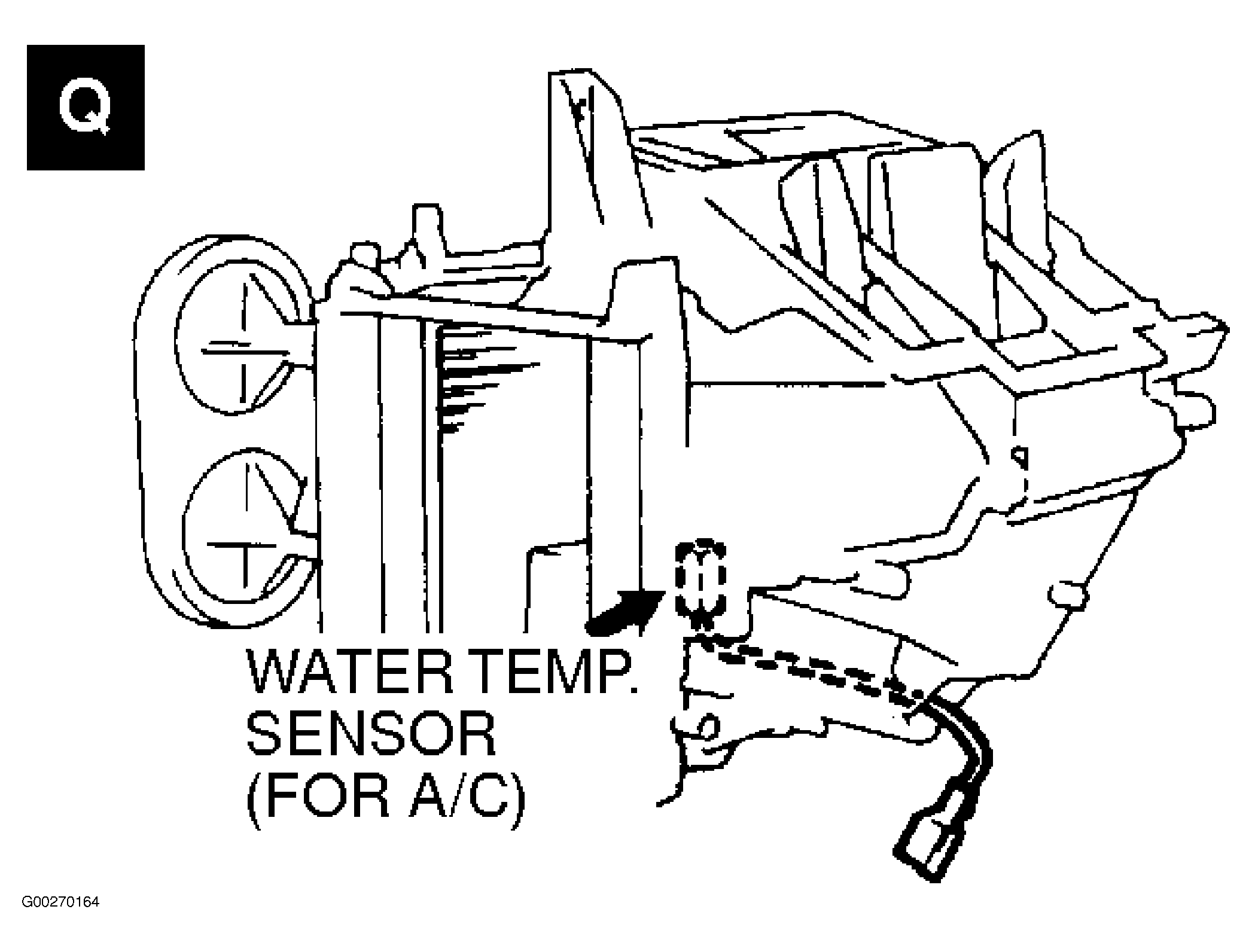

Fig 66: Sensors (17 Of 26)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

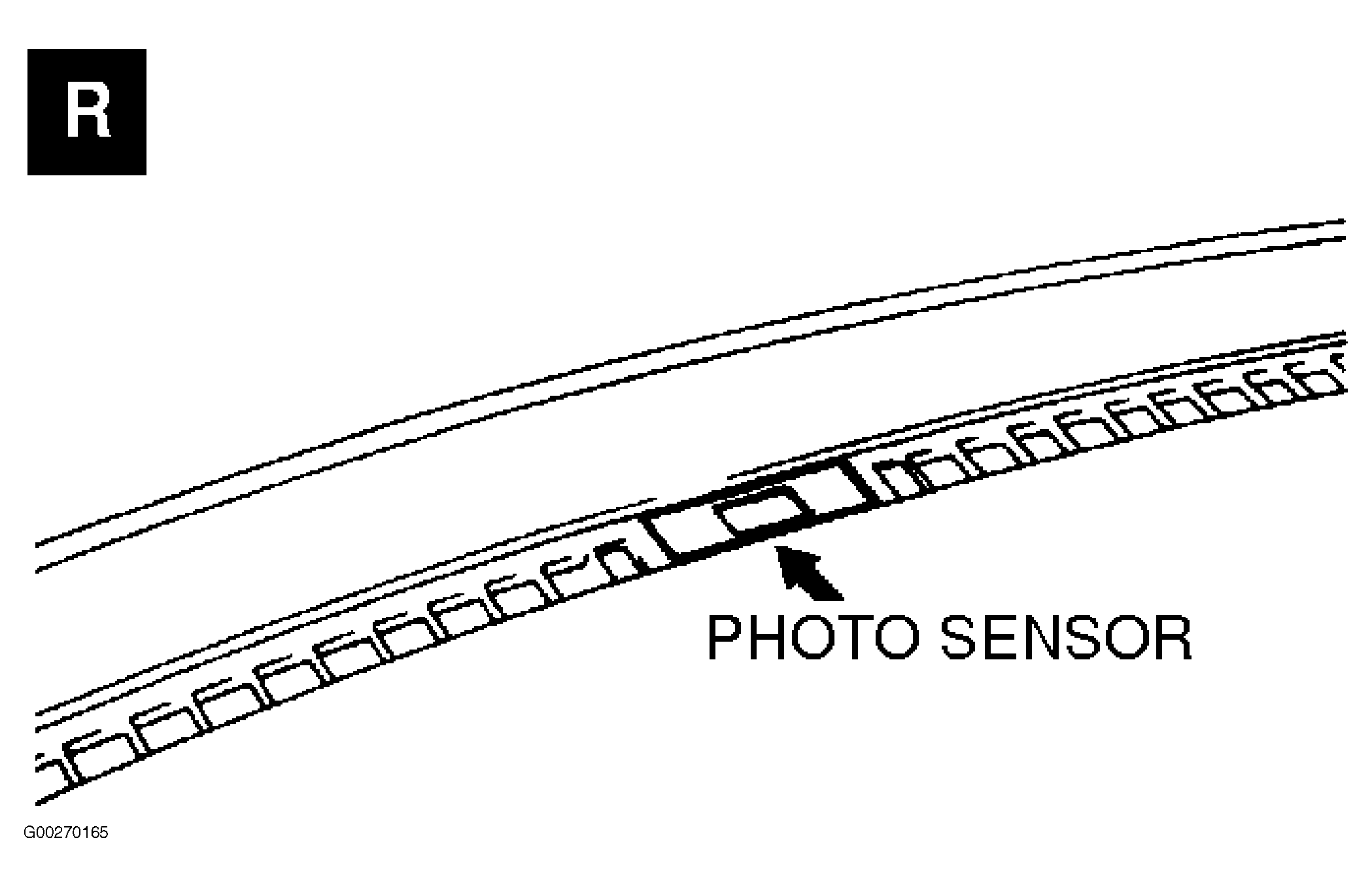

Fig 67: Sensors (18 Of 26)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

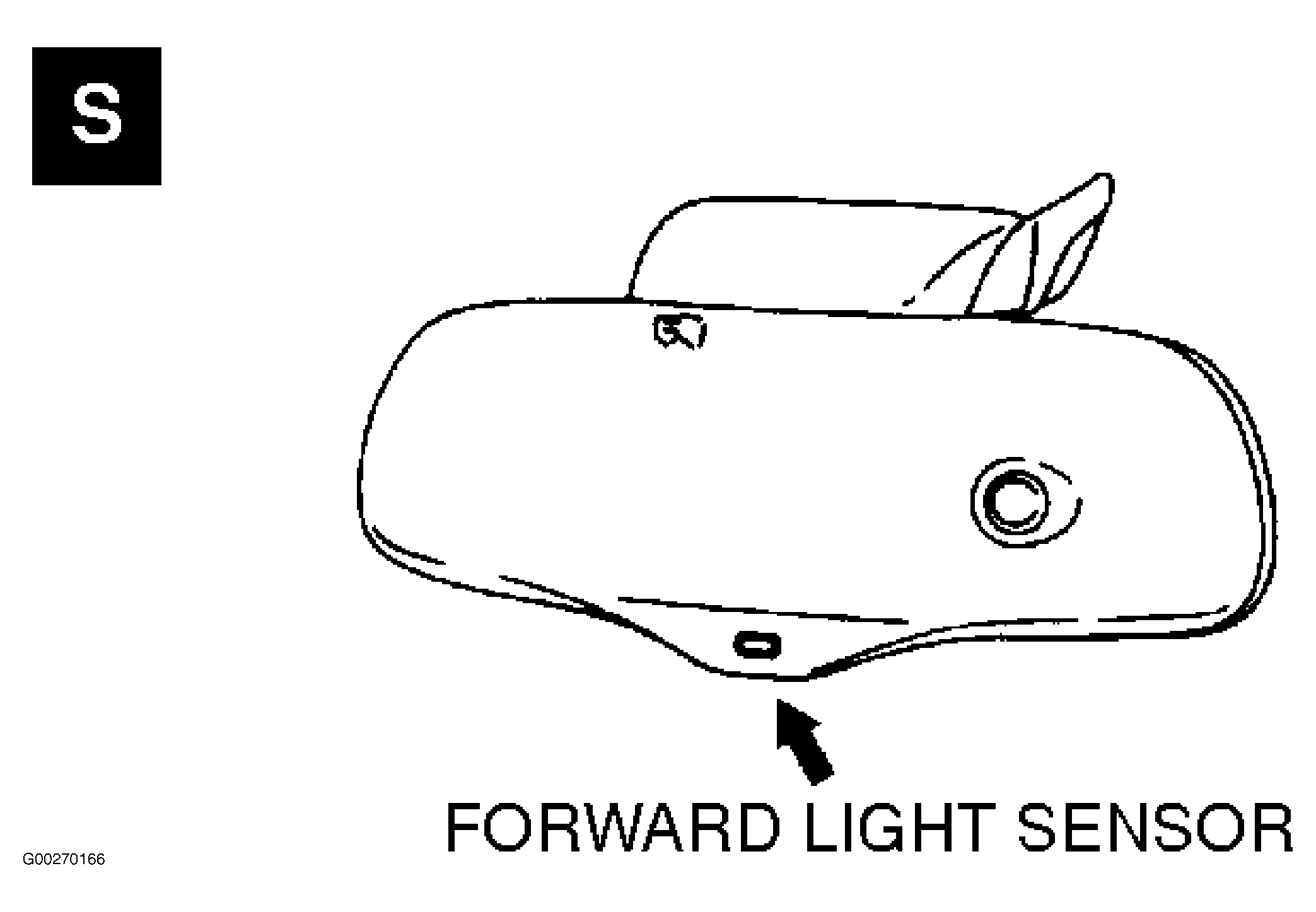

Fig 68: Sensors (19 Of 26)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 69: Sensors (20 Of 26)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 70: Sensors (21 Of 26)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

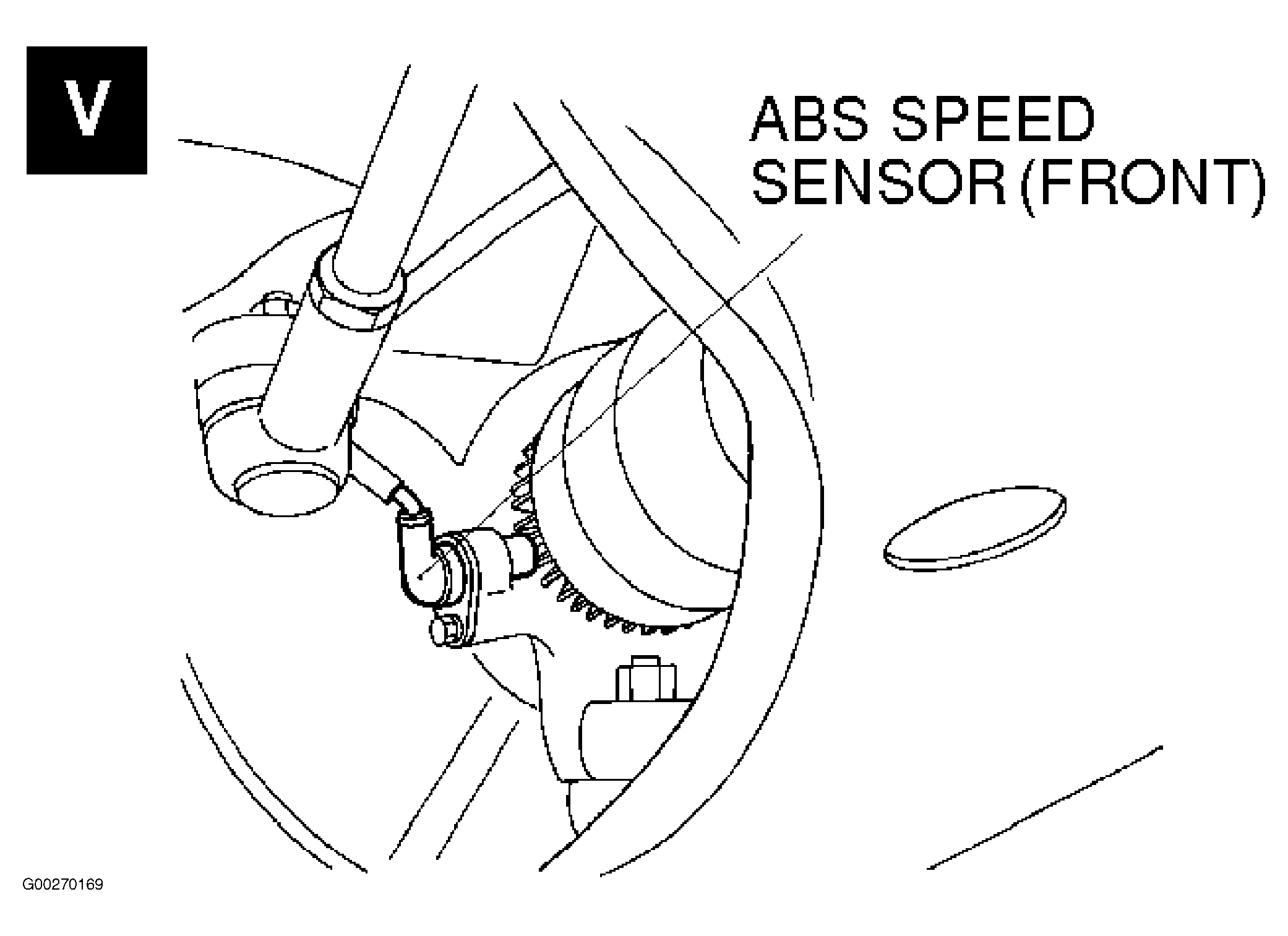

Fig 71: Sensors (22 Of 26)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 72: Sensors (23 Of 26)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

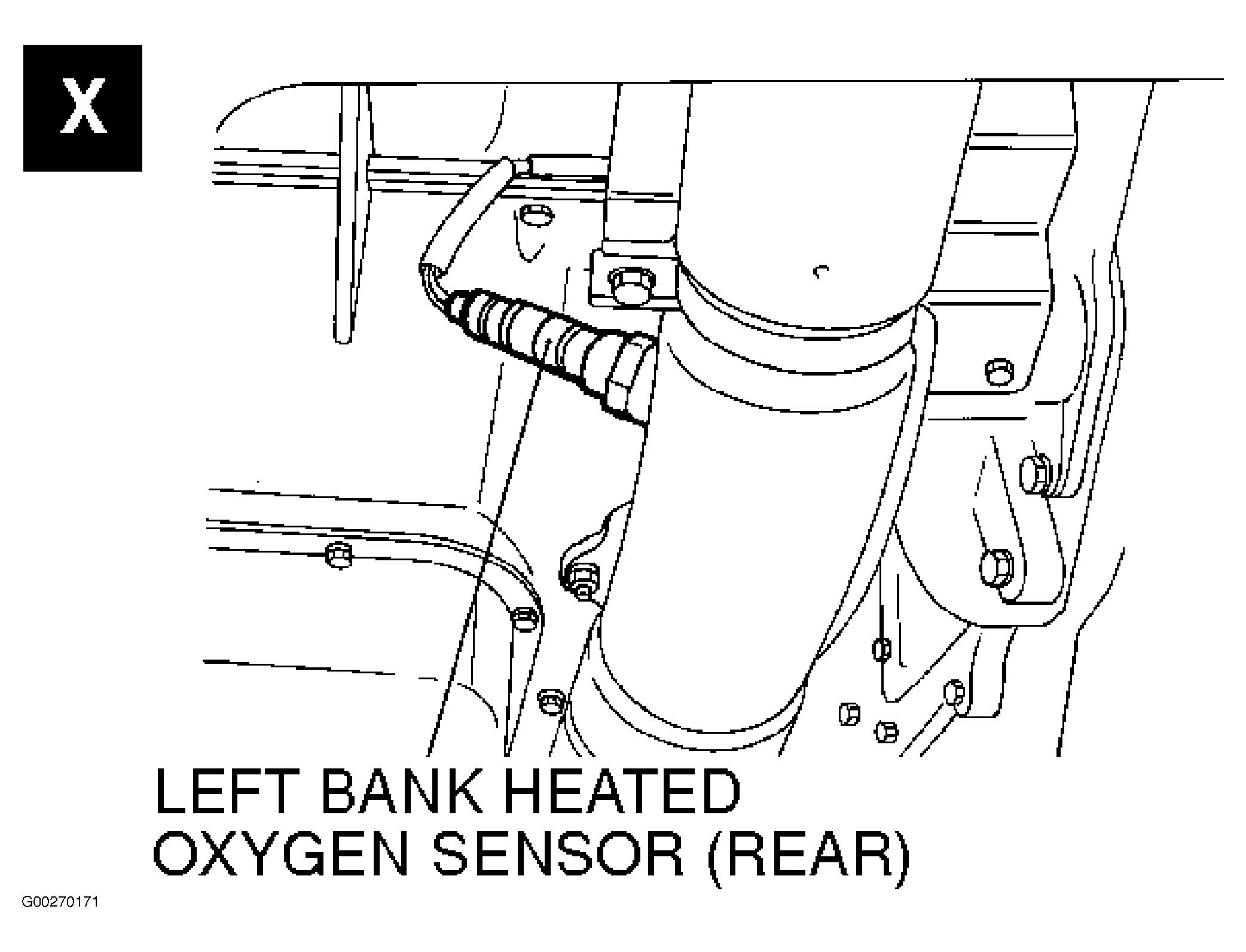

Fig 73: Sensors (24 Of 26)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

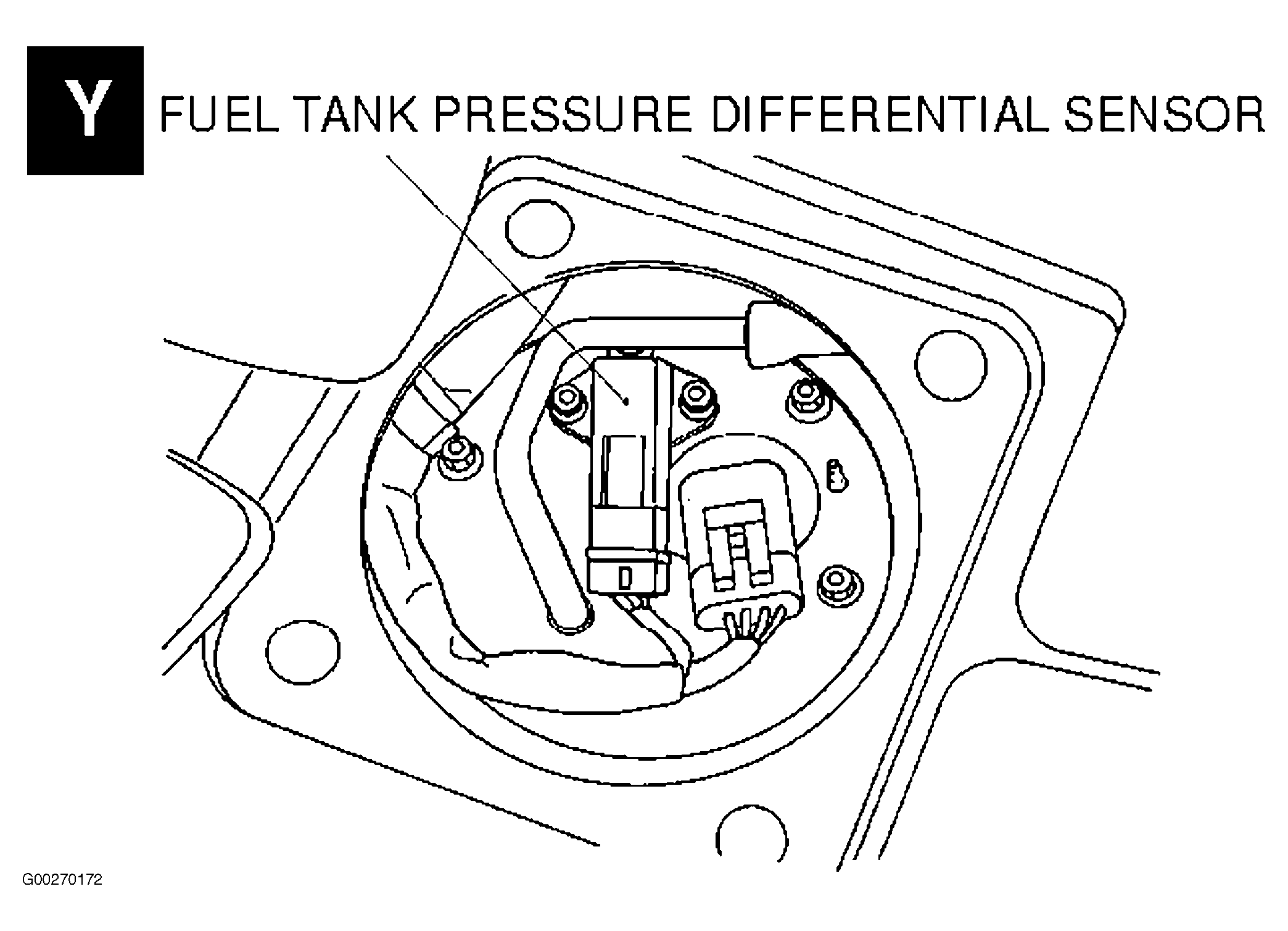

Fig 74: Sensors (25 Of 26)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

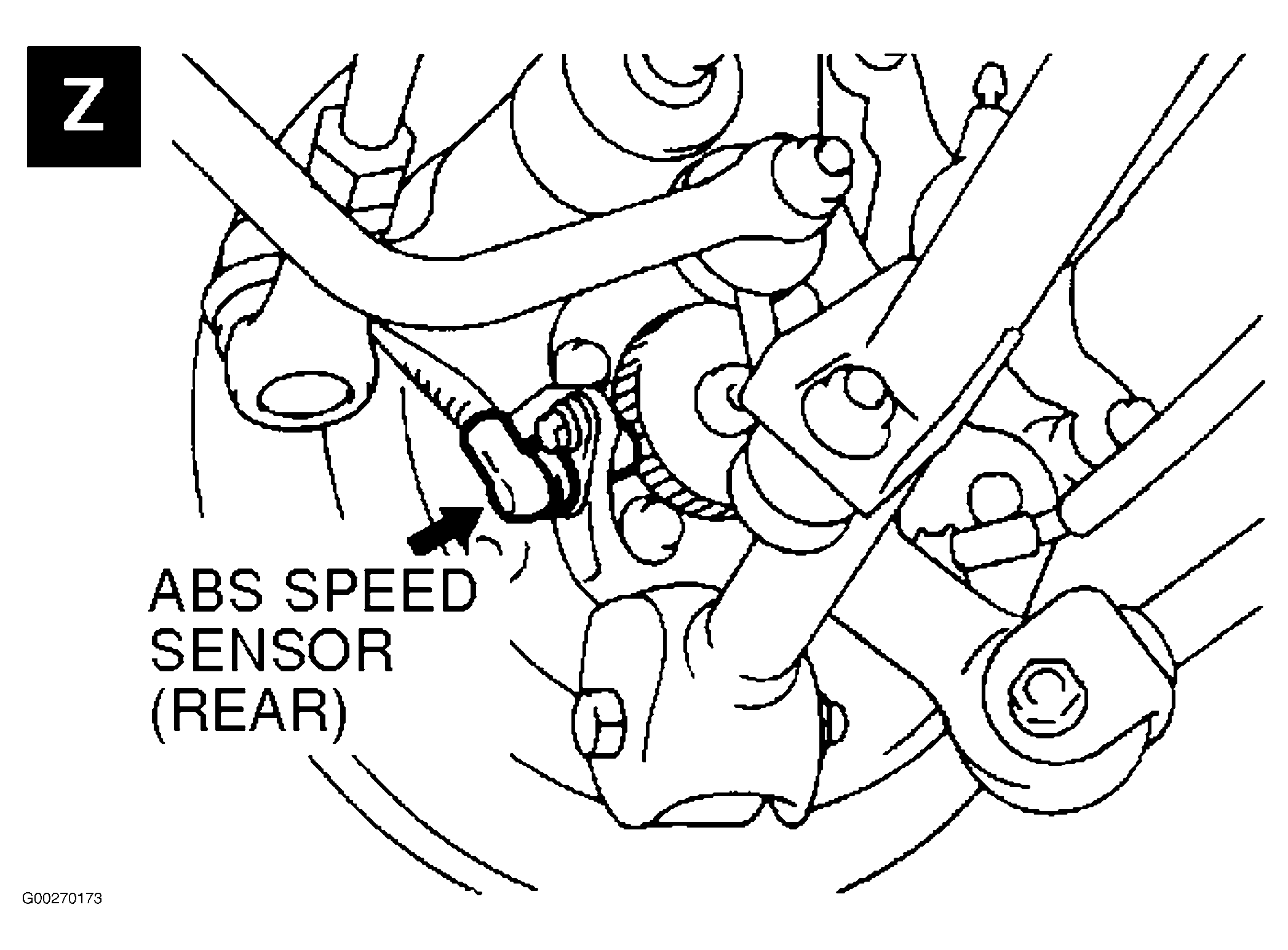

Fig 75: Sensors (26 Of 26)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

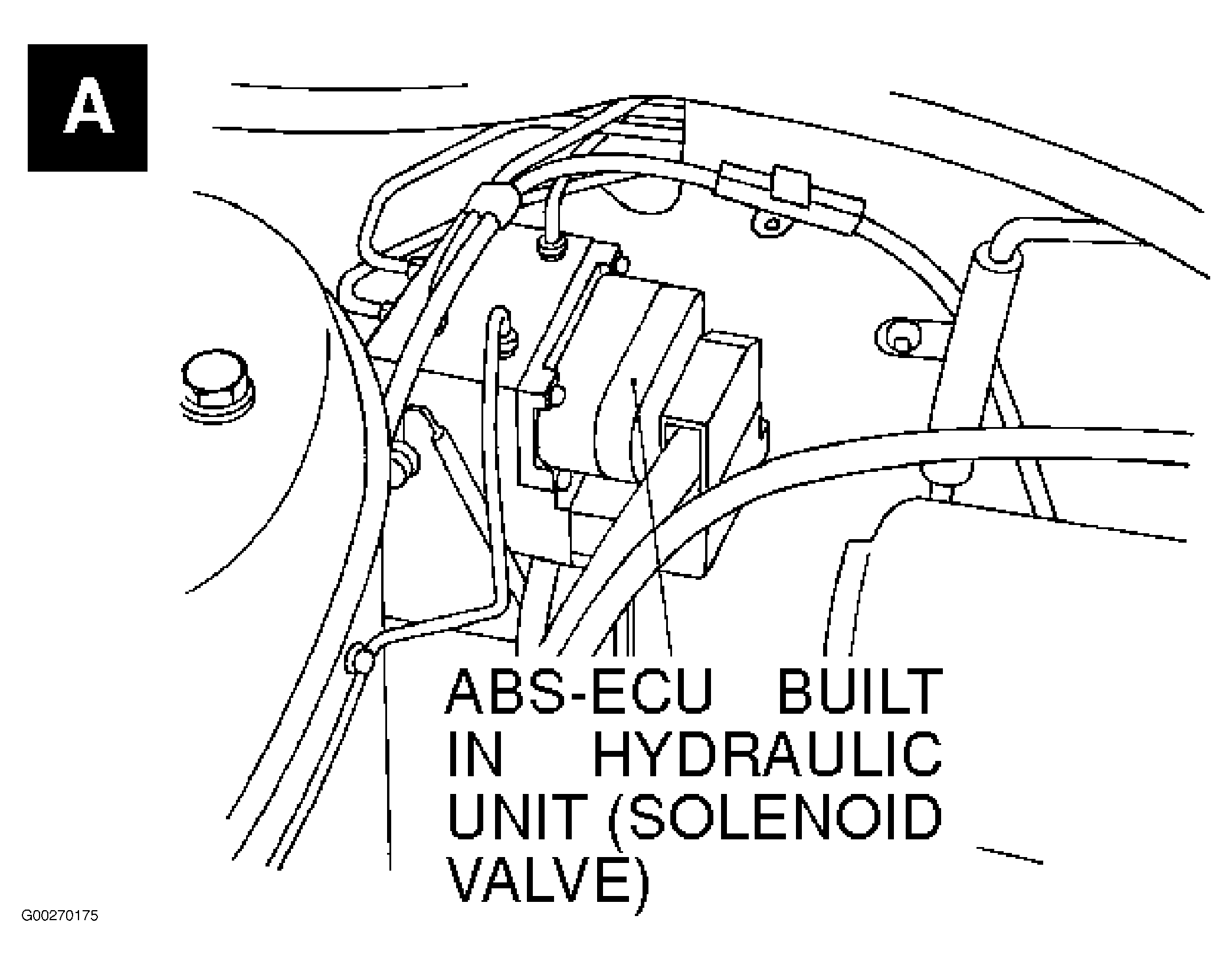

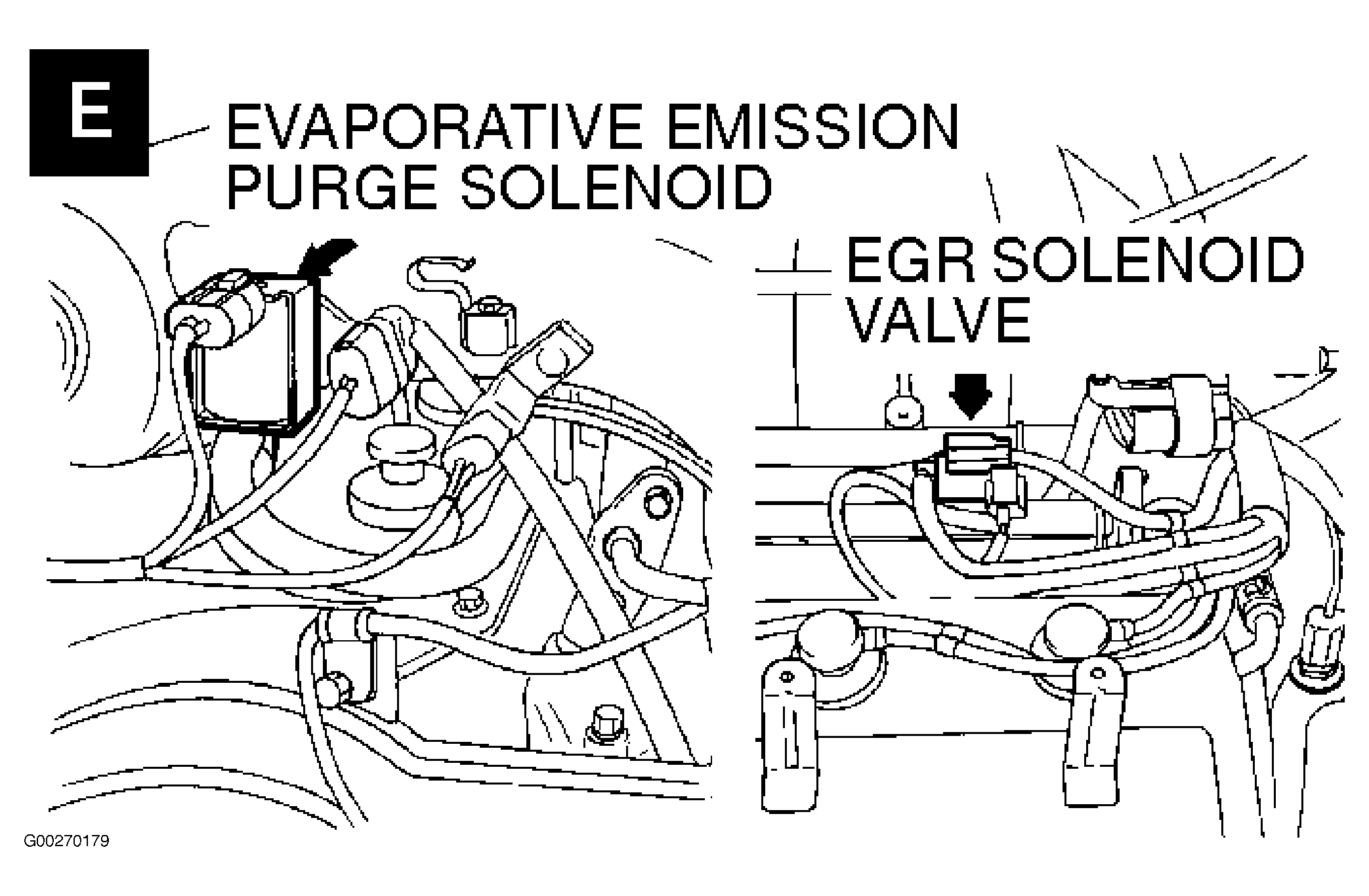

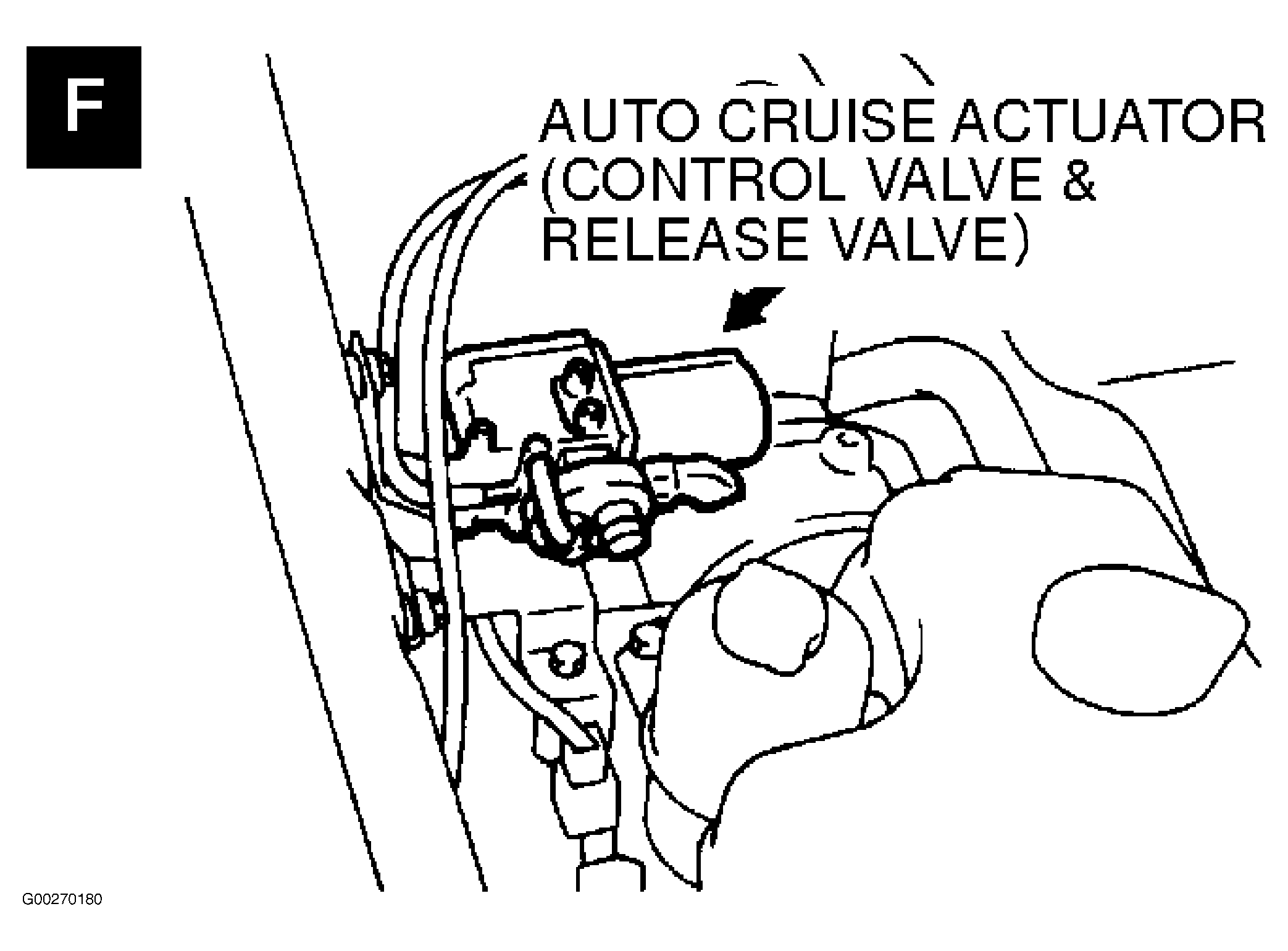

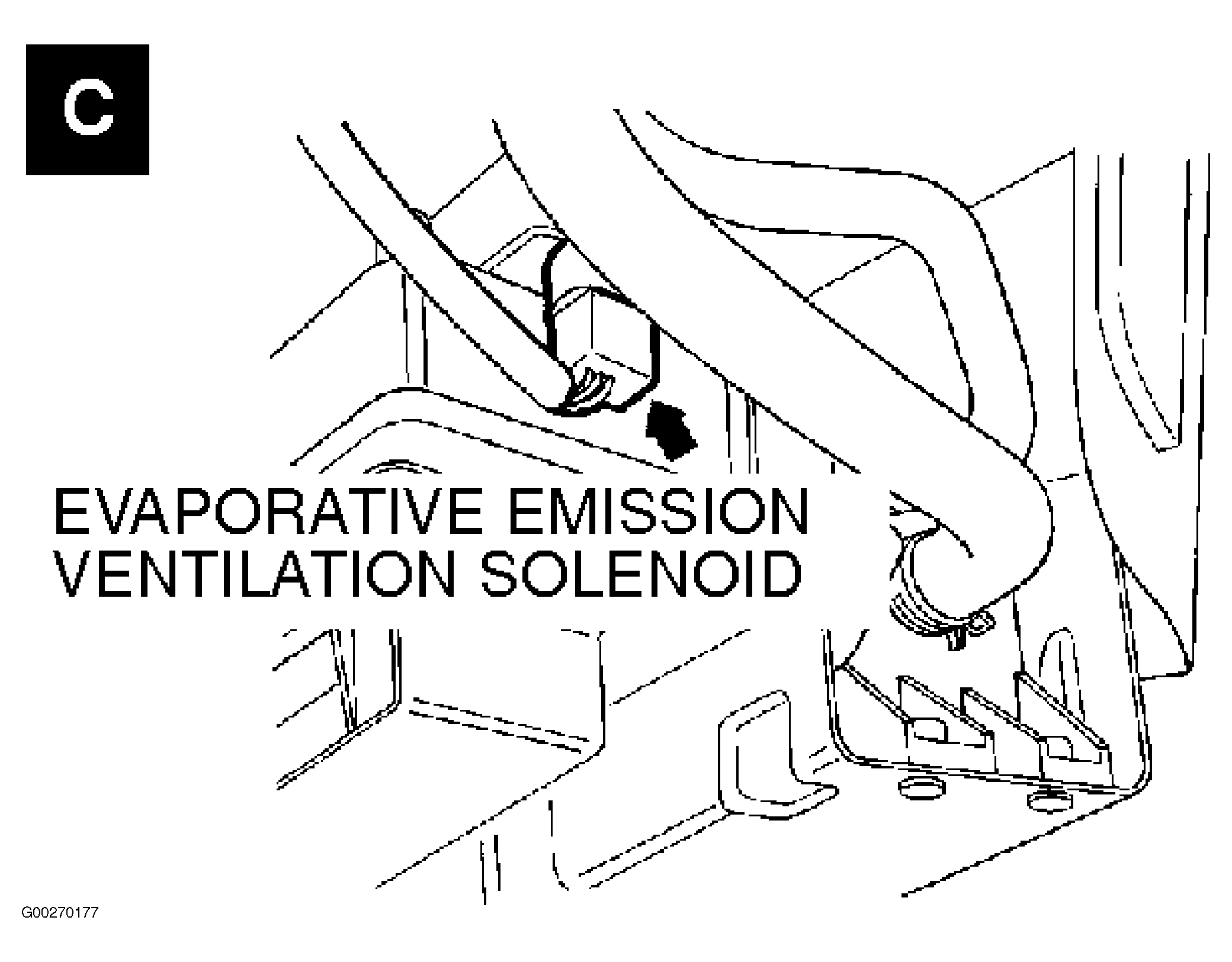

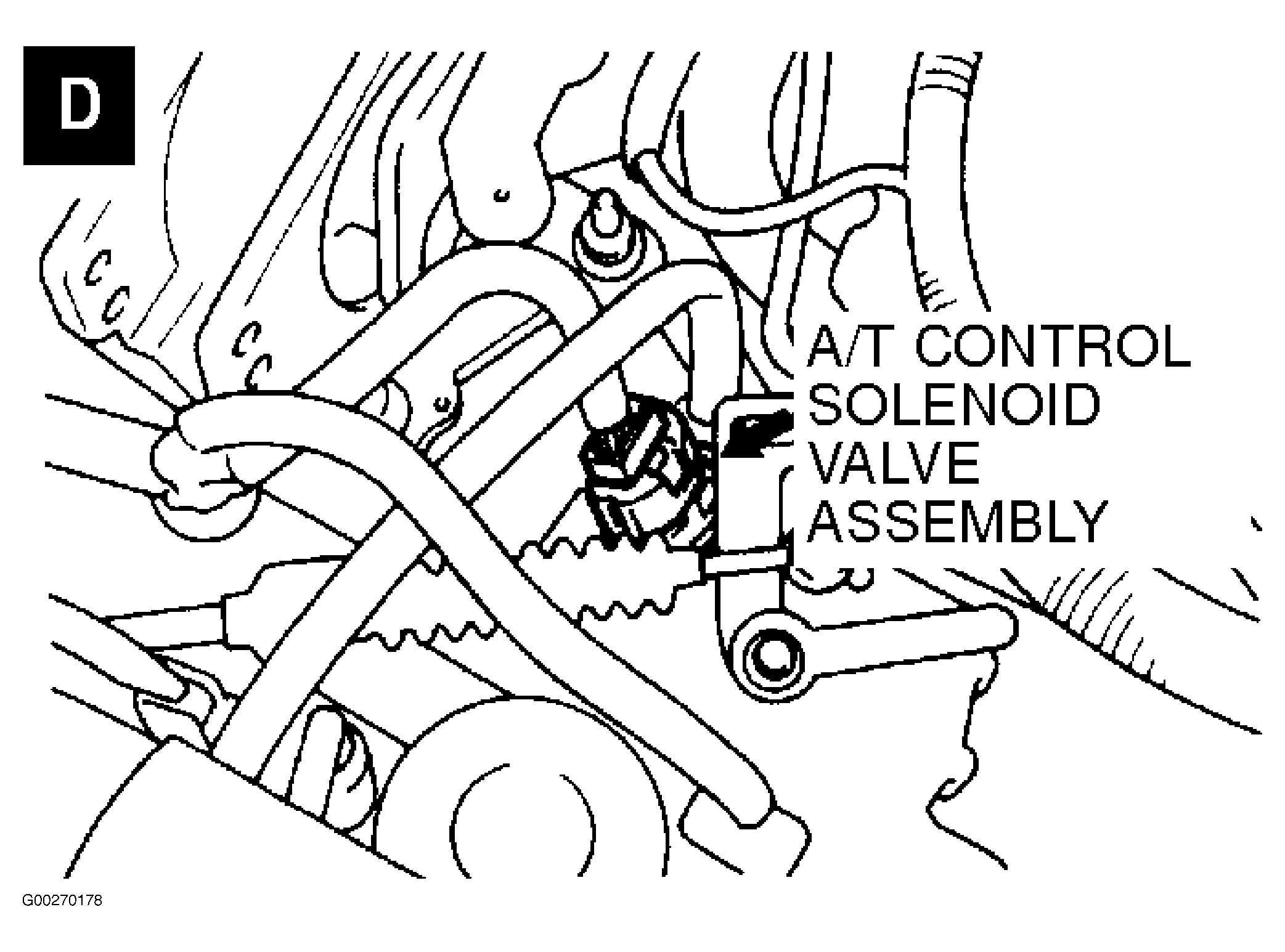

Fig 76: Solenoid & Solenoid Valve (1 Of 6)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

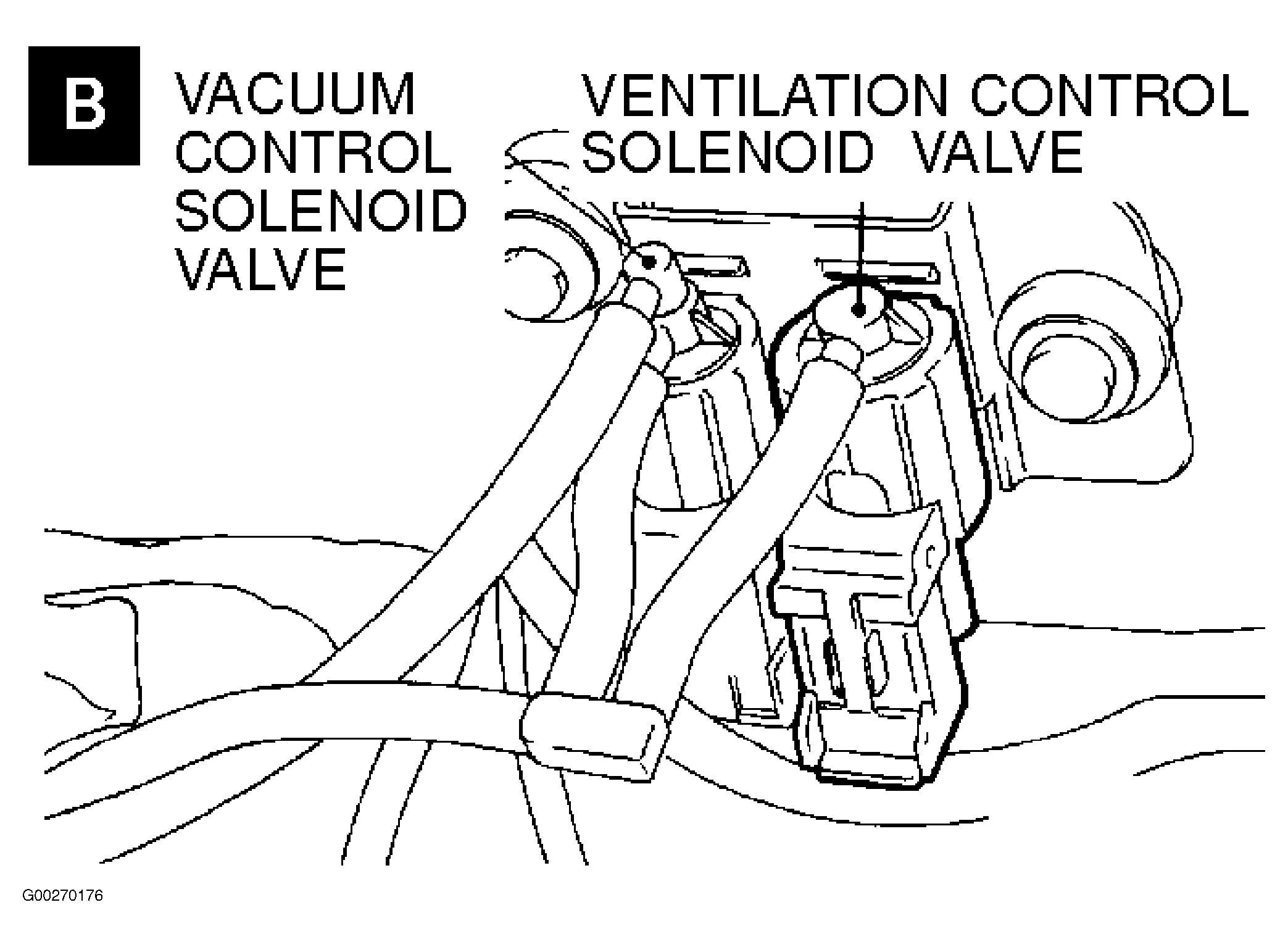

Fig 77: Solenoid & Solenoid Valve (2 Of 6)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 78: Solenoid & Solenoid Valve (3 Of 6)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 79: Solenoid & Solenoid Valve (4 Of 6)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 80: Solenoid & Solenoid Valve (5 Of 6)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 81: Solenoid & Solenoid Valve (6 Of 6)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

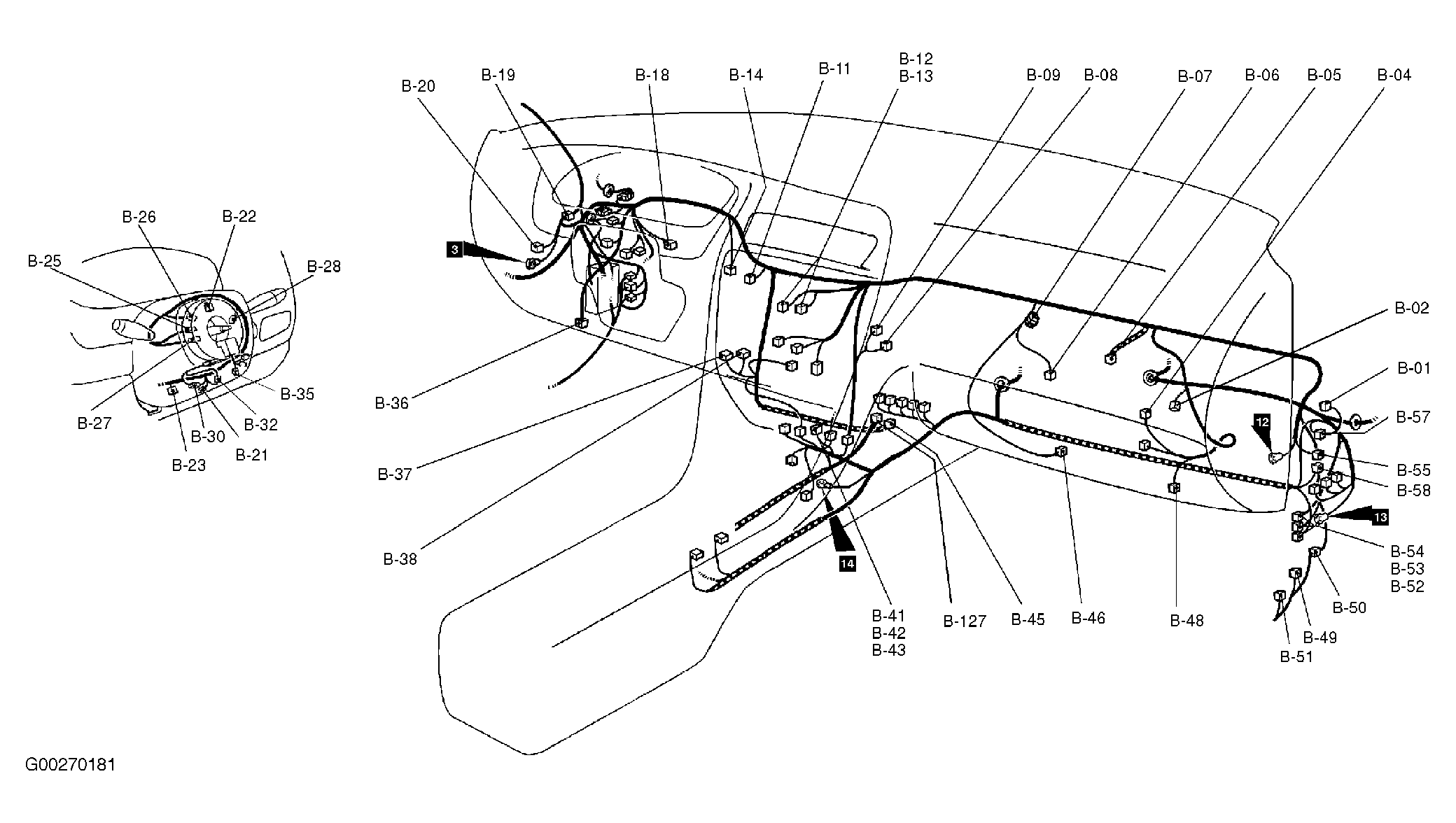

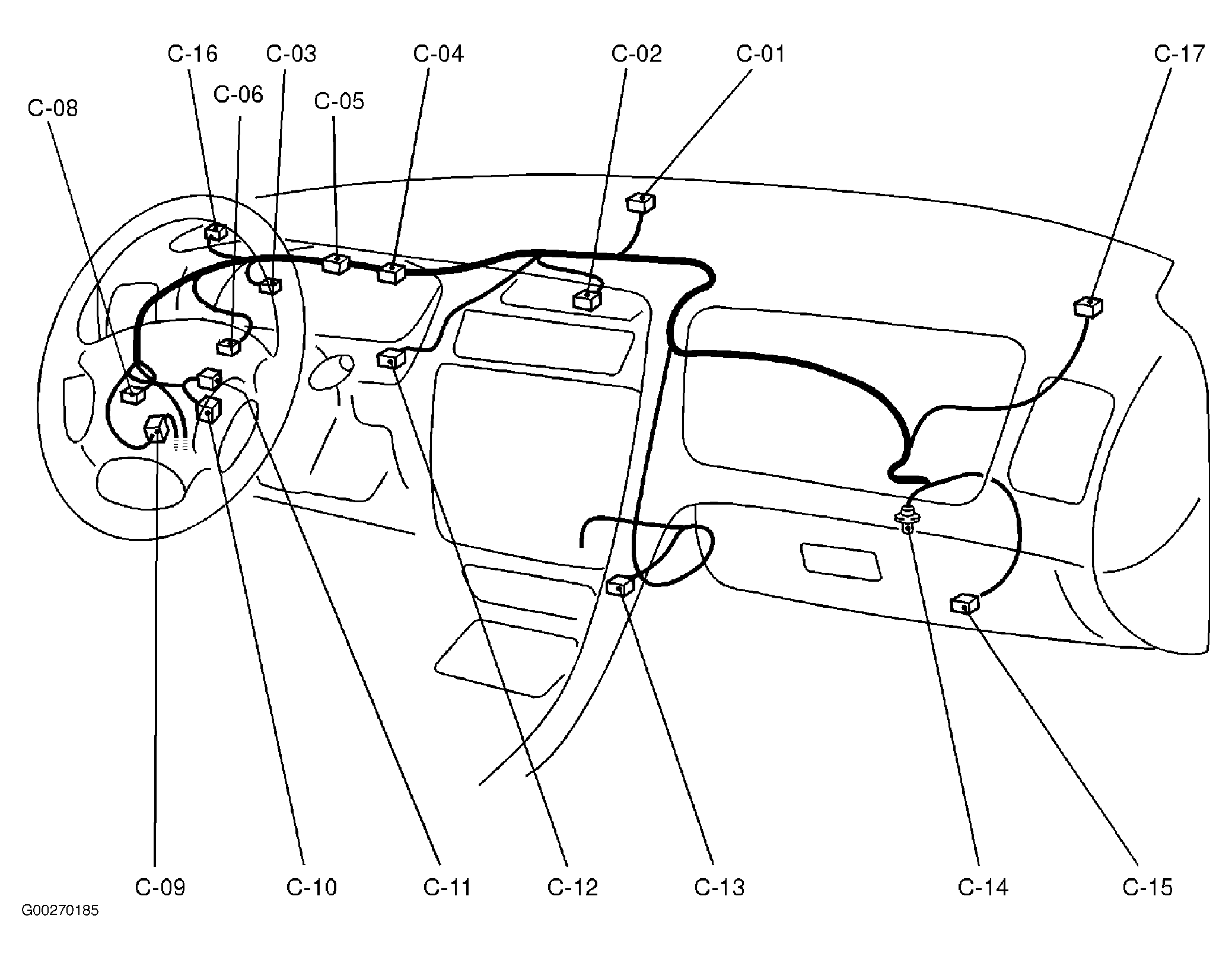

Fig 82: Dash
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 83: Doors
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

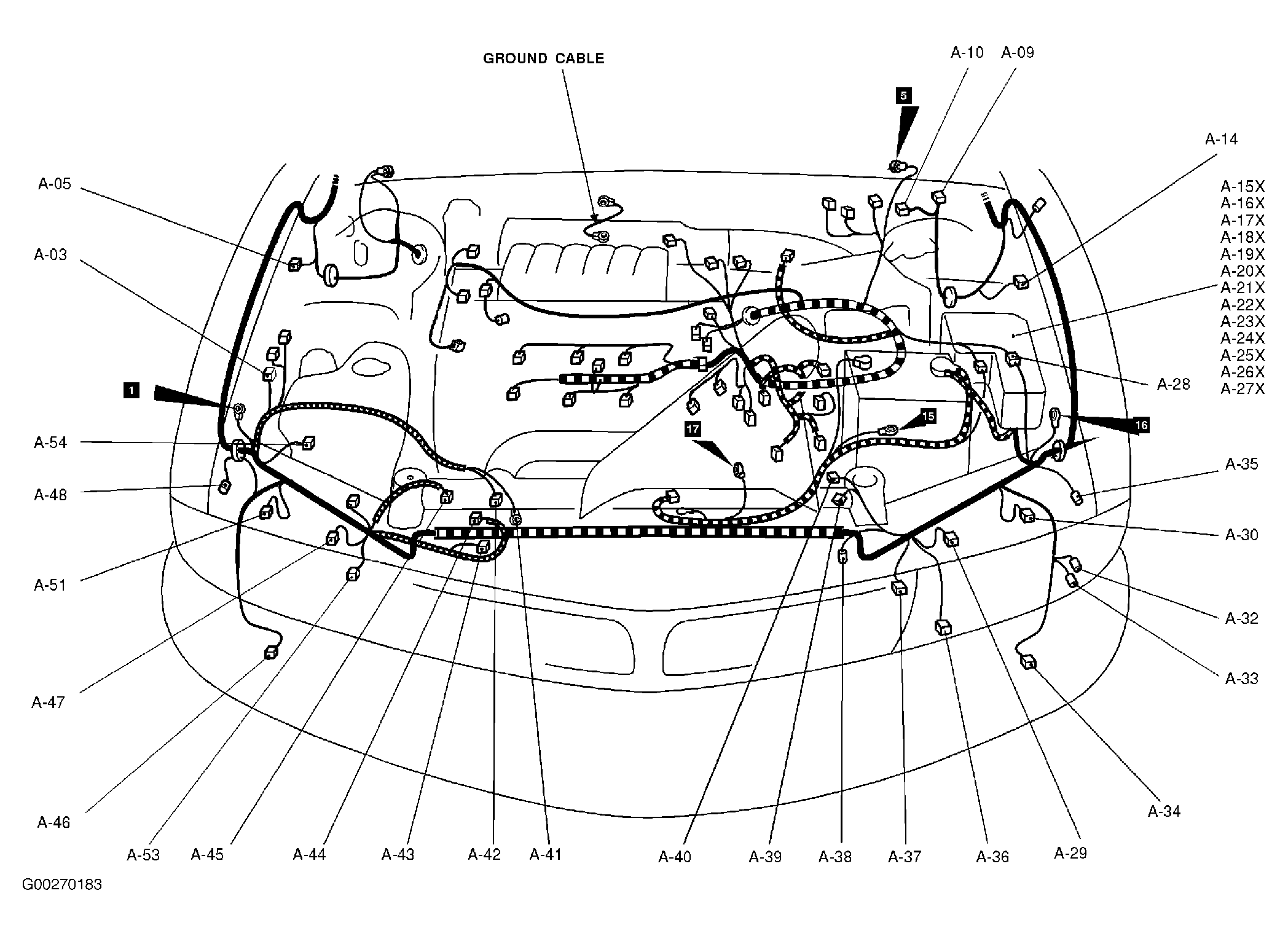

Fig 84: Engine Compartment
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

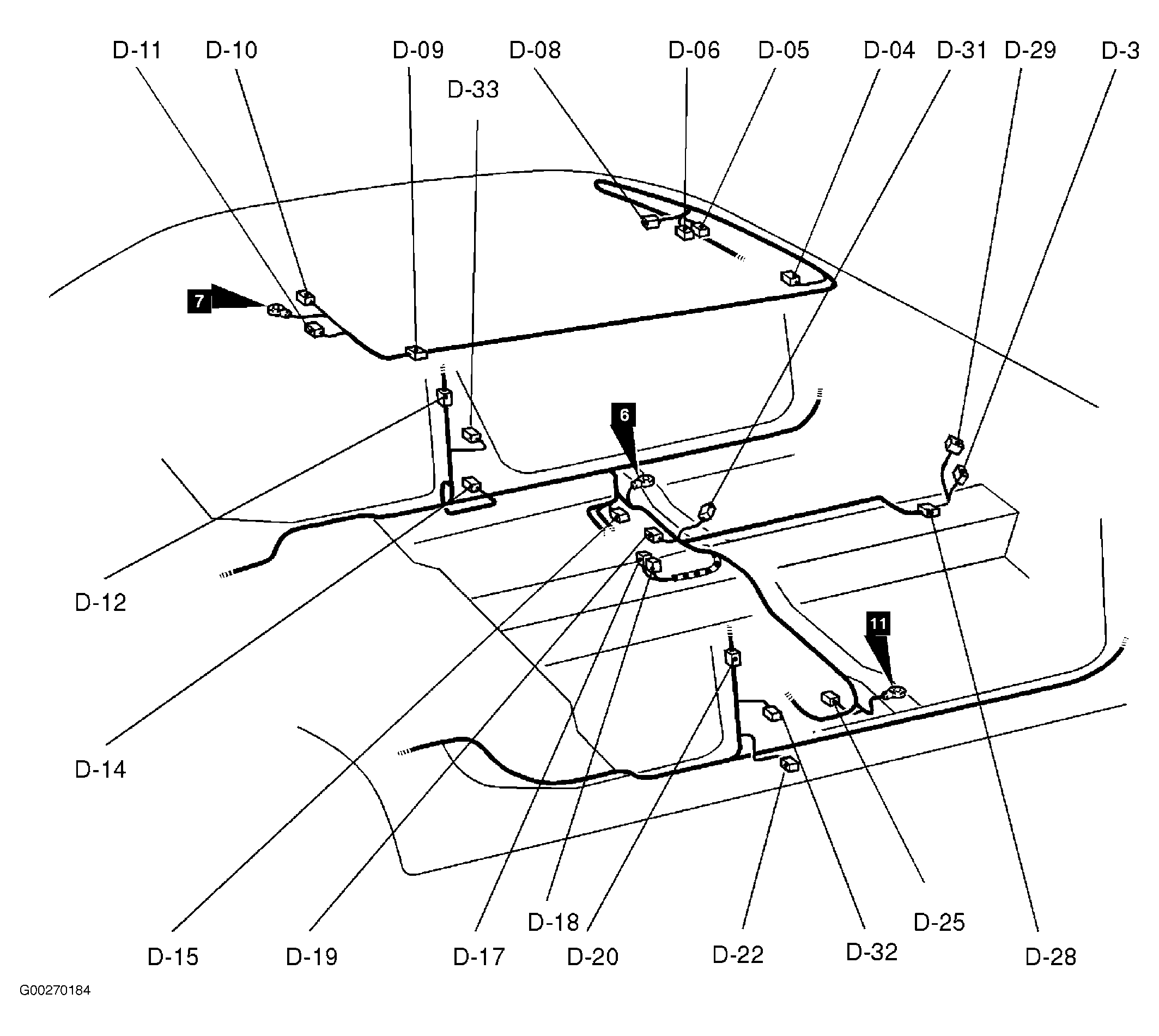

Fig 85: Floor & Roof
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 86: Instrument Panel
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

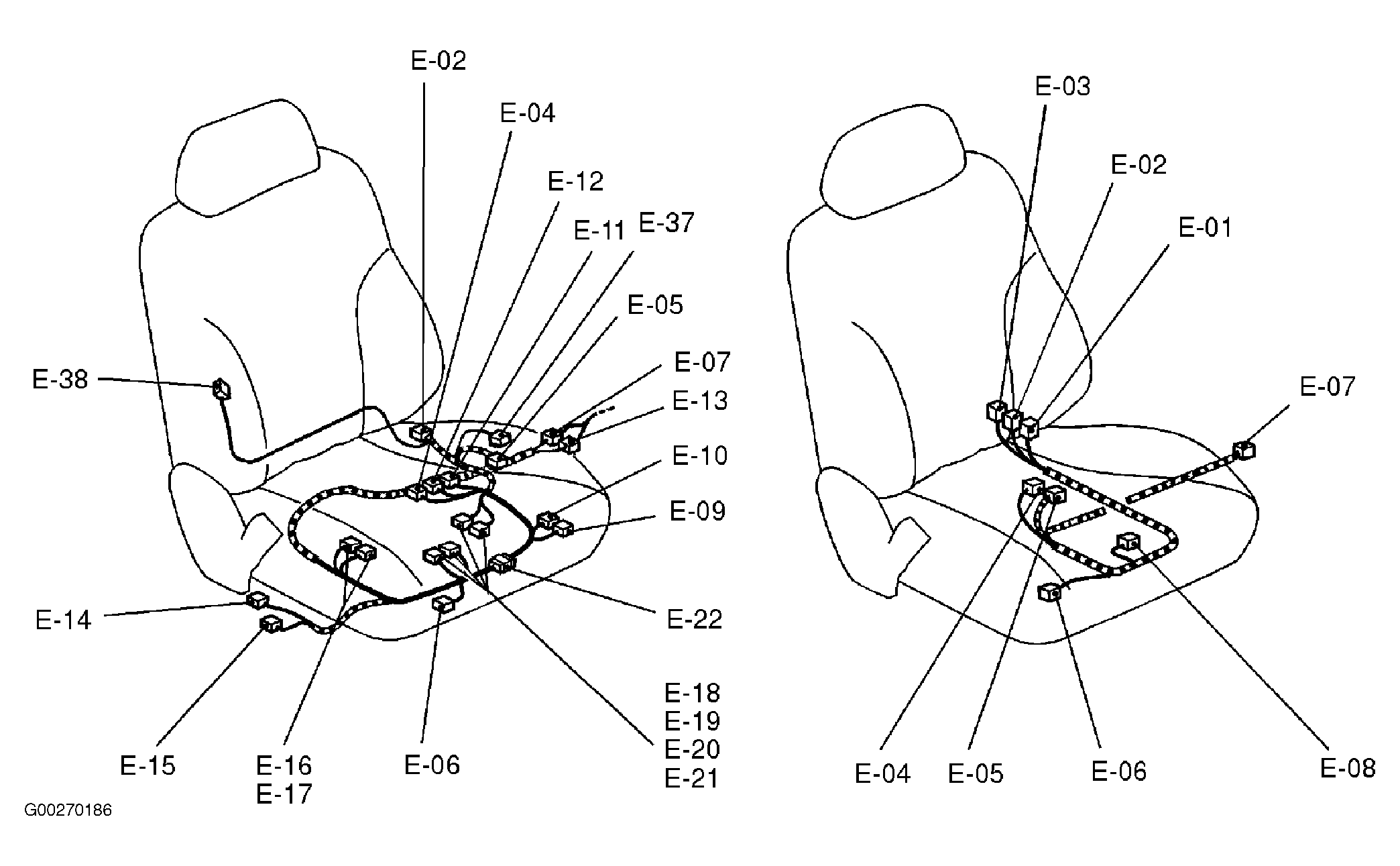

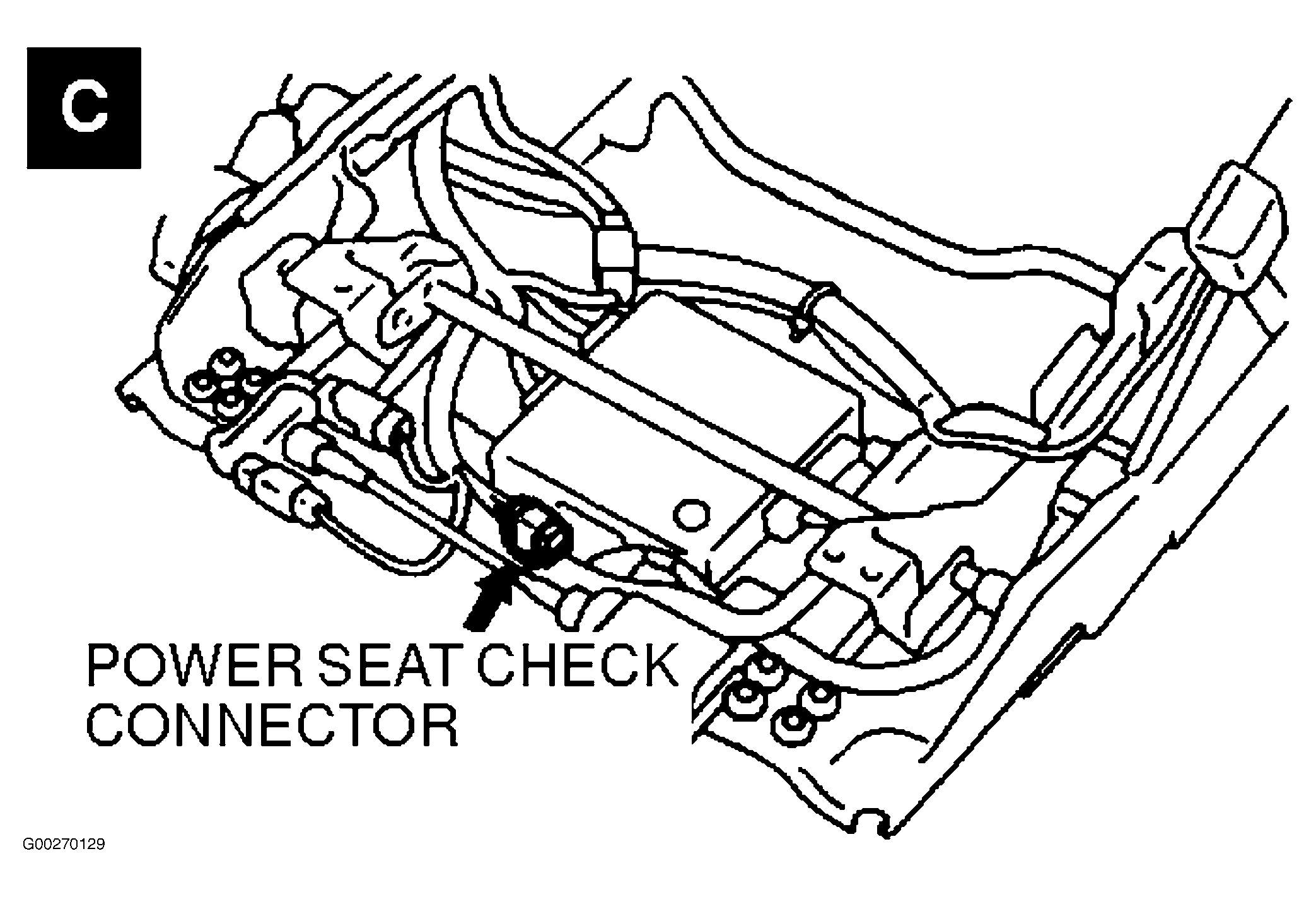

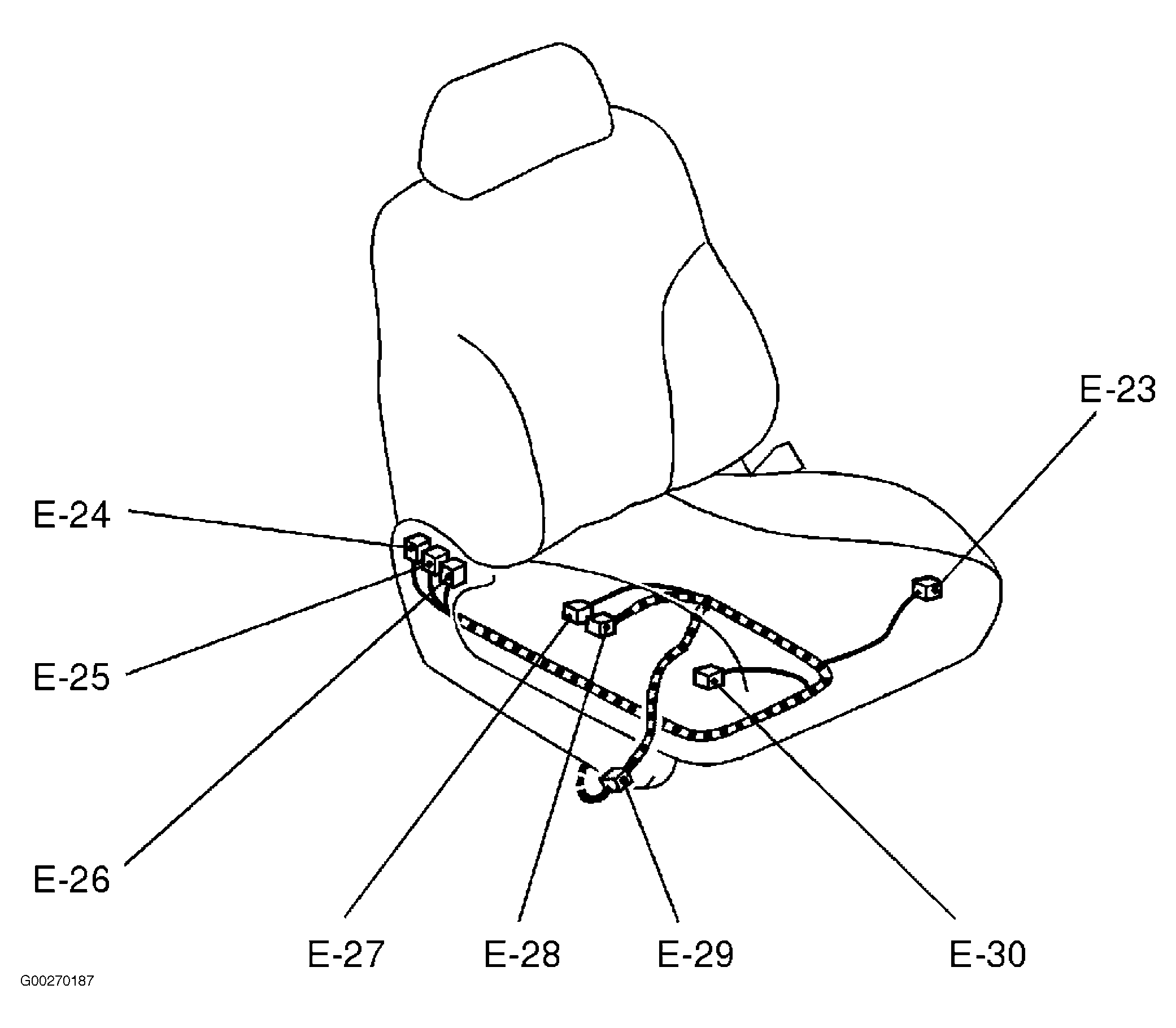

Fig 87: Driver's Seat
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 88: Under Front Passengers Seat
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

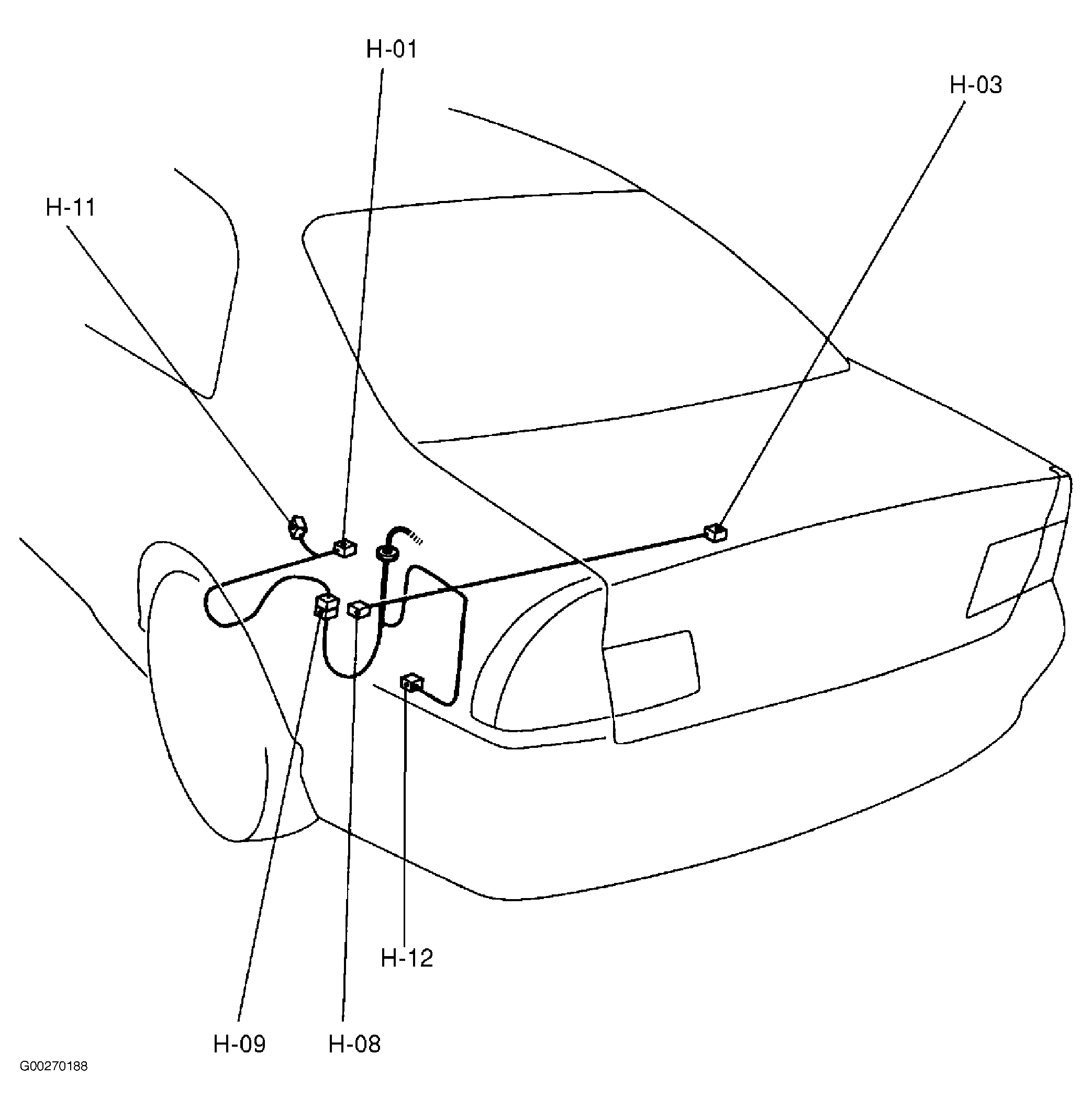

Fig 89: Rear Floor Lower Section
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

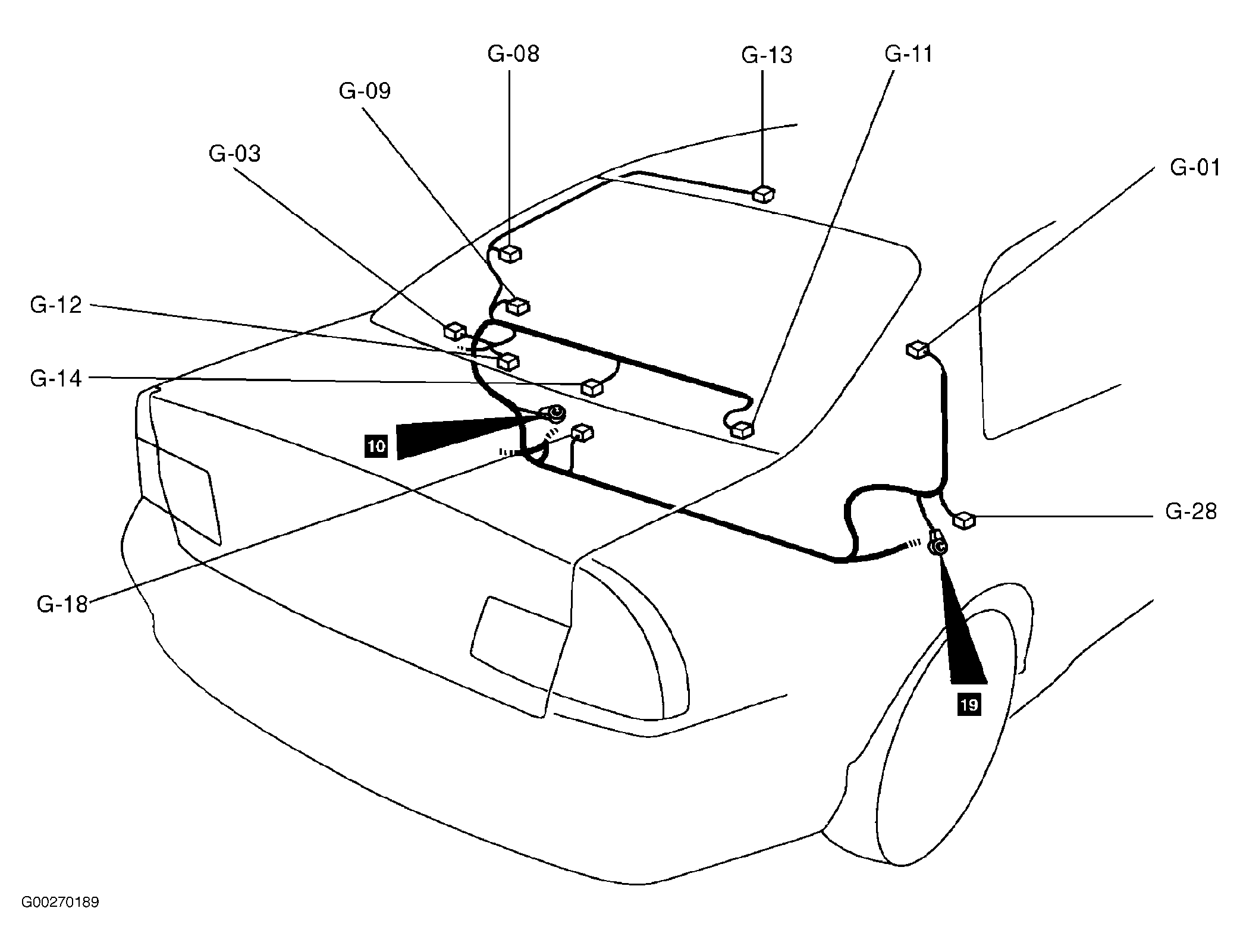

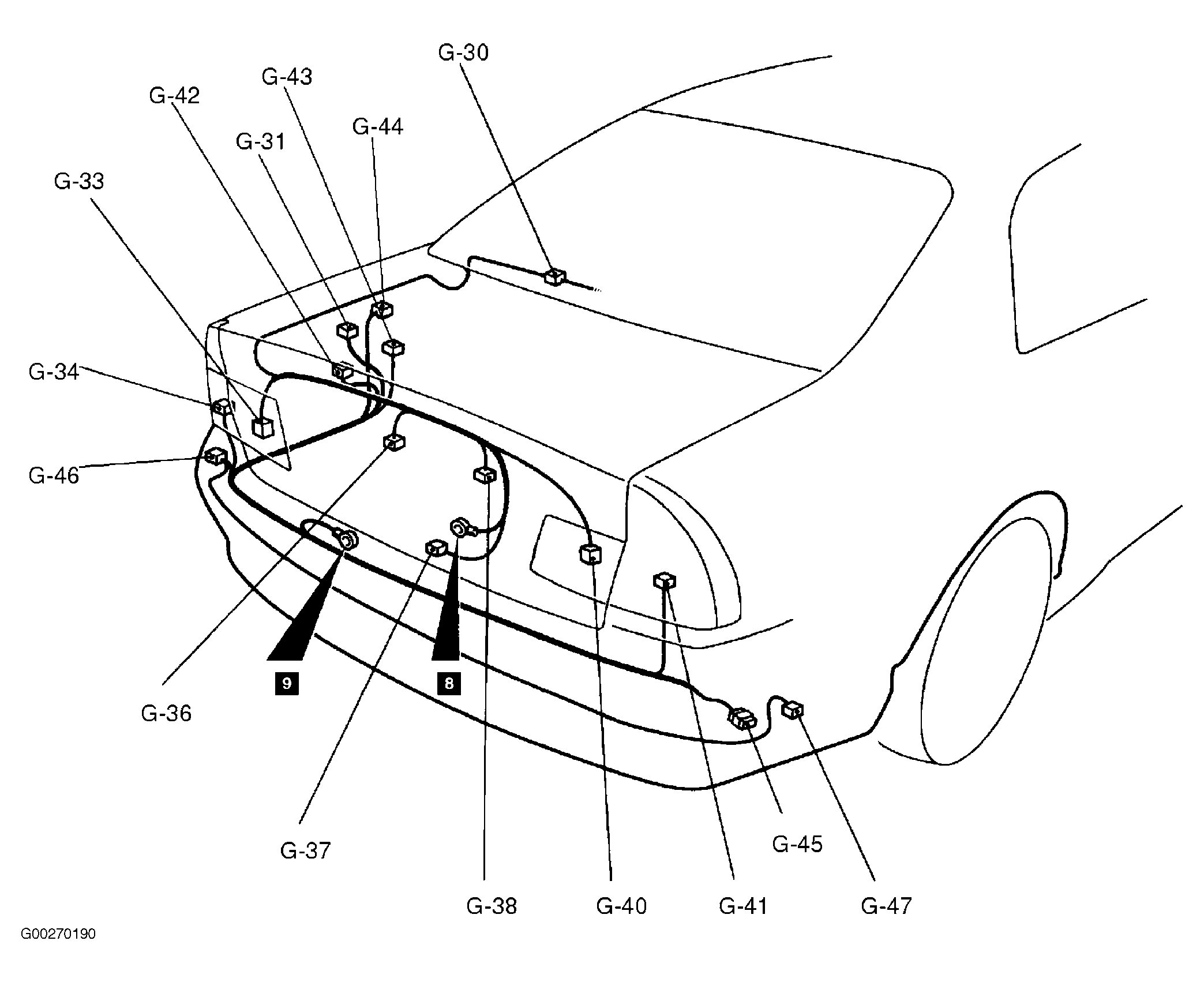

Fig 90: Trunk
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 91: Trunk
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
