General Description
›
Sectional View
Sectional View
<F4A51>

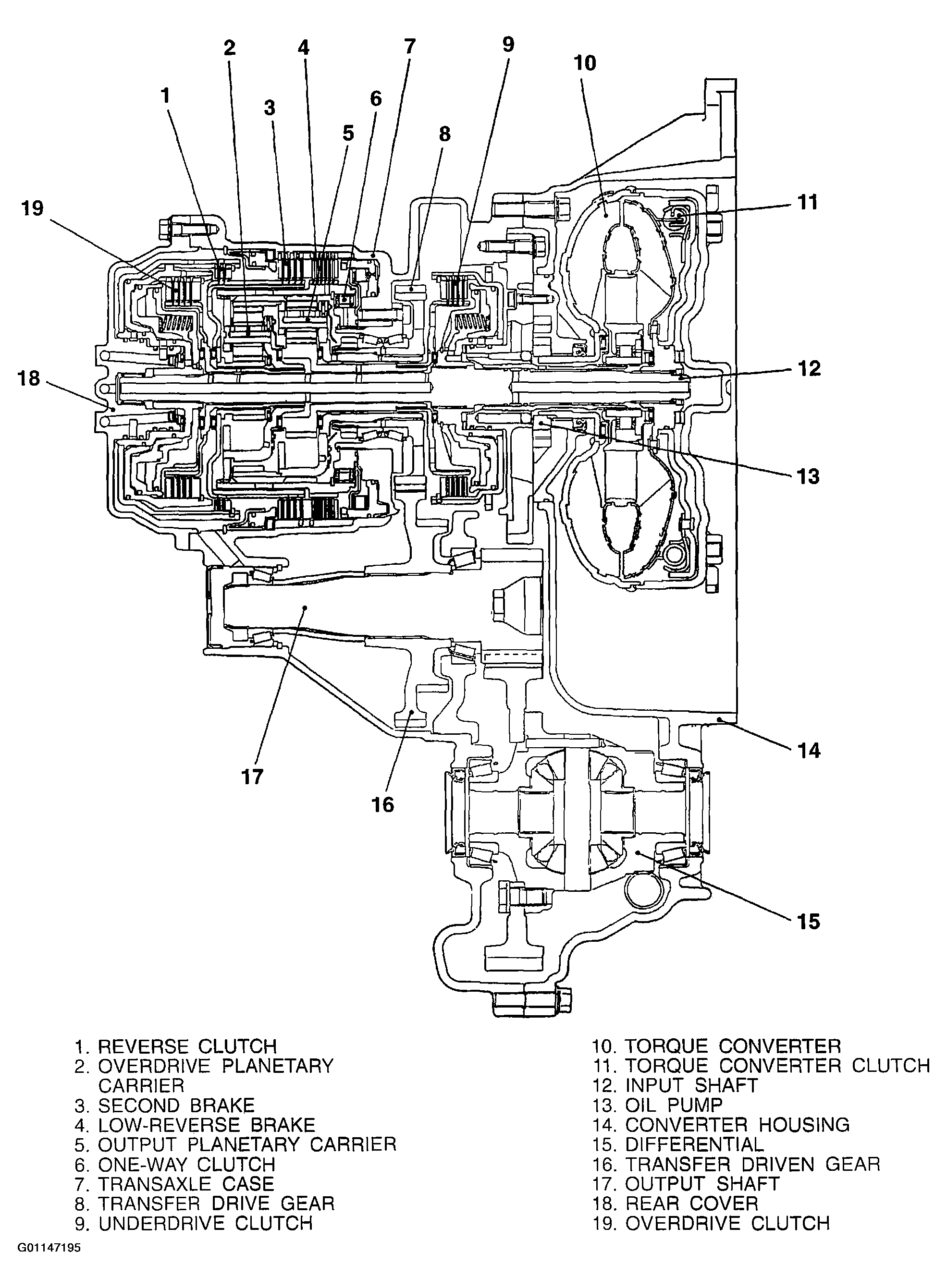

Fig 1: Sectional View <F4A51>
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
