Disassembly And Reassembly

NOTE: The bold directional arrows around letter designations in illustration are covered in REASSEMBLY SERVICE POINT for each component.

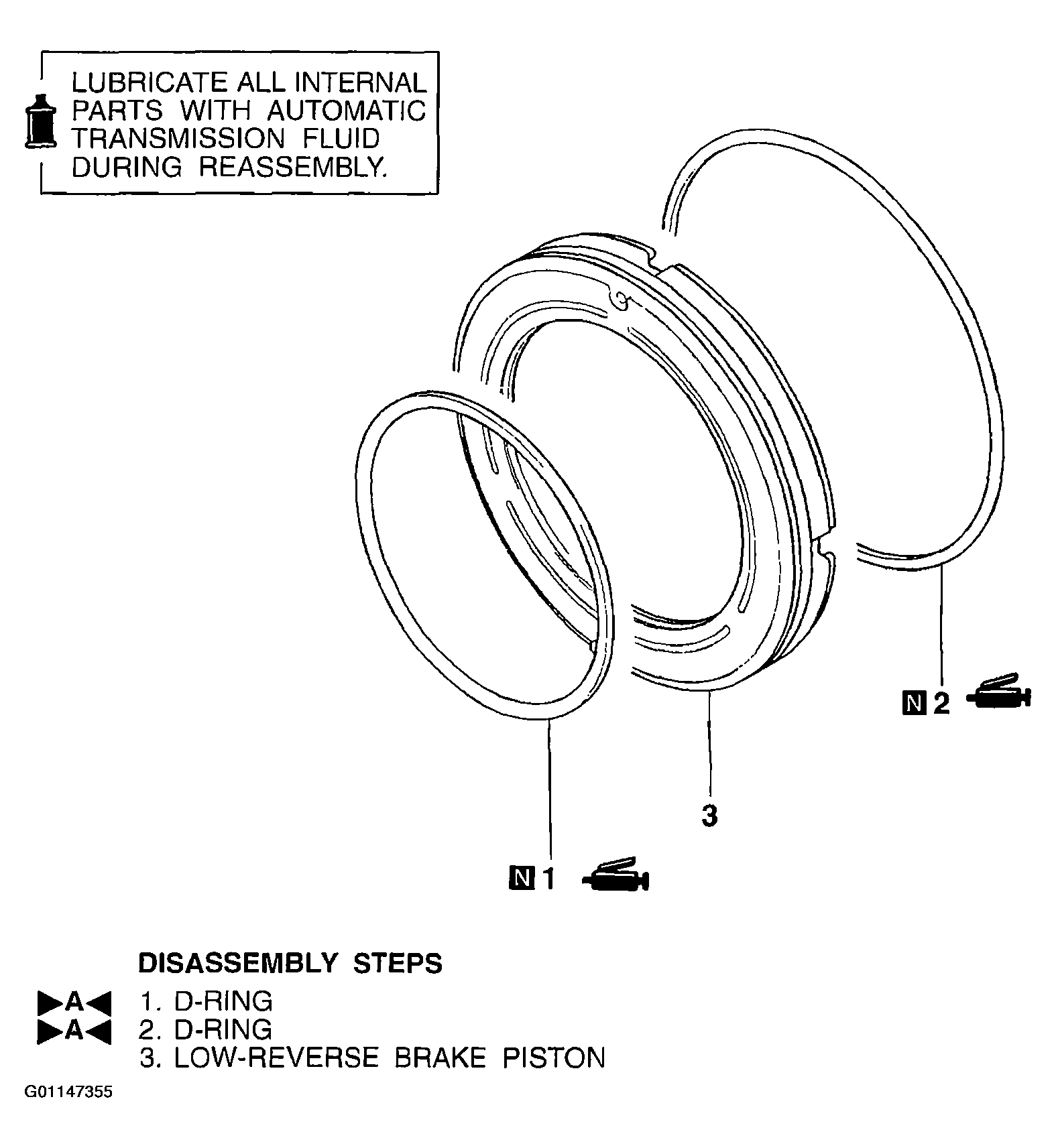

Fig 1: Low-Reverse Brake Disassembly And Reassembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
