Automatic Trans: Overhaul: Transaxle: Disassembly

CAUTION: Because the automatic transaxle is manufactured from high-precision parts, sufficient care must be taken not to scratch or damage these parts during disassembly and reassembly.

CAUTION: The working area should be covered with a rubber mat to keep it clean at all times.

CAUTION: Do not wear any cloth gloves and do not use any rags during disassembly. Use nylon cloth if you need to use something.

CAUTION: Parts which have been disassembled should all be cleaned. Metal parts can be cleaned with normal detergent, but they should be dried completely using compressed air.

CAUTION: Clutch discs, plastic thrust plates and rubber parts should be cleaned with automatic transmission fluid (ATF) so that they do not become dirty.

CAUTION: If the transmission body has been damaged, disassemble and clean the cooler system also.

Remove the torque converter.

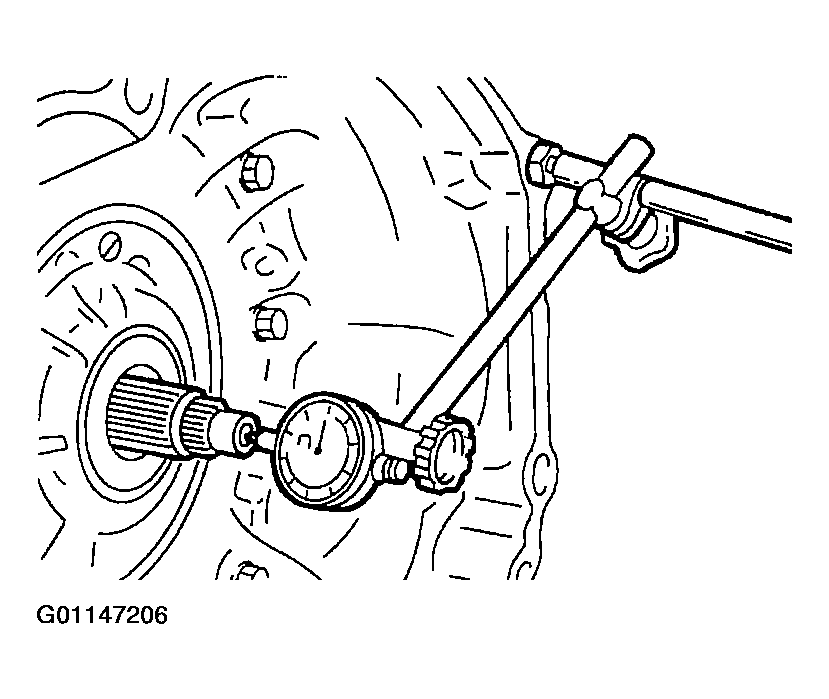

Use the dial gauge to measure the input shaft end play.

Fig 1: Measuring Input Shaft End Play
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove each bracket.
Remove the oil level gauge.
Remove the oil cooler feed tube.
Remove the eye bolt and gasket.

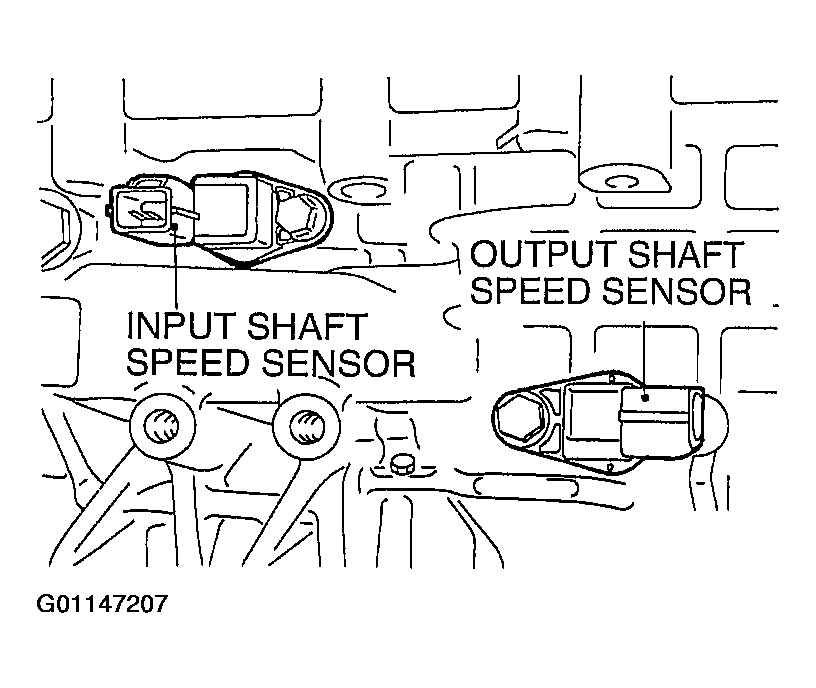

Remove the input shaft speed sensor and output shaft speed sensor.

Fig 2: Removing Input Shaft Speed Sensor And Output Shaft Speed Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

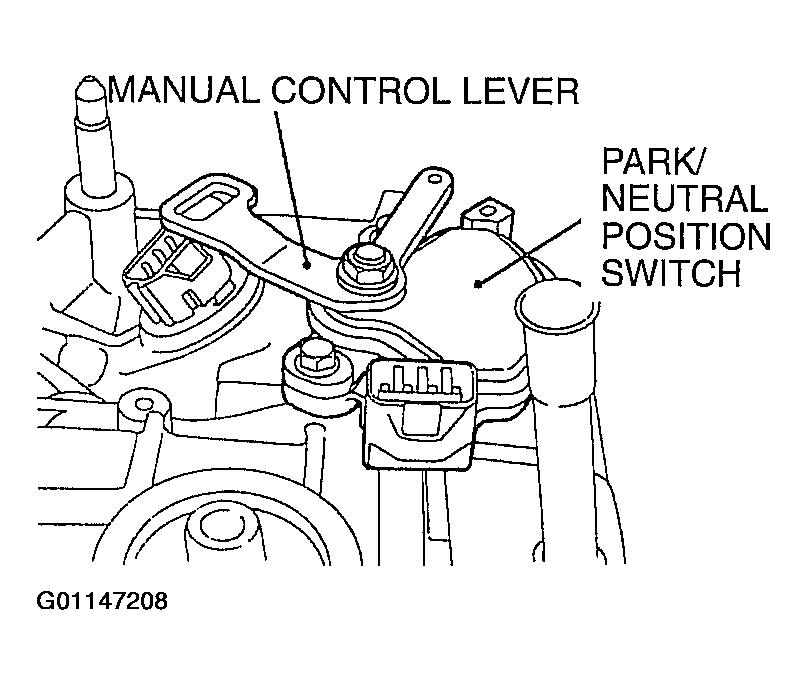

Remove the manual control lever, and then remove the park/neutral position switch.
CAUTION: Make sure that the manual control lever installation nut is removed before removing the valve body

Fig 3: Removing Manual Control Lever And Park/Neutral Position Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

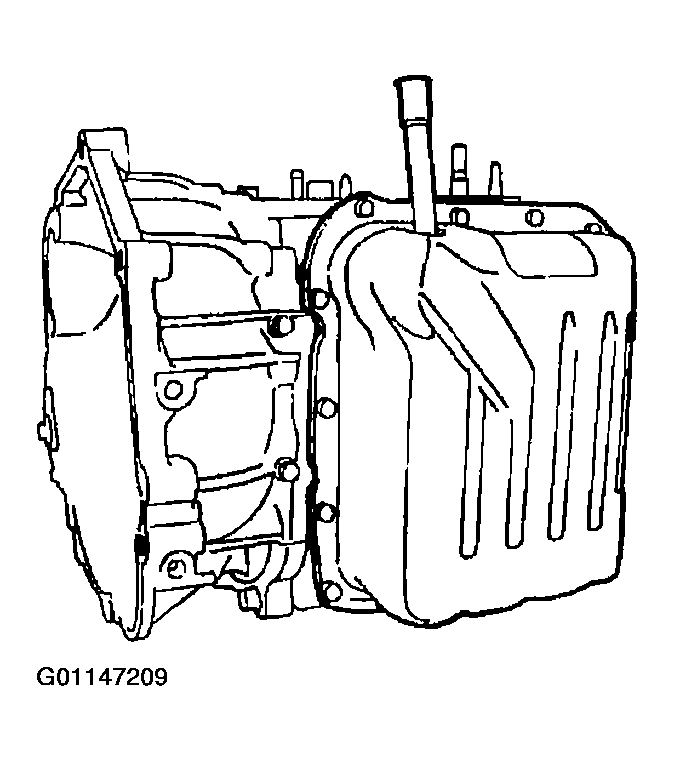

Remove the valve body cover.

Fig 4: Removing Valve Body Cover
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the manual control shaft detent.

Fig 5: Removing Manual Control Shaft Detent
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

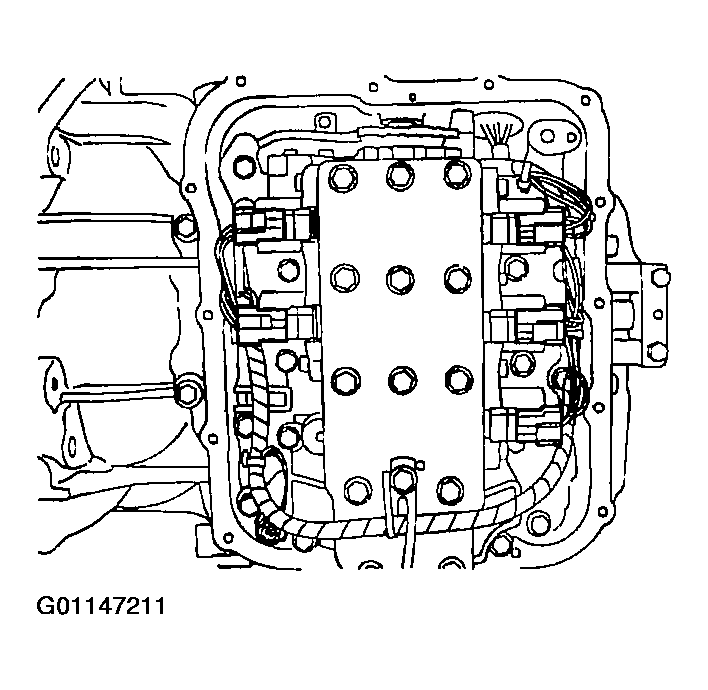

Disconnect the harness connectors of the valve body.

Fig 6: Disconnecting Harness Connectors Of The Valve Body
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the valve body mounting bolts (28 pieces).

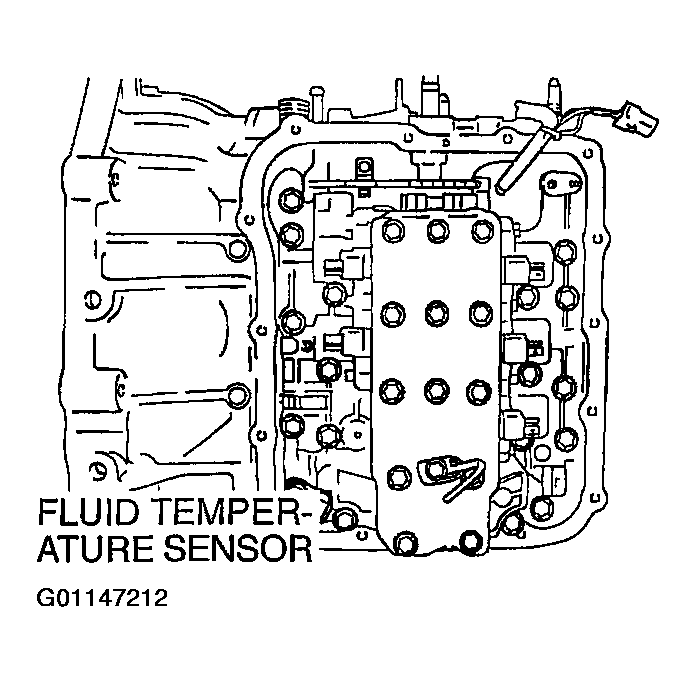

Remove the fluid temperature sensor.
CAUTION: Make sure that the manual control lever and the park/neutral position switch are removed.

Fig 7: Removing Fluid Temperature Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

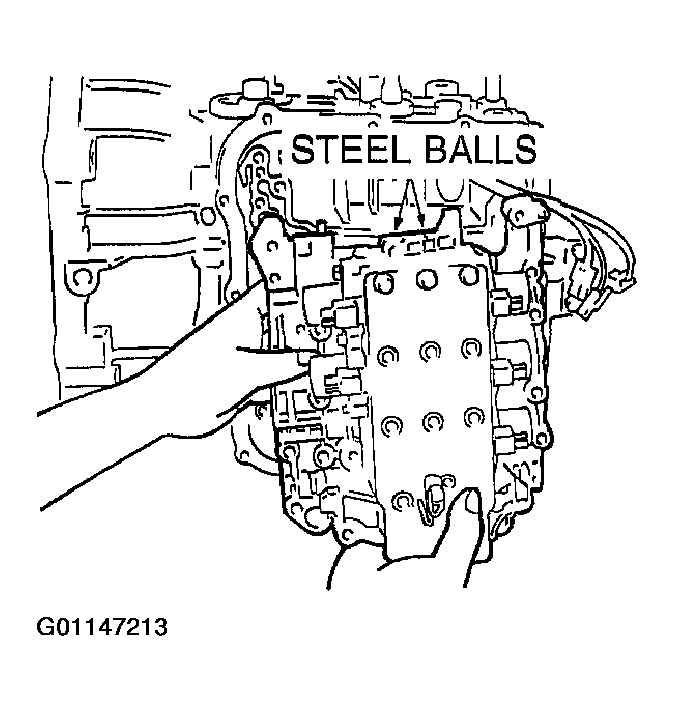

Remove the valve body, gasket and the steel balls (2 pieces).
CAUTION: Do not lose the steel balls (2 pieces).

Fig 8: Removing Valve Body, Gasket And Steel Balls
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

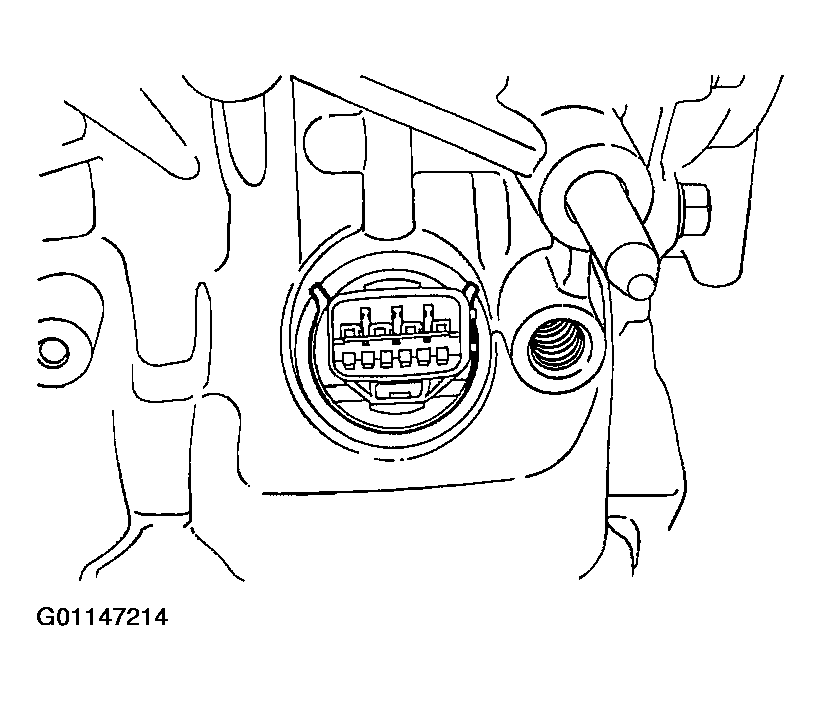

Remove the snap ring, and then remove the solenoid valve harness.

Fig 9: Removing Snap Ring And Solenoid Valve Harness
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

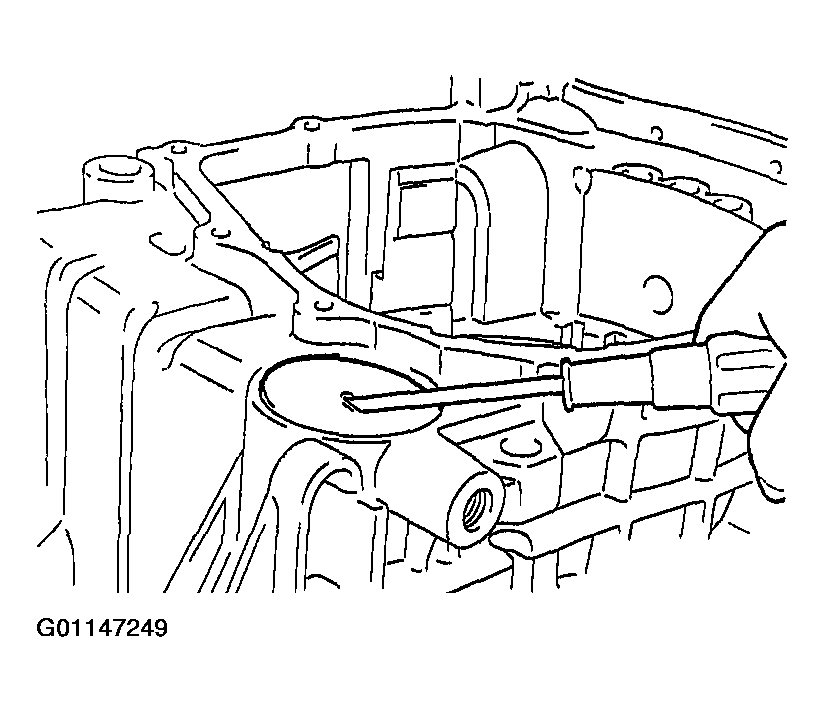

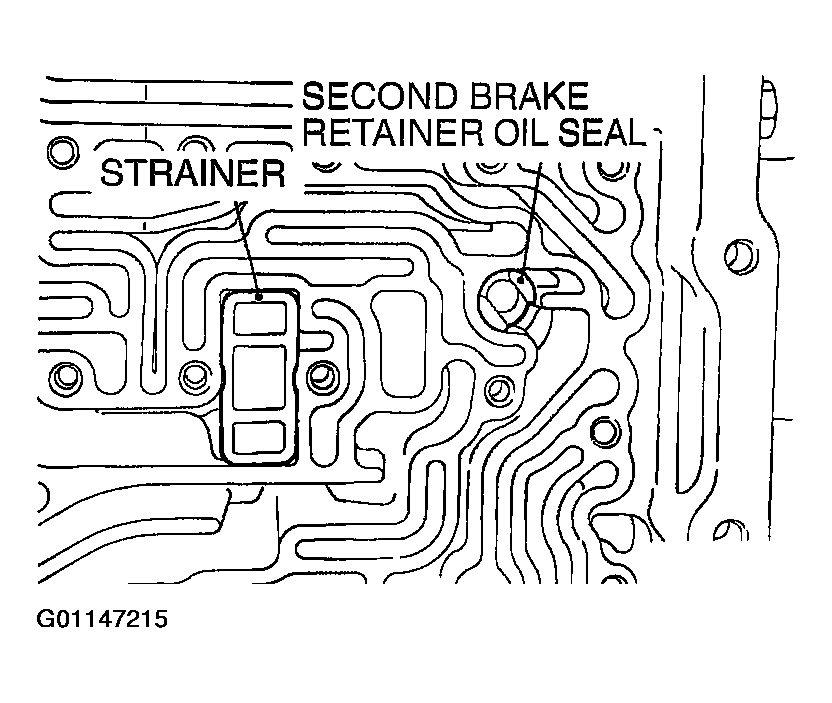

Remove the strainer and the second brake retainer oil seal.

Fig 10: Removing Strainer And Second Brake Retainer Oil Seal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

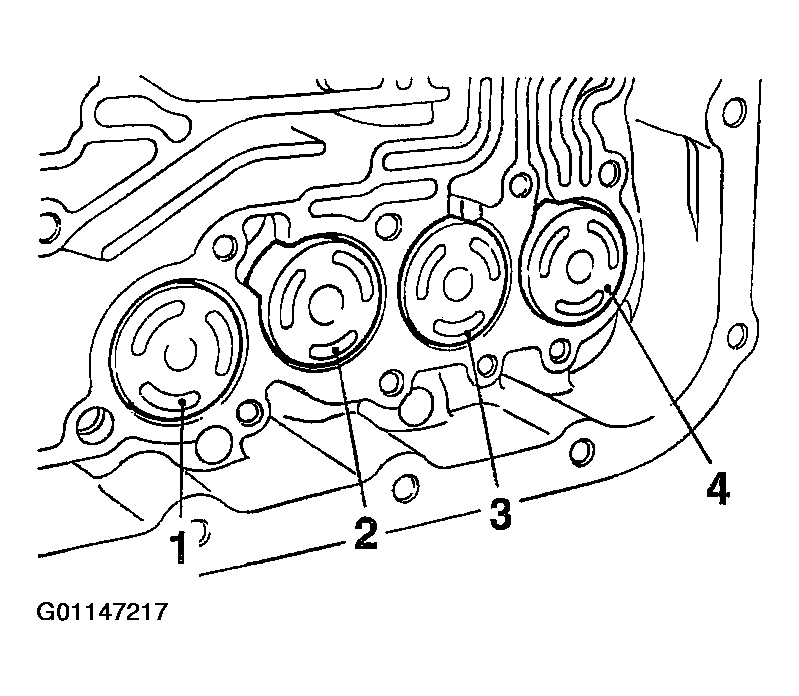

Remove each accumulator piston and spring.

Fig 11: Locating Accumulator Pistons
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 12: Identifying Accumulator Pistons
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the manual control lever shaft roller.

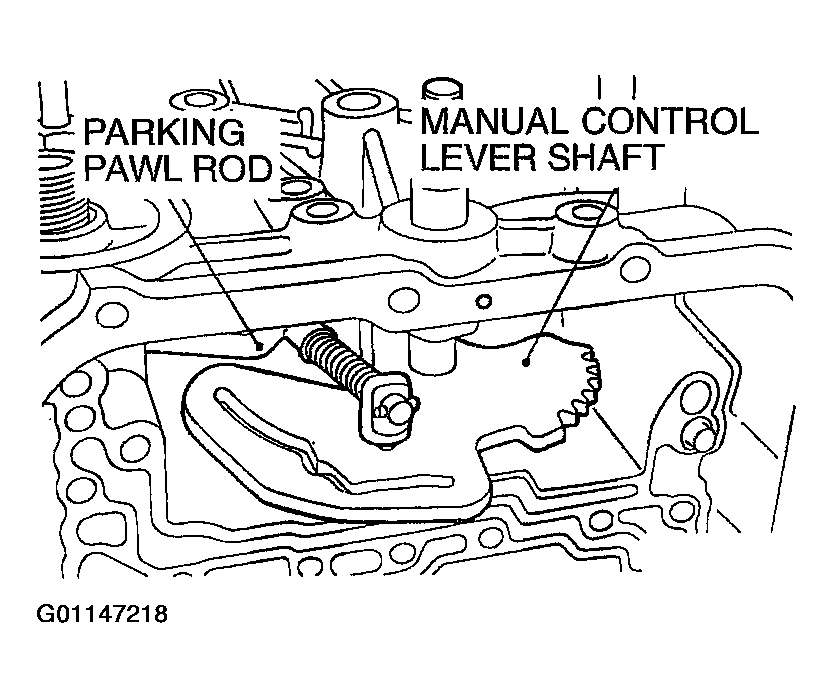

Remove the manual control lever shaft and the parking pawl rod.

Fig 13: Removing Manual Control Lever Shaft And Parking Pawl Rod
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

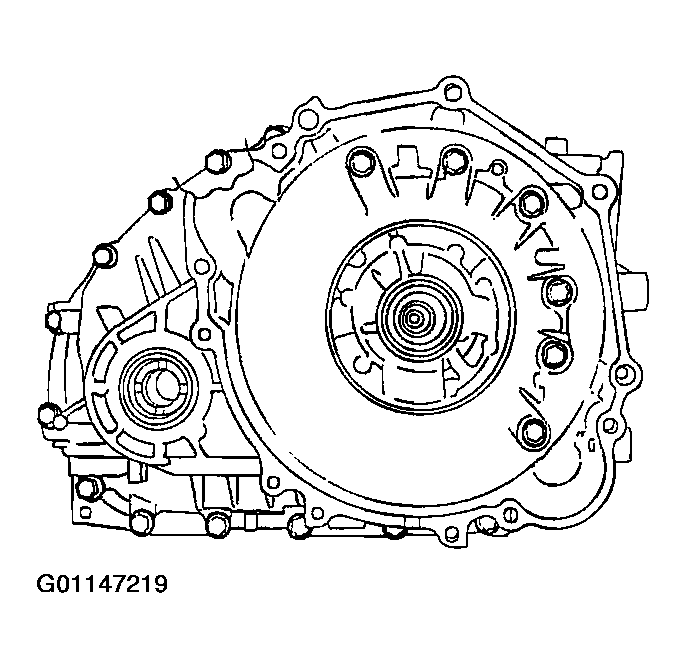

Remove the torque converter housing mounting bolts (18 pieces), and then remove the torque converter housing.

Fig 14: Removing Torque Converter Housing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

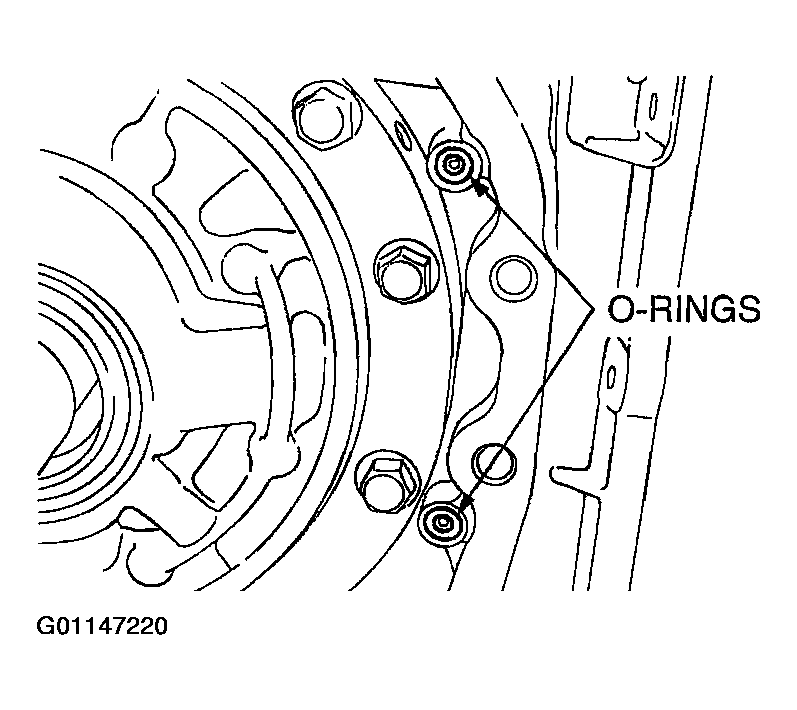

Remove the O-rings (2 pieces).

Fig 15: Removing O-Rings
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

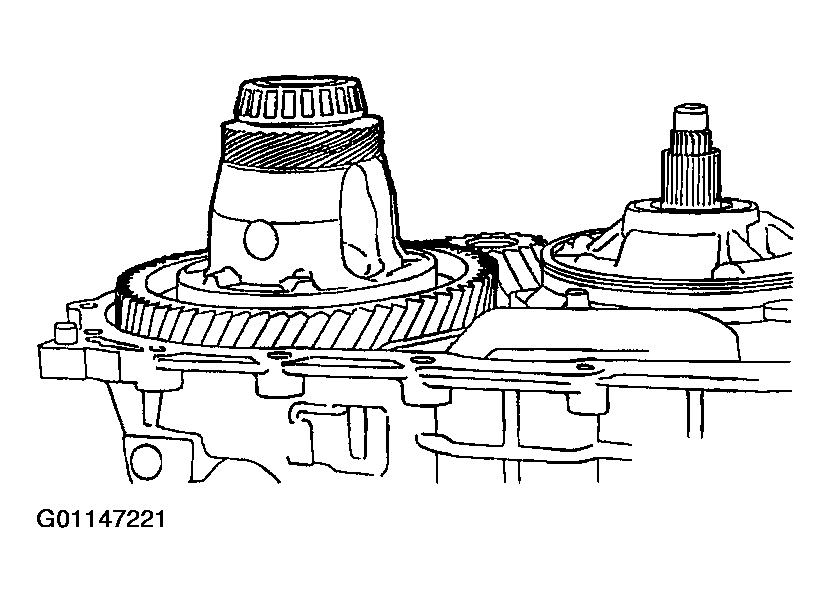

Remove the differential.

Fig 16: Removing Differential
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the oil filter.

Fig 17: Removing Oil Filter
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the oil pump mounting bolts (6 pieces).

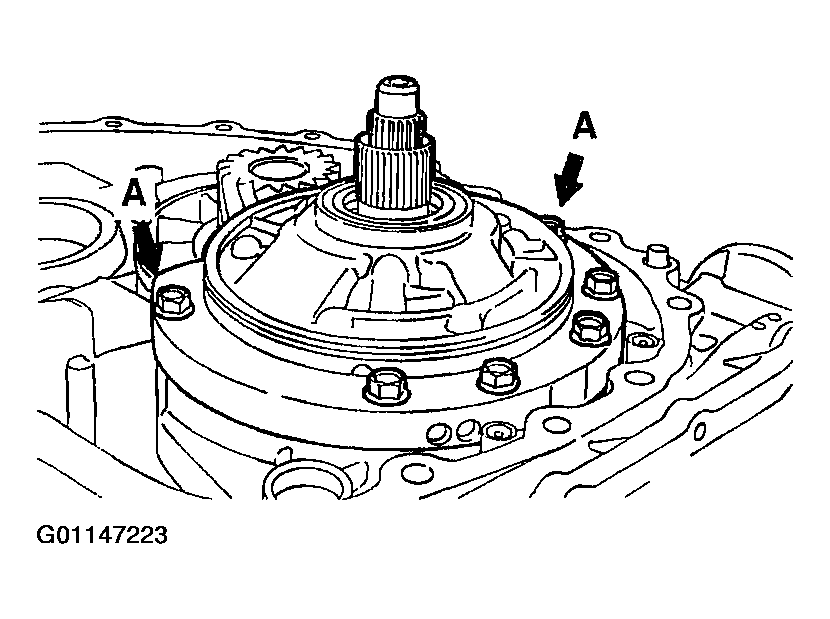

Install the special tool (MD998333) in the holes A.

Fig 18: Identifying Holes A
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

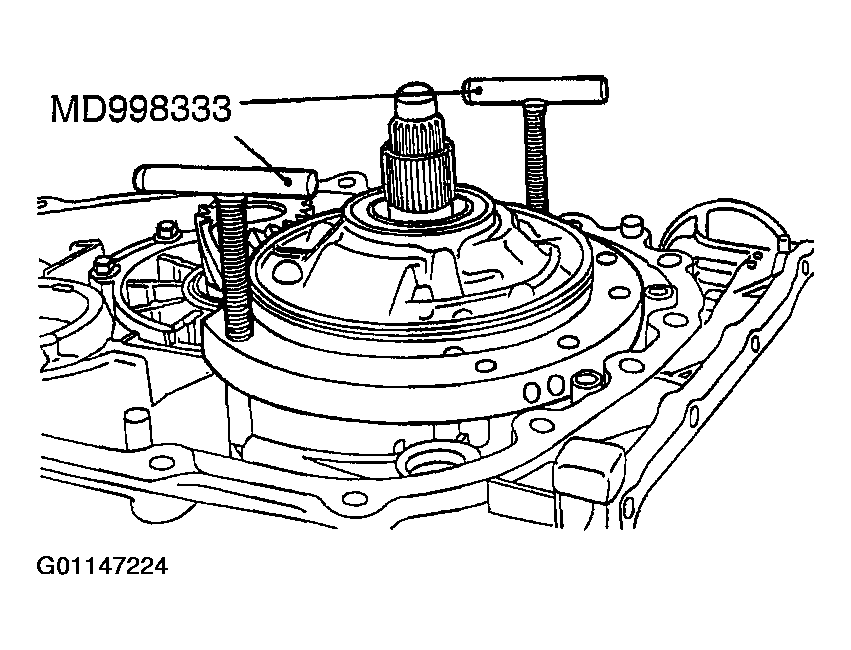

Screw the special tool to remove the oil pump.

Fig 19: Removing Oil Pump
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the oil pump gasket.

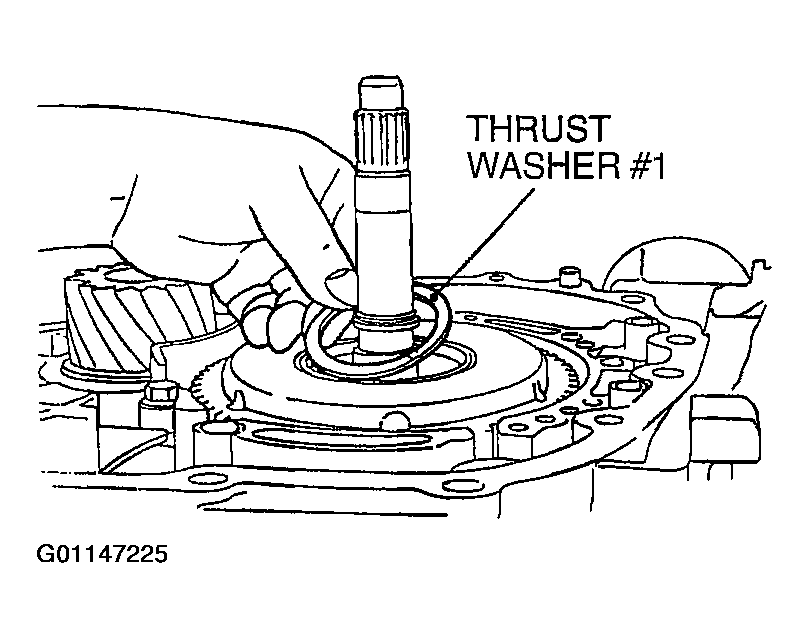

Remove thrust washer #1.

Fig 20: Removing Thrust Washer #1
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

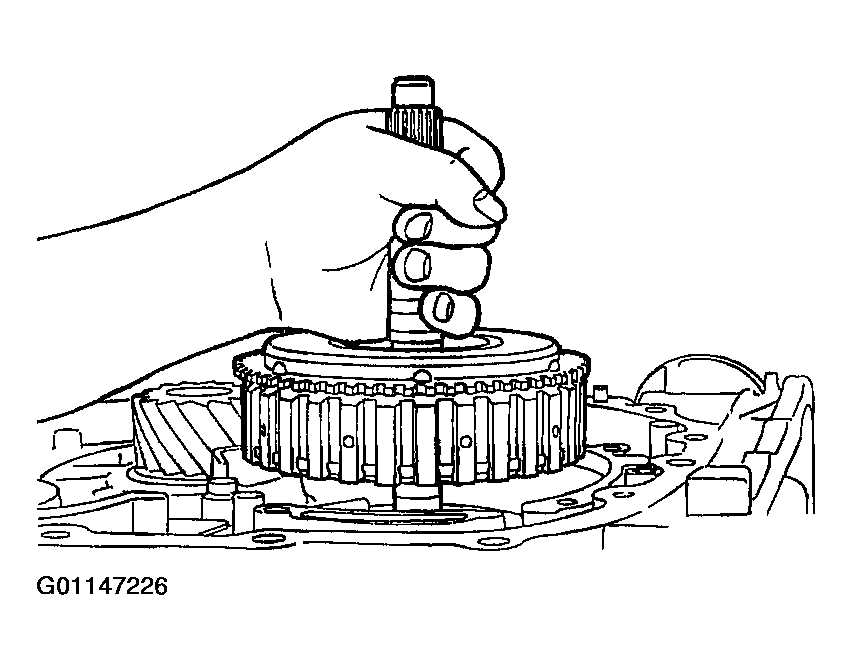

Hold the input shaft, and then remove the underdrive clutch.

Fig 21: Removing Underdrive Clutch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove thrust bearing #2.

Fig 22: Removing Thrust Bearing #2
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

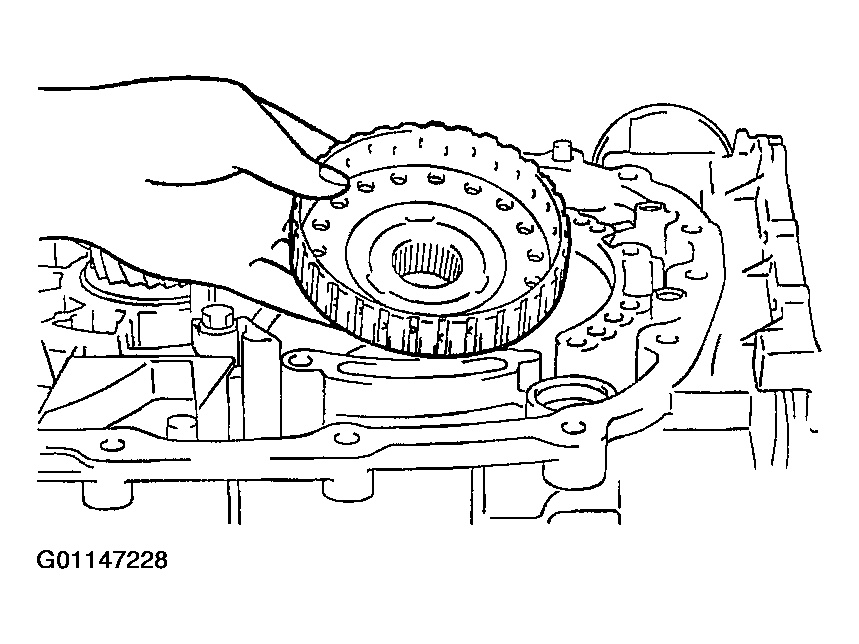

Remove the underdrive clutch hub.

Fig 23: Removing Underdrive Clutch Hub
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

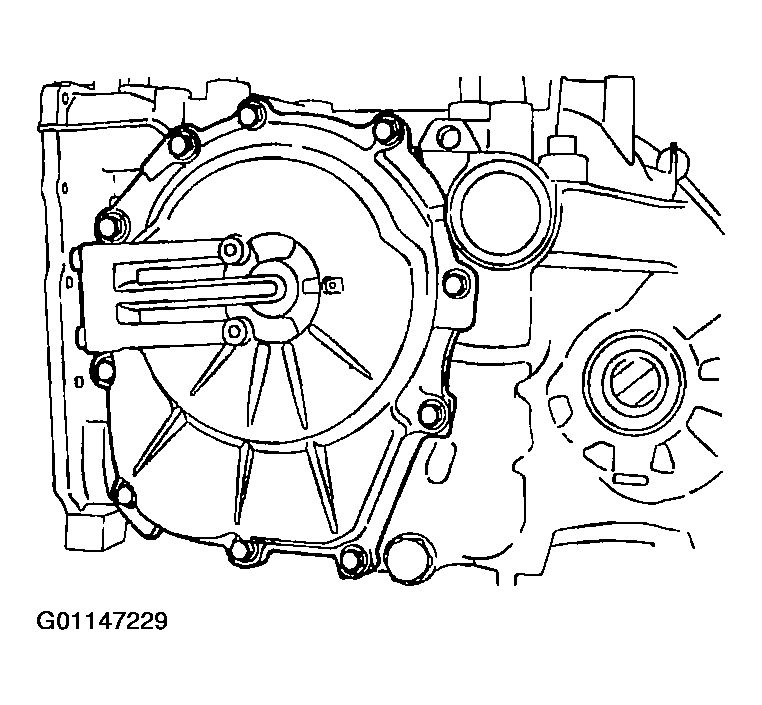

Remove the rear cover.

Fig 24: Removing Rear Cover
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the thrust race #8.
Remove the seal rings (4 pieces).
Remove the input shaft rear bearing.

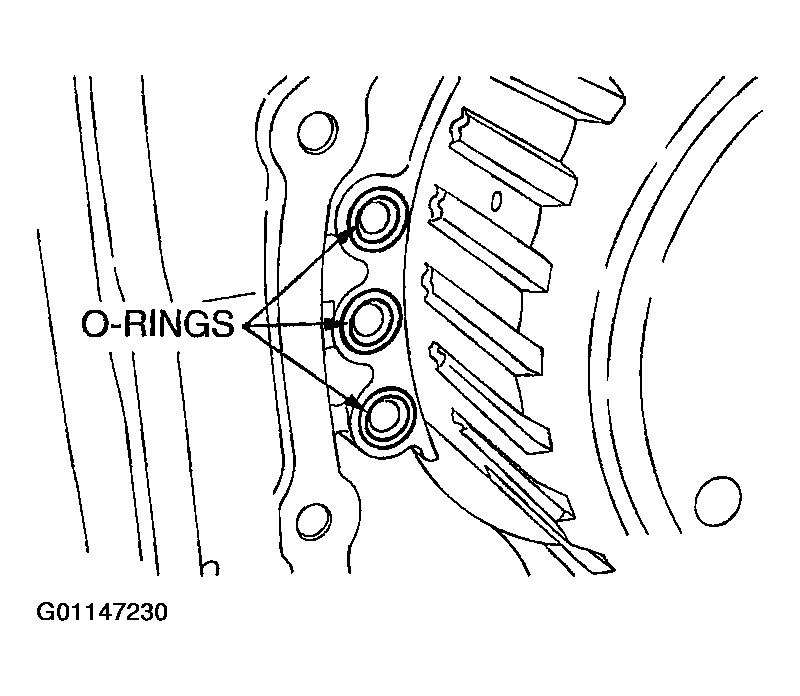

Remove the O-rings (3 pieces).

Fig 25: Removing O-Rings
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

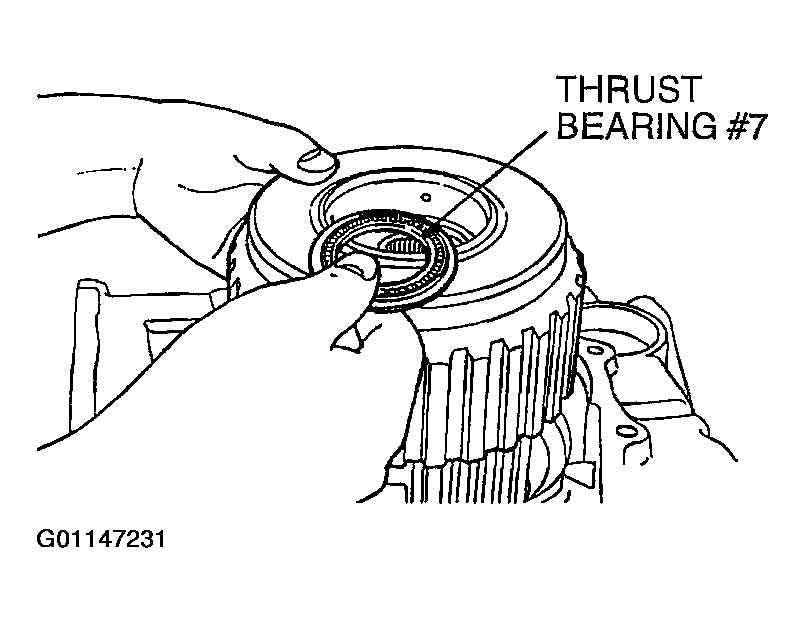

Remove the reverse and overdrive clutch and the thrust bearing #7.

Fig 26: Removing Reverse And Overdrive Clutch And Thrust Bearing #7
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

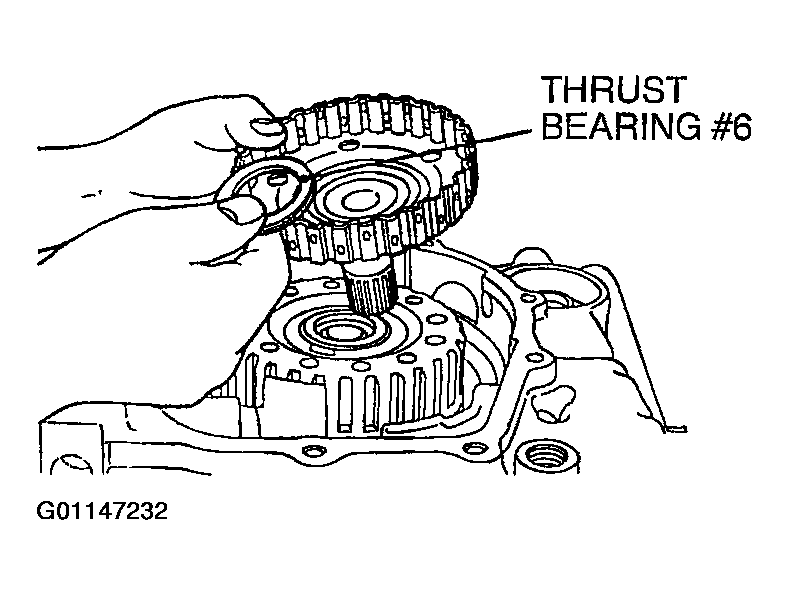

Remove the overdrive clutch hub and the thrust bearing #6.

Fig 27: Removing Overdrive Clutch Hub And Thrust Bearing #6
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

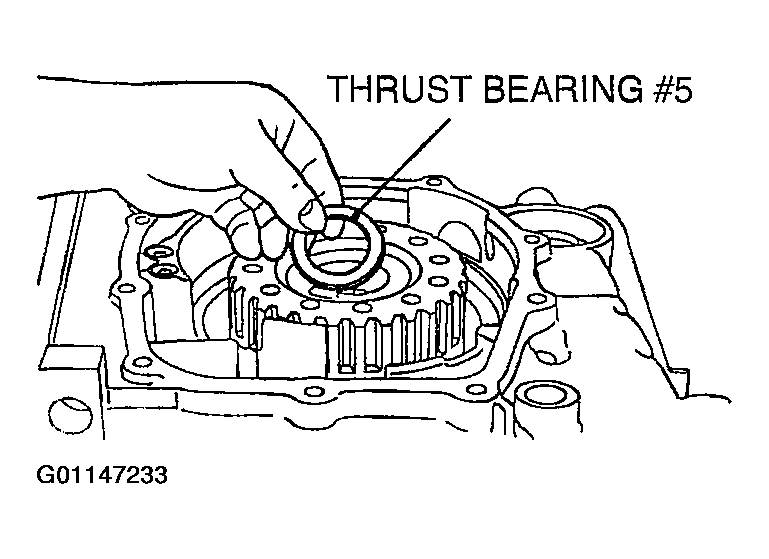

Remove thrust bearing #5.

Fig 28: Removing Thrust Bearing #5
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the planetary reverse sun gear.

Fig 29: Removing Planetary Reverse Sun Gear
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

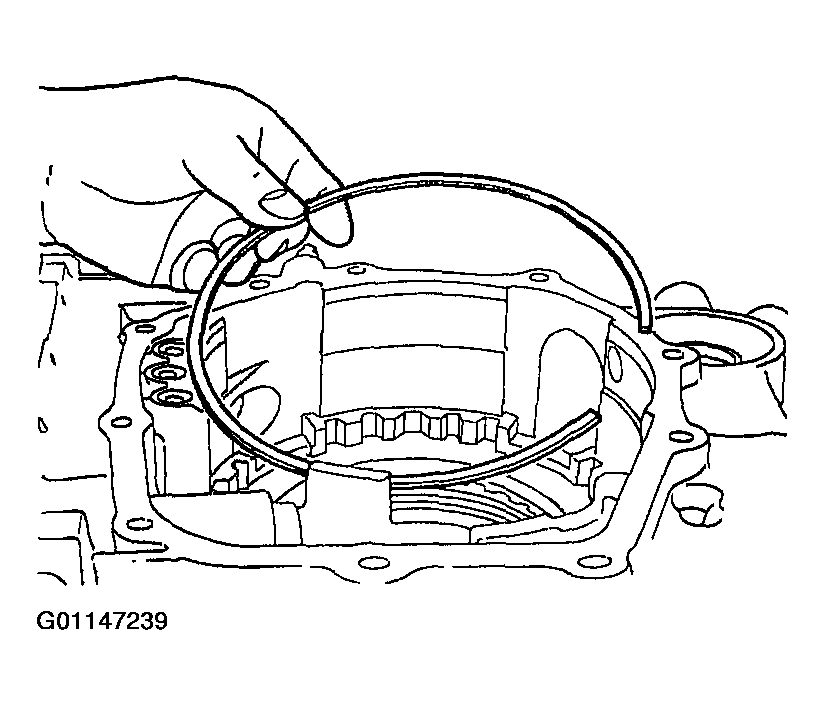

Remove the snap ring.

Fig 30: Removing Snap Ring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the second brake piston and the return spring.

Fig 31: Removing Second Brake Piston And Return Spring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

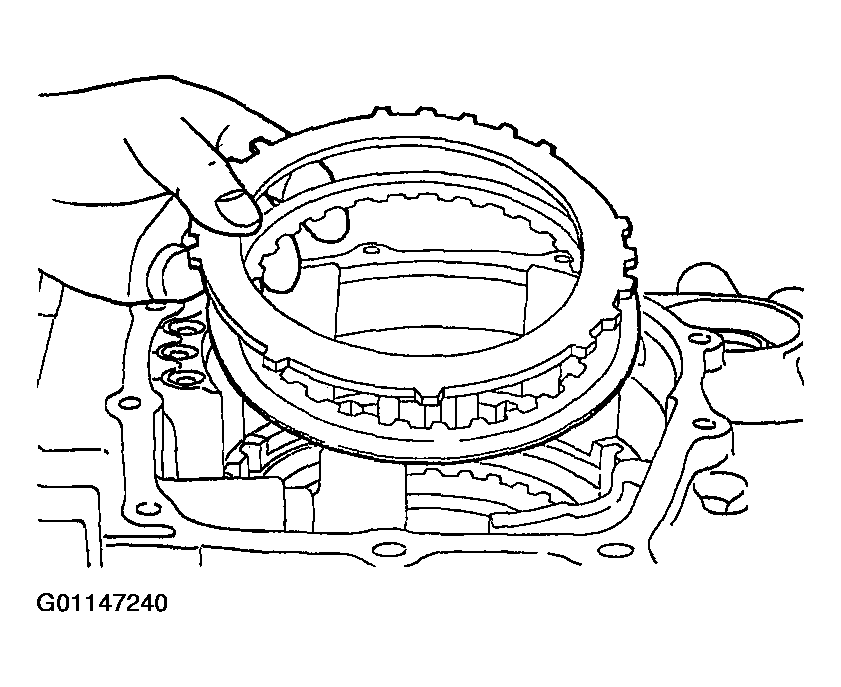

Remove the pressure plate, brake discs and brake plates.

Fig 32: Removing Pressure Plate, Brake Discs And Brake Plates
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

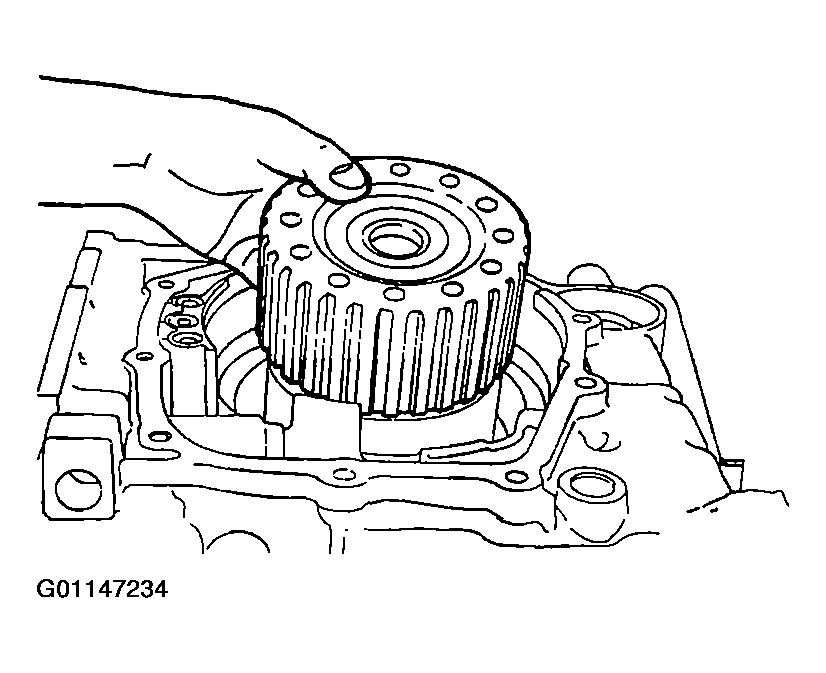

Remove the planetary carrier assembly.

Fig 33: Removing Planetary Carrier Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the snap ring.

Fig 34: Removing Snap Ring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the reaction plate and the brake disc.

Fig 35: Removing Reaction Plate And Brake Disc
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

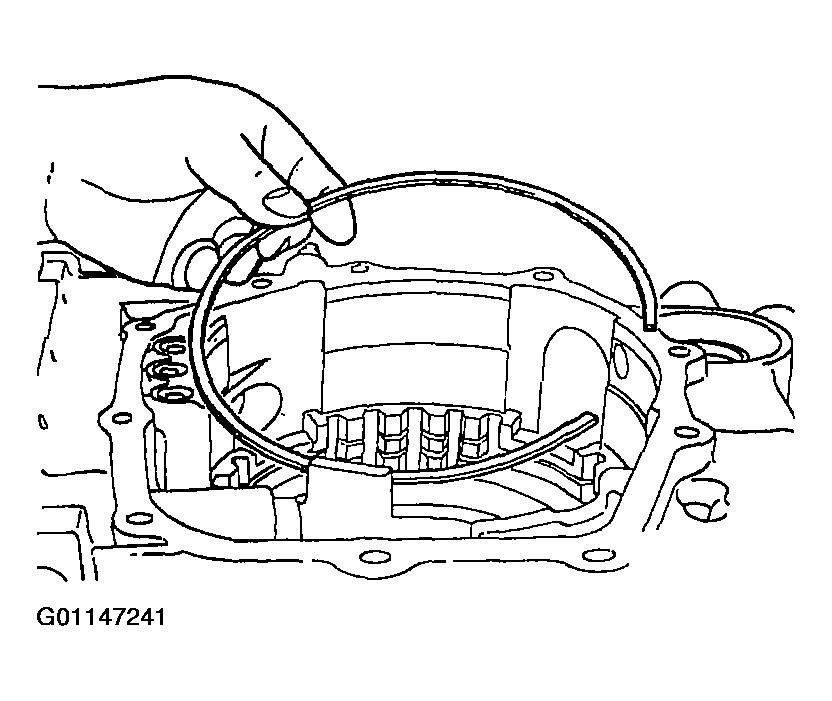

Remove the snap ring.

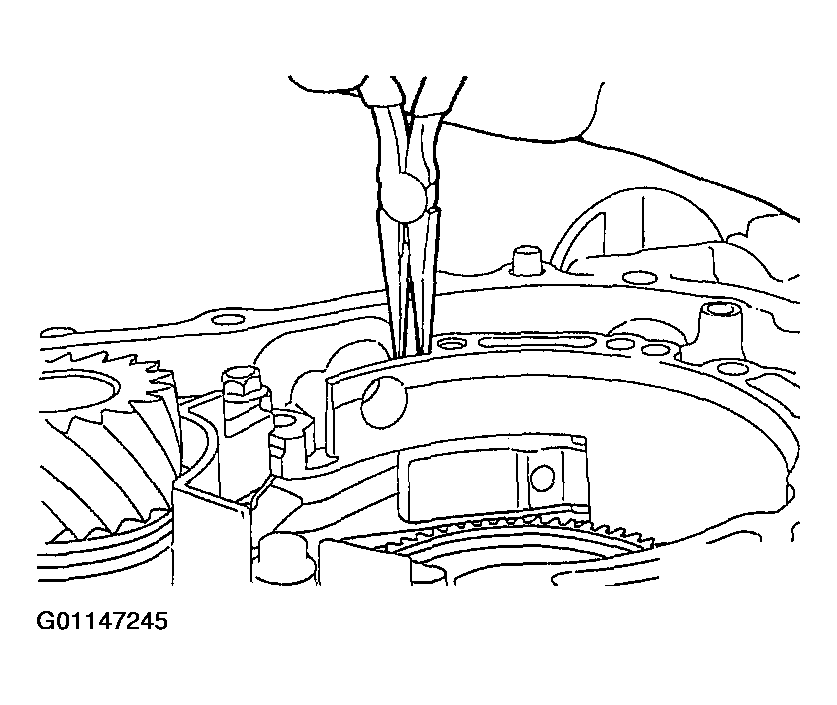

Fig 36: Removing Snap Ring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

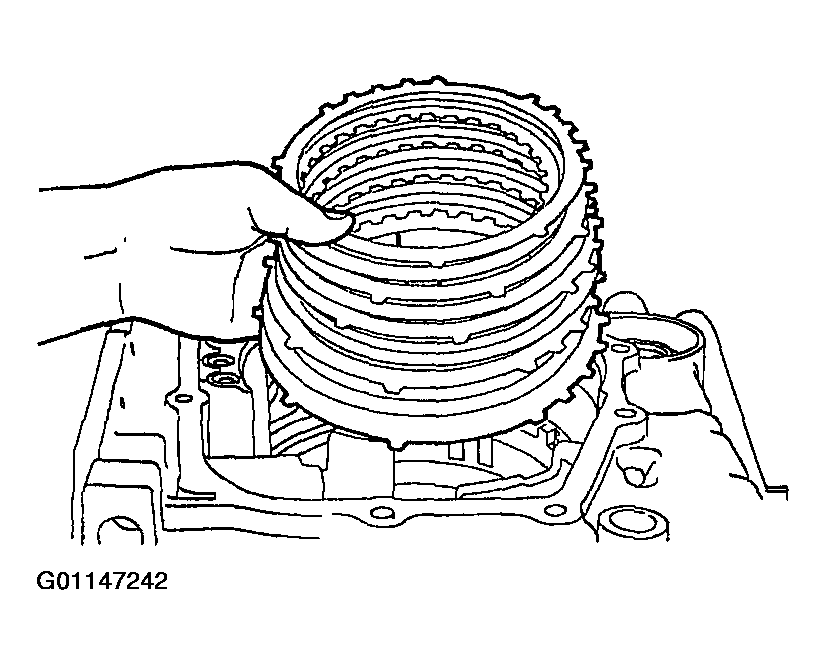

Remove the brake plates, brake discs and pressure plate.

Fig 37: Removing Brake Plates, Brake Discs And Pressure Plate
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

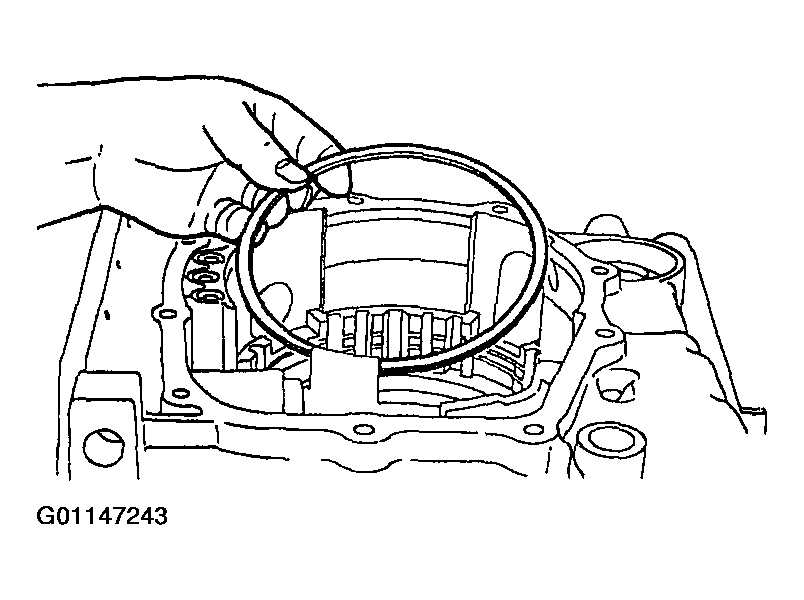

Remove the wave spring.

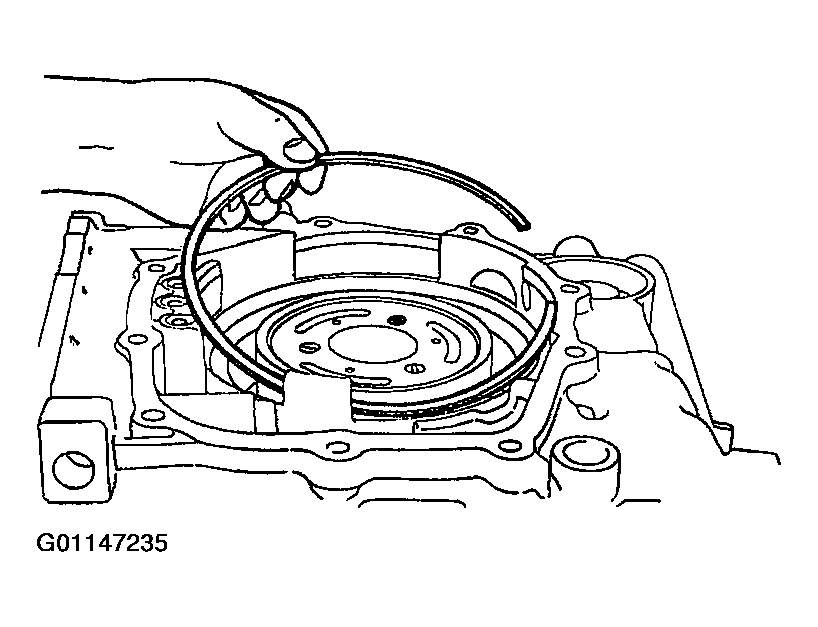

Fig 38: Removing Wave Spring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

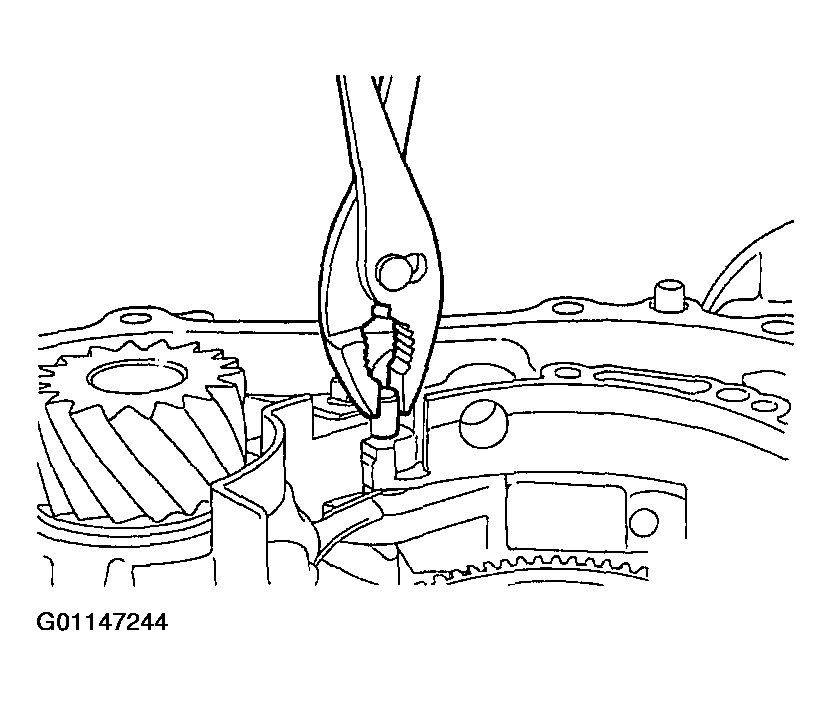

Remove the parking pawl shaft, and then remove the spacer and spring.

Fig 39: Removing Parking Pawl Shaft
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the two parking roller support shafts, and then remove the parking pawl case and parking roller support.

Fig 40: Removing Parking Pawl Case And Parking Roller Support
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

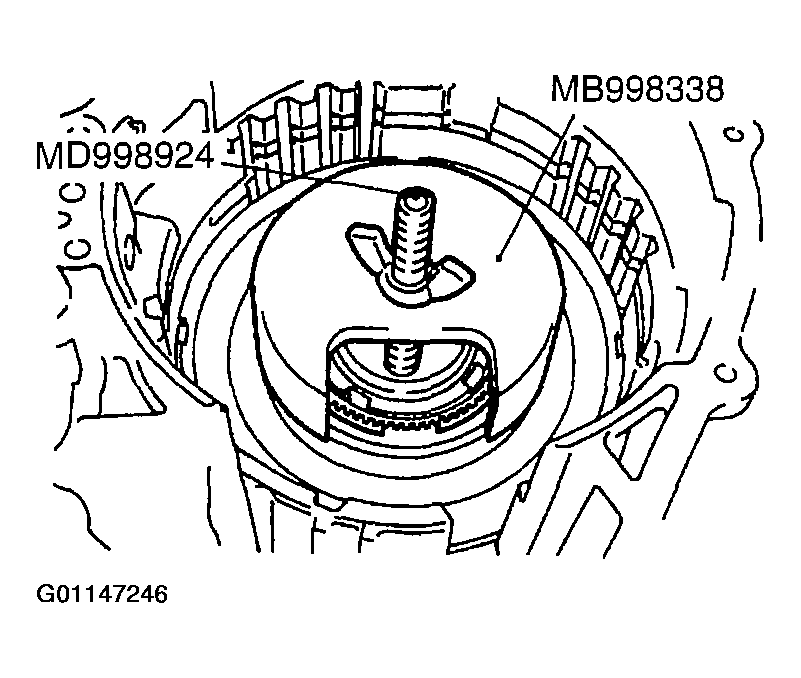

Use the special tool to remove the snap ring.

Fig 41: Removing Snap Ring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

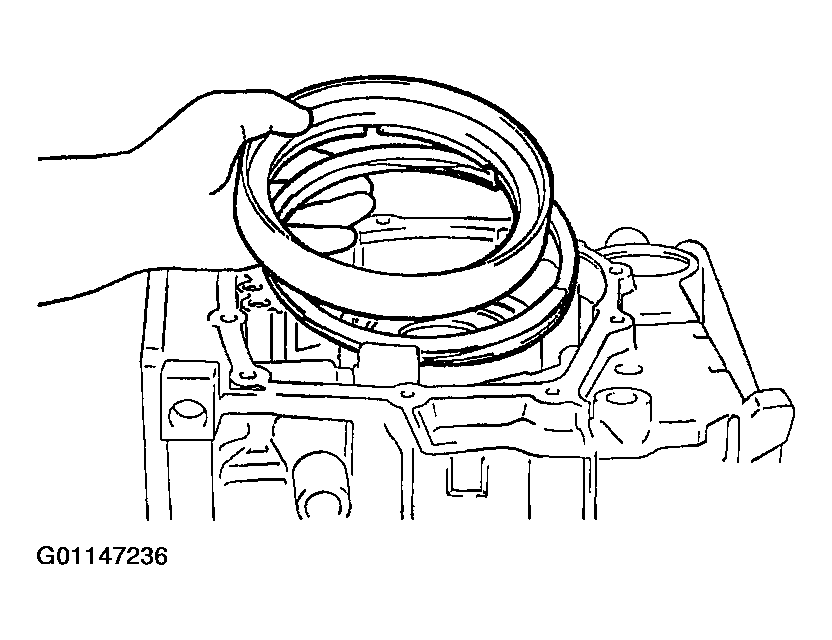

Remove the one-way clutch inner race and O-ring, spring retainer, return spring and the low-reverse brake piston.

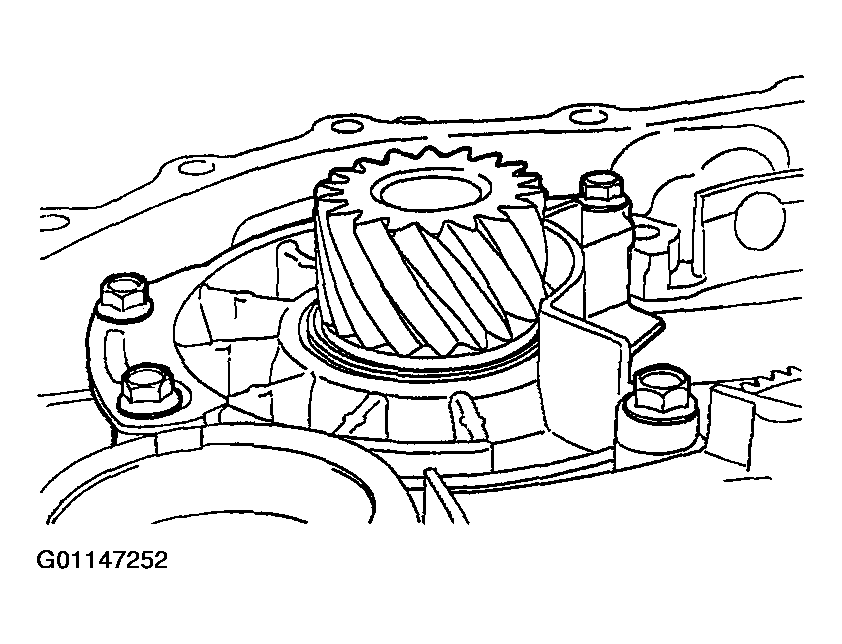

Remove the transfer drive gear mounting bolts (8 pieces).

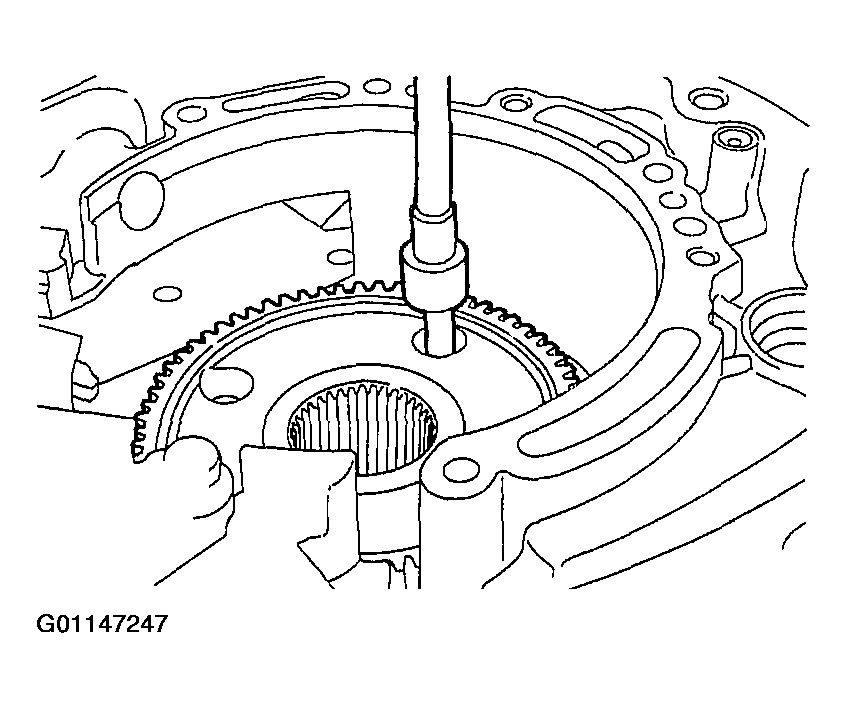

Fig 42: Removing Transfer Drive Gear Mounting Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

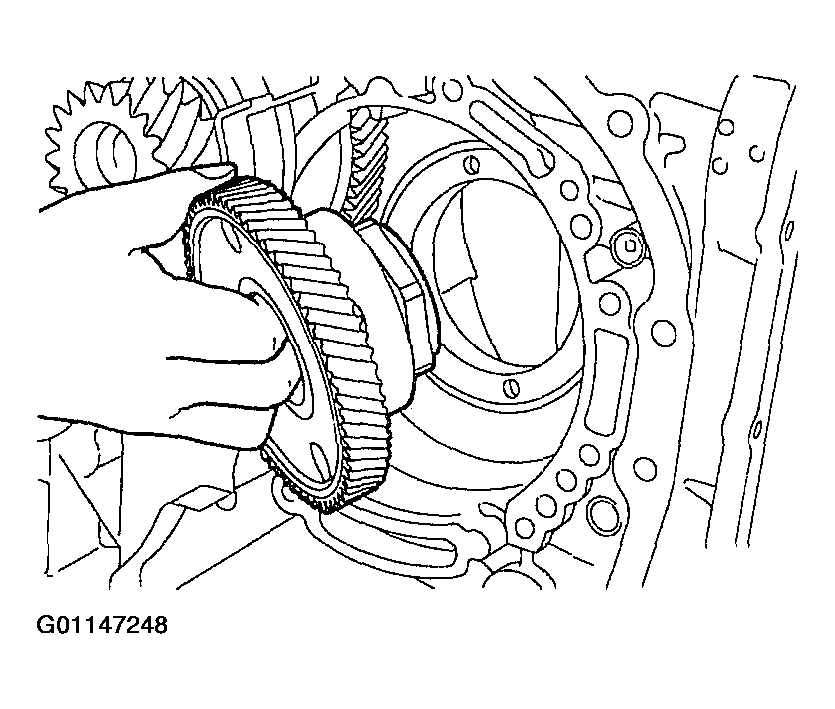

Remove the transfer drive gear.

Fig 43: Removing Transfer Drive Gear
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the cap.

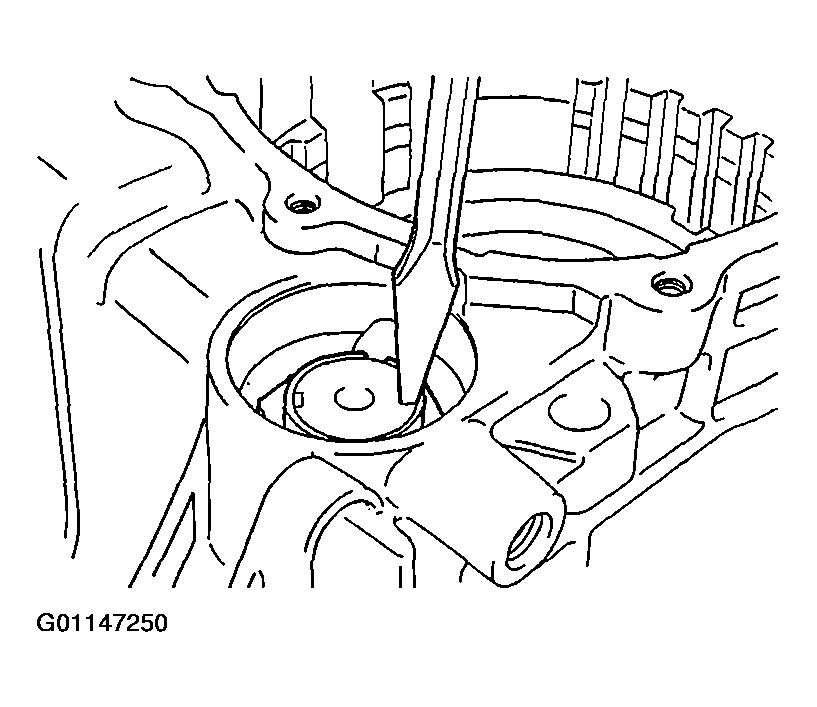

Fig 44: Removing Cap
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Straighten the locking tab of the output shaft lock nut.

Fig 45: Straightening Locking Tab Of The Output Shaft Lock Nut
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

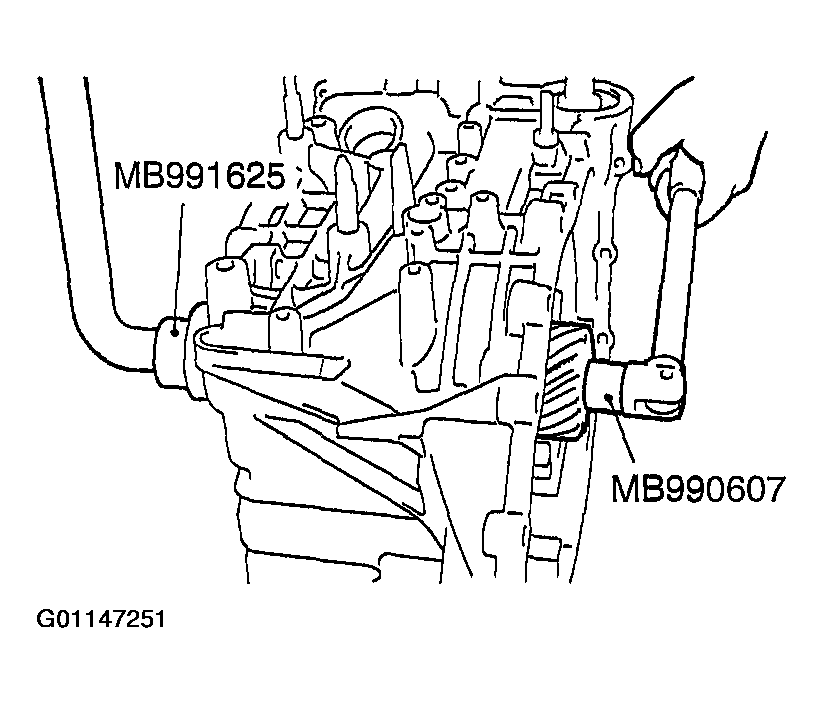

Use the special tool to remove the output shaft lock nut.
CAUTION: The lock nut has left-handed threads.

Fig 46: Removing Output Shaft Lock Nut
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the bearing retainer mounting bolt.

Fig 47: Removing Bearing Retainer Mounting Bolt
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

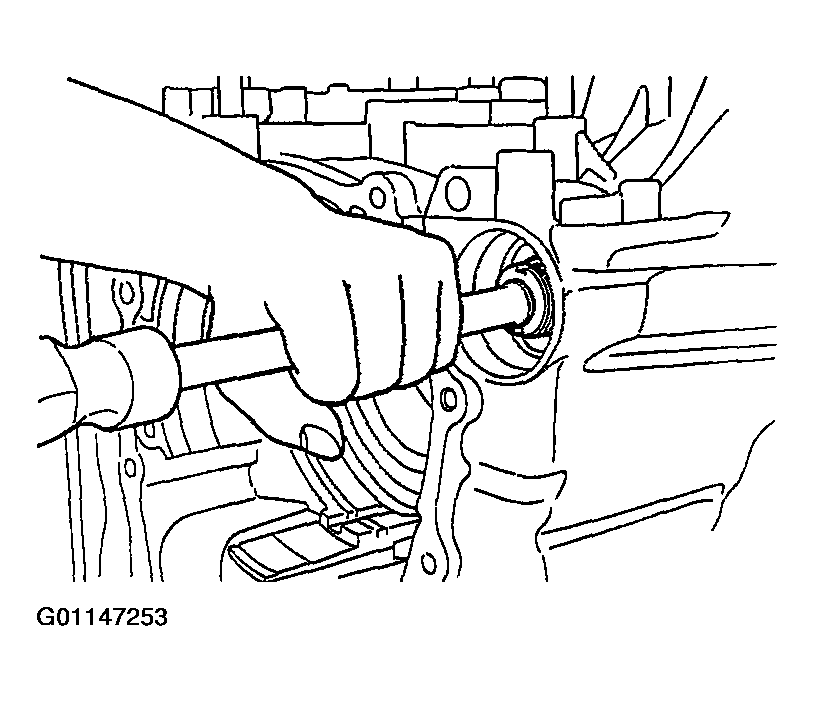

Tap on the rear of the output shaft to remove the output shaft, taper roller bearing and the collar.

Fig 48: Removing Output Shaft, Taper Roller Bearing And Collar
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the spacer and the outer race.
Remove the snap ring.

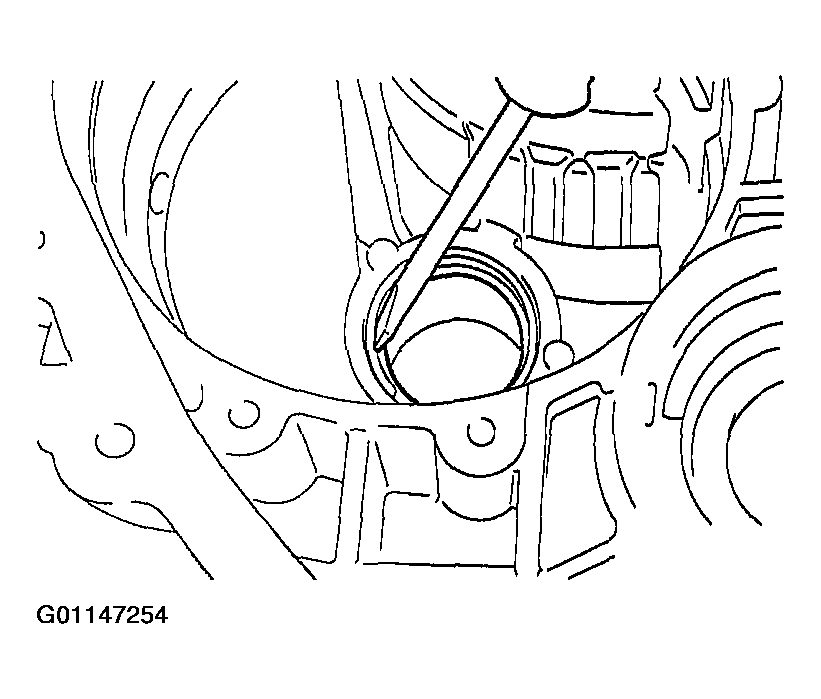

Fig 49: Removing Snap Ring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the differential bearing outer race and spacer from the torque converter housing.
Remove the differential bearing outer race from the transaxle case.
