A: Nut Installation

  1. Put the selector lever in the "N" position.
  2. Loosen the adjusting nut, gently pull the transaxle control cable in the direction of the arrow and tighten the nut.

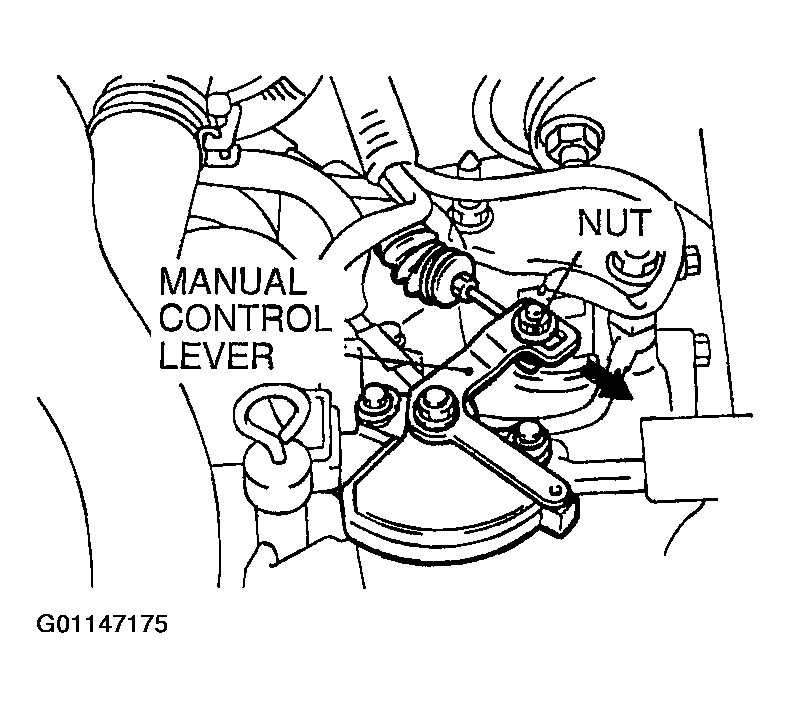

    Fig 1: Adjusting Transaxle Control Cable
    G01147175Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
