Removal And Installation < 2.4L Engine>

Pre-removal and Post-installation Operation

• Timing Belt Removal and Installation (Refer to REMOVAL & INSTALLATION .)

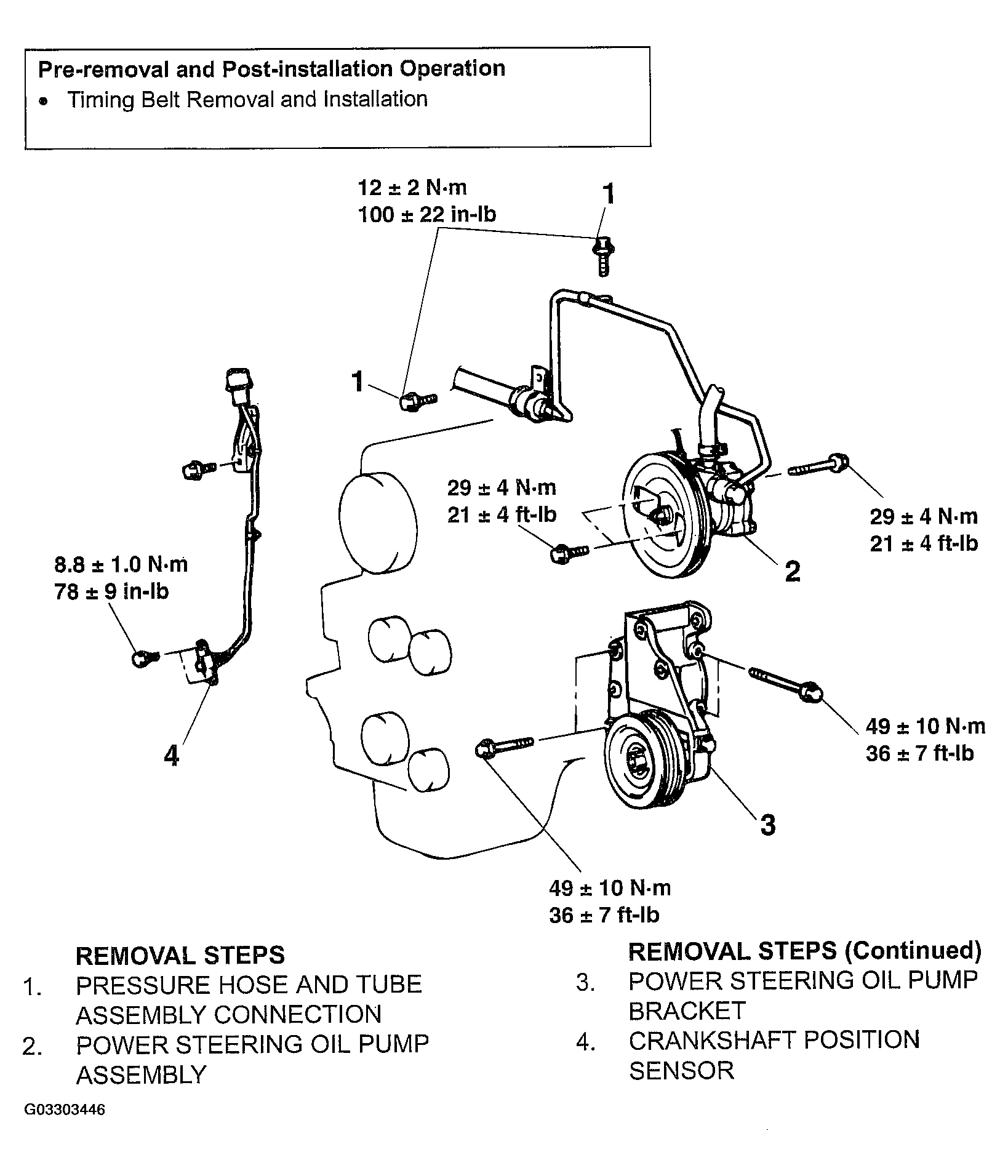

Fig 1: Removing And Installing Crankshaft Position Sensor Components (2.4L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
