Eclipse GS, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Emission Control System
›
Vacuum Hoses
›
Vacuum Circuit Diagram
›
2.4L Engine
2.4L Engine

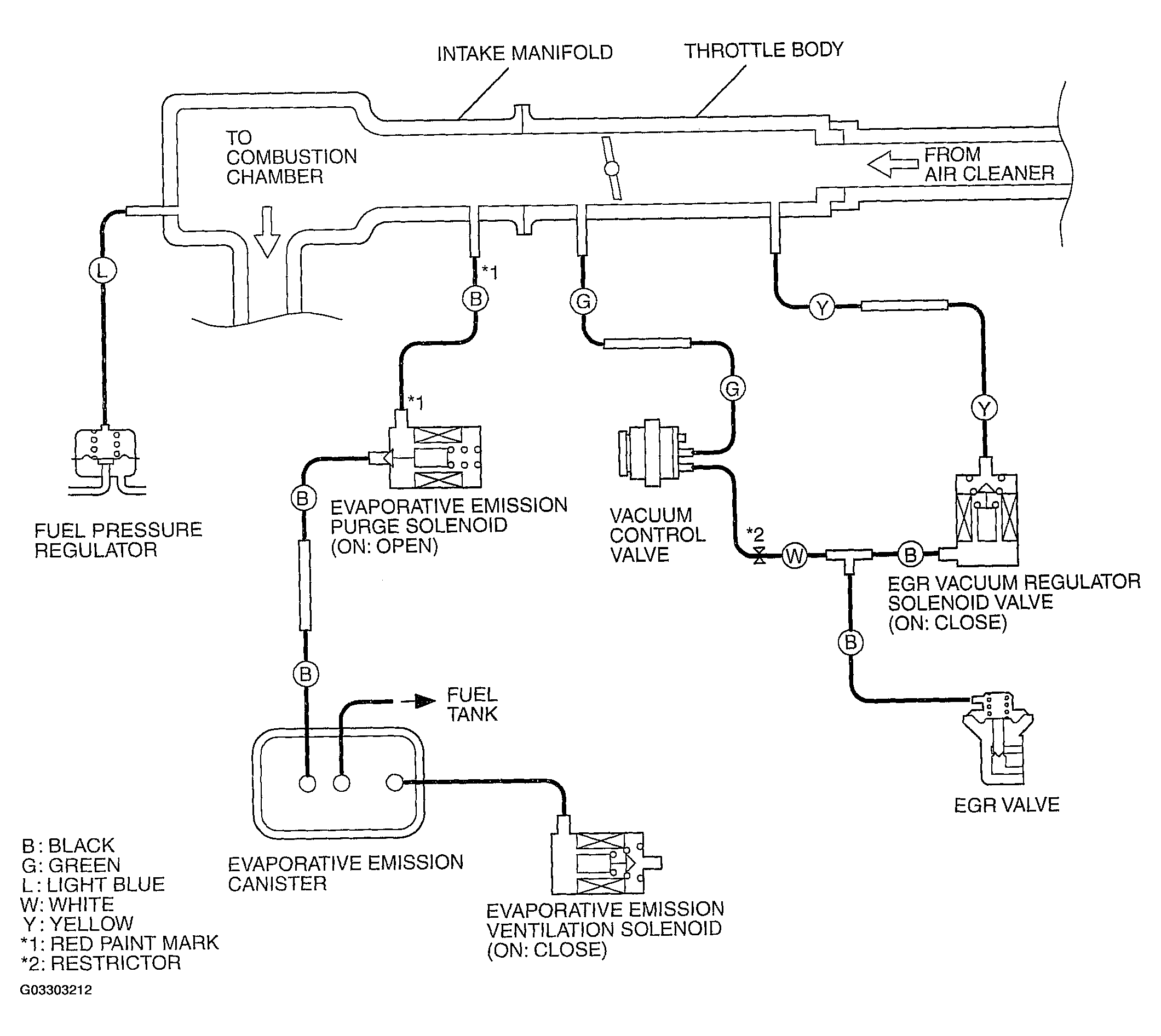

Fig 1: Identifying Vacuum Circuit Diagram (2.4L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
