Removal And Installation

Post-installation Operation

Adjusting the Accelerator Cable (Refer to DIAGNOSIS  .)

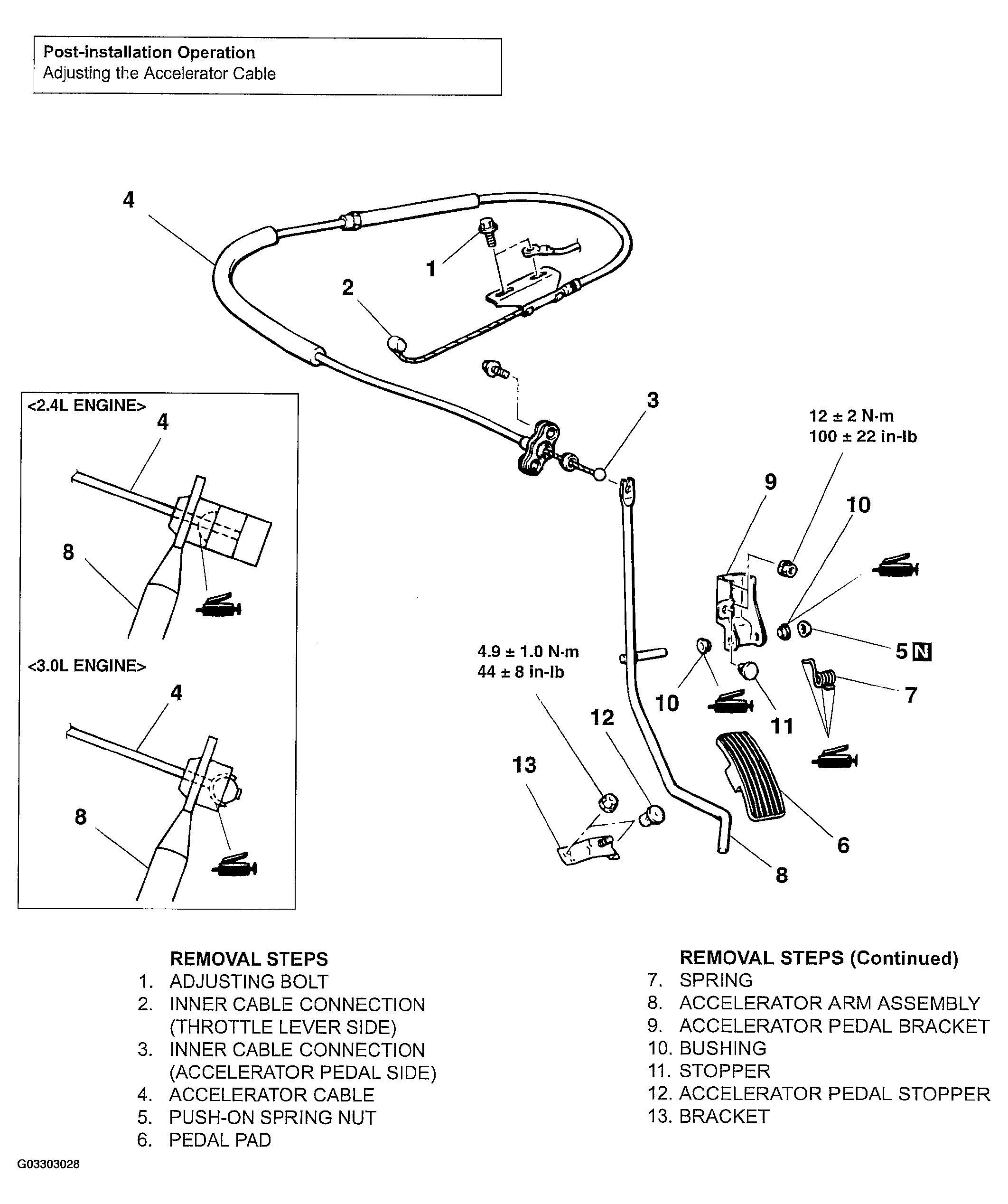

Fig 1: Adjusting Accelerator Cable
G03303028Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
