Quarter Window Glass And Regulator Assembly
›
Removal And Installation
›
Notes
Removal And Installation: Notes

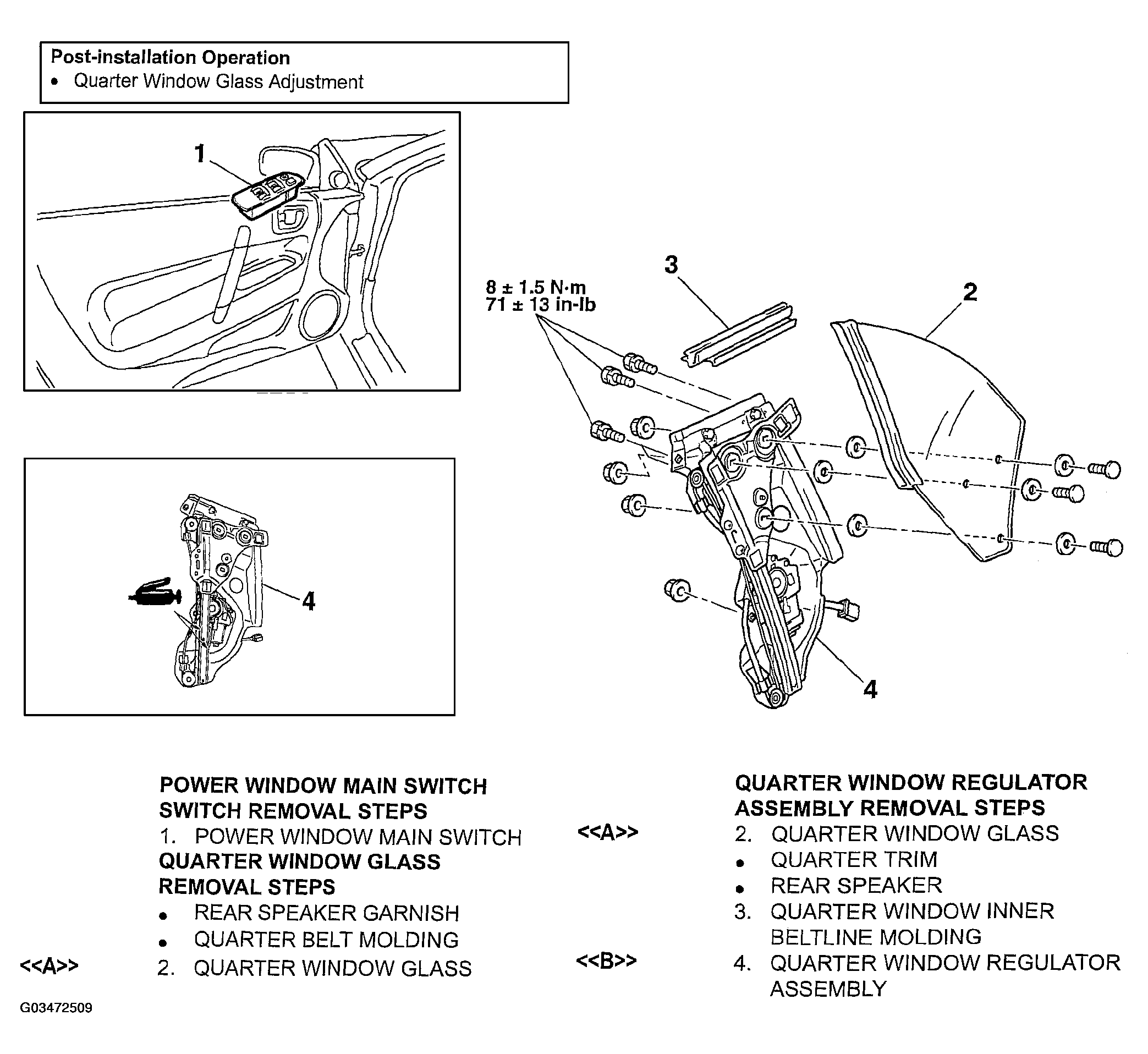

Fig 1: Removing And Installing Quarter Window Glass And Regulator Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
