Construction Diagram

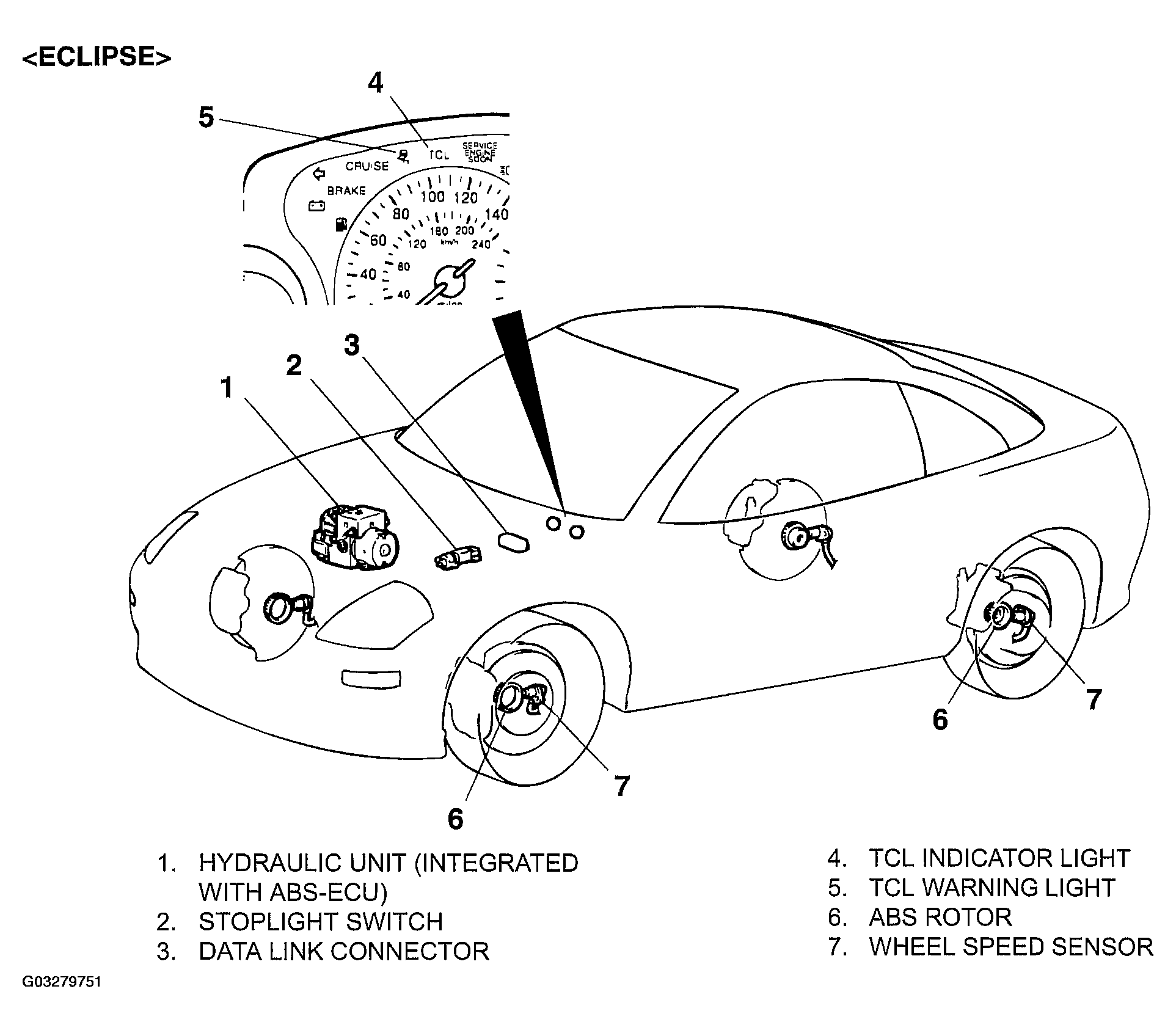

Fig 1: Identifying Traction Control System (Eclipse)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

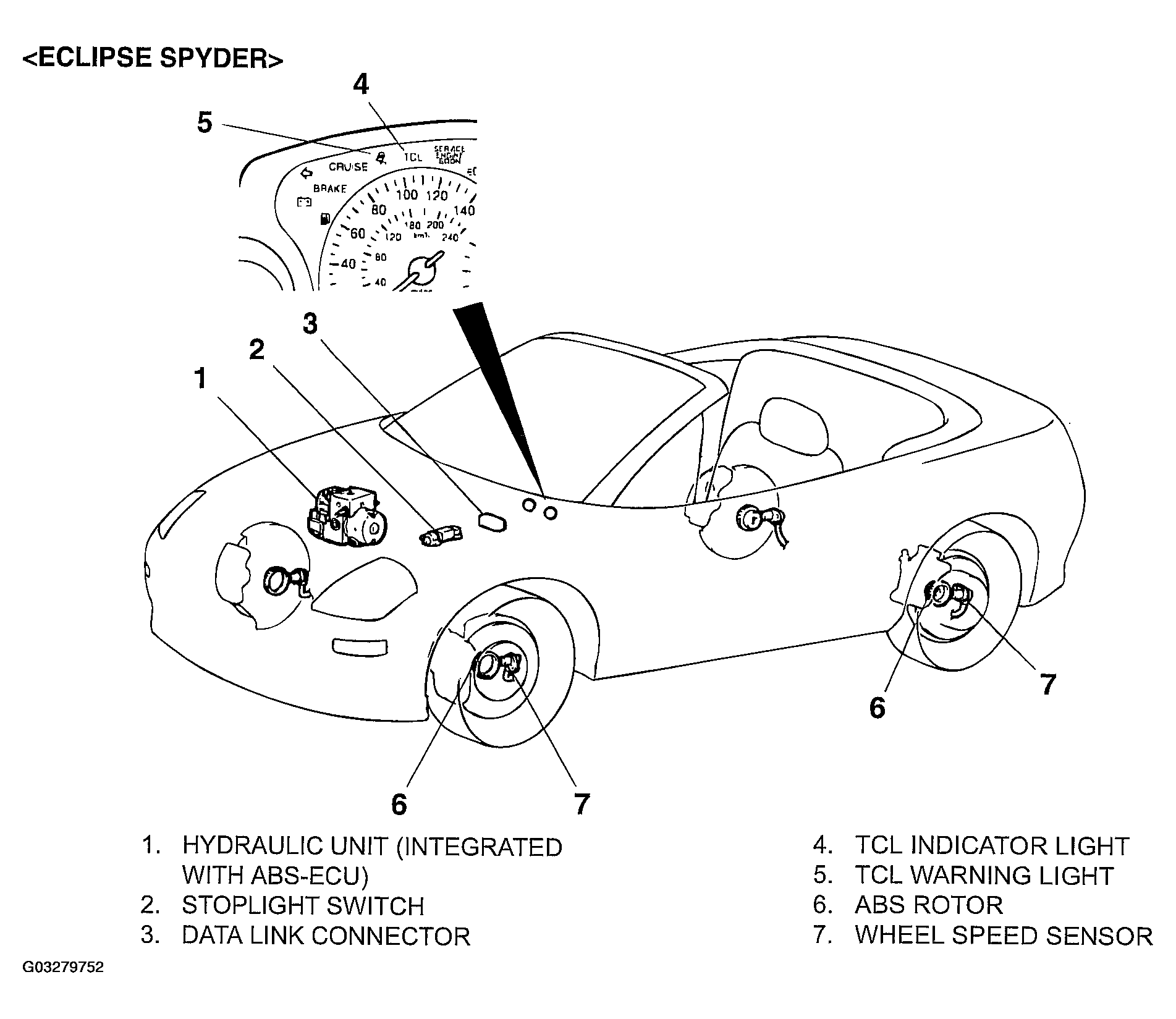

Fig 2: Identifying Traction Control System (Eclipse Spyder)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

System Check Sound

When starting the engine and moving the vehicle for the first time after startup, a thudding sound can sometimes be heard coming from the engine compartment. This is a normal sound during the ABS and TCL unit self-check.

ABS Operation Sounds and Sensations

During normal operation, the ABS makes several sounds that may seem unusual at first:

A whining sound is caused by the ABS hydraulic unit motor.
