Removal And Installation < 3.0L Engine>

Pre-removal and Post-installation Operation

• Timing Belt Removal and Installation (Refer to the appropriate service information.)

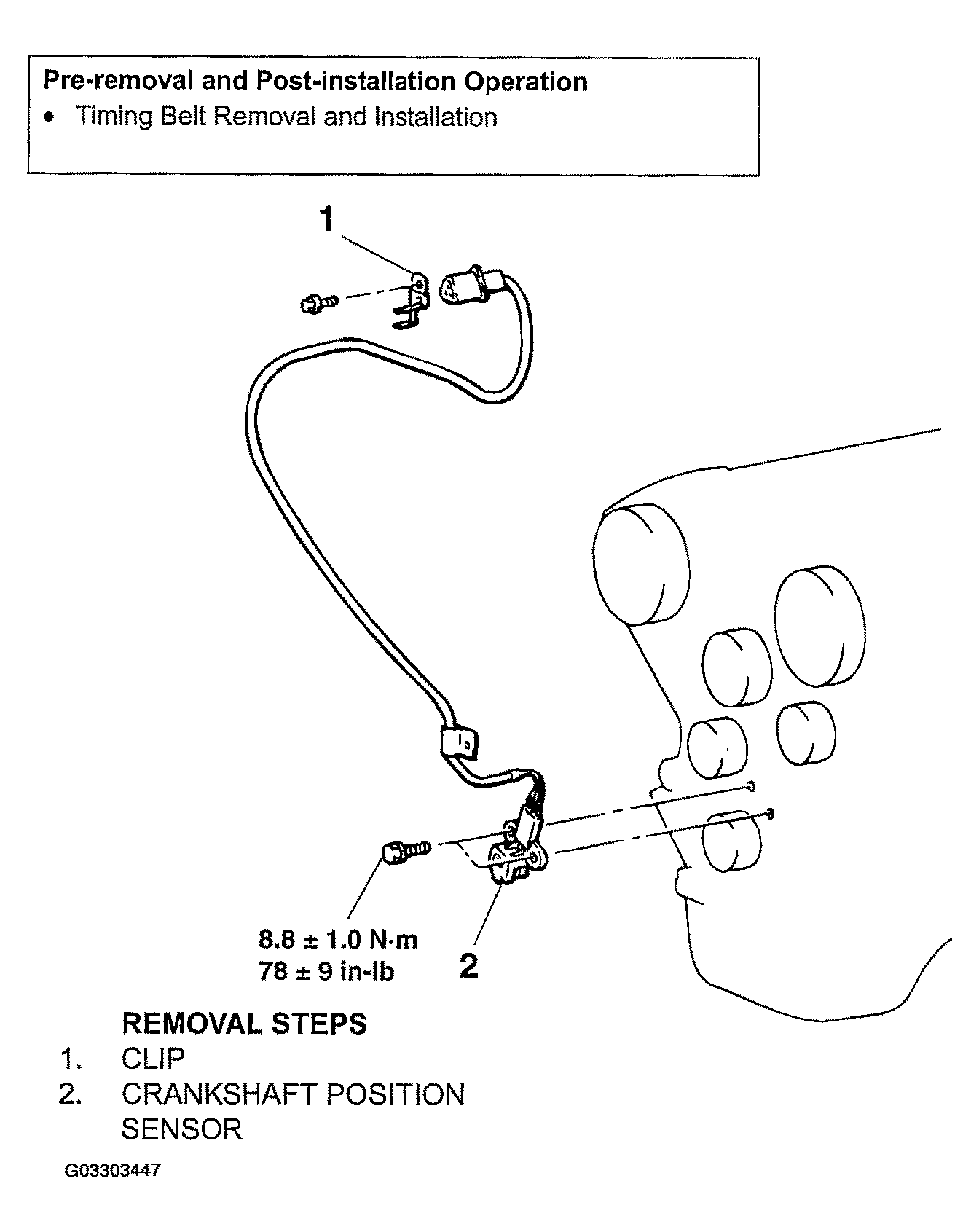

Fig 1: Removing And Installing Crankshaft Position Sensor Components (3.0L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
