Removal And Installation < 2.4L Engine>
Removal And Installation < 2.4L Engine>

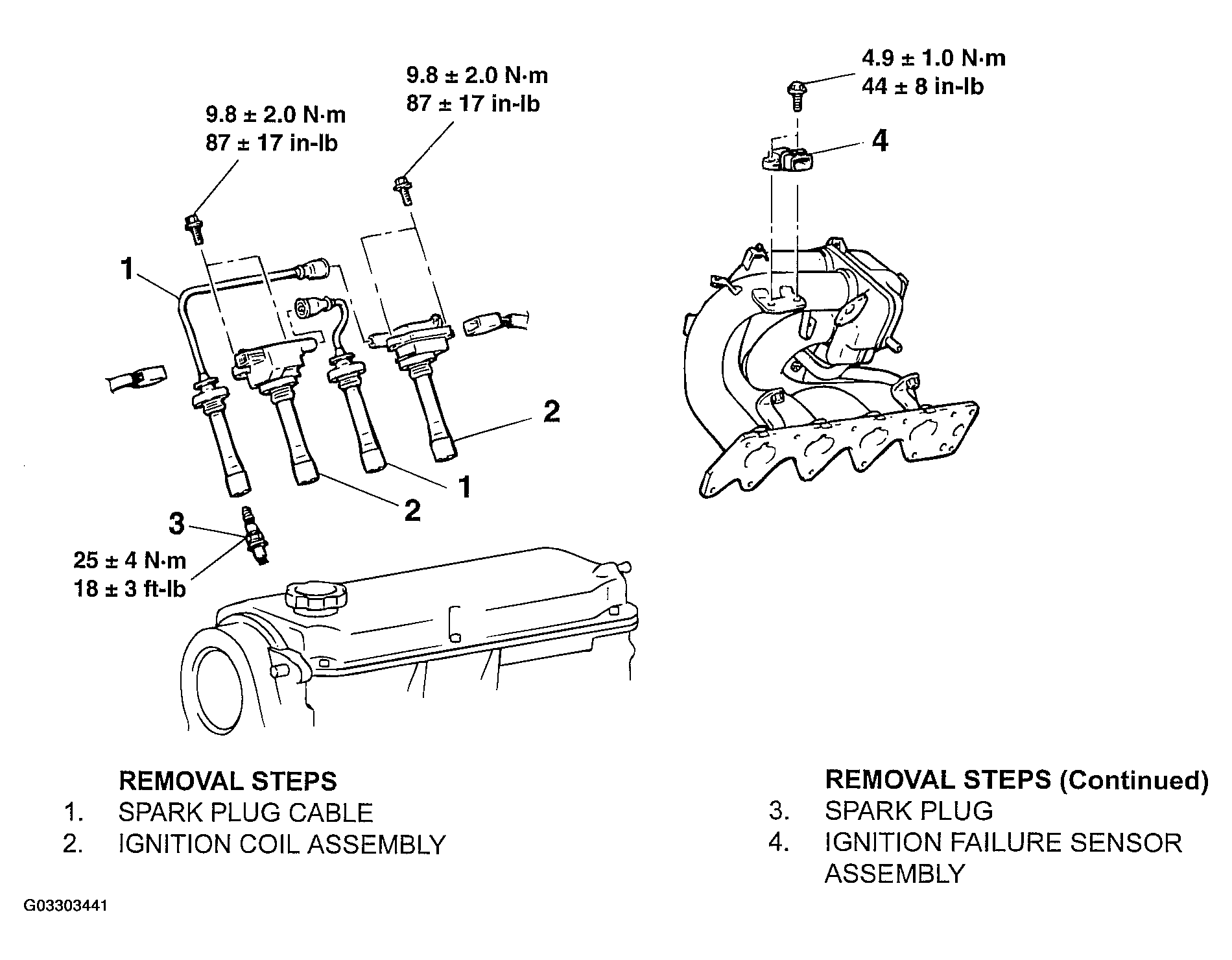

Fig 1: Removing And Installing Ignition Coil Components (2.4L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
