3.0L Engine
3.0L Engine

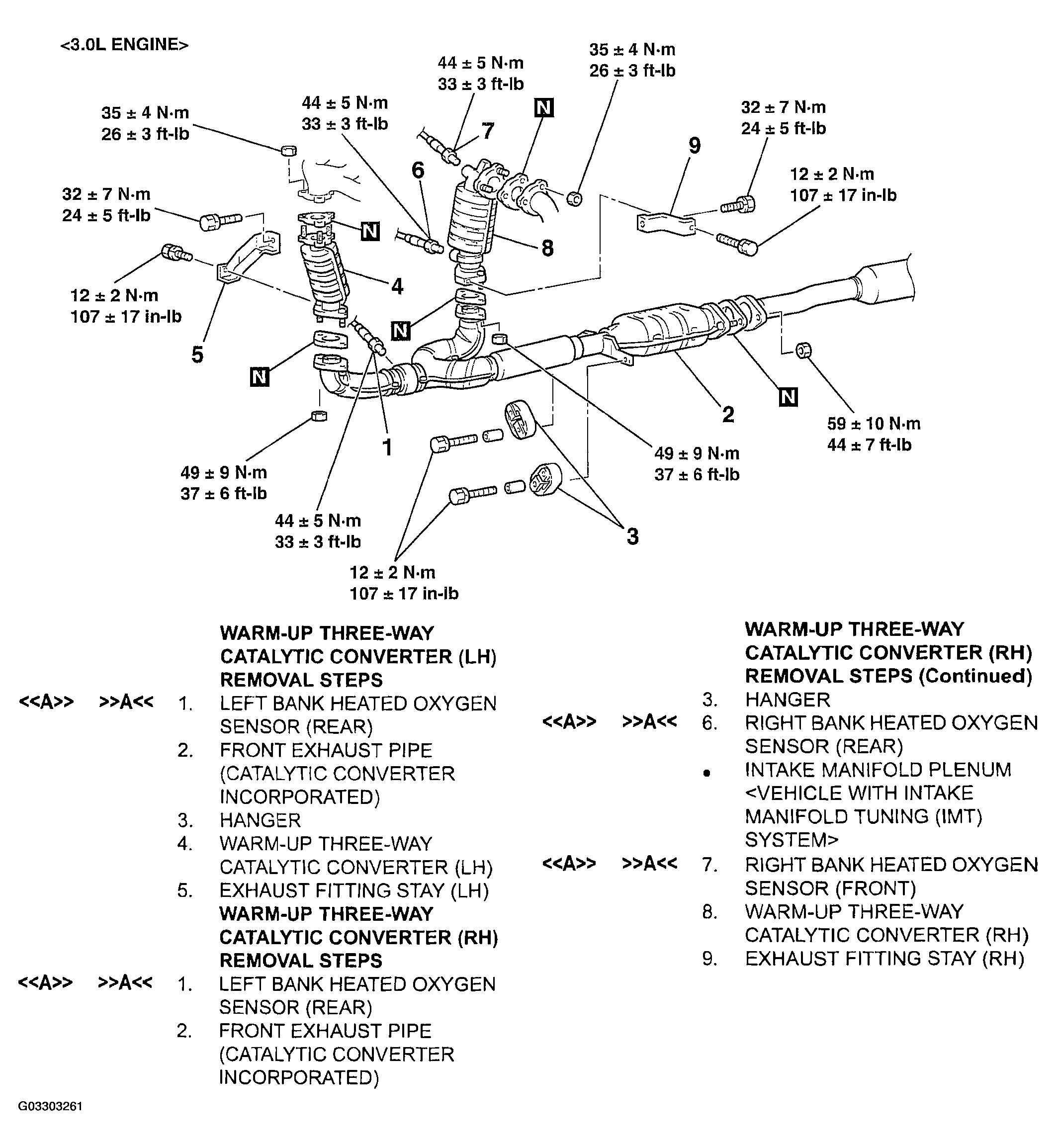

Fig 1: Identifying Catalytic Converter (3.0L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tool:
MD998770: Oxygen sensor wrench
