Wheel Speed Sensor
›
Removal And Installation
Removal And Installation

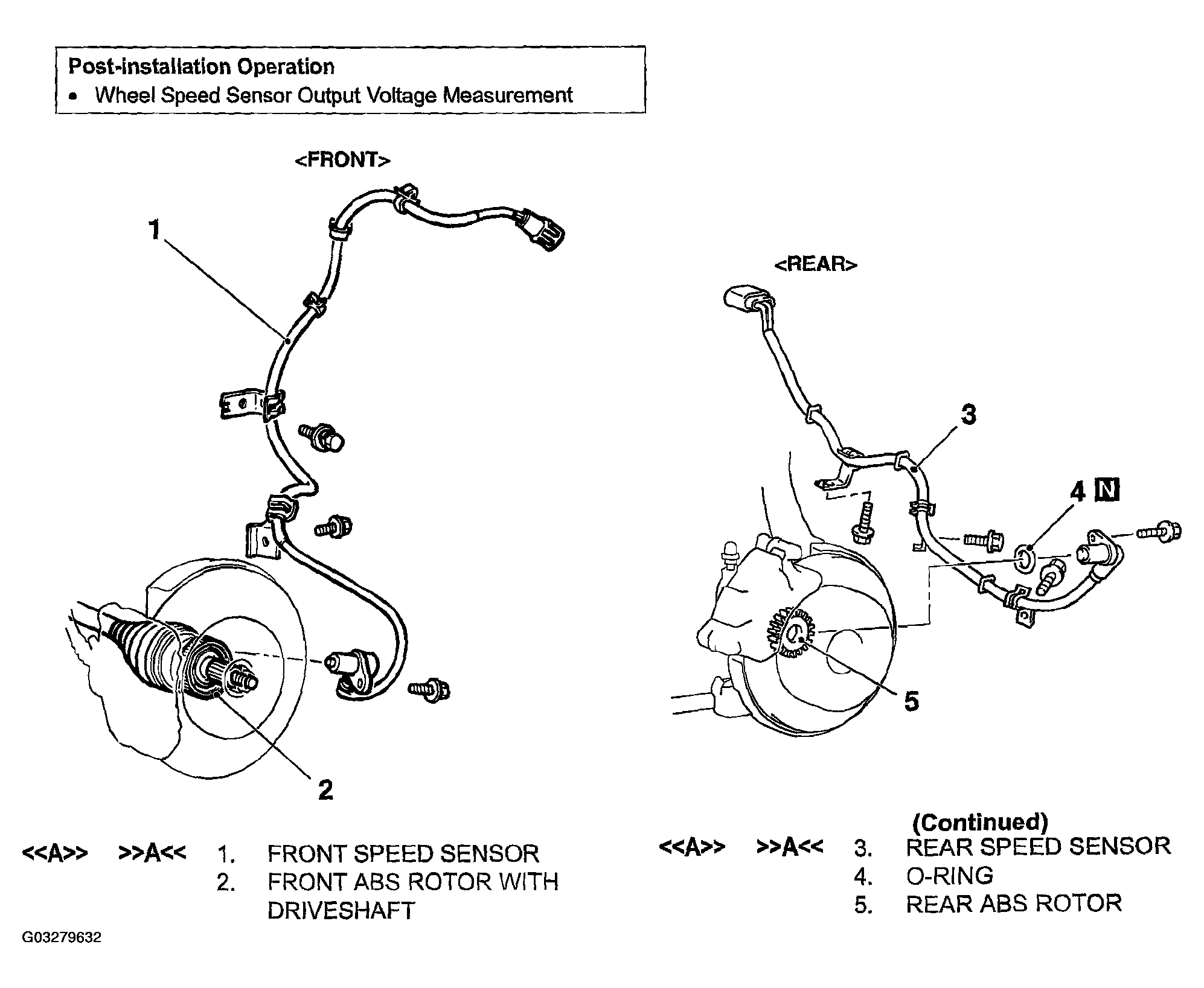

Fig 1: Removing & Installing Wheel Speed Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
