Inspection Procedure Using An Oscilloscope

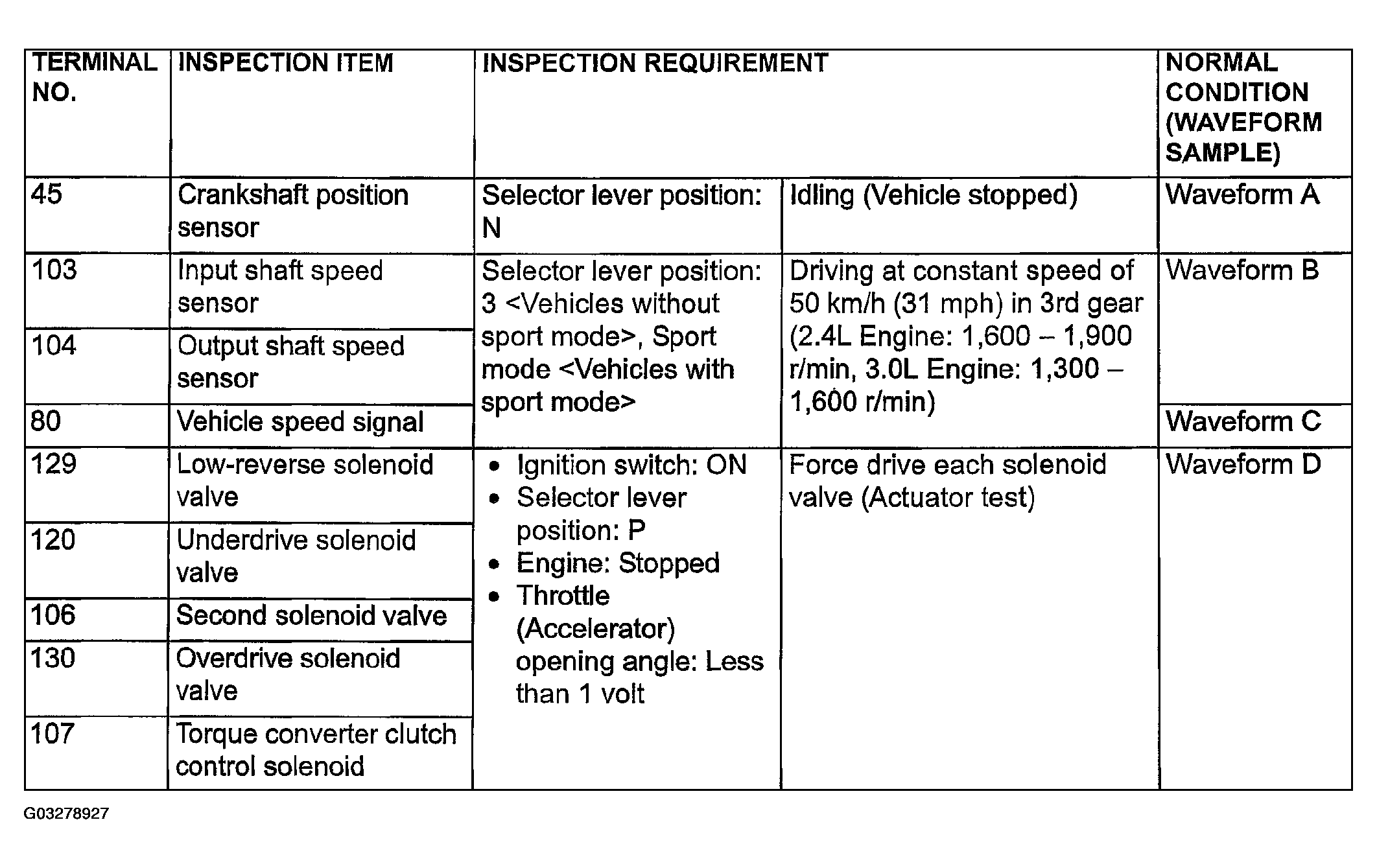

Fig 1: Oscilloscope Inspection Procedure Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

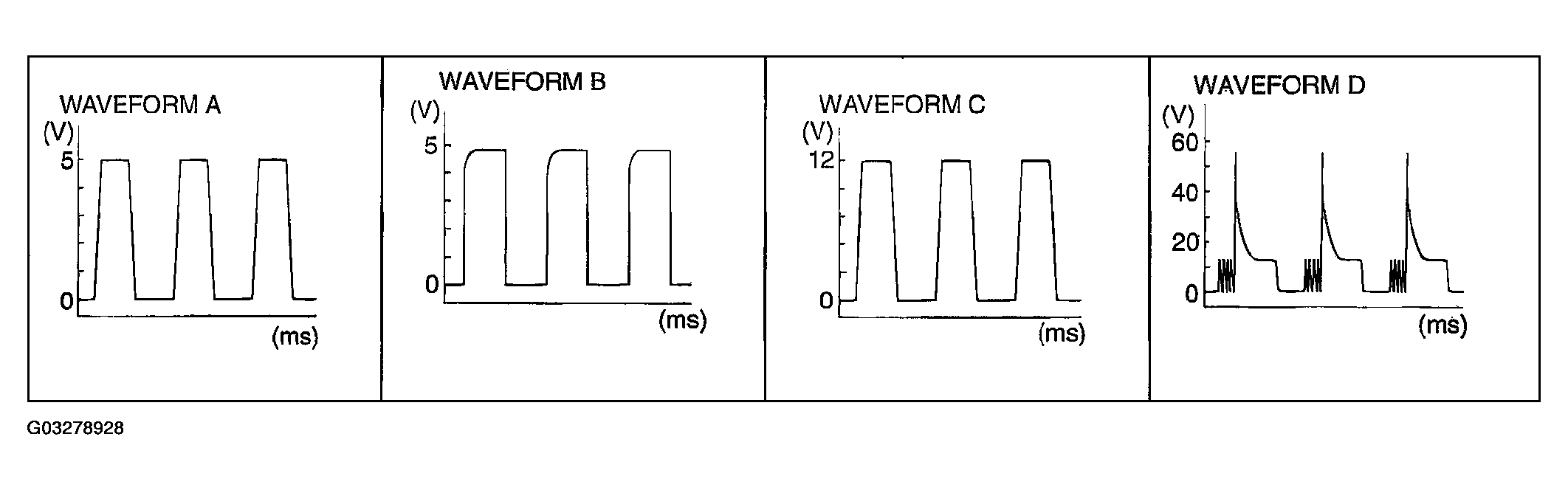

Fig 2: Waveform Samples

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
