Automatic Transaxle On-Vehicle Service
›
Transaxle Control
›
Disassembly And Assembly
›
< Vehicles With Sport Mode>
< Vehicles With Sport Mode>

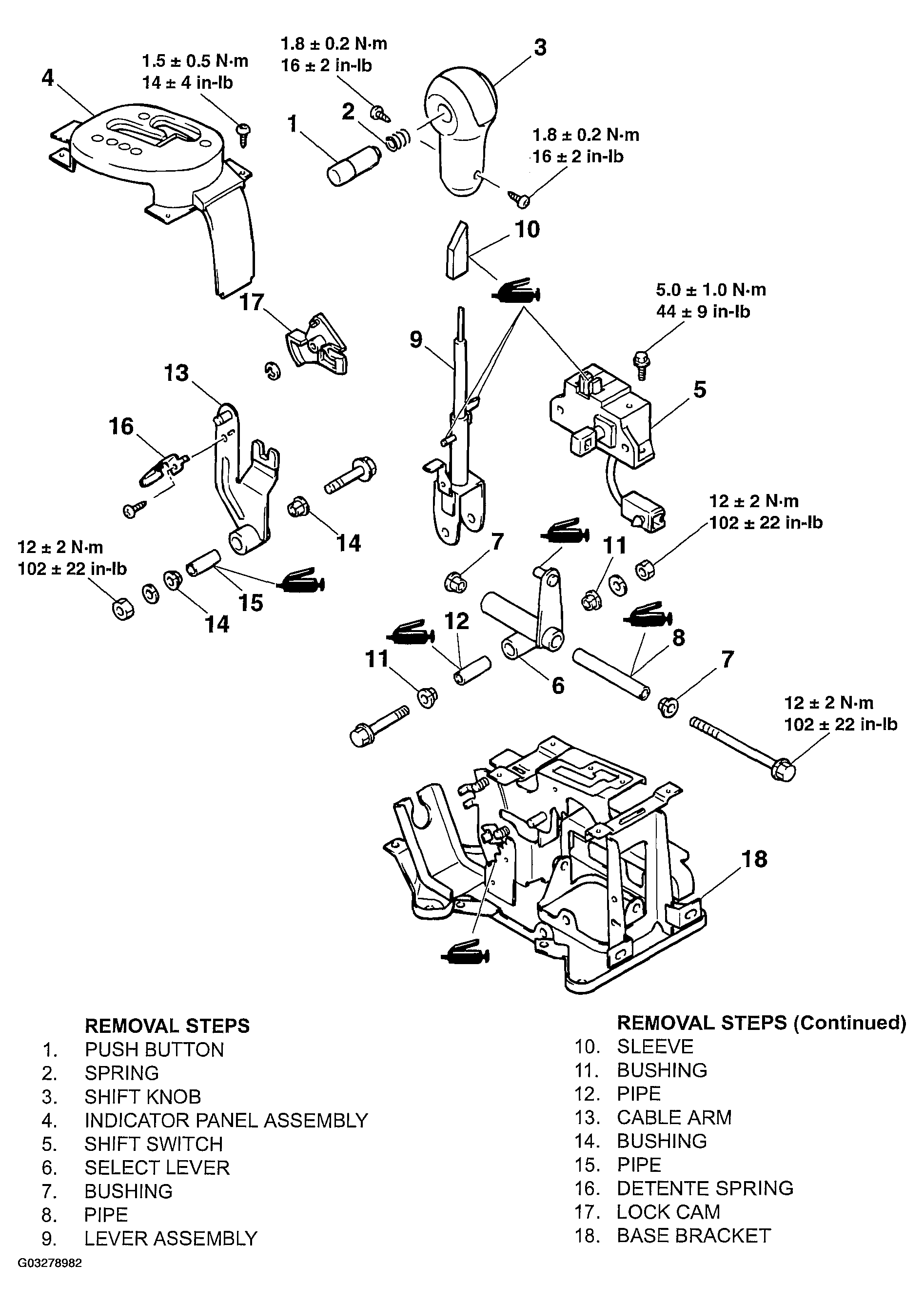

Fig 1: Disassembly And Assembly Of Selector Lever (Vehicles With Sport Mode)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
