Disassembly And Assembly: Notes

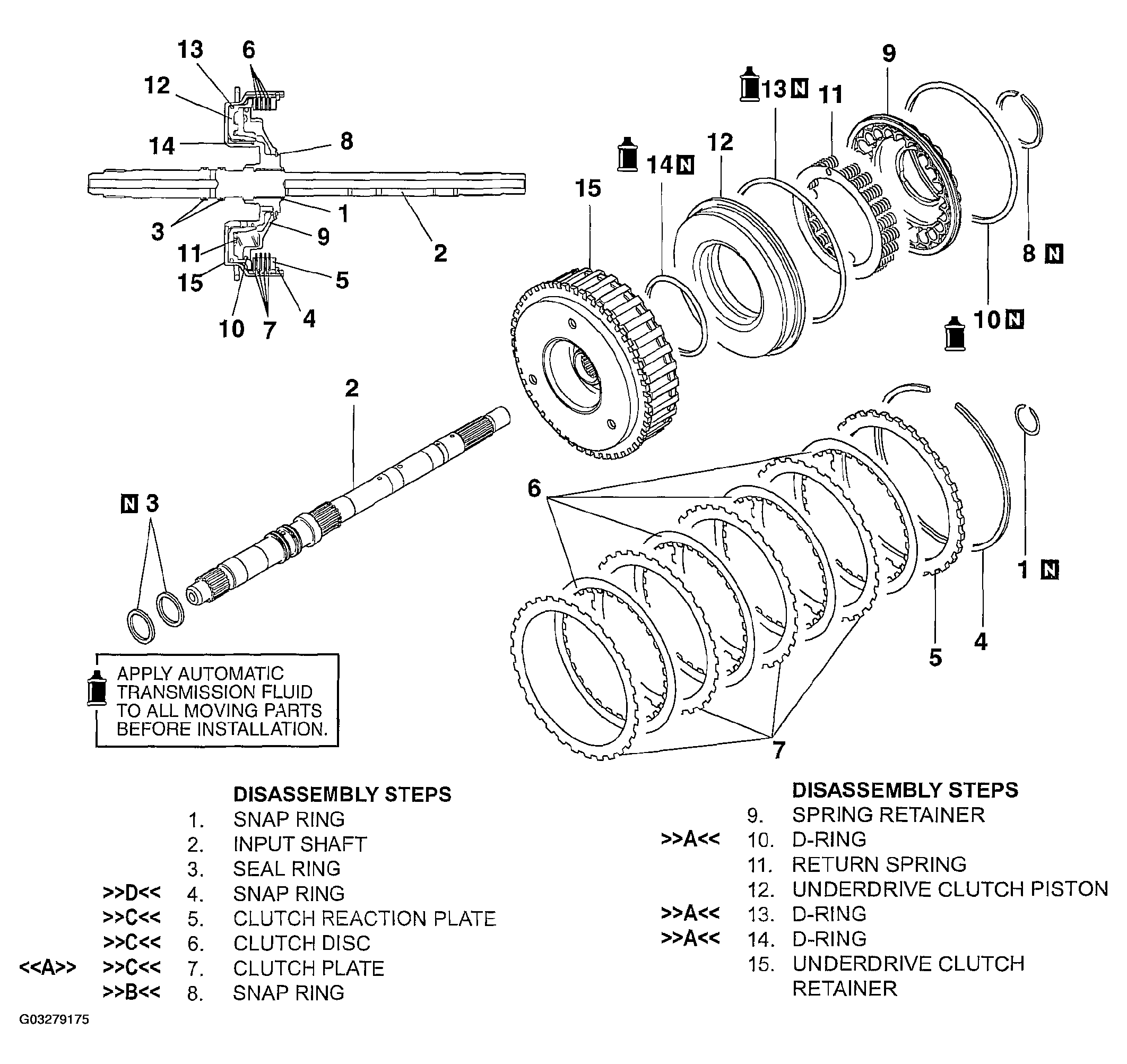

Fig 1: Disassembly And Assembly Of Underdrive Clutch And Input Shaft

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991628: Spring Compressor < F4A42>
• MB991629: Spring Compressor < F4A51>
• MD998907: Spring Compressor
• MD998924: Spring Compressor Retainer
