Multi-Center Display
›
Removal And Installation
Removal And Installation

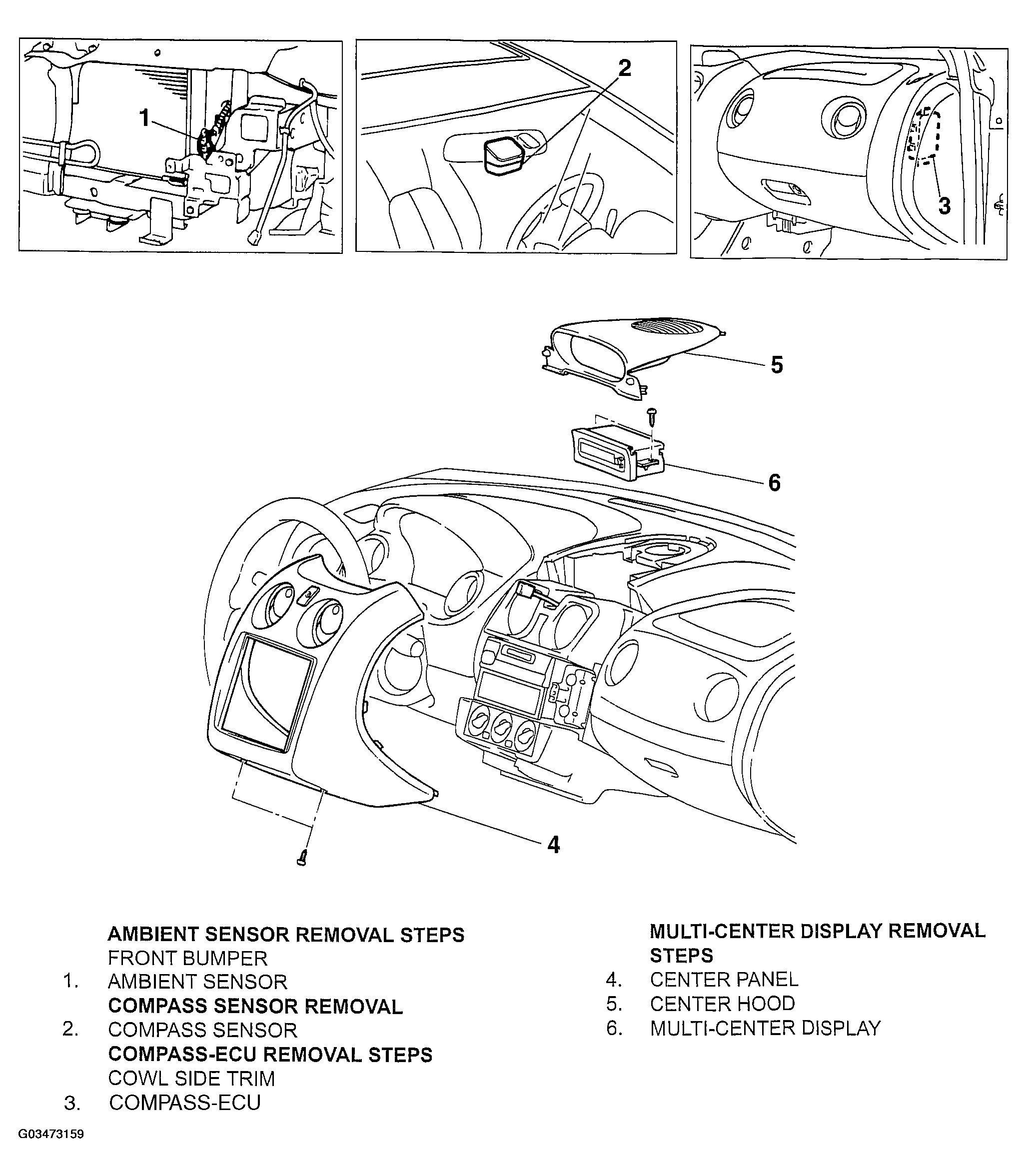

Fig 1: Removing And Installing Multi Center Display
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
