Removal And Installation: Notes

WARNING: Before removing the steering gearbox, refer to DESCRIPTION & OPERATIONAIR BAG SAFETY PRECAUTIONS and DRIVER-SIDE AIR BAG MODULE & CLOCKSPRING . Center the front wheels. Failure to do so may damage the SRS clock spring and render the SRS system inoperative, risking serious injury.

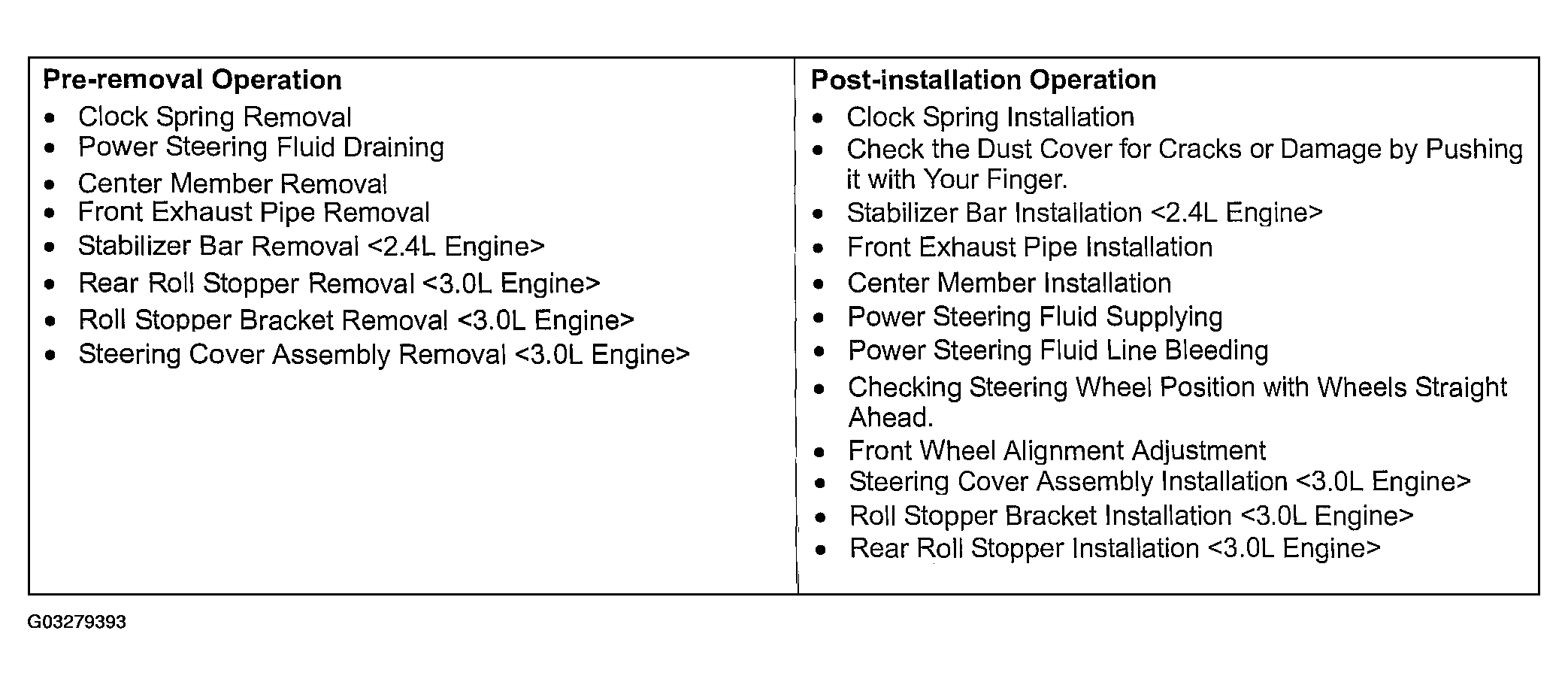

Fig 1: Power Steering Gear Box Assembly Pre Removal And Post Installation Operation Chart
G03279393Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

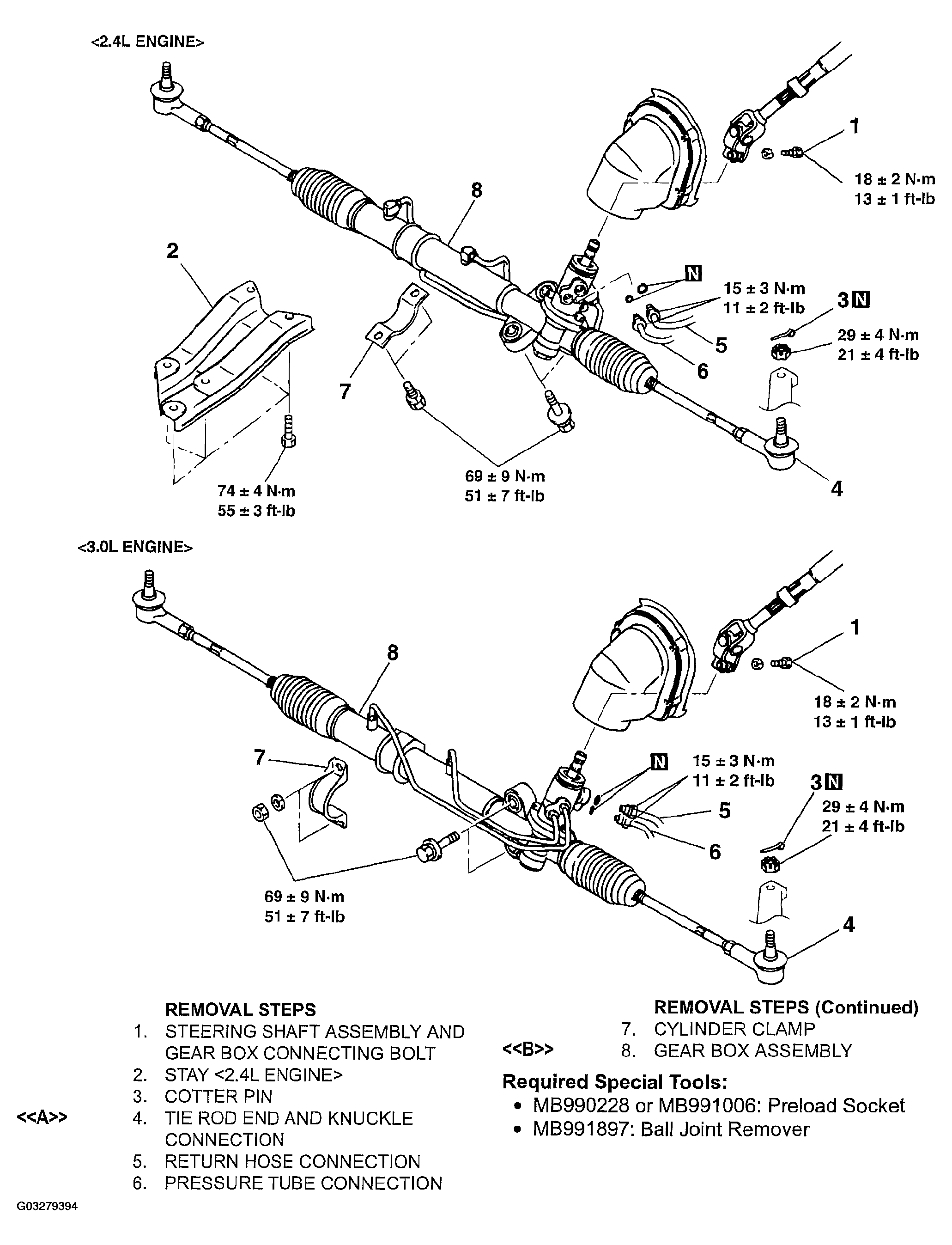

Fig 2: Removing And Installing Power Steering Gear Box Assembly
G03279394Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
