Disassembly And Assembly: Notes

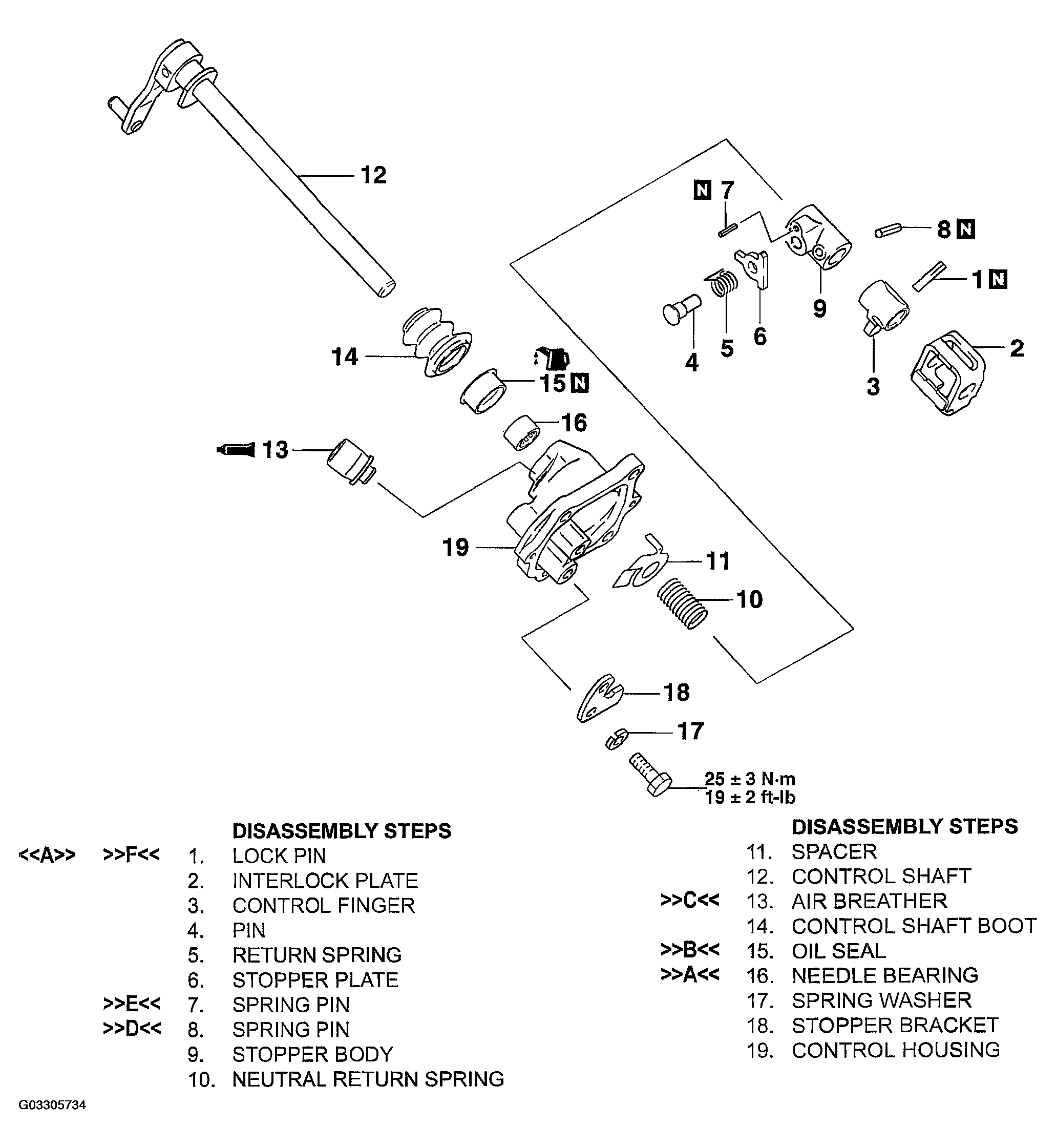

Fig 1: Exploded View Of Control Housing
G03305734Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
