Disassembly And Assembly: Notes

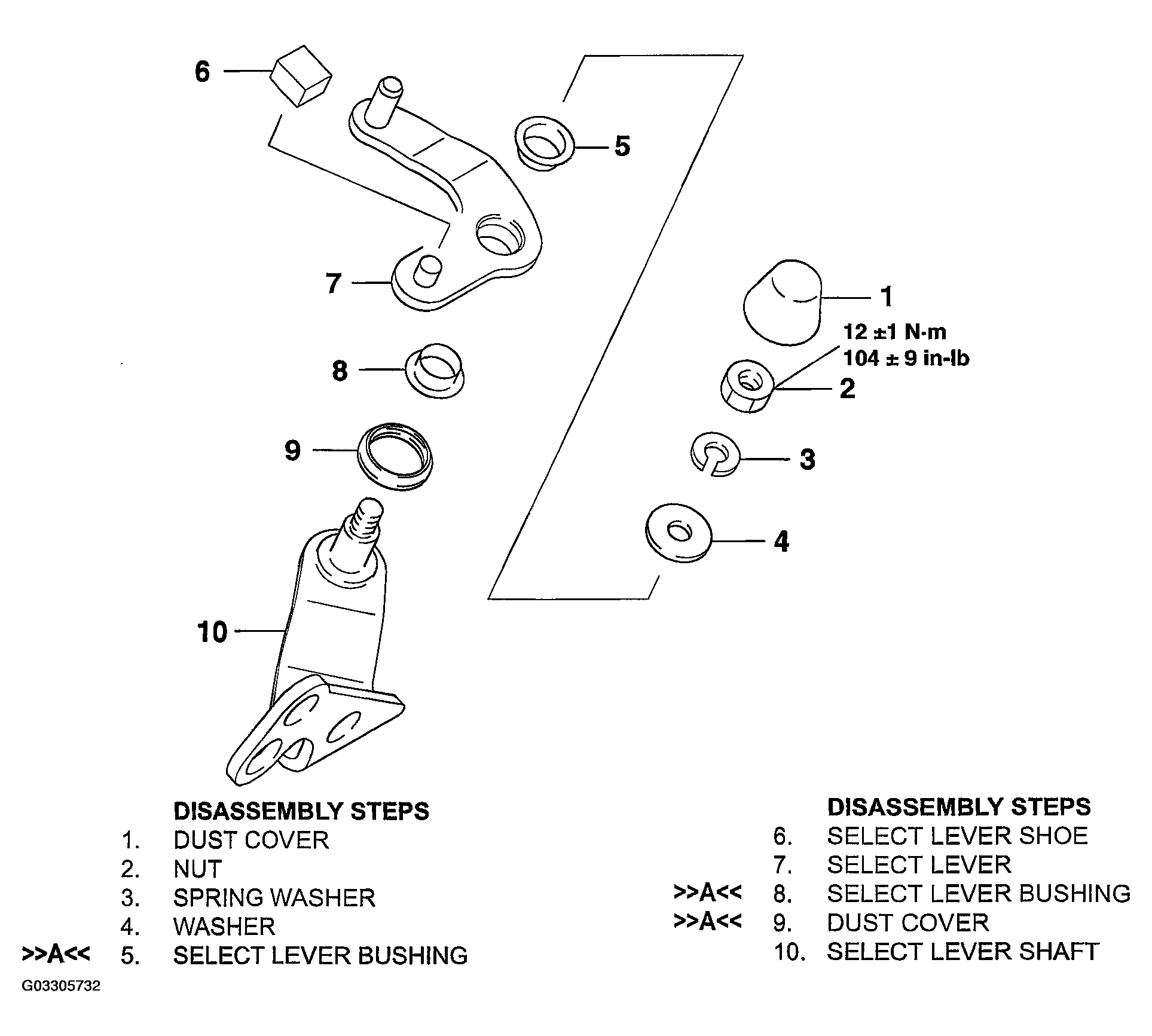

Fig 1: Exploded View Of Select Lever

G03305732

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
