Mitsubishi
›
2004
›
Eclipse Spyder GS, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Emission Control System
›
Catalytic Converter
›
Removal And Installation
›
2.4L Engine
2.4L Engine

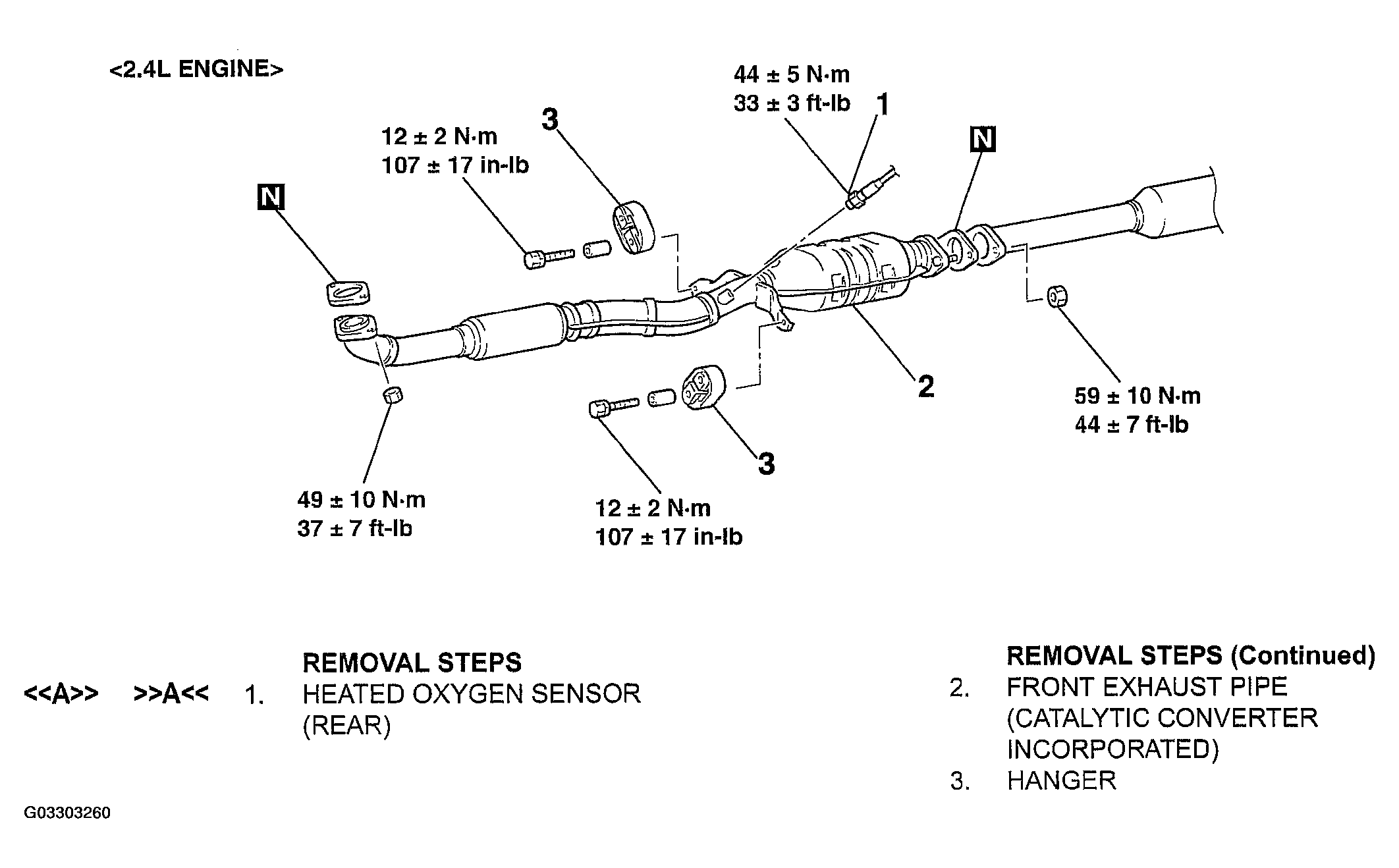

Fig 1: Identifying Catalytic Converter (2.4L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
