DTC 22: Stoplight Switch System: Notes

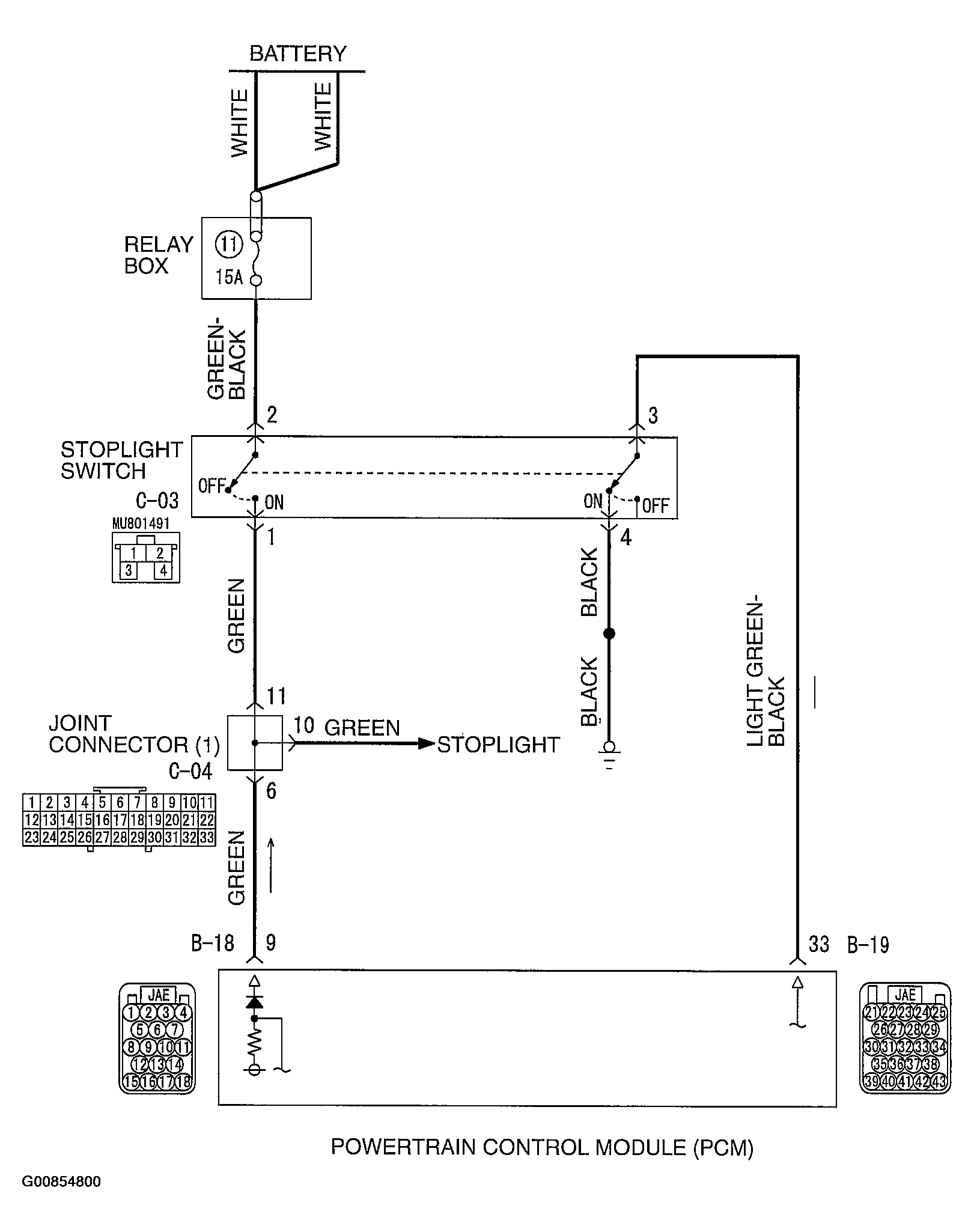

Fig 1: Stoplight Switch System Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

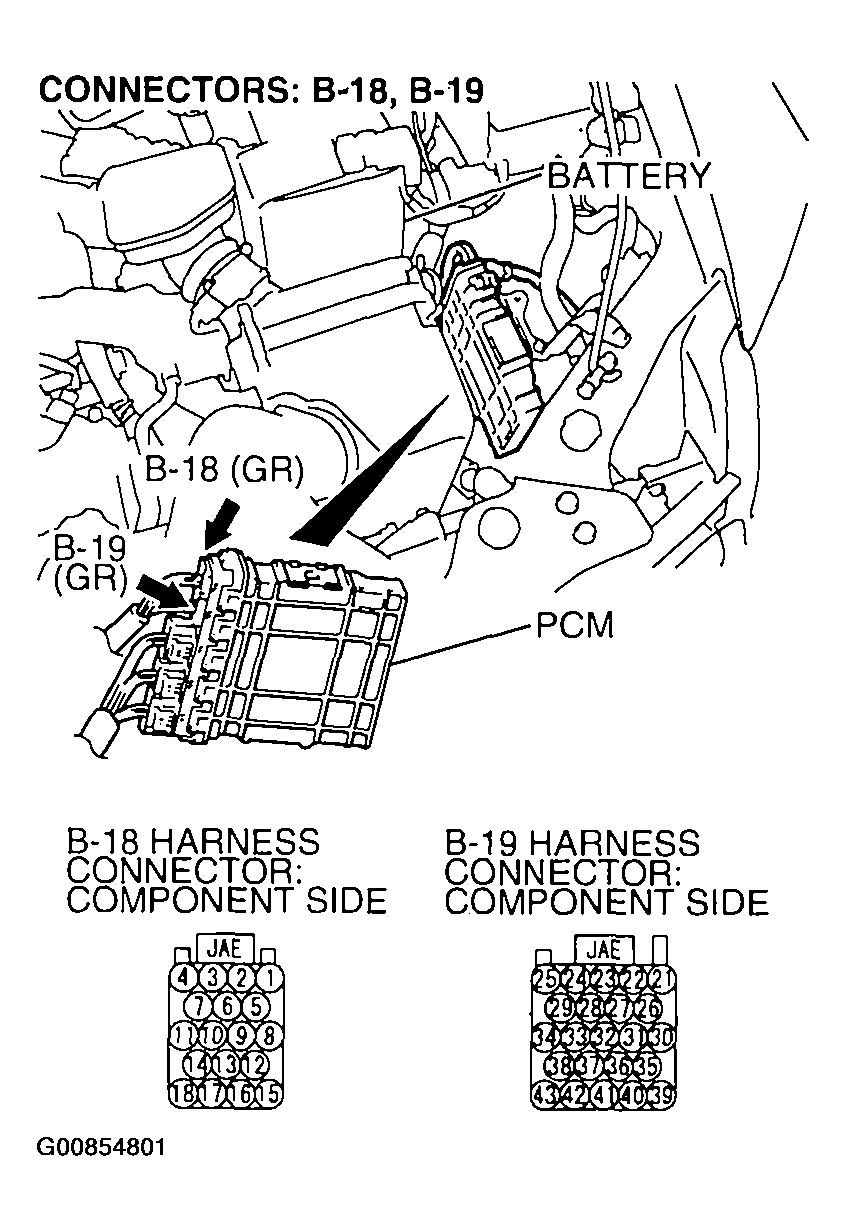

Fig 2: Identifying Connectors B-18 B-19

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

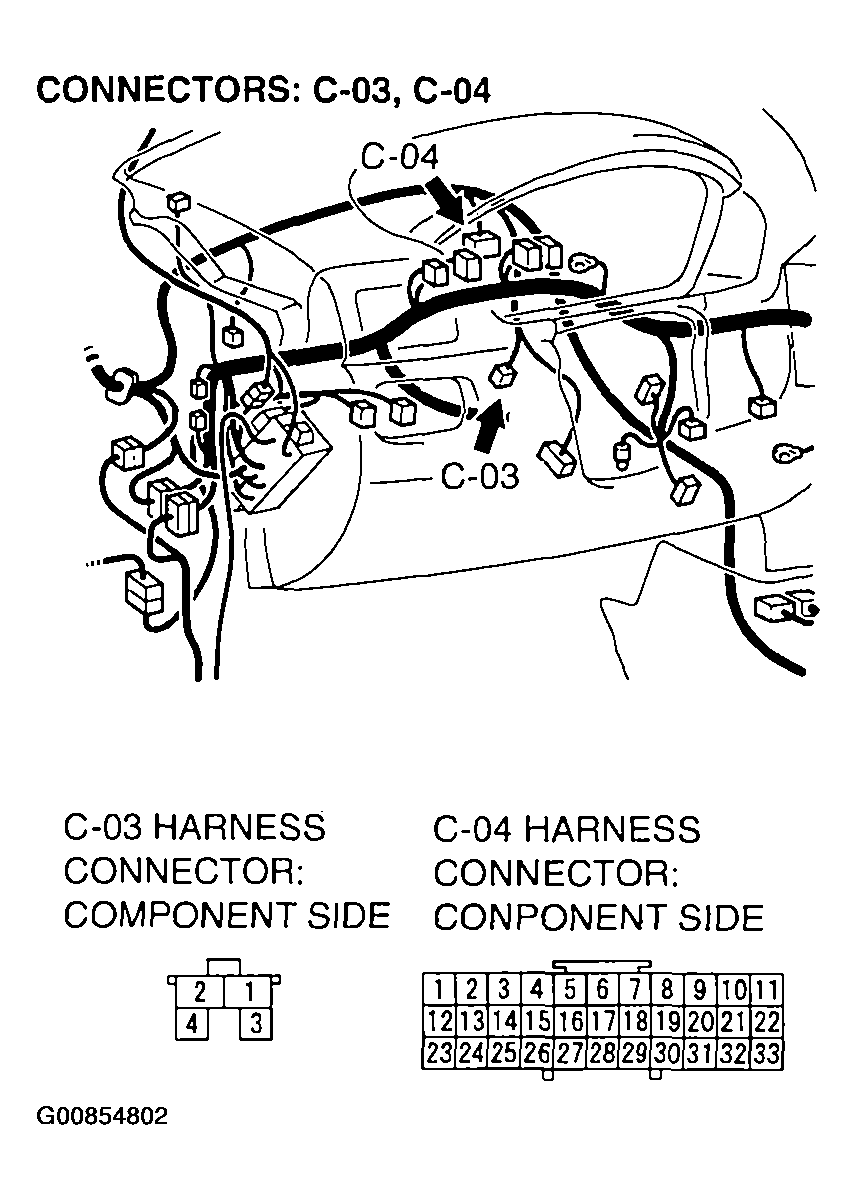

Fig 3: Identifying Connectors C-03 C-04

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
