Auto-Cruise Control Switch Check

1. Remove the auto-cruise control switch. (Refer to AUTO-CRUISE CONTROL ).
2. Measure the resistance between terminal 2 and terminal 3 when each of the "COAST/SET", "ACC/RES", "CANCEL" and "CRUISE" (MAIN) switches is pressed. If the values measured at the time correspond to those in the table below, the resistance values are correct.

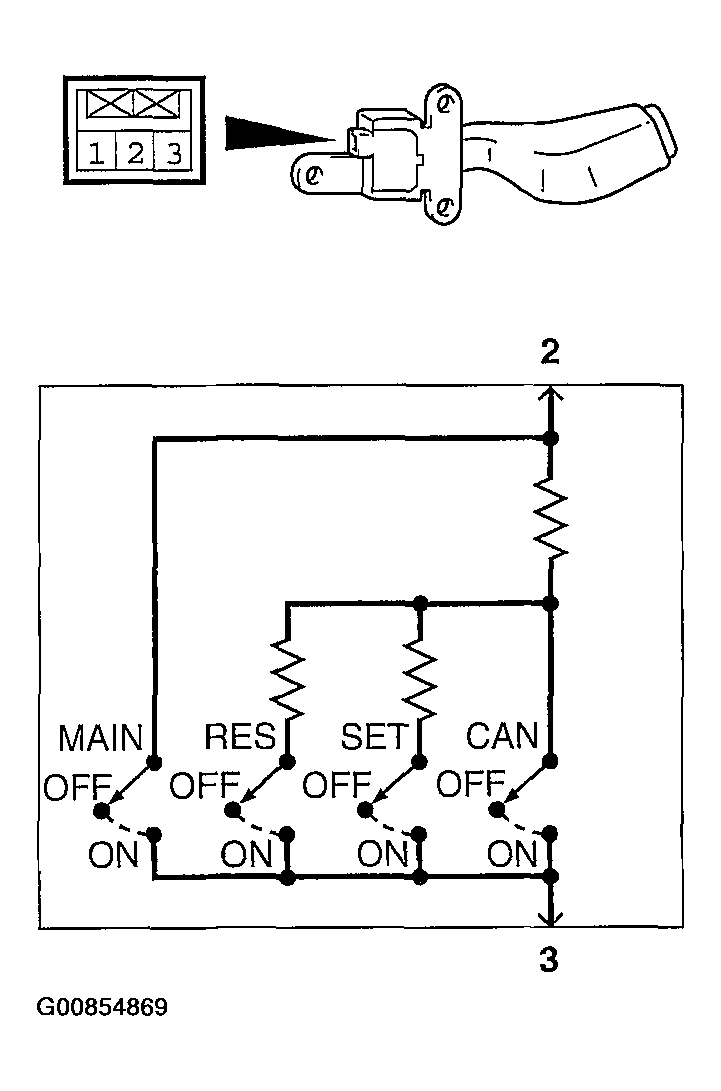

Fig 1: Checking Auto Cruise Control Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

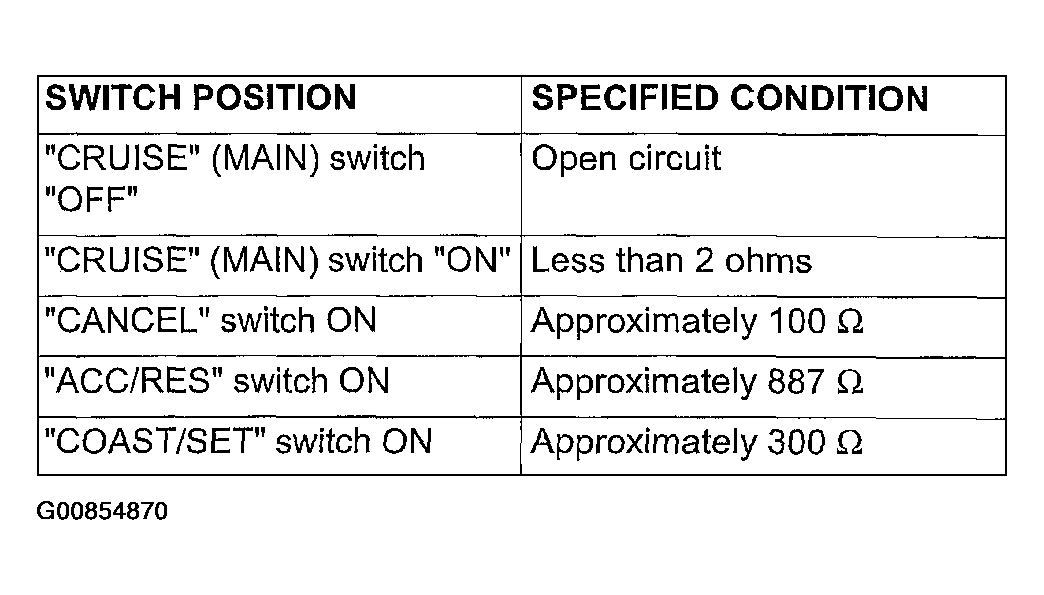

Fig 2: Identifying Switch Position And Specified Condition Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
