Stoplight Switch

  1. Disconnect the connector.
  2. Check for continuity between the terminals of the switch.
Fig 1: Checking Connector
G00854867Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

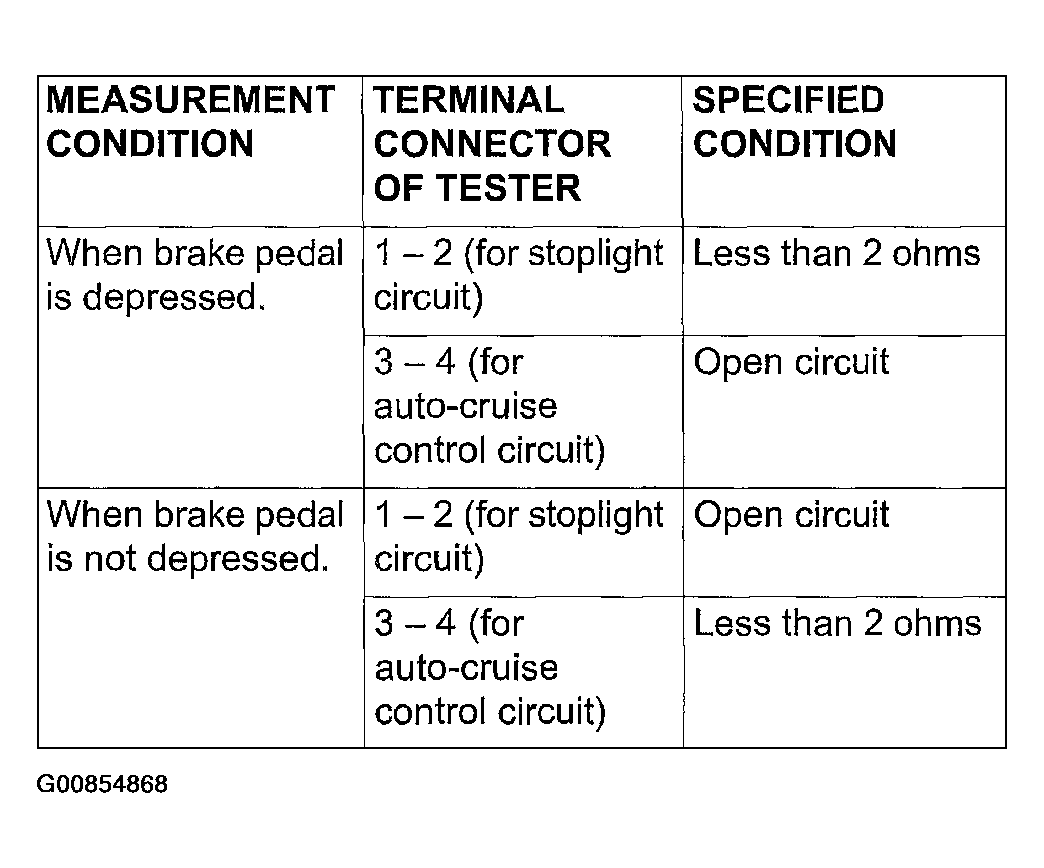

Fig 2: Identifying Condition Table
G00854868Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
