Removal And Installation: Notes

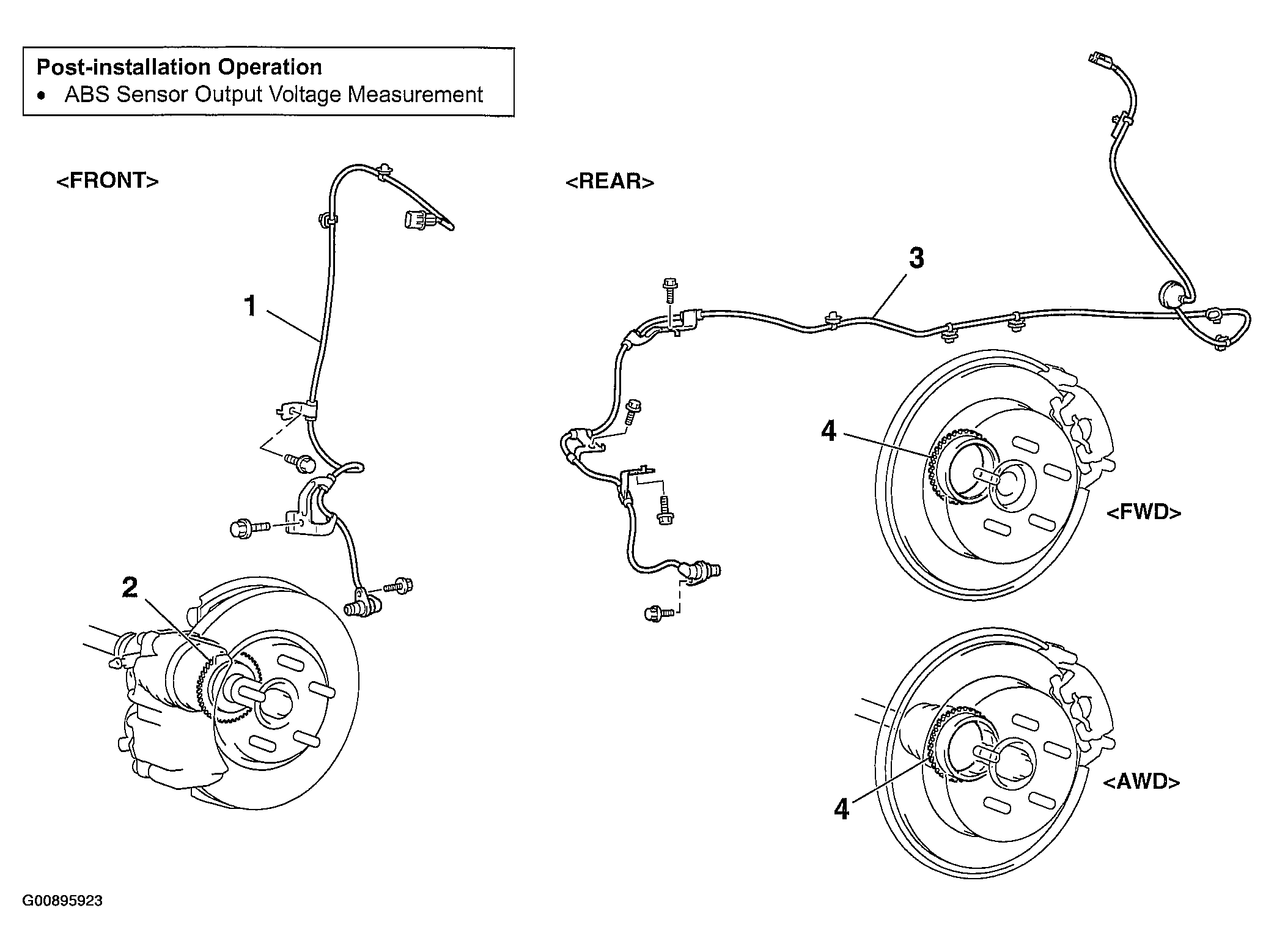

Fig 1: Removing & Installing Wheel Speed Sensor
G00895923Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

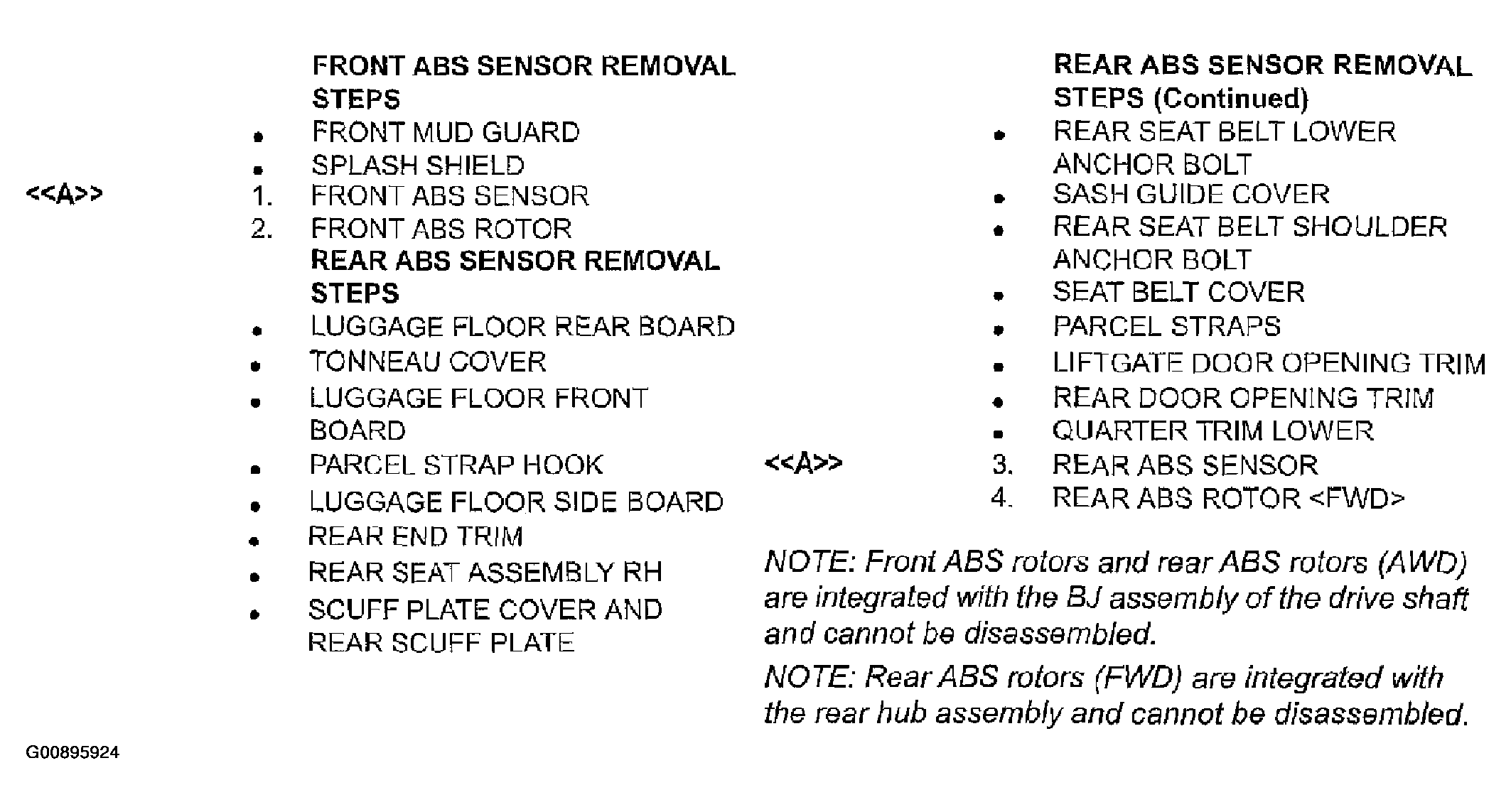

Fig 2: Wheel Speed Sensor Removal & Installation Legend
G00895924Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
