TCL/ASC Diagnosis
›
Diagnostic Trouble Code Chart
›
< Abs/TCL/ASC DTC >
< Abs/TCL/ASC DTC >

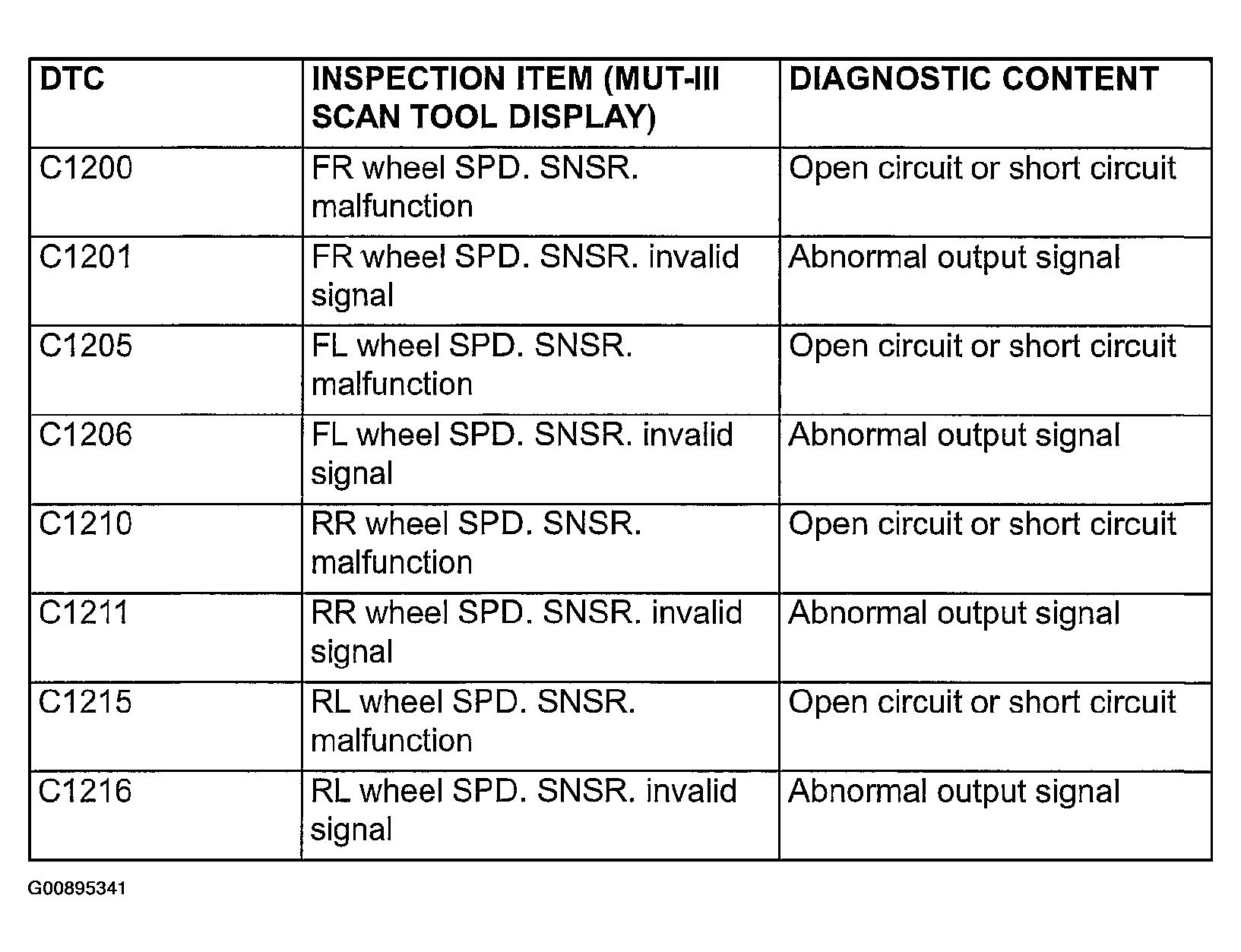

Fig 1: Diagnostic Trouble Code Chart (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

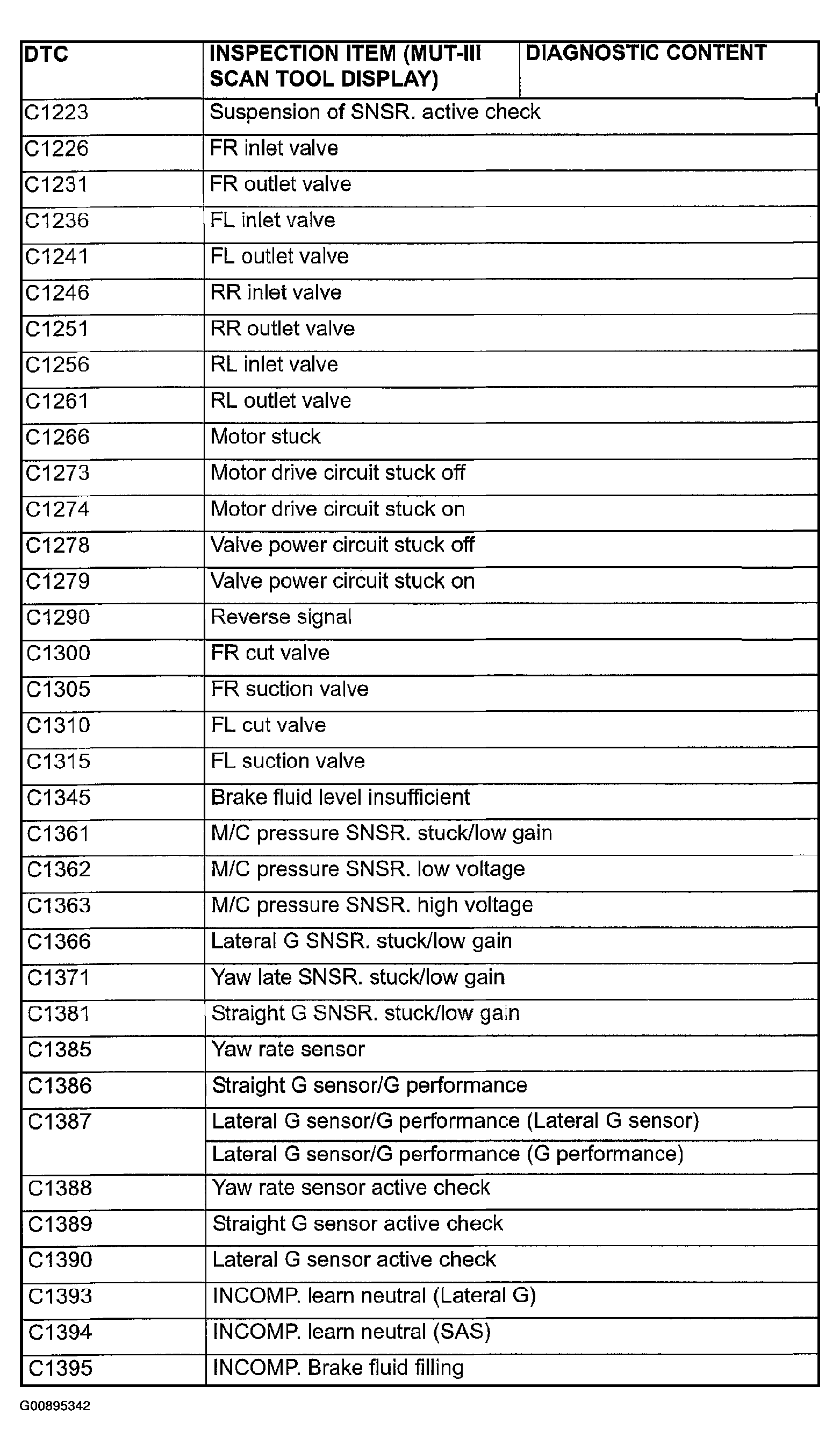

Fig 2: Diagnostic Trouble Code Chart (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

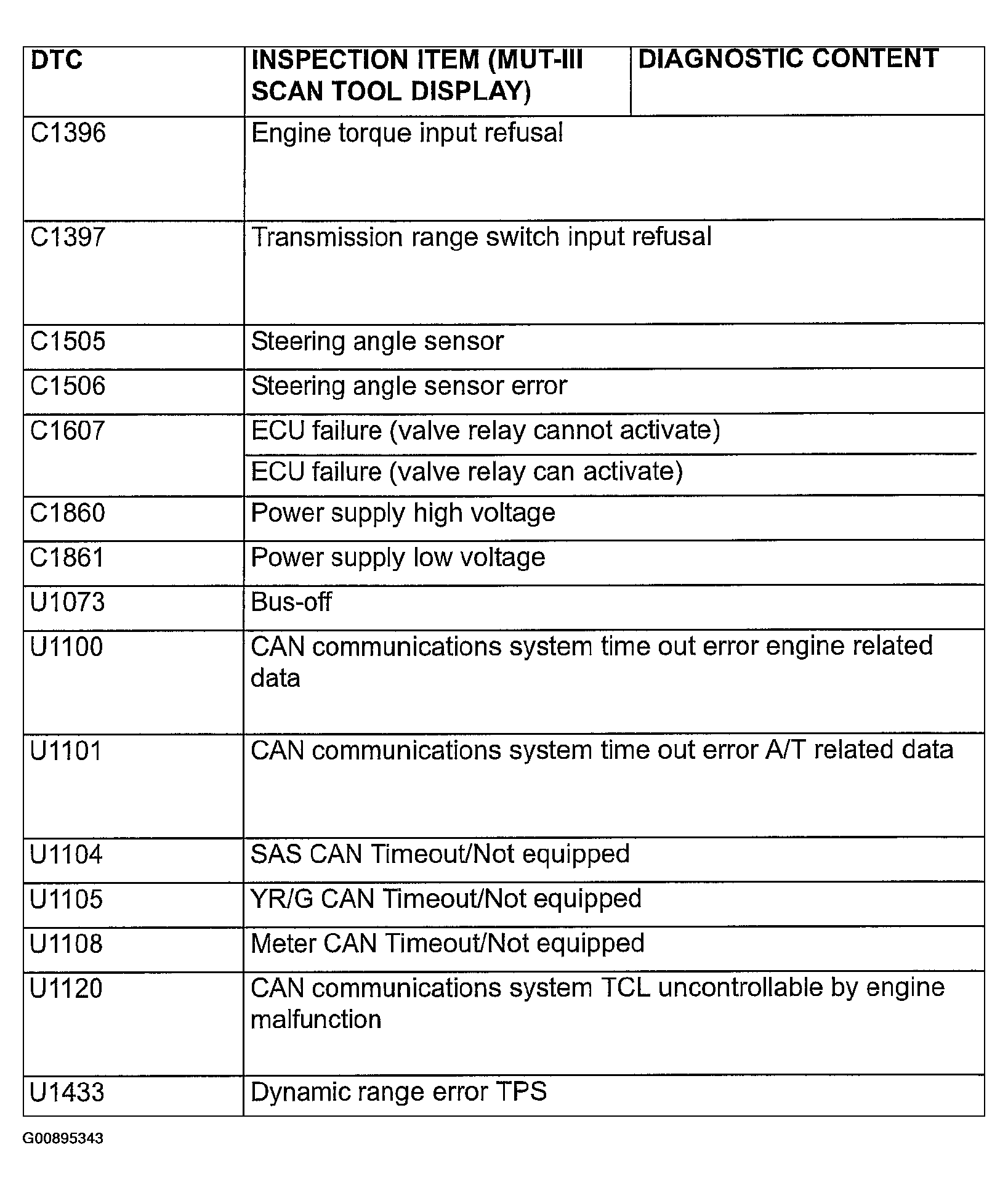

Fig 3: Diagnostic Trouble Code Chart (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
