Camshaft Position Sensor
›
Removal And Installation
Removal And Installation

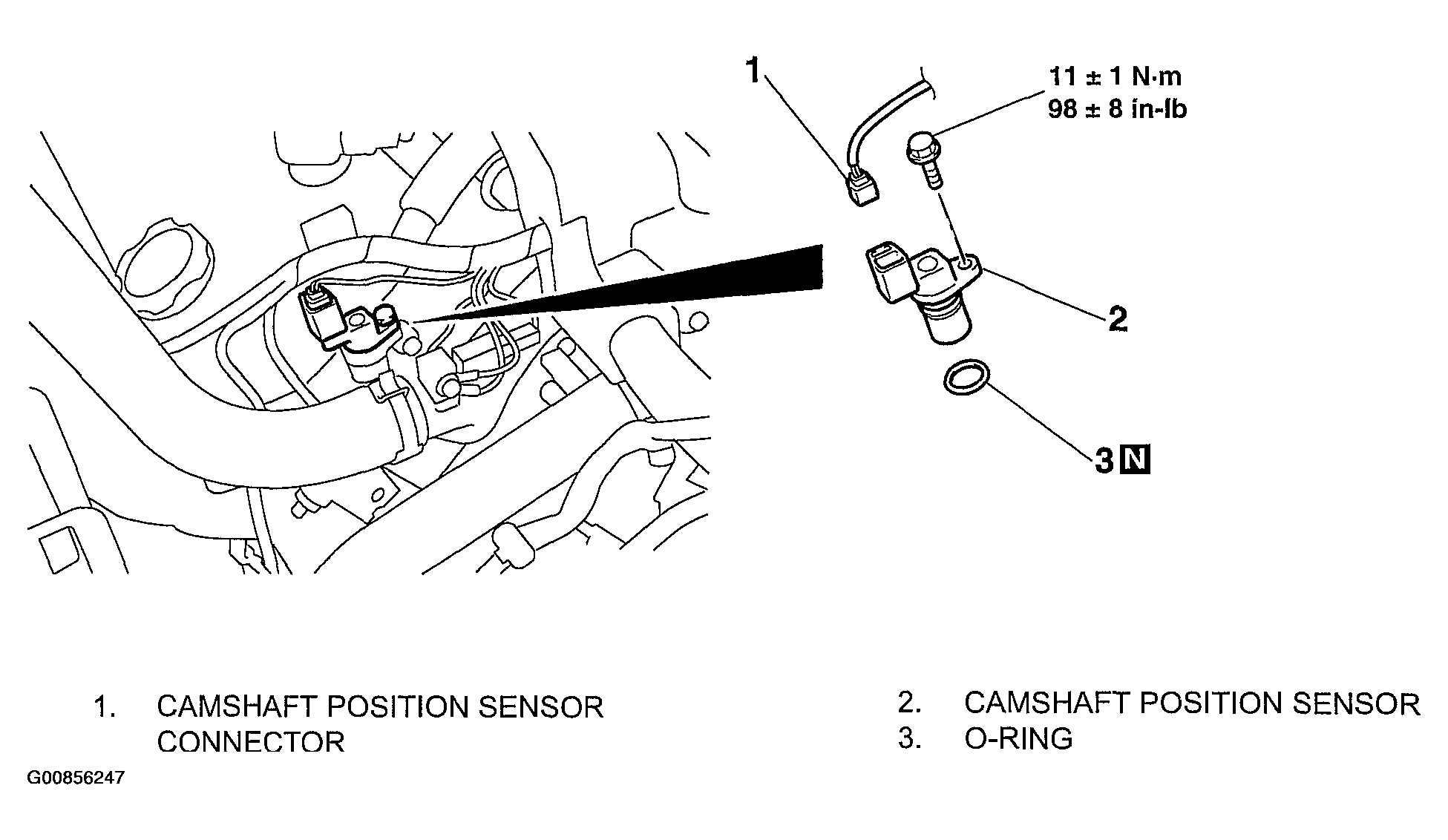

Fig 1: Removing And Installing Camshaft Position Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
