Vacuum Hose Routing
Vacuum Hose Routing

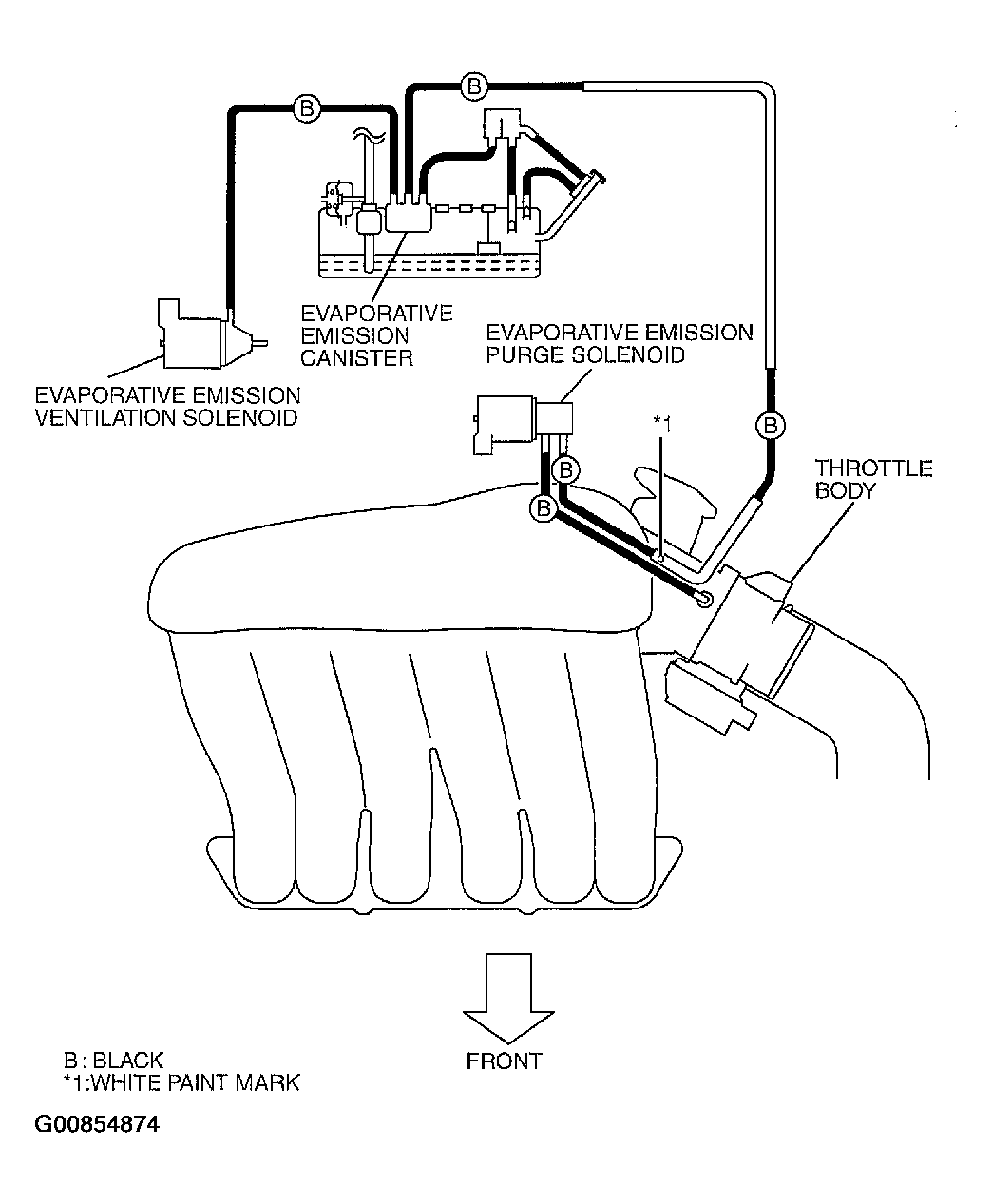

Fig 1: Identifying Vacuum Hose Routing Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
