Notes
Removal And Installation: Notes

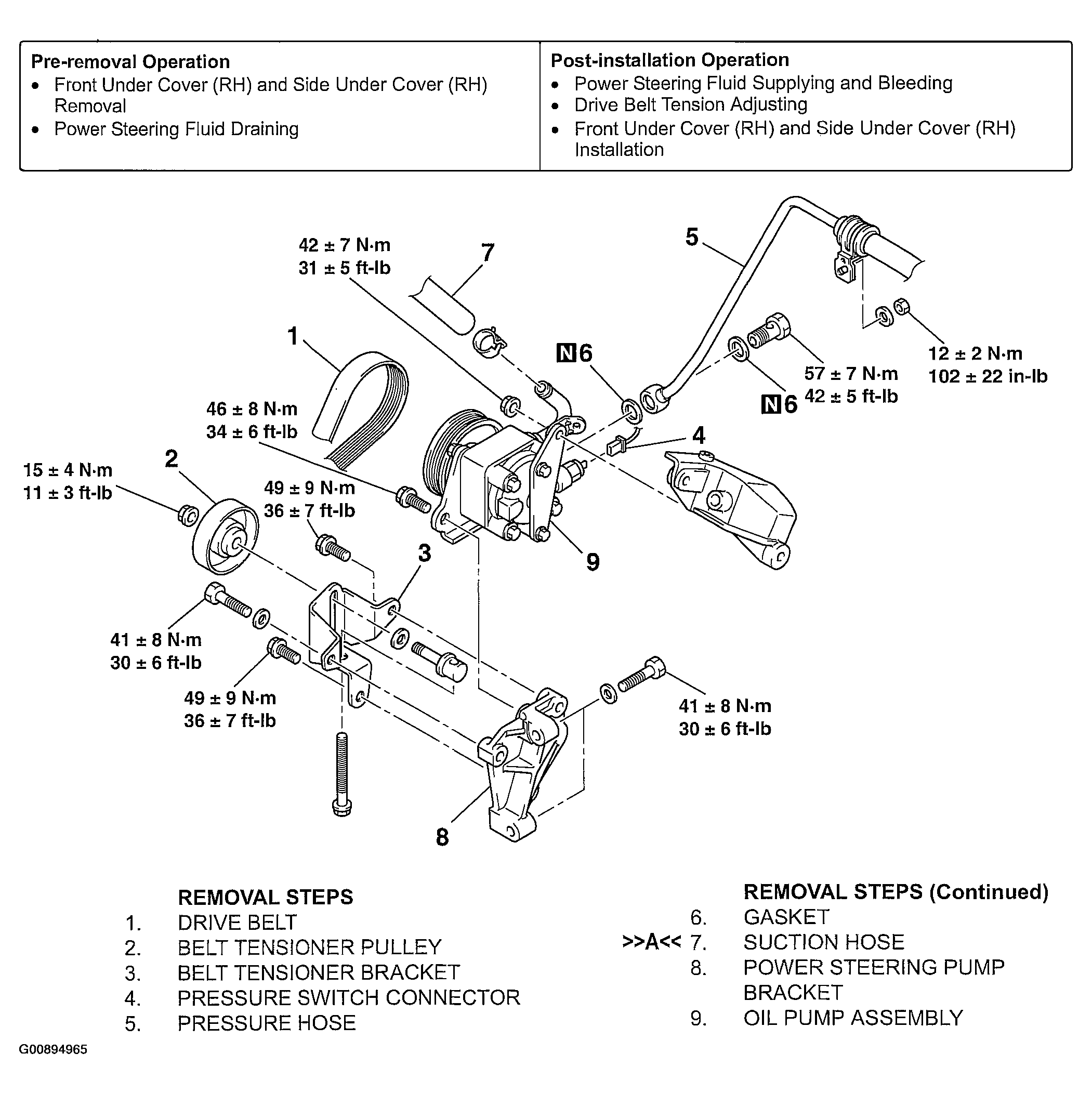

Fig 1: Removing & Installing Power Steering Oil Pump
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
