Disassembly And Assembly: Notes

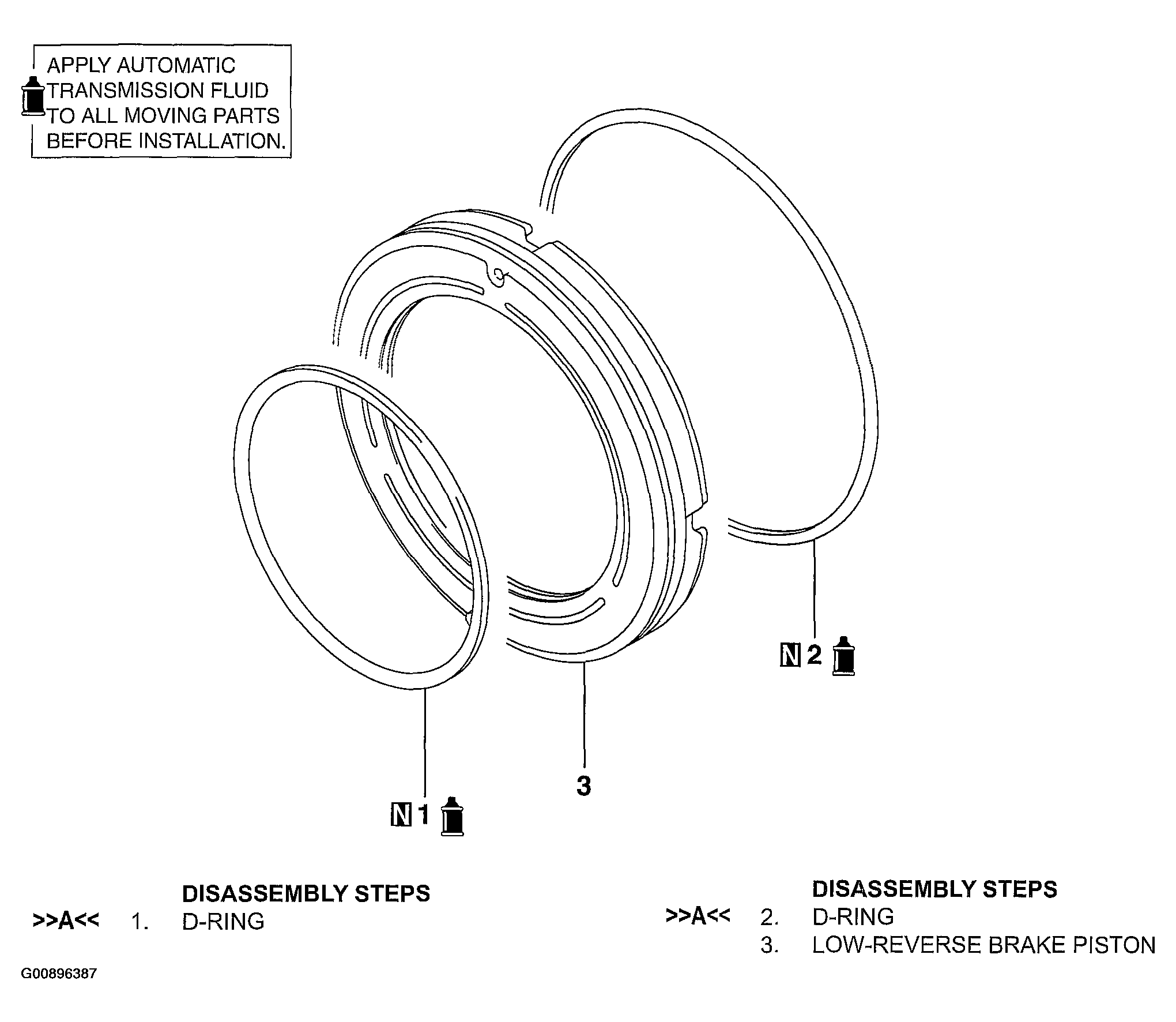

Fig 1: Disassembly And Assembly View Of Low-Reverse Brake
G00896387Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
