Disassembly And Assembly: Notes

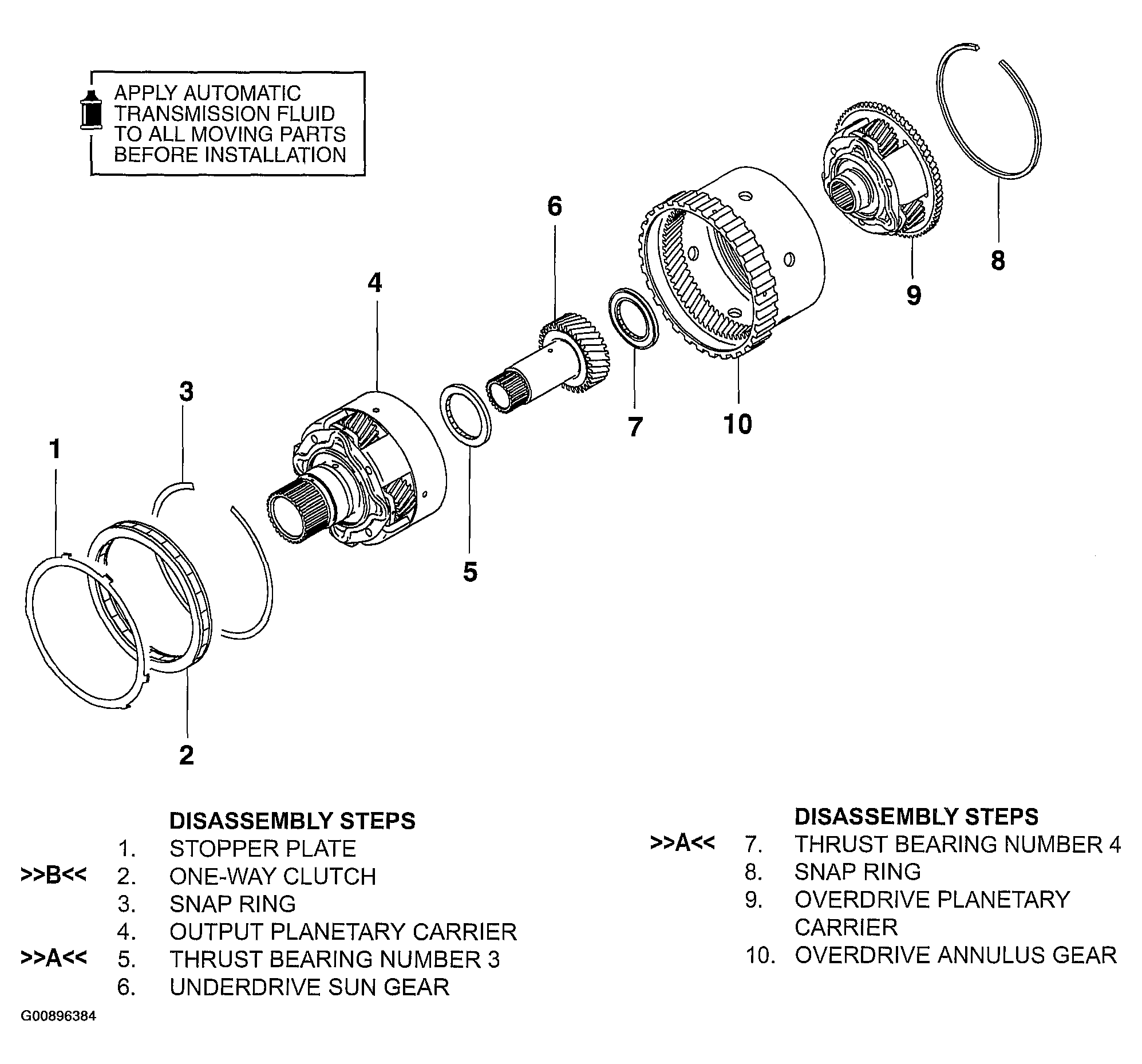

Fig 1: Disassembly And Assembly View Of Planetary Gear
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
