Disassembly And Assembly: Notes

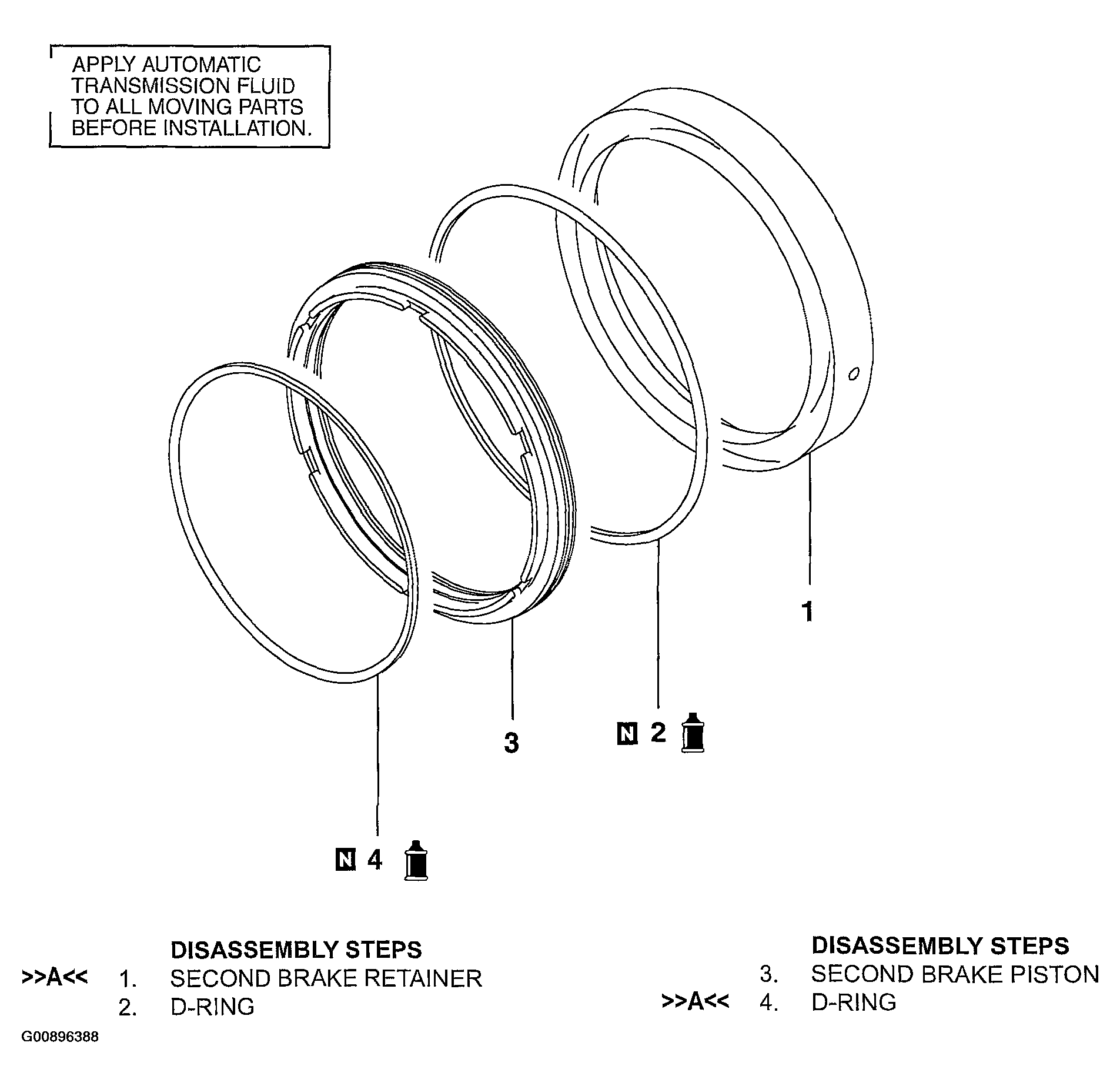

Fig 1: Disassembly And Assembly View Of Second Brake
G00896388Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
