Disassembly And Assembly: Notes

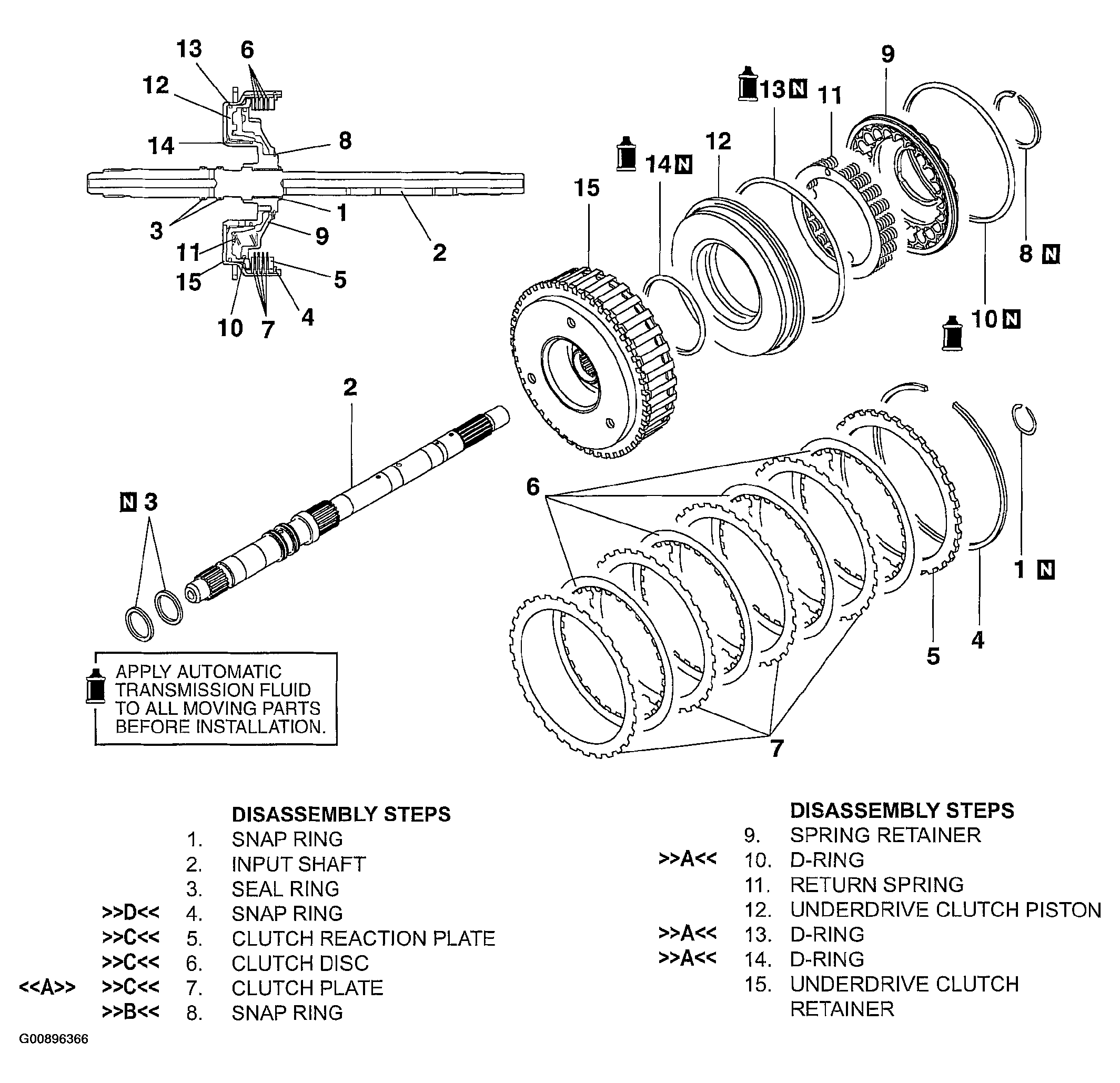

Fig 1: Disassembling And Assembling View Of Underdrive Clutch And Input Shaft

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991629: Spring Compressor
• MD998907: Spring Compressor
• MD998924: Spring Compressor Retainer
