Disassembly And Assembly: Notes

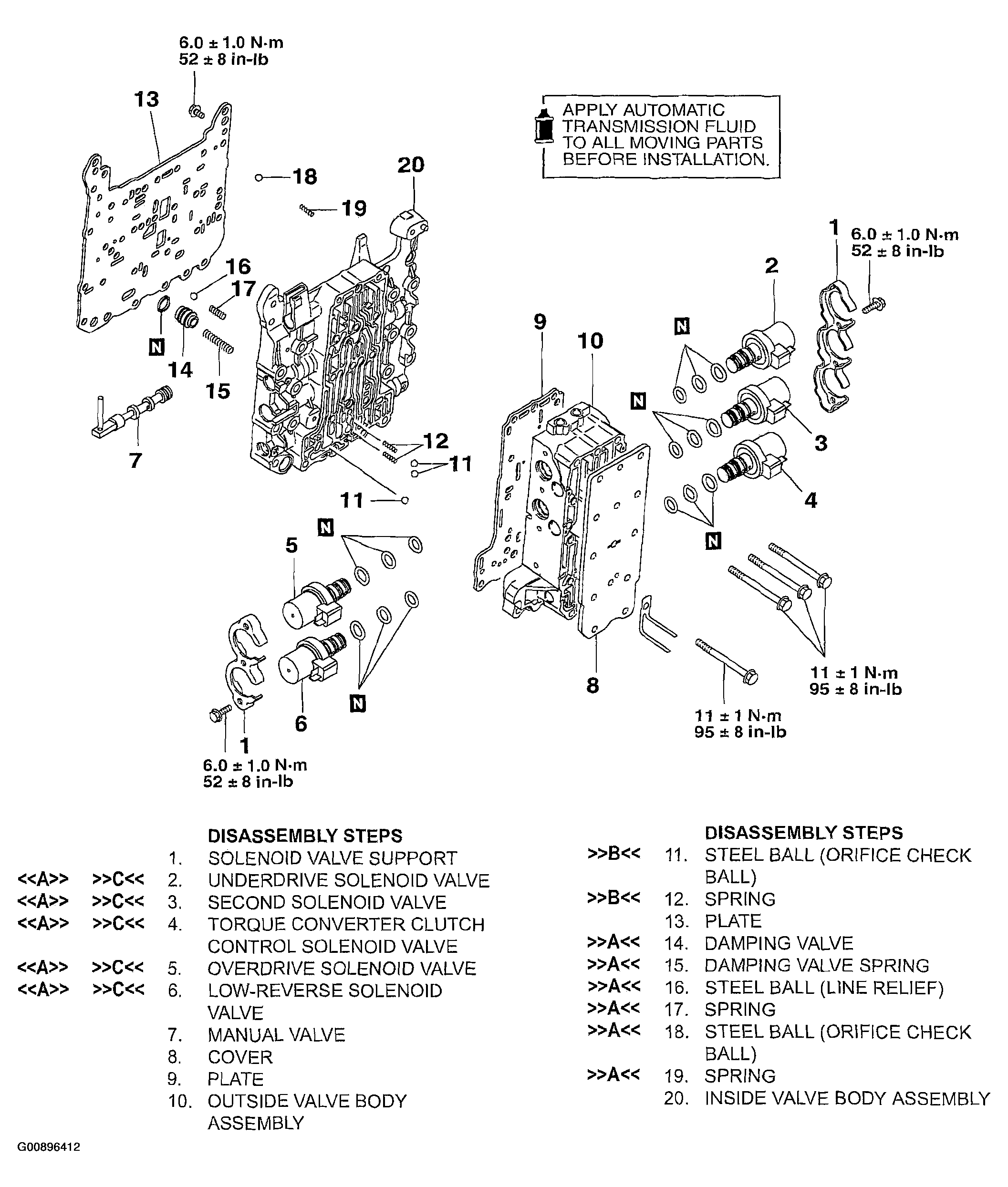

Fig 1: Exploded View Of Valve Body Components (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

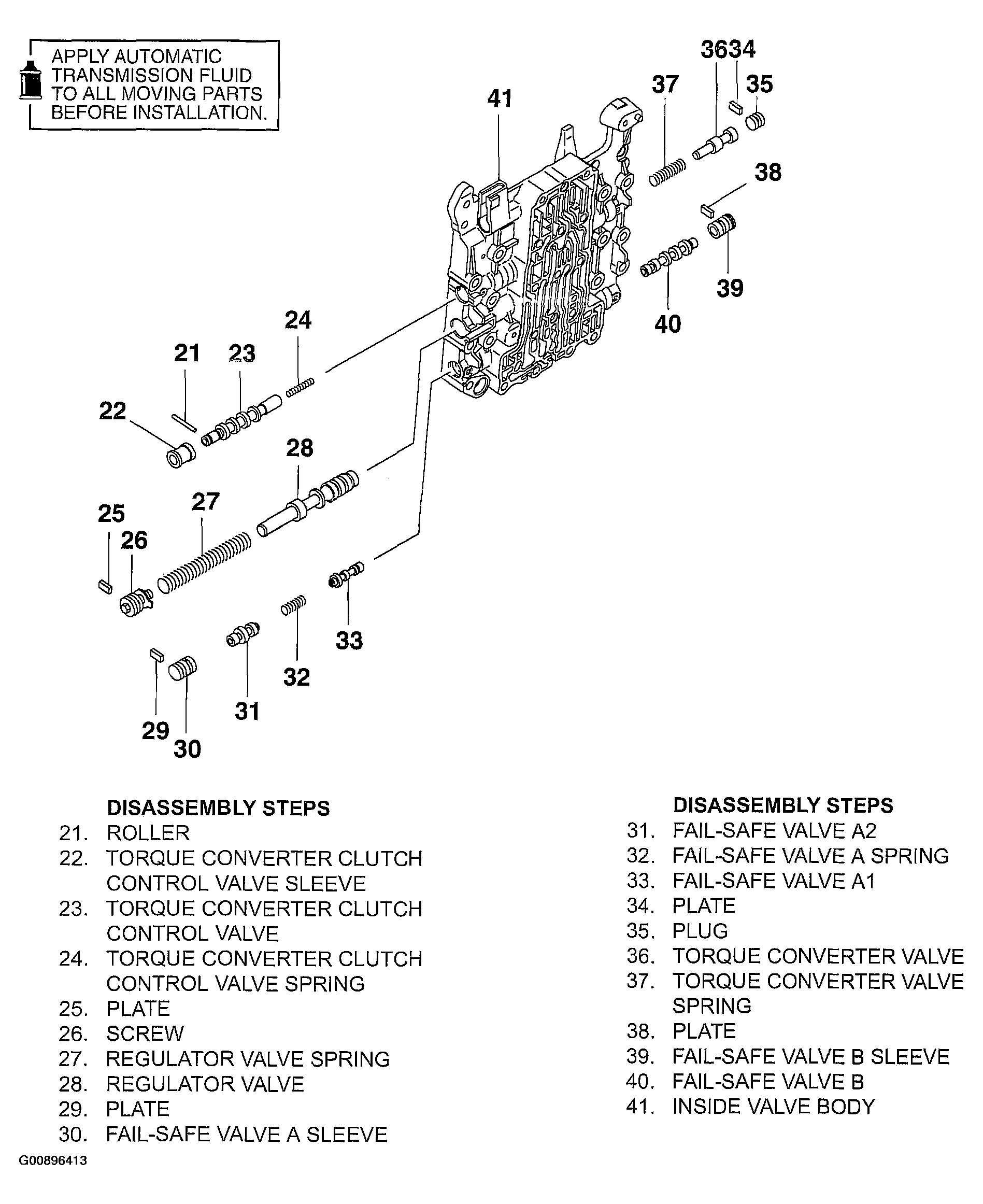

Fig 2: Exploded View Of Valve Body Components (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

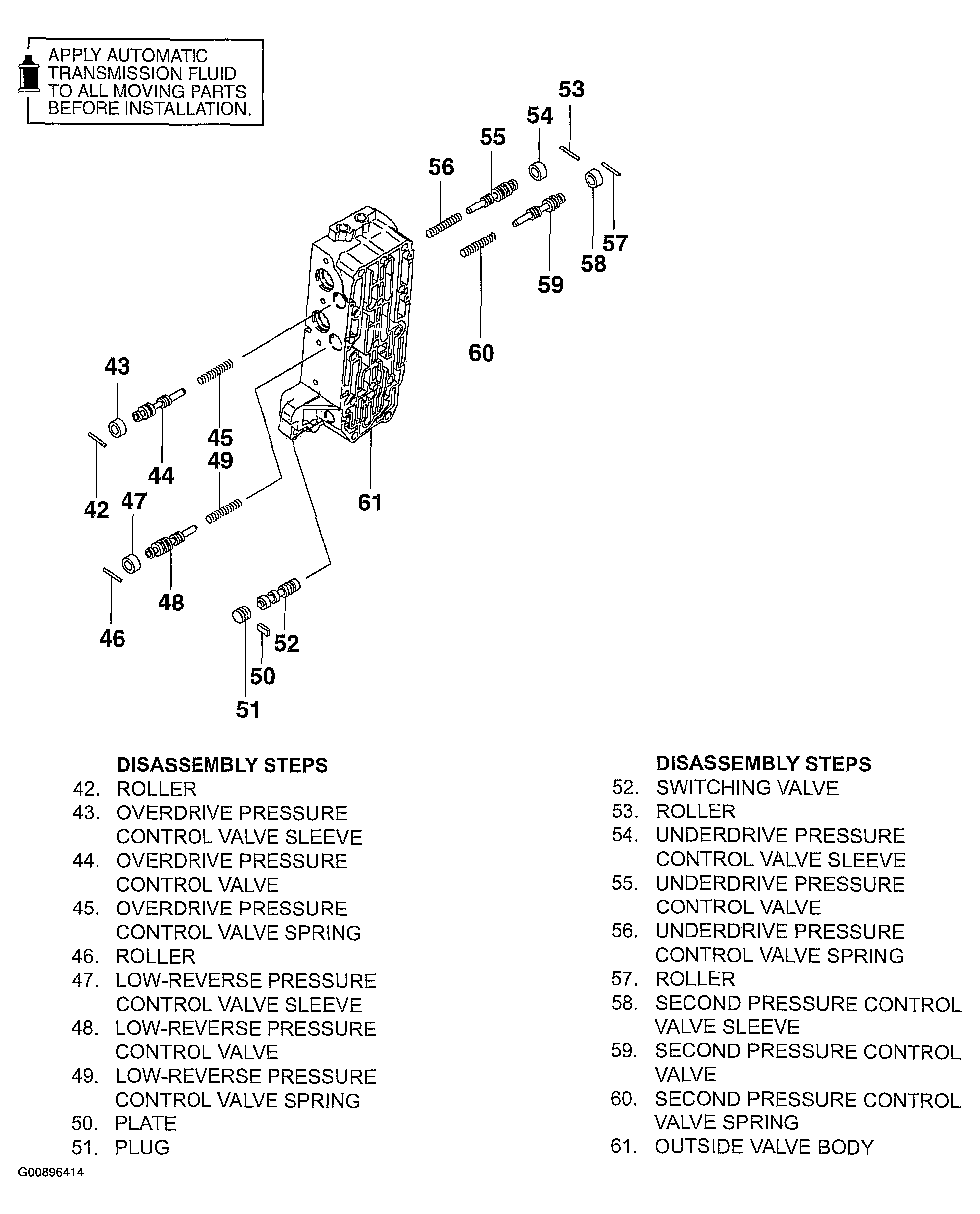

Fig 3: Exploded View Of Valve Body Components (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
