Construction Diagram

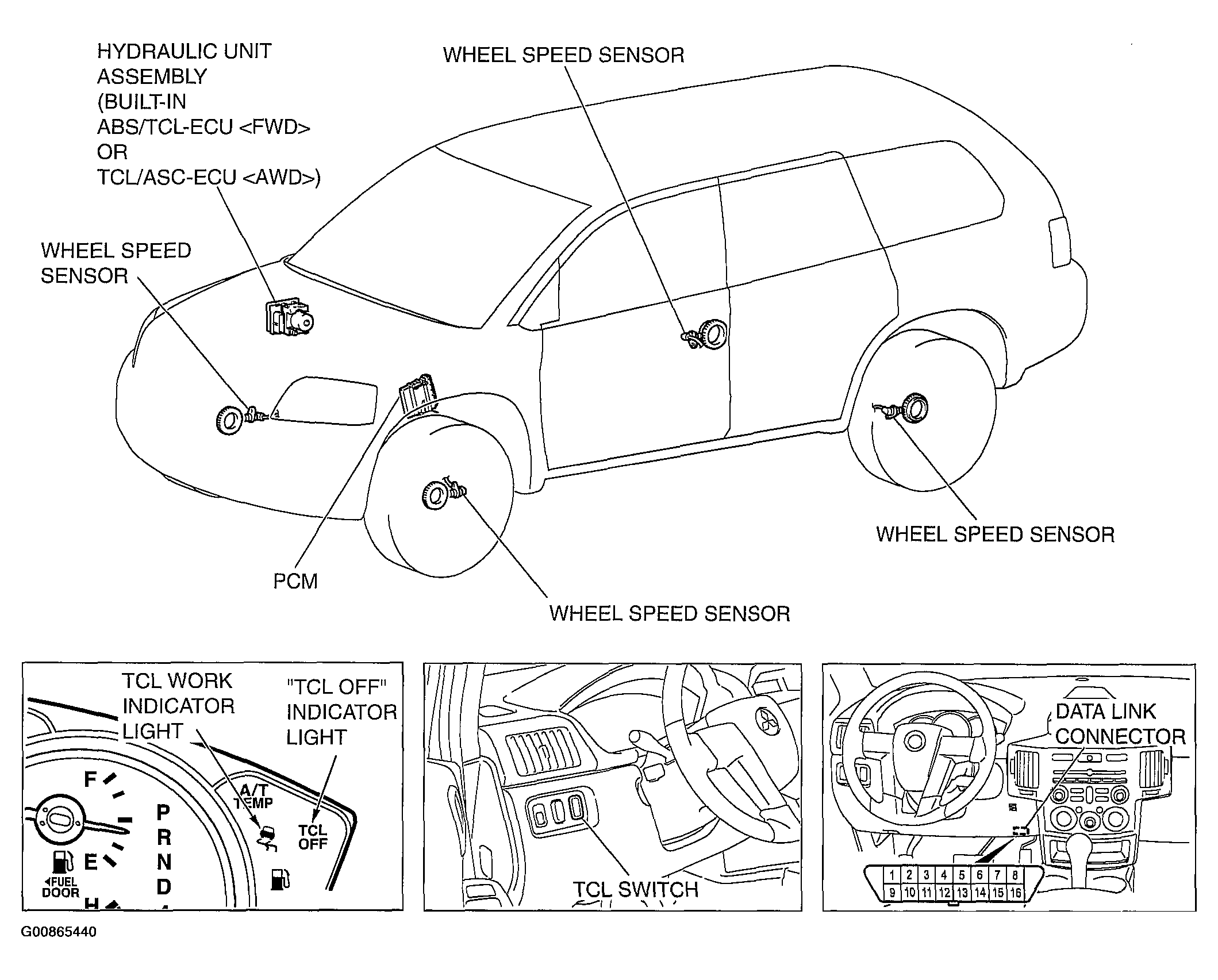

Fig 1: Identifying Traction Control System
G00865440Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
