Automatic Trans: Diagnosis: General Description: Notes

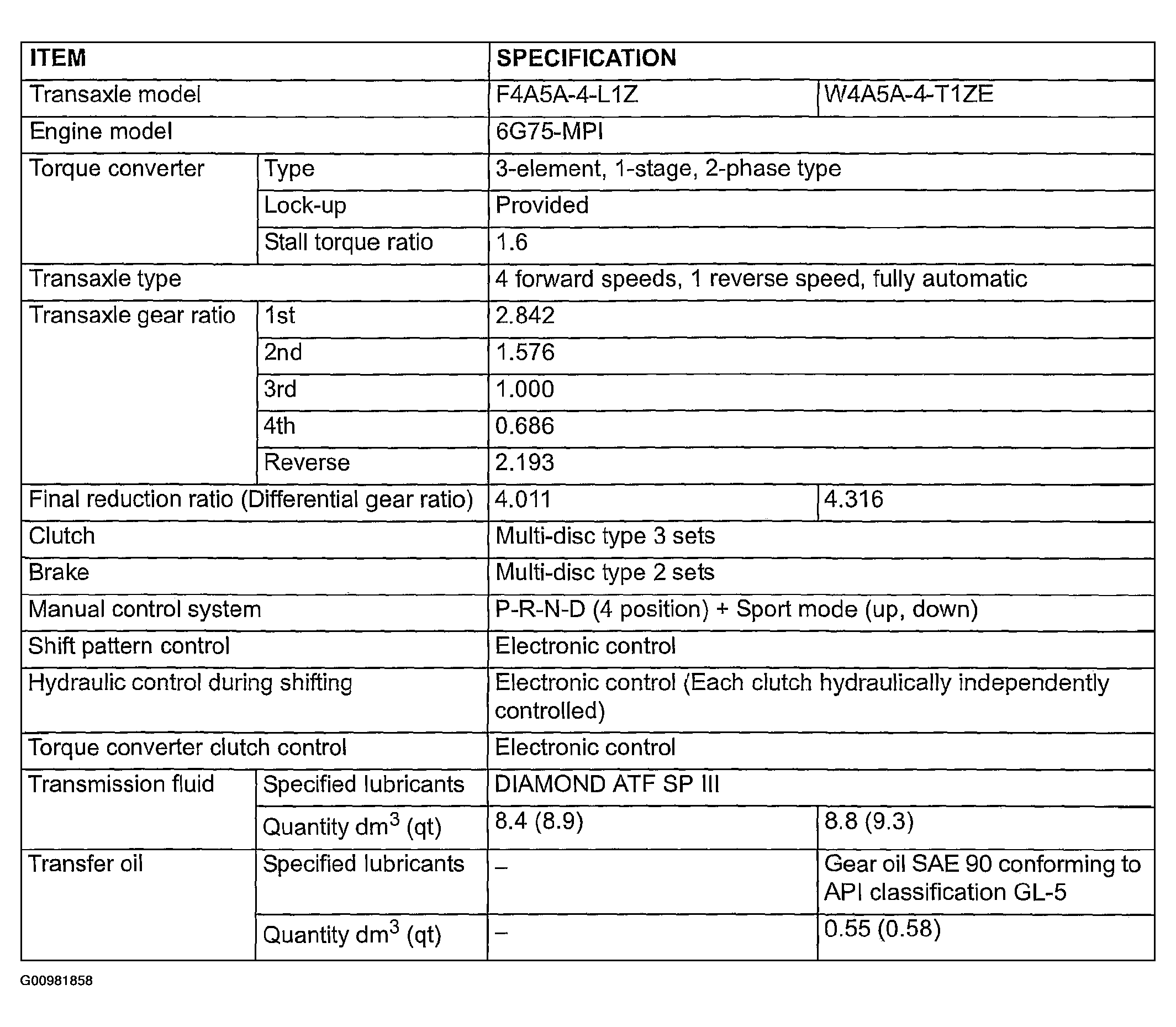

Fig 1: Automatic Transaxle General Description Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
