Endeavor LS, FWD
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Diagnosis
›
On-Vehicle Service
›
A/T Control Component Layout A/T Control Component Layout
A/T Control Component Layout A/T Control Component Layout

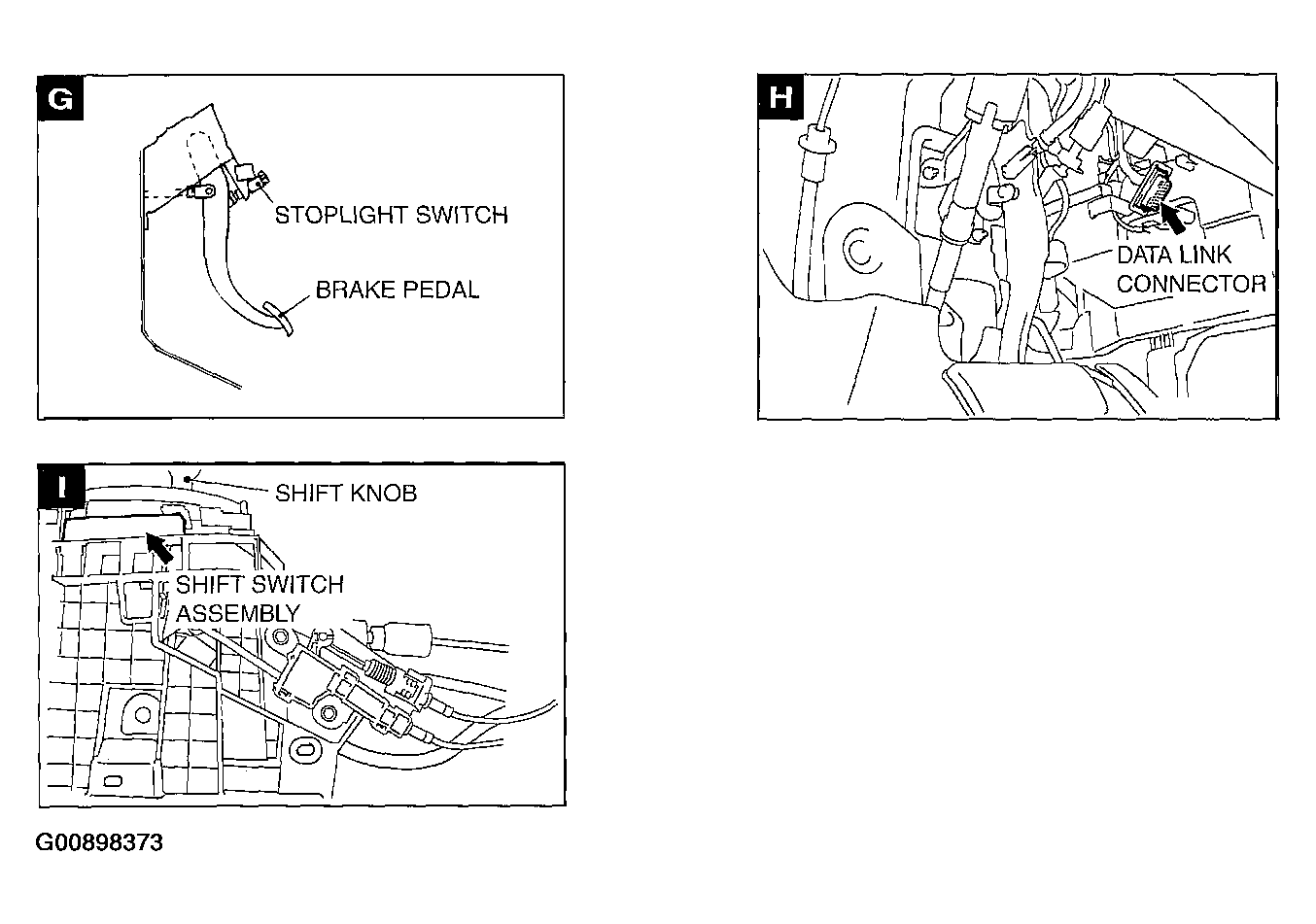

Fig 1: On-Vehicle Service A/T Control Component Layout A/T Control Component Layout (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

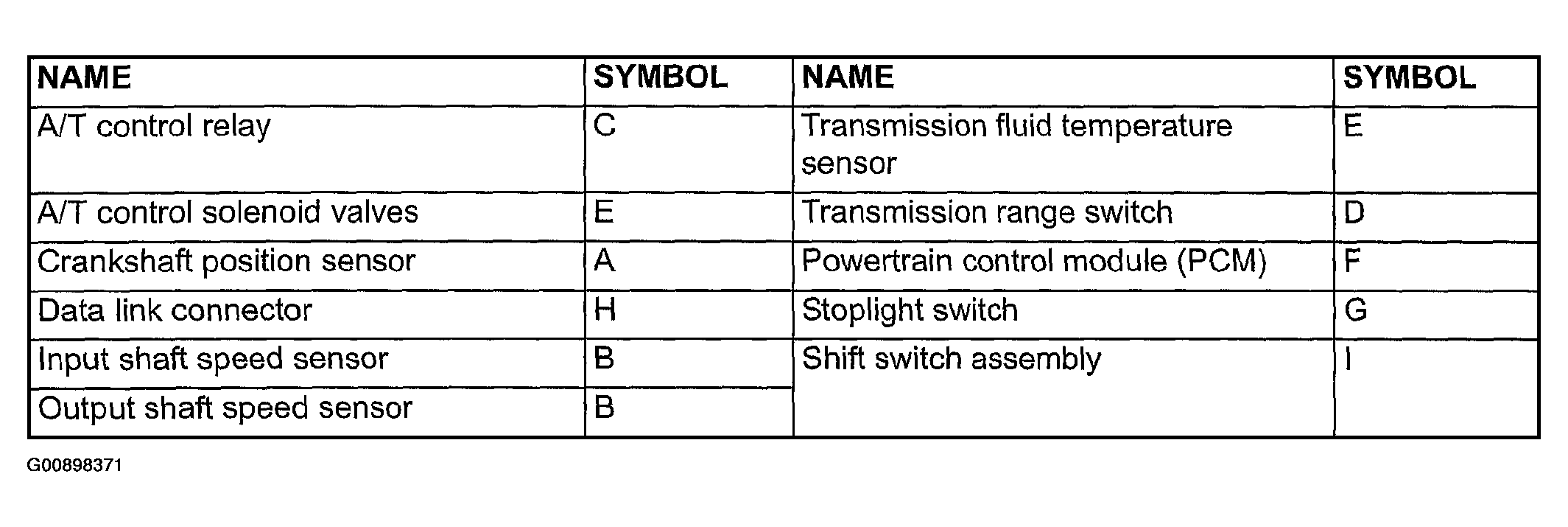

Fig 2: On-Vehicle Service A/T Control Component Layout A/T Control Component Layout (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

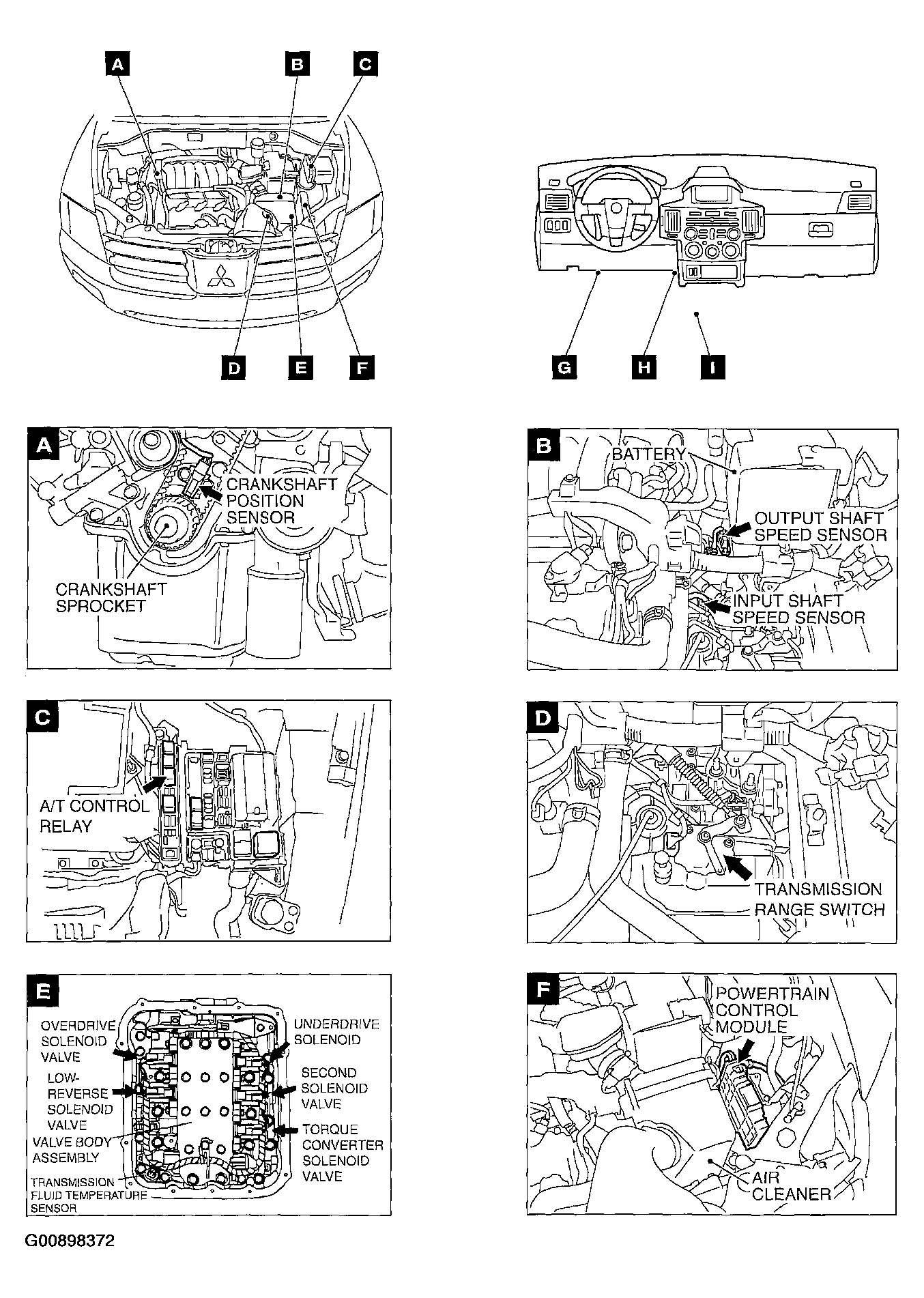

Fig 3: On-Vehicle Service A/T Control Component Layout A/T Control Component Layout (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
