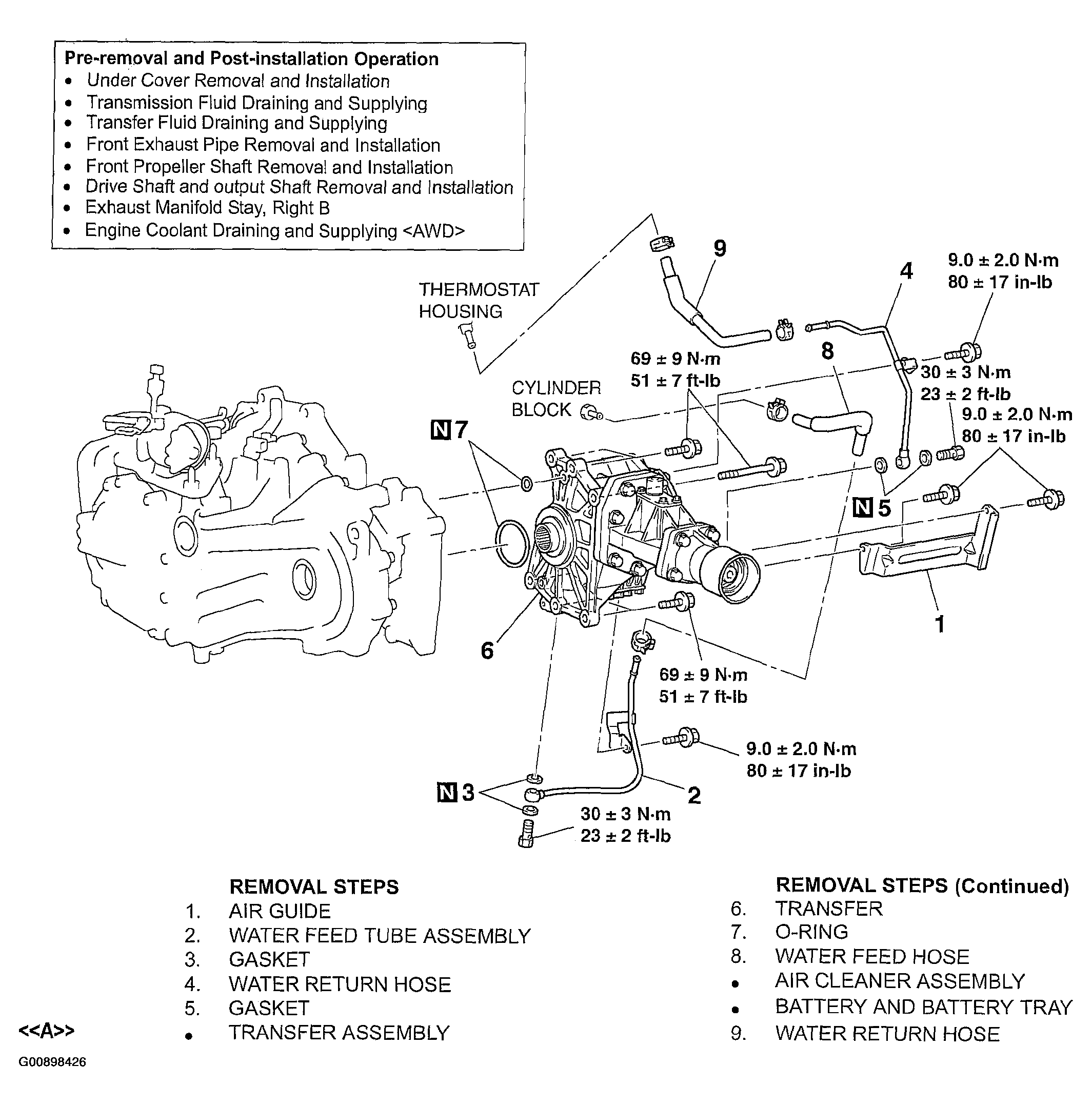

Removal And Installation: Notes
Pre-removal and Post-installation Operation
- Under Cover Removal and Installation
- Transmission Fluid Draining and Supplying (Refer to 11. TRANSMISSION FLUID ).
- Transfer Fluid Draining and Supplying
- Front Exhaust Pipe Removal and Installation (Refer to EXHAUST PIPE AND MAIN MUFFLER ).
- Front Propeller Shaft Removal and Installation (Refer to PROPELLER SHAFT ).
- Drive Shaft and output Shaft Removal and Installation (Refer to DRIVE SHAFT ASSEMBLY ).
- Exhaust Manifold Stay, Right B (Refer to EXHAUST MANIFOLD ).
- Engine Coolant Draining and Supplying < AWD > (Refer to ON-VEHICLE SERVICE ).
