INSPECTION PROCEDURE 15: Shift Switch Assembly System: Notes

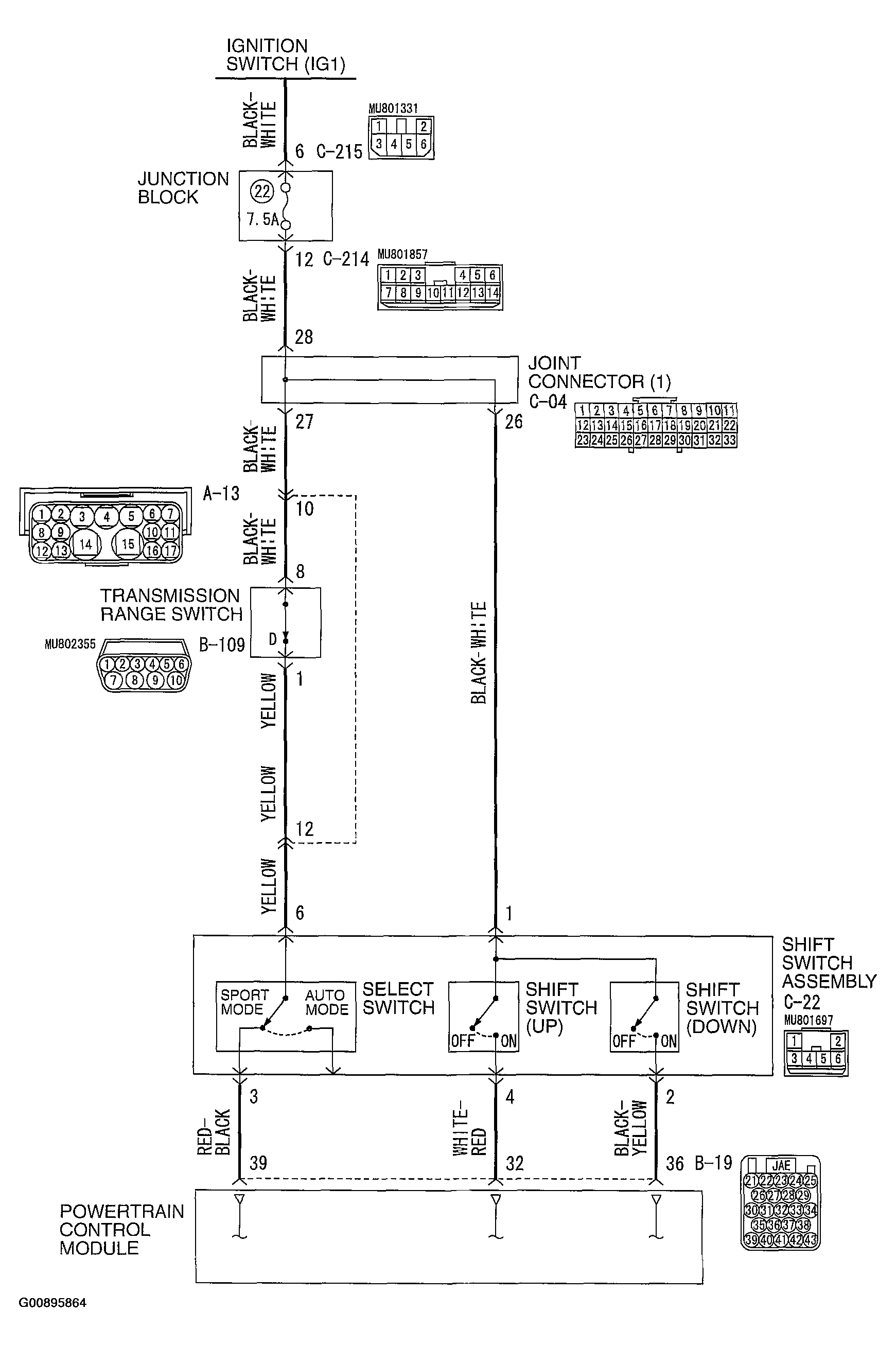

Fig 1: Shift Switch Assembly System Circuit (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

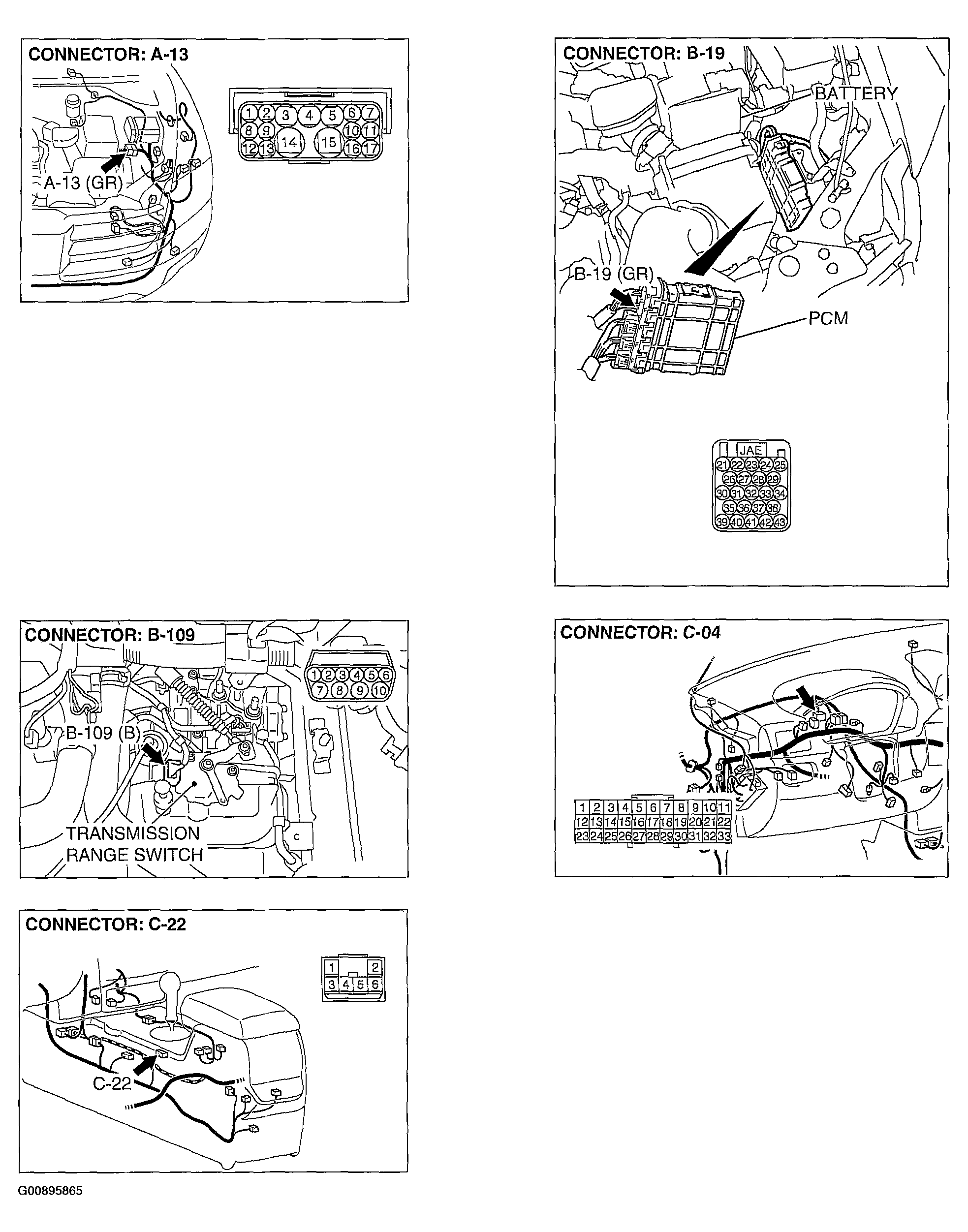

Fig 2: Shift Switch Assembly System Circuit (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

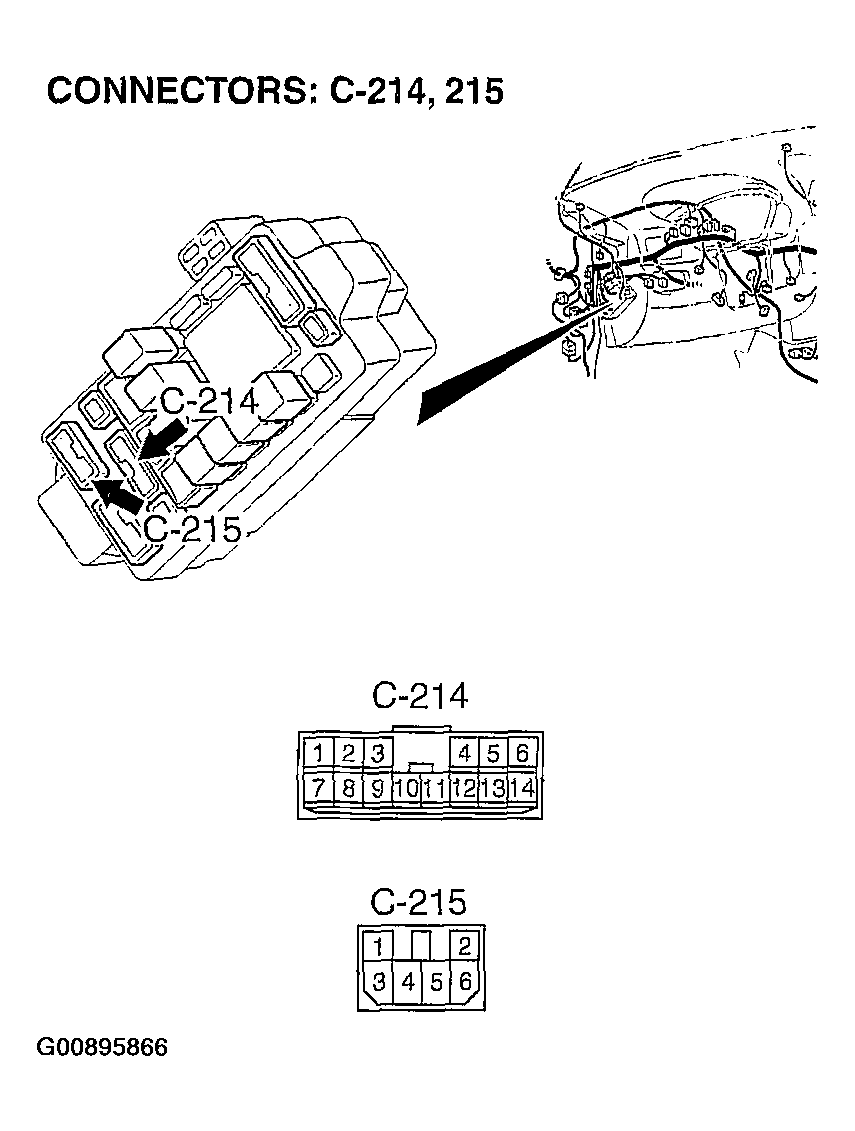

Fig 3: Shift Switch Assembly System Circuit (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
