Brakes
›
Traction Control
›
Traction Control/Active Skid
›
General Information
›
Actuator
›
Indicator Light Operation Pattern
Indicator Light Operation Pattern

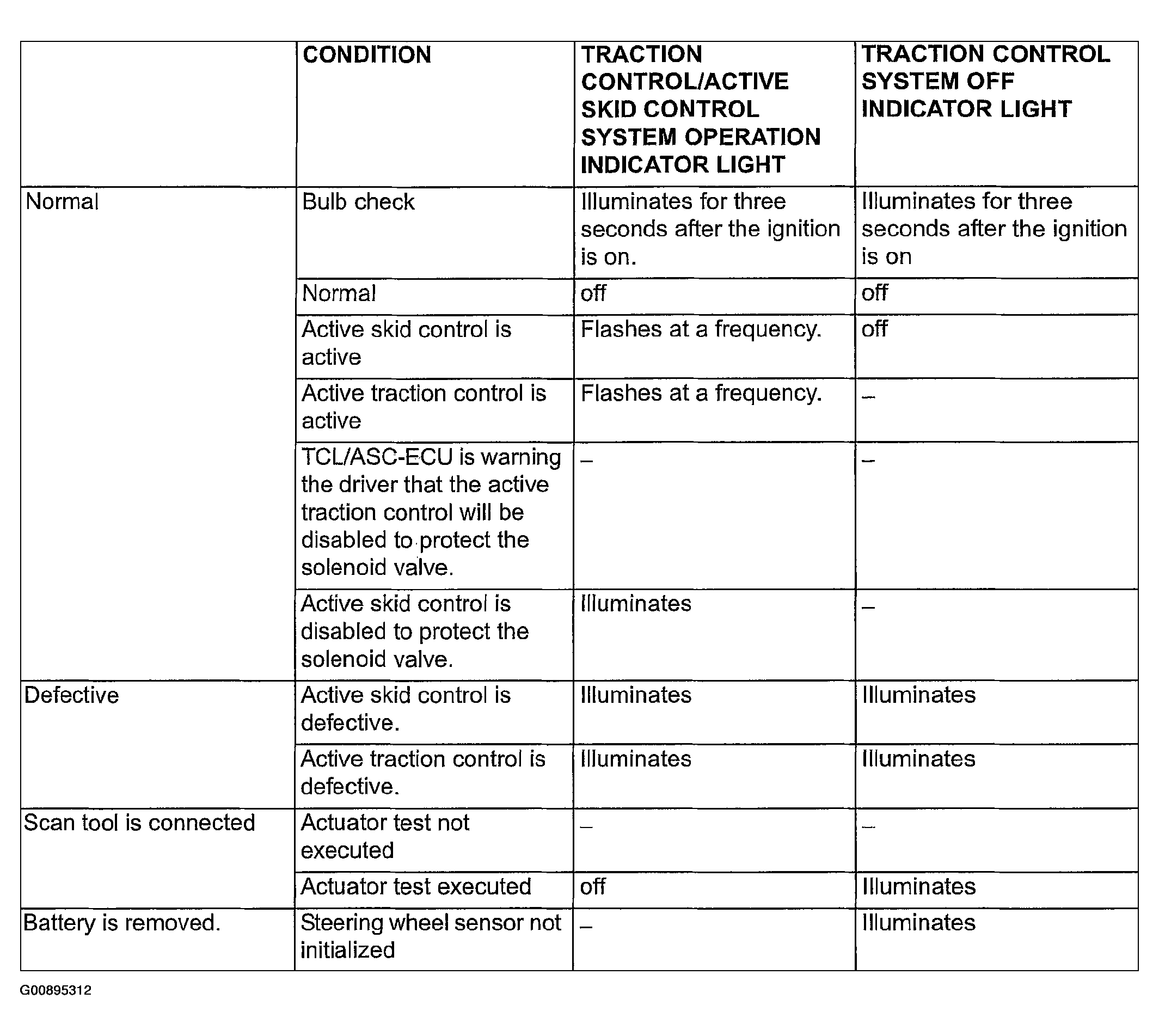

Fig 1: Traction Control System Off Indicator Light Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
