Disassembly And Assembly: Notes

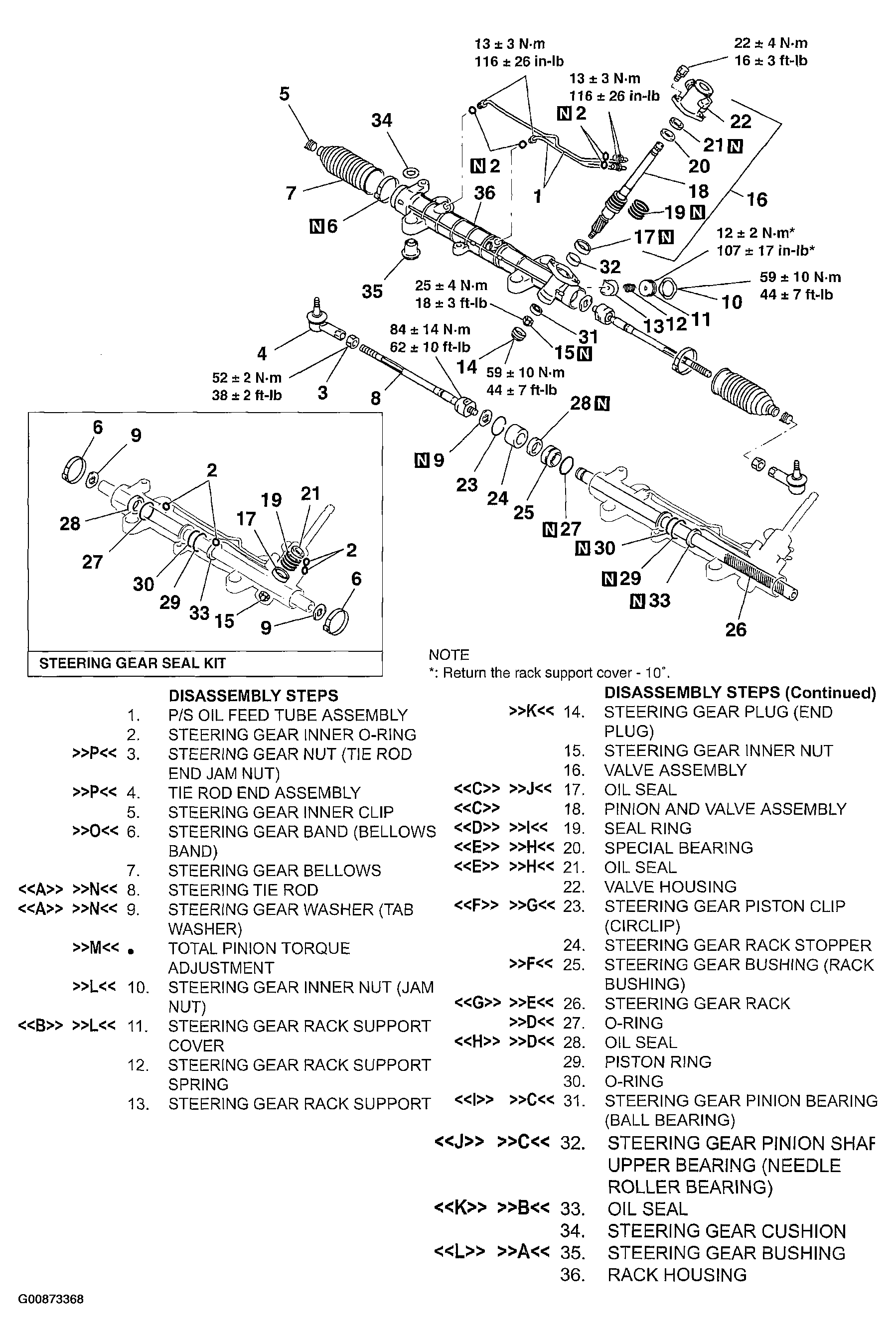

Fig 1: Disassembling And Assembling Power Steering Gear Box And Linkage

G00873368

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990927: Installer Adapter
MB990938: Bar (Snap-in type)
MB990939: Brass Bar
MB990996: Lower Arm Bushing Arbor
MB991006: Preload Socket
MB991120: Needle Bearing Puller
MB991152: Dust Cover Installer
MB991197: Bar (Long type)
MB991199: Oil Seal Installer
MB991202: Oil Seal and Bearing Installer
MB991203: Oil Seal and Bearing Installer
MB991204: Torque Wrench Socket
MB991213: Rack Installer
MB991317: Seal Ring Installer
MB991561: Boot Band Crimping Tool
MD998812: Installer Cap
MD998813: Installer 100
MD998822: Installer Adapter
MD998368: Bearing Installer
MD999569: Camshaft Oil Seal Installer
