Transmission Range Switch Check

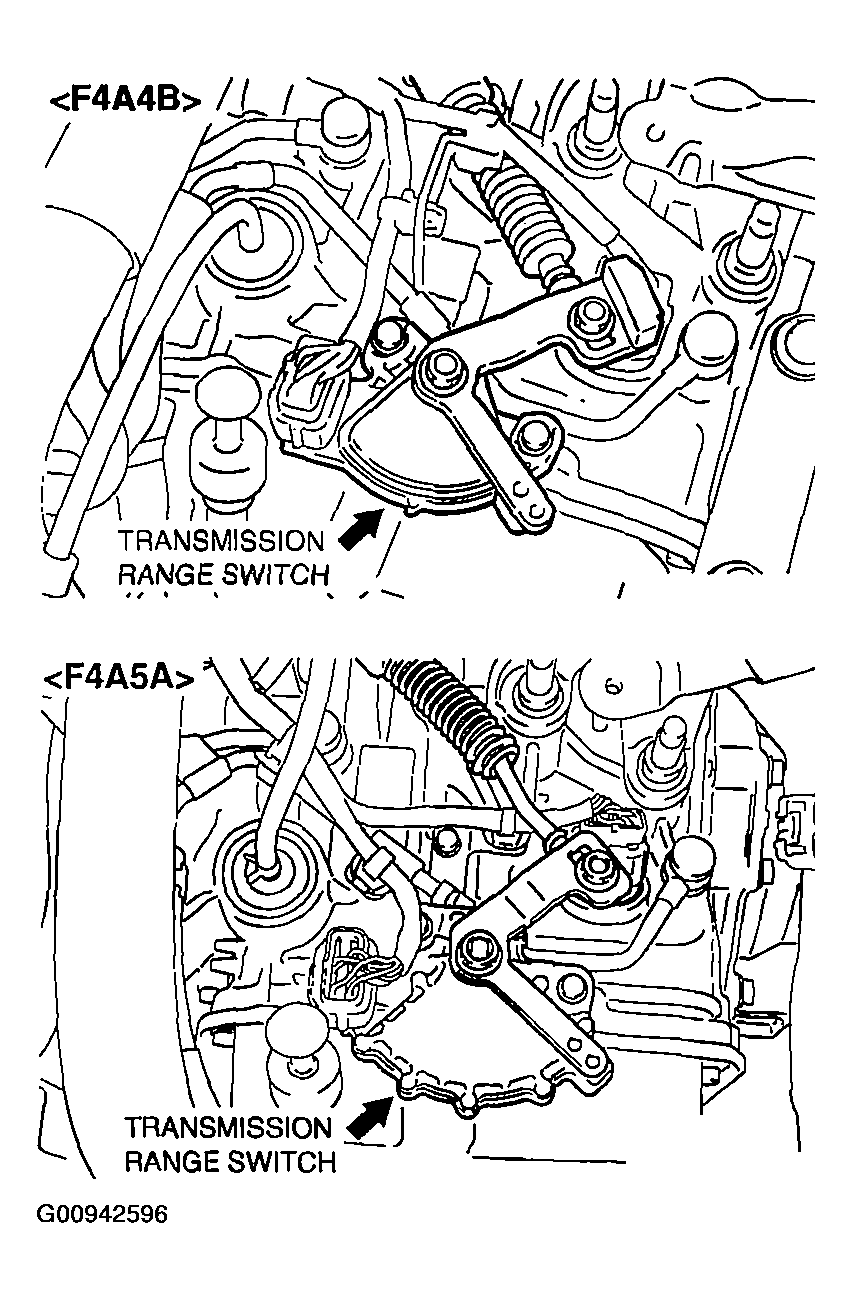

Fig 1: Identifying Transmission Range Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

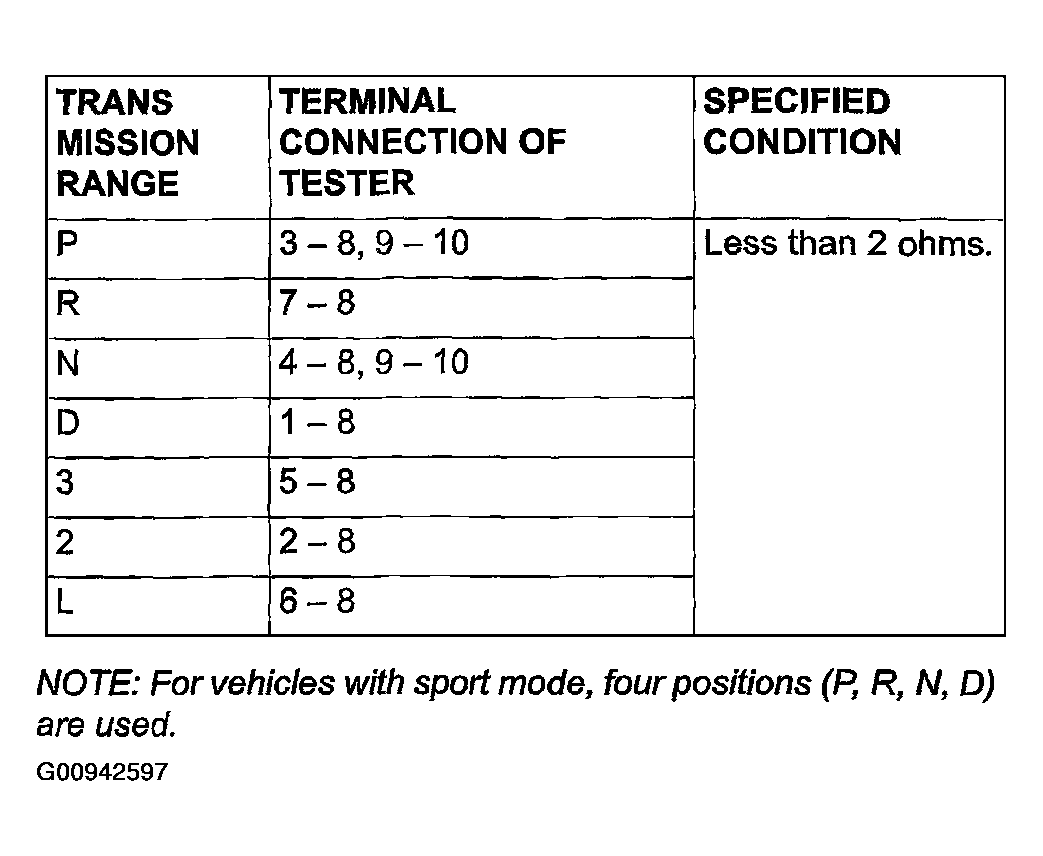

Fig 2: Transmission Range Switch Check Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

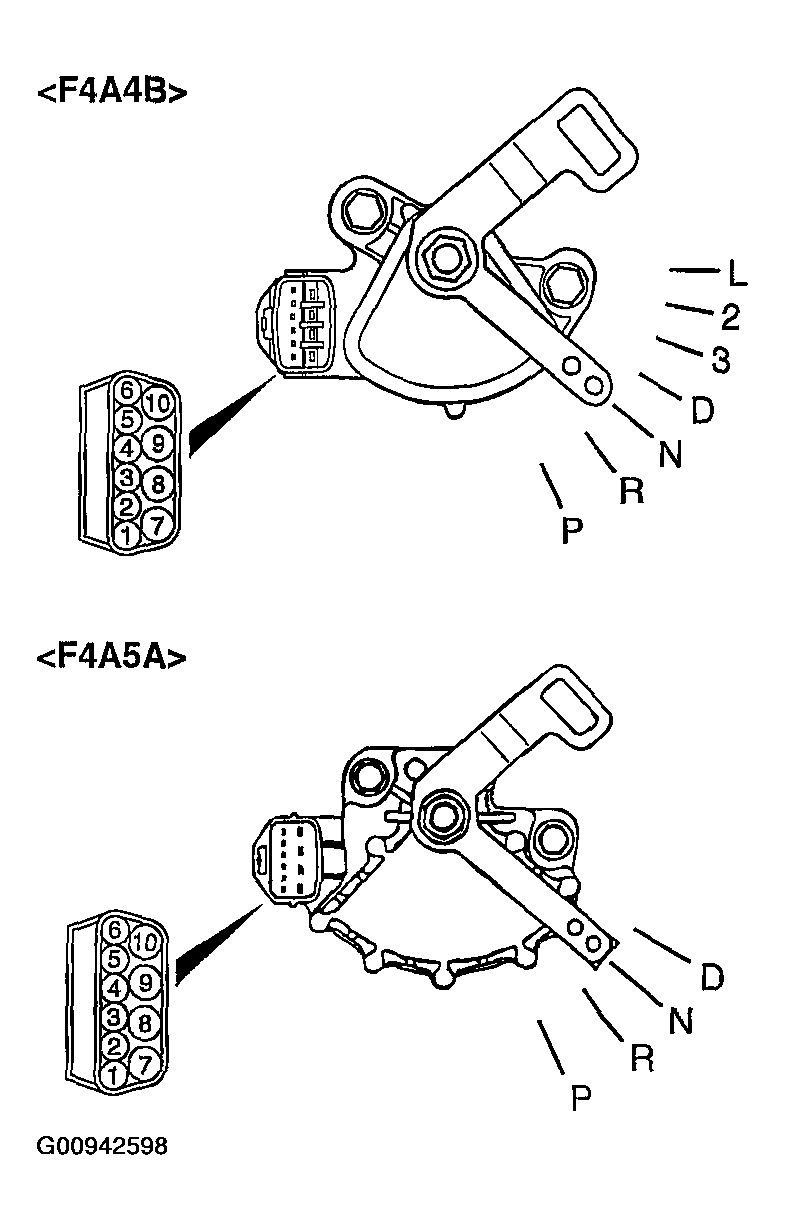

Fig 3: Identifying Transmission Range Switch Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
