Disassembly And Assembly: Notes

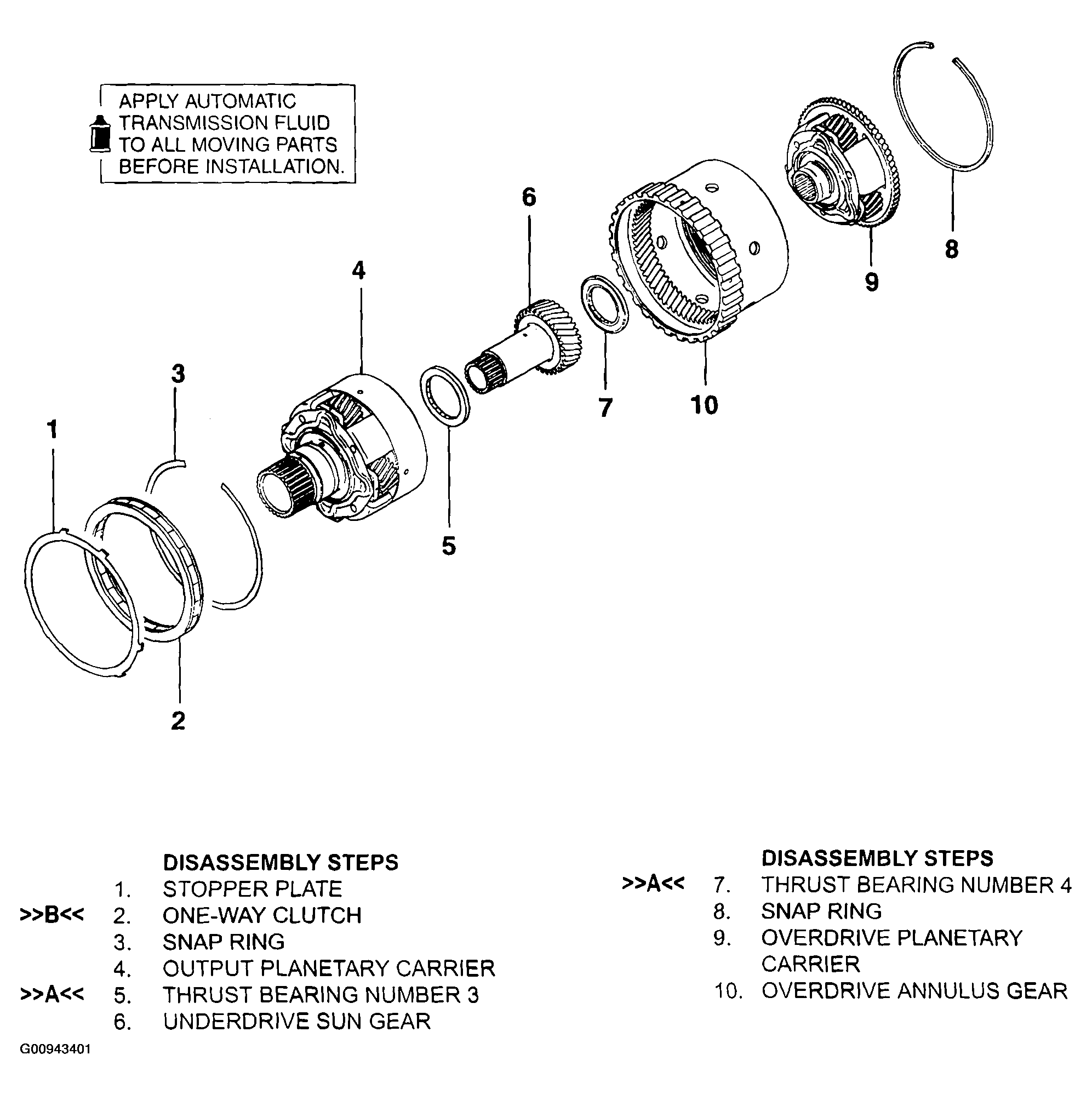

Fig 1: Exploded View Of Planetary Gear Components

G00943401

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
