Stoplight Switch

  1. Disconnect the connector.
    Fig 1: Identifying Terminal Connector Of Tester chart
    G00944299Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Check for continuity between the terminals of the switch.

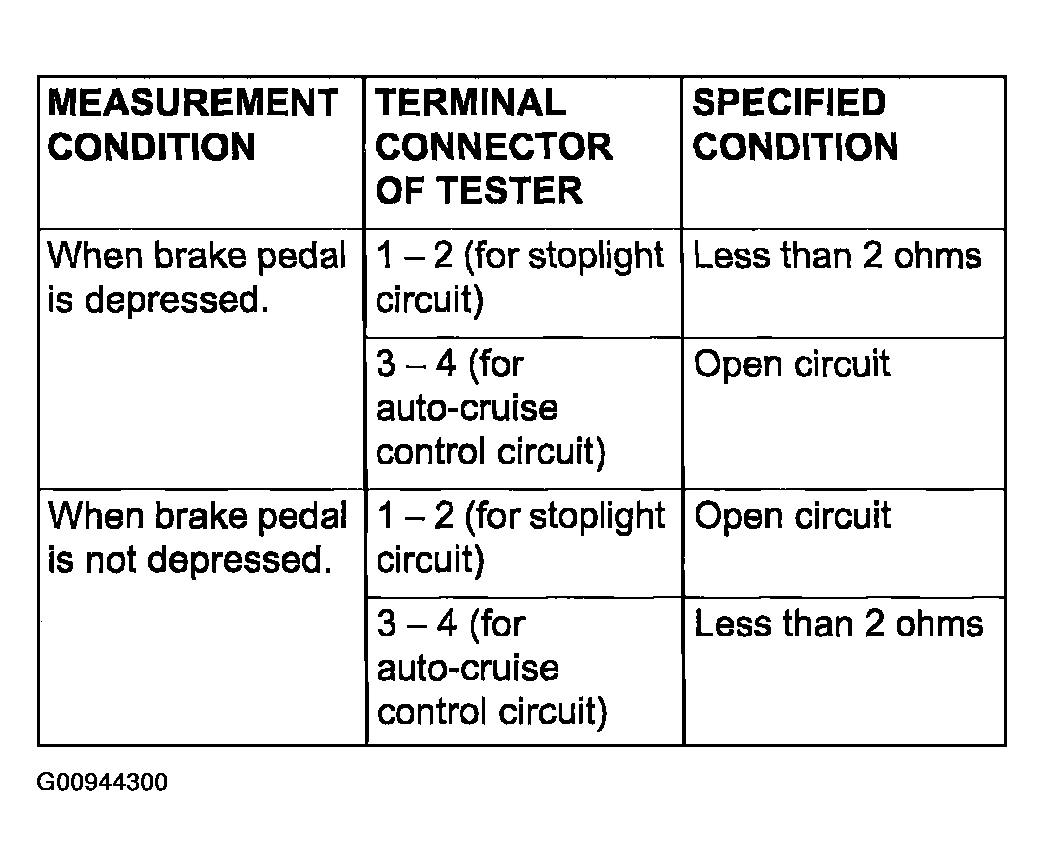

    Fig 2: Checking For Continuity Between Terminals Of Switch
    G00944300Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
