Removal And Installation: Notes

WARNING:

• When removing and installing the shift lock cable unit and key interlock cable, be careful not to hit the SRS-ECU.
• When removing and installing the front passenger seat, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle. (Refer to AIR BAG RESTRAINT SYSTEMS .)

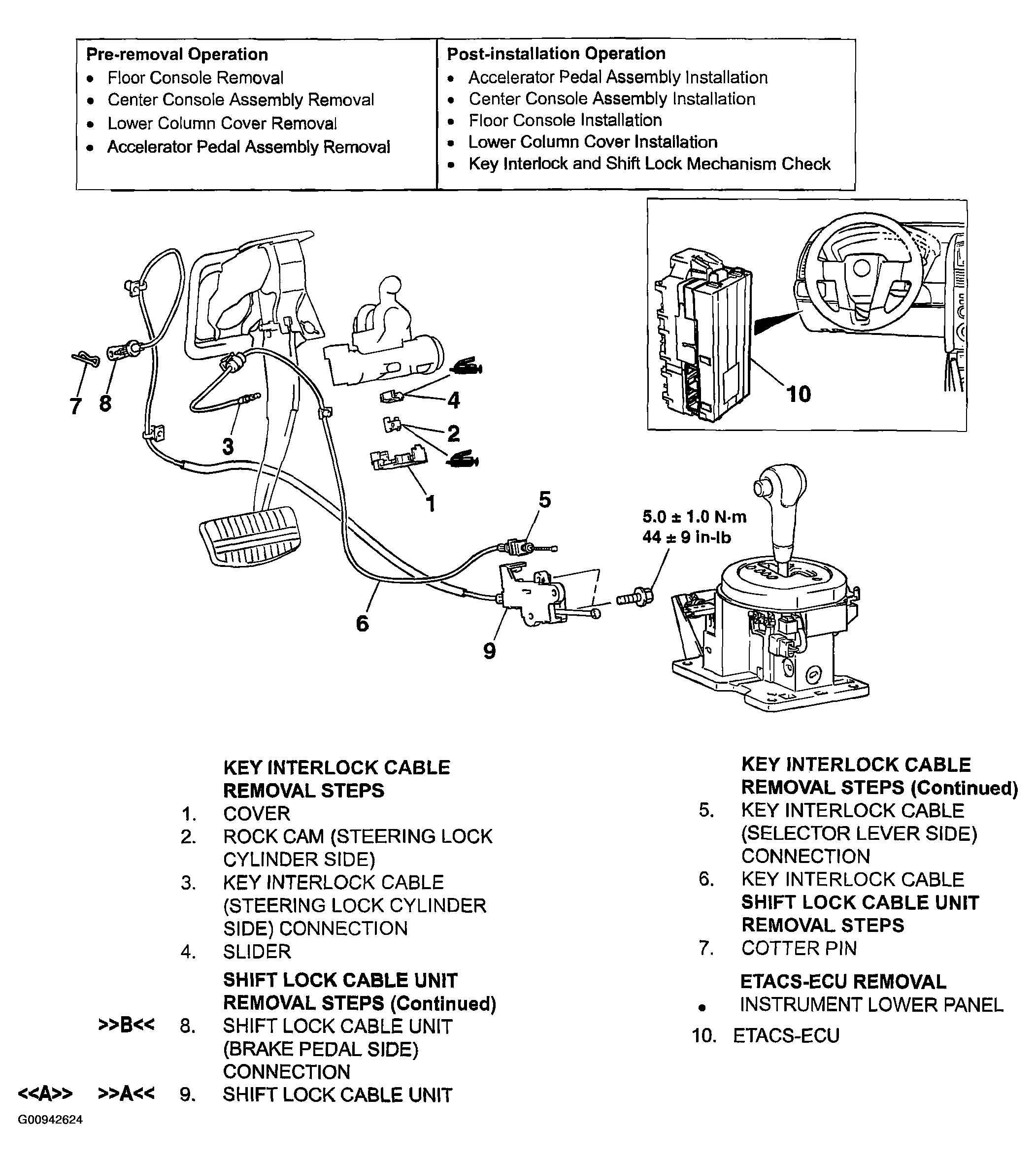

Fig 1: Identifying A/T Key Interlock And Shift Lock Mechanisms

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
