Downshift Pattern < F4A4B>
Downshift Pattern < F4A4B>

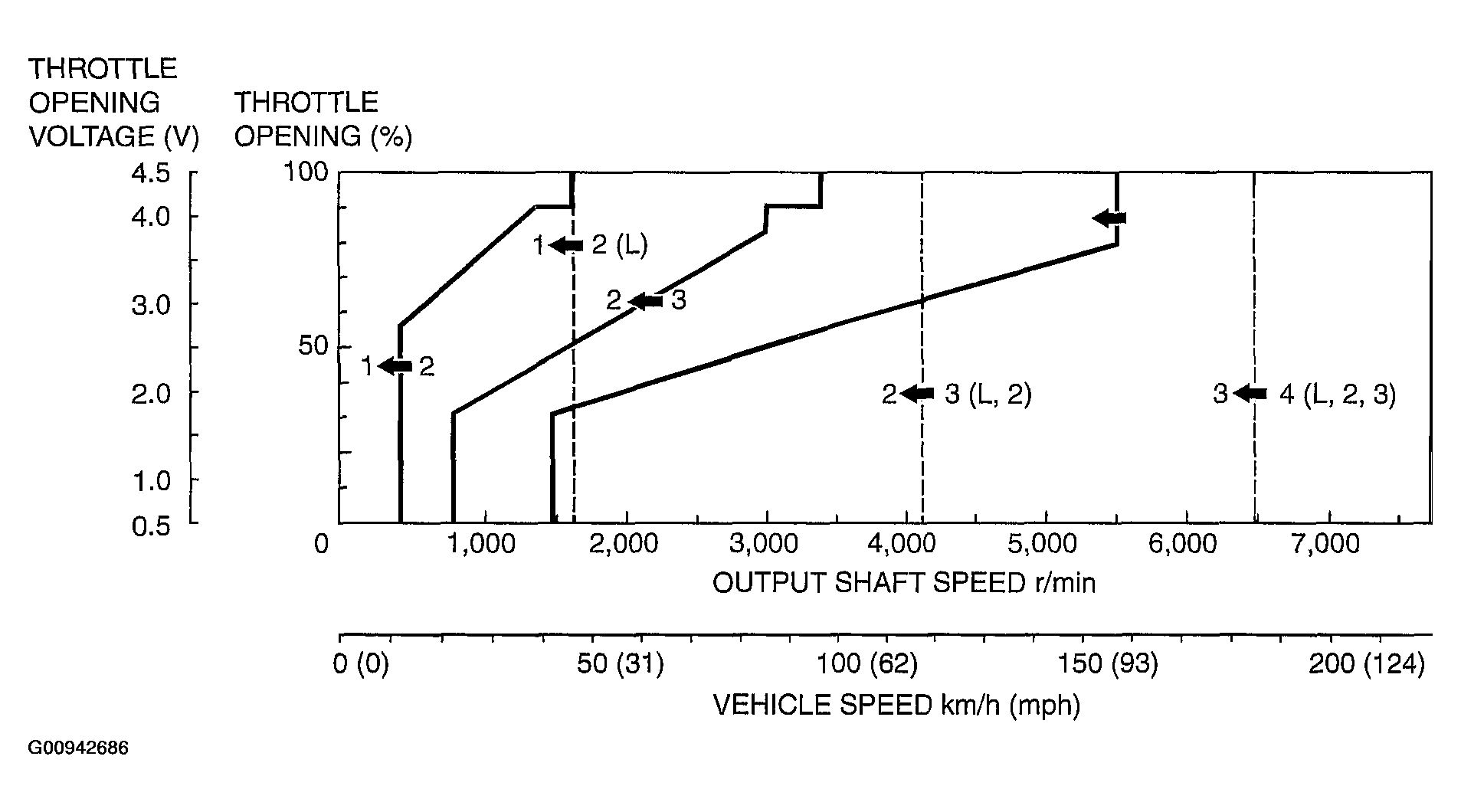

Fig 1: Shift Pattern Control Graph (Downshift Pattern < F4A4B>)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
