Removal And Installation: Notes

WARNING:
  • When removing and installing the transaxle control cable and shift lock cable unit, be careful not to hit the SRS-ECU.
  • When removing and installing the front passenger seat, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle. (Refer to AIR BAG RESTRAINT SYSTEMS .)

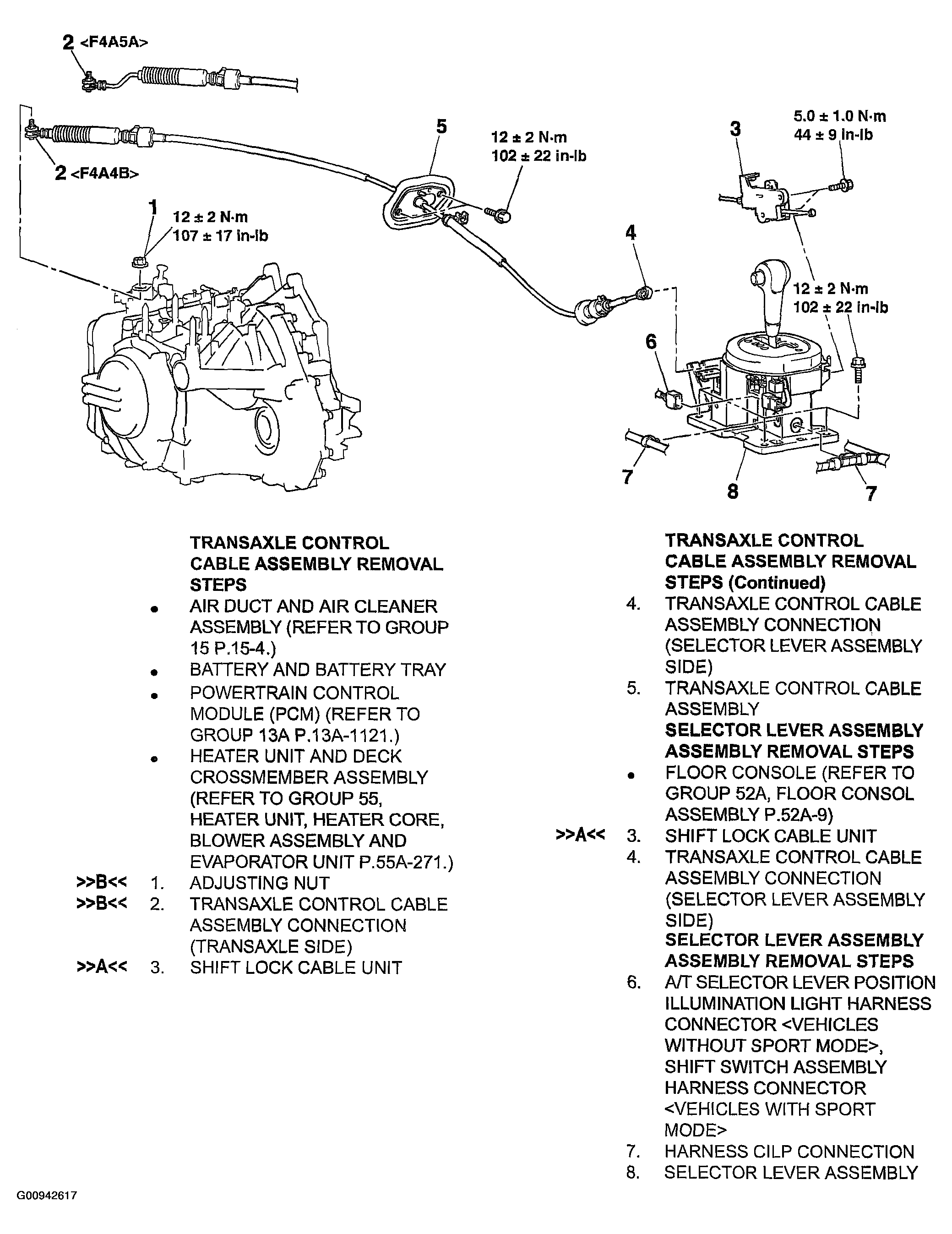

Fig 1: Transaxle Control Cable Assembly Components
G00942617Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
